ASUSTeK Computer Inc. RS720Q-E9-RS8 SPECpower_ssj2008 = 11,935 overall ssj_ops/watt
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Multi Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: Jan 10, 2019
Hardware Availability: Jan-2019 Software Availability: Aug-2018 Publication: May 10, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,431 21.0
Calibration 2 1,450 21.1
Calibration 3 1,414 21.0
100% 1,417 21.0
90% 1,287 21.1
80% 1,139 21.2
70% 1,003 21.2
60% 888 21.1
50% 783 21.0
40% 689 20.8
30% 598 20.6
20% 513 20.5
10% 427 20.4
Active Idle 193 20.2

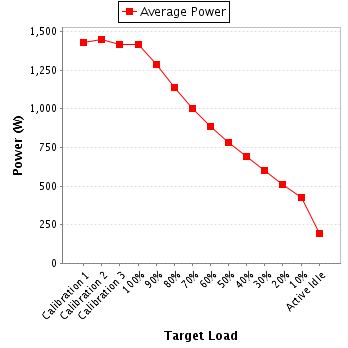

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Good Will Instrument Co., Ltd.
Model: GPM-8212
Serial Number: GCR150073
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML
Accredited by: Good Will Instrument Co., Ltd.
Calibration Label: GCR150073
Date of Calibration: 30-Jan-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: RS-232
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50 mm.
Notes
.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 226 320.0 6.33 10.24 0.998 1,431 0.7%
Calibration 2 226 320.0 6.41 10.24 0.998 1,450 0.7%
Calibration 3 226 320.0 6.25 10.24 0.998 1,414 0.7%
100% 227 320.0 6.26 10.24 0.998 1,417 0.7%
90% 227 320.0 5.67 10.24 0.998 1,287 0.7%
80% 228 320.0 5.02 5.12 0.997 1,139 0.5%
70% 228 320.0 4.42 5.12 0.996 1,003 0.5%
60% 229 320.0 3.90 5.12 0.995 888 0.6%
50% 229 320.0 3.45 5.12 0.993 783 0.6%
40% 229 320.0 3.04 5.12 0.991 689 0.7%
30% 230 320.0 2.63 5.12 0.990 598 0.7%
20% 230 320.0 2.26 2.56 0.986 513 0.5%
10% 230 320.0 1.89 2.56 0.982 427 0.6%
Active Idle 227 320.0 0.929 1.28 0.915 193 0.6%
Power details for pwr1
