ASUSTeK Computer Inc. RS720Q-E9-RS8 ssj_ops@100% = 4,808,706
ssj_ops@100% per JVM = 85,870
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Multi Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: Jan 10, 2019
Hardware Availability: Jan-2019 Software Availability: Aug-2018 Publication: May 10, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,917,052
Calibration 2     4,889,758
Calibration 3     4,801,473
ssj_ops@calibrated=4,845,615
100% 99.2% 4,845,615 4,808,706
90% 90.0% 4,361,054 4,363,368
80% 80.0% 3,876,492 3,876,277
70% 69.9% 3,391,931 3,388,950
60% 60.0% 2,907,369 2,908,863
50% 50.1% 2,422,808 2,426,393
40% 40.0% 1,938,246 1,938,584
30% 30.0% 1,453,685 1,453,234
20% 20.0% 969,123 968,158
10% 10.0% 484,562 485,438
Active Idle   0 0
Graph of results
System Under Test
Set: 'RS720QE9RS8'
Set Identifier: RS720QE9RS8
Set Description: System Under Test
# of Identical Nodes: 4
Comment: 'SUT'
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS720Q-E9-RS8
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176M
CPU Characteristics: 28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2666V ECC RDIMM; slots DIMM_A1, DIMMM_B1, DIMMM_C1, DIMMM_D1, DIMMM_E1, DIMMM_F1, DIMMM_G1, DIMMM_H1, DIMMM_J1, DIMMM_K1, DIMMM_L1, DIMMM_M1
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB Intel DC S3520 SATA 2.5 SSD
Disk Controller: Marvell 9230 SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -Xmx1550m -Xms1550m -Xmn1300m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParalleOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2,] /AFFINITY [3, C, 30, C0, C000, 30000, C0000, 30000000, C0000000, 300000000, C00000000, C0000000000, 300000000000, C00000000000]; start /NODE [1,3] /AFFINITY [3, C, 30, 3000, C000, 30000, C0000, 30000000, C0000000, 300000000, 30000000000, C0000000000, 300000000000, C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 3501
Management Firmware Version: 1.12.8
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: MS-KB4343891
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-C.001 86,444
WIN-C.002 86,657
WIN-C.003 85,151
WIN-C.004 85,056
WIN-C.005 85,707
WIN-C.006 87,552
WIN-C.007 84,940
WIN-C.008 86,477
WIN-C.009 87,269
WIN-C.010 85,255
WIN-C.011 85,223
WIN-C.012 85,249
WIN-C.013 85,470
WIN-C.014 85,865
WIN-C.015 85,609
WIN-C.016 89,152
WIN-C.017 86,066
WIN-C.018 83,780
WIN-C.019 87,182
WIN-C.020 86,340
WIN-C.021 88,200
WIN-C.022 84,899
WIN-C.023 87,275
WIN-C.024 86,792
WIN-C.025 84,589
WIN-C.026 86,838
WIN-C.027 85,758
WIN-C.028 85,917
WIN-C.029 87,344
WIN-C.030 85,934
WIN-C.031 85,658
WIN-C.032 84,088
WIN-C.033 86,757
WIN-C.034 86,232
WIN-C.035 86,069
WIN-C.036 85,875
WIN-C.037 86,389
WIN-C.038 85,494
WIN-C.039 84,942
WIN-C.040 84,360
WIN-C.041 85,581
WIN-C.042 86,034
WIN-C.043 85,620
WIN-C.044 85,538
WIN-C.045 86,179
WIN-C.046 85,048
WIN-C.047 86,023
WIN-C.048 85,978
WIN-C.049 86,521
WIN-C.050 84,684
WIN-C.051 85,684
WIN-C.052 85,427
WIN-C.053 84,502
WIN-C.054 86,310
WIN-C.055 84,760
WIN-C.056 84,964
ssj_ops@100% 4,808,706
ssj_ops@100% per JVM 85,870

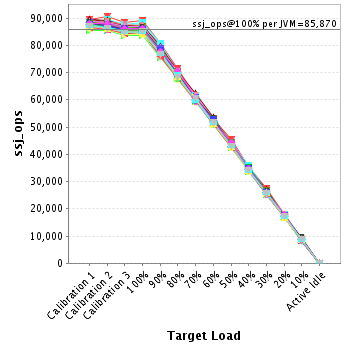

Graph of per-instance results
JVM 'WIN-C.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,748
Calibration 2     87,884
Calibration 3     86,212
ssj_ops@calibrated=87,048
100% 99.3% 87,048 86,444
90% 89.8% 78,343 78,210
80% 79.7% 69,638 69,397
70% 70.4% 60,933 61,244
60% 59.8% 52,229 52,055
50% 50.6% 43,524 44,048
40% 40.2% 34,819 35,021
30% 30.2% 26,114 26,303
20% 19.5% 17,410 17,012
10% 9.8% 8,705 8,522
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,731
Calibration 2     88,725
Calibration 3     86,627
ssj_ops@calibrated=87,676
100% 98.8% 87,676 86,657
90% 91.1% 78,908 79,891
80% 80.5% 70,141 70,599
70% 69.8% 61,373 61,161
60% 60.3% 52,606 52,886
50% 49.6% 43,838 43,503
40% 40.2% 35,070 35,236
30% 30.2% 26,303 26,516
20% 20.0% 17,535 17,524
10% 10.1% 8,768 8,887
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,468
Calibration 2     86,422
Calibration 3     85,380
ssj_ops@calibrated=85,901
100% 99.1% 85,901 85,151
90% 90.3% 77,311 77,606
80% 79.5% 68,721 68,300
70% 71.0% 60,131 60,957
60% 59.7% 51,541 51,322
50% 50.3% 42,950 43,240
40% 39.8% 34,360 34,197
30% 30.4% 25,770 26,076
20% 19.9% 17,180 17,117
10% 10.1% 8,590 8,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,101
Calibration 2     86,790
Calibration 3     84,784
ssj_ops@calibrated=85,787
100% 99.1% 85,787 85,056
90% 91.2% 77,208 78,268
80% 80.2% 68,629 68,778
70% 69.5% 60,051 59,638
60% 59.9% 51,472 51,368
50% 50.3% 42,893 43,164
40% 39.6% 34,315 33,992
30% 29.9% 25,736 25,626
20% 20.1% 17,157 17,261
10% 10.2% 8,579 8,716
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,607
Calibration 2     86,956
Calibration 3     85,259
ssj_ops@calibrated=86,108
100% 99.5% 86,108 85,707
90% 88.6% 77,497 76,254
80% 81.0% 68,886 69,768
70% 69.9% 60,275 60,155
60% 59.8% 51,665 51,510
50% 50.3% 43,054 43,319
40% 39.7% 34,443 34,199
30% 30.4% 25,832 26,148
20% 19.9% 17,222 17,151
10% 10.2% 8,611 8,795
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

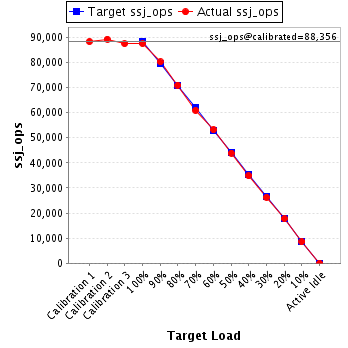

JVM 'WIN-C.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,265
Calibration 2     89,257
Calibration 3     87,455
ssj_ops@calibrated=88,356
100% 99.1% 88,356 87,552
90% 90.8% 79,520 80,190
80% 80.3% 70,685 70,917
70% 68.9% 61,849 60,912
60% 60.2% 53,013 53,191
50% 49.6% 44,178 43,861
40% 39.4% 35,342 34,821
30% 29.8% 26,507 26,286
20% 20.1% 17,671 17,720
10% 9.7% 8,836 8,550
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,118
Calibration 2     86,484
Calibration 3     85,019
ssj_ops@calibrated=85,751
100% 99.1% 85,751 84,940
90% 91.3% 77,176 78,255
80% 81.0% 68,601 69,473
70% 69.1% 60,026 59,294
60% 60.7% 51,451 52,060
50% 49.7% 42,876 42,643
40% 40.2% 34,300 34,463
30% 29.6% 25,725 25,403
20% 20.3% 17,150 17,366
10% 9.9% 8,575 8,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,373
Calibration 2     87,791
Calibration 3     86,395
ssj_ops@calibrated=87,093
100% 99.3% 87,093 86,477
90% 89.0% 78,384 77,547
80% 80.2% 69,674 69,887
70% 69.6% 60,965 60,574
60% 59.8% 52,256 52,093
50% 50.7% 43,546 44,122
40% 40.1% 34,837 34,955
30% 29.6% 26,128 25,774
20% 19.6% 17,419 17,087
10% 9.9% 8,709 8,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,587
Calibration 2     88,783
Calibration 3     87,133
ssj_ops@calibrated=87,958
100% 99.2% 87,958 87,269
90% 90.3% 79,162 79,443
80% 80.6% 70,366 70,886
70% 70.0% 61,570 61,547
60% 59.6% 52,775 52,425
50% 49.6% 43,979 43,652
40% 39.8% 35,183 35,028
30% 30.2% 26,387 26,541
20% 19.9% 17,592 17,470
10% 9.7% 8,796 8,495
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,512
Calibration 2     86,961
Calibration 3     85,072
ssj_ops@calibrated=86,017
100% 99.1% 86,017 85,255
90% 91.9% 77,415 79,072
80% 80.4% 68,813 69,171
70% 69.5% 60,212 59,824
60% 59.9% 51,610 51,538
50% 49.9% 43,008 42,947
40% 39.8% 34,407 34,271
30% 30.1% 25,805 25,898
20% 19.8% 17,203 17,070
10% 10.1% 8,602 8,721
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,547
Calibration 2     86,608
Calibration 3     85,012
ssj_ops@calibrated=85,810
100% 99.3% 85,810 85,223
90% 90.7% 77,229 77,852
80% 81.3% 68,648 69,789
70% 69.2% 60,067 59,386
60% 60.8% 51,486 52,202
50% 49.8% 42,905 42,706
40% 39.6% 34,324 33,970
30% 30.4% 25,743 26,103
20% 19.6% 17,162 16,803
10% 10.2% 8,581 8,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,925
Calibration 2     86,568
Calibration 3     85,119
ssj_ops@calibrated=85,843
100% 99.3% 85,843 85,249
90% 89.9% 77,259 77,154
80% 81.0% 68,675 69,532
70% 69.7% 60,090 59,873
60% 60.6% 51,506 51,990
50% 50.4% 42,922 43,228
40% 40.0% 34,337 34,358
30% 29.5% 25,753 25,305
20% 19.8% 17,169 16,977
10% 10.0% 8,584 8,599
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,089
Calibration 2     86,435
Calibration 3     85,159
ssj_ops@calibrated=85,797
100% 99.6% 85,797 85,470
90% 89.3% 77,217 76,627
80% 79.2% 68,638 67,924
70% 70.1% 60,058 60,107
60% 60.2% 51,478 51,622
50% 50.8% 42,899 43,568
40% 40.1% 34,319 34,414
30% 30.4% 25,739 26,056
20% 19.7% 17,159 16,892
10% 9.9% 8,580 8,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,238
Calibration 2     87,636
Calibration 3     85,812
ssj_ops@calibrated=86,724
100% 99.0% 86,724 85,865
90% 89.8% 78,051 77,894
80% 79.2% 69,379 68,715
70% 70.5% 60,707 61,114
60% 60.0% 52,034 52,067
50% 49.3% 43,362 42,797
40% 40.2% 34,690 34,845
30% 30.5% 26,017 26,448
20% 20.0% 17,345 17,382
10% 10.1% 8,672 8,801
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,549
Calibration 2     87,658
Calibration 3     85,770
ssj_ops@calibrated=86,714
100% 98.7% 86,714 85,609
90% 90.1% 78,043 78,087
80% 80.9% 69,371 70,149
70% 70.4% 60,700 61,026
60% 59.9% 52,028 51,941
50% 49.0% 43,357 42,531
40% 39.5% 34,686 34,240
30% 29.8% 26,014 25,878
20% 20.2% 17,343 17,549
10% 10.1% 8,671 8,719
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,551
Calibration 2     90,638
Calibration 3     88,439
ssj_ops@calibrated=89,539
100% 99.6% 89,539 89,152
90% 90.2% 80,585 80,737
80% 79.9% 71,631 71,554
70% 68.7% 62,677 61,492
60% 58.8% 53,723 52,693
50% 50.6% 44,769 45,292
40% 39.8% 35,815 35,617
30% 30.8% 26,862 27,574
20% 19.9% 17,908 17,831
10% 10.1% 8,954 9,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,995
Calibration 2     87,670
Calibration 3     85,440
ssj_ops@calibrated=86,555
100% 99.4% 86,555 86,066
90% 89.4% 77,900 77,339
80% 79.0% 69,244 68,337
70% 70.4% 60,589 60,894
60% 60.0% 51,933 51,973
50% 49.0% 43,278 42,397
40% 40.0% 34,622 34,631
30% 29.8% 25,967 25,829
20% 20.1% 17,311 17,369
10% 9.3% 8,656 8,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,582
Calibration 2     85,377
Calibration 3     83,734
ssj_ops@calibrated=84,555
100% 99.1% 84,555 83,780
90% 89.4% 76,100 75,556
80% 80.4% 67,644 67,953
70% 70.1% 59,189 59,258
60% 60.1% 50,733 50,850
50% 50.1% 42,278 42,333
40% 39.9% 33,822 33,779
30% 29.9% 25,367 25,289
20% 19.8% 16,911 16,770
10% 10.1% 8,456 8,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,526
Calibration 2     88,580
Calibration 3     85,955
ssj_ops@calibrated=87,267
100% 99.9% 87,267 87,182
90% 90.0% 78,541 78,572
80% 80.1% 69,814 69,891
70% 70.0% 61,087 61,052
60% 59.1% 52,360 51,618
50% 50.3% 43,634 43,906
40% 39.5% 34,907 34,464
30% 30.0% 26,180 26,190
20% 20.2% 17,453 17,657
10% 10.0% 8,727 8,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,367
Calibration 2     88,241
Calibration 3     86,273
ssj_ops@calibrated=87,257
100% 98.9% 87,257 86,340
90% 89.7% 78,531 78,244
80% 80.8% 69,806 70,494
70% 69.8% 61,080 60,903
60% 59.7% 52,354 52,058
50% 50.0% 43,628 43,611
40% 40.0% 34,903 34,906
30% 30.0% 26,177 26,192
20% 19.9% 17,451 17,370
10% 10.3% 8,726 8,949
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,980
Calibration 2     89,518
Calibration 3     87,548
ssj_ops@calibrated=88,533
100% 99.6% 88,533 88,200
90% 91.1% 79,680 80,611
80% 79.2% 70,826 70,095
70% 69.6% 61,973 61,629
60% 59.4% 53,120 52,603
50% 49.9% 44,266 44,177
40% 40.7% 35,413 36,043
30% 30.0% 26,560 26,603
20% 20.4% 17,707 18,040
10% 10.1% 8,853 8,929
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,906
Calibration 2     86,683
Calibration 3     84,452
ssj_ops@calibrated=85,568
100% 99.2% 85,568 84,899
90% 88.7% 77,011 75,886
80% 79.3% 68,454 67,891
70% 70.7% 59,897 60,465
60% 60.9% 51,341 52,132
50% 50.2% 42,784 42,968
40% 40.5% 34,227 34,668
30% 30.0% 25,670 25,679
20% 19.9% 17,114 17,011
10% 10.3% 8,557 8,791
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,364
Calibration 2     89,268
Calibration 3     87,370
ssj_ops@calibrated=88,319
100% 98.8% 88,319 87,275
90% 90.1% 79,487 79,540
80% 79.9% 70,655 70,575
70% 70.4% 61,823 62,165
60% 60.6% 52,991 53,564
50% 49.8% 44,159 44,003
40% 39.4% 35,328 34,814
30% 30.5% 26,496 26,923
20% 19.5% 17,664 17,221
10% 10.1% 8,832 8,883
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,371
Calibration 2     88,591
Calibration 3     86,457
ssj_ops@calibrated=87,524
100% 99.2% 87,524 86,792
90% 90.0% 78,771 78,812
80% 80.3% 70,019 70,286
70% 69.4% 61,267 60,750
60% 59.6% 52,514 52,147
50% 49.8% 43,762 43,622
40% 39.1% 35,010 34,223
30% 30.3% 26,257 26,560
20% 19.9% 17,505 17,387
10% 10.1% 8,752 8,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,852
Calibration 2     86,450
Calibration 3     84,228
ssj_ops@calibrated=85,339
100% 99.1% 85,339 84,589
90% 90.2% 76,805 76,955
80% 80.4% 68,271 68,593
70% 70.1% 59,738 59,855
60% 59.8% 51,204 51,072
50% 51.1% 42,670 43,633
40% 40.1% 34,136 34,227
30% 29.5% 25,602 25,190
20% 19.7% 17,068 16,841
10% 9.9% 8,534 8,458
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,064
Calibration 2     88,793
Calibration 3     86,269
ssj_ops@calibrated=87,531
100% 99.2% 87,531 86,838
90% 89.7% 78,778 78,526
80% 80.5% 70,025 70,490
70% 69.3% 61,272 60,693
60% 60.5% 52,519 52,993
50% 50.5% 43,766 44,203
40% 40.3% 35,012 35,244
30% 30.4% 26,259 26,603
20% 20.1% 17,506 17,580
10% 10.2% 8,753 8,891
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,778
Calibration 2     87,105
Calibration 3     85,163
ssj_ops@calibrated=86,134
100% 99.6% 86,134 85,758
90% 90.0% 77,521 77,552
80% 79.0% 68,907 68,013
70% 70.8% 60,294 61,023
60% 60.0% 51,681 51,705
50% 49.8% 43,067 42,861
40% 40.9% 34,454 35,232
30% 29.7% 25,840 25,552
20% 20.1% 17,227 17,342
10% 9.9% 8,613 8,562
Active Idle   0 0

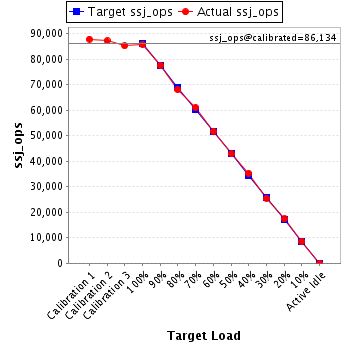

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,278
Calibration 2     87,466
Calibration 3     85,321
ssj_ops@calibrated=86,393
100% 99.4% 86,393 85,917
90% 90.7% 77,754 78,353
80% 79.7% 69,115 68,816
70% 69.7% 60,475 60,197
60% 60.0% 51,836 51,878
50% 50.1% 43,197 43,326
40% 39.5% 34,557 34,090
30% 29.7% 25,918 25,640
20% 20.7% 17,279 17,867
10% 10.3% 8,639 8,908
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,427
Calibration 2     88,869
Calibration 3     87,575
ssj_ops@calibrated=88,222
100% 99.0% 88,222 87,344
90% 88.8% 79,400 78,330
80% 80.0% 70,577 70,538
70% 69.9% 61,755 61,654
60% 60.4% 52,933 53,285
50% 49.7% 44,111 43,825
40% 40.0% 35,289 35,286
30% 29.9% 26,467 26,369
20% 20.1% 17,644 17,752
10% 10.0% 8,822 8,783
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,524
Calibration 2     87,390
Calibration 3     86,011
ssj_ops@calibrated=86,700
100% 99.1% 86,700 85,934
90% 90.2% 78,030 78,233
80% 79.5% 69,360 68,964
70% 69.3% 60,690 60,068
60% 59.9% 52,020 51,928
50% 50.6% 43,350 43,829
40% 40.4% 34,680 35,048
30% 29.8% 26,010 25,851
20% 19.9% 17,340 17,254
10% 10.5% 8,670 9,074
Active Idle   0 0

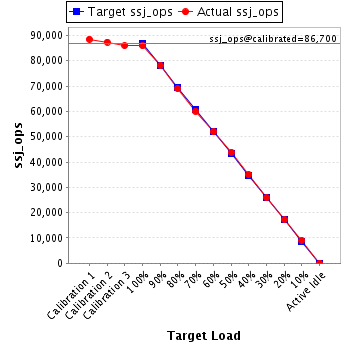

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,478
Calibration 2     86,799
Calibration 3     85,375
ssj_ops@calibrated=86,087
100% 99.5% 86,087 85,658
90% 89.7% 77,478 77,226
80% 79.1% 68,870 68,132
70% 70.7% 60,261 60,852
60% 59.3% 51,652 51,076
50% 49.8% 43,044 42,848
40% 39.8% 34,435 34,291
30% 30.1% 25,826 25,911
20% 20.2% 17,217 17,410
10% 10.4% 8,609 8,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,308
Calibration 2     85,645
Calibration 3     84,030
ssj_ops@calibrated=84,838
100% 99.1% 84,838 84,088
90% 90.3% 76,354 76,624
80% 79.3% 67,870 67,274
70% 69.7% 59,386 59,131
60% 61.0% 50,903 51,766
50% 50.2% 42,419 42,624
40% 39.6% 33,935 33,566
30% 30.6% 25,451 25,987
20% 20.0% 16,968 16,953
10% 10.0% 8,484 8,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,736
Calibration 2     88,225
Calibration 3     86,805
ssj_ops@calibrated=87,515
100% 99.1% 87,515 86,757
90% 90.5% 78,763 79,188
80% 79.6% 70,012 69,666
70% 70.5% 61,260 61,726
60% 60.1% 52,509 52,569
50% 48.9% 43,757 42,756
40% 39.9% 35,006 34,892
30% 30.0% 26,254 26,258
20% 19.8% 17,503 17,288
10% 9.9% 8,751 8,689
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,876
Calibration 2     86,761
Calibration 3     86,275
ssj_ops@calibrated=86,518
100% 99.7% 86,518 86,232
90% 90.5% 77,866 78,306
80% 79.3% 69,214 68,650
70% 70.3% 60,563 60,835
60% 60.1% 51,911 52,034
50% 49.5% 43,259 42,856
40% 40.2% 34,607 34,749
30% 29.7% 25,955 25,710
20% 19.9% 17,304 17,203
10% 10.0% 8,652 8,658
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,864
Calibration 2     87,388
Calibration 3     86,218
ssj_ops@calibrated=86,803
100% 99.2% 86,803 86,069
90% 91.3% 78,123 79,247
80% 80.0% 69,443 69,483
70% 70.3% 60,762 61,025
60% 59.1% 52,082 51,337
50% 50.3% 43,402 43,622
40% 40.6% 34,721 35,270
30% 29.9% 26,041 25,964
20% 20.0% 17,361 17,401
10% 9.8% 8,680 8,481
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,514
Calibration 2     87,138
Calibration 3     86,321
ssj_ops@calibrated=86,729
100% 99.0% 86,729 85,875
90% 91.0% 78,056 78,934
80% 79.7% 69,383 69,146
70% 70.3% 60,710 60,962
60% 60.6% 52,037 52,556
50% 50.3% 43,365 43,666
40% 40.3% 34,692 34,915
30% 30.0% 26,019 26,002
20% 20.0% 17,346 17,324
10% 9.9% 8,673 8,594
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,116
Calibration 2     87,625
Calibration 3     86,401
ssj_ops@calibrated=87,013
100% 99.3% 87,013 86,389
90% 90.1% 78,312 78,406
80% 80.5% 69,610 70,053
70% 70.1% 60,909 60,963
60% 59.8% 52,208 52,010
50% 50.0% 43,506 43,522
40% 40.0% 34,805 34,830
30% 29.6% 26,104 25,738
20% 19.6% 17,403 17,080
10% 10.0% 8,701 8,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,734
Calibration 2     86,700
Calibration 3     85,187
ssj_ops@calibrated=85,944
100% 99.5% 85,944 85,494
90% 89.2% 77,349 76,648
80% 79.8% 68,755 68,609
70% 70.7% 60,160 60,790
60% 59.4% 51,566 51,041
50% 49.8% 42,972 42,837
40% 40.2% 34,377 34,539
30% 29.6% 25,783 25,478
20% 19.4% 17,189 16,665
10% 10.0% 8,594 8,620
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,385
Calibration 2     85,831
Calibration 3     85,017
ssj_ops@calibrated=85,424
100% 99.4% 85,424 84,942
90% 90.1% 76,882 76,925
80% 79.5% 68,339 67,947
70% 69.4% 59,797 59,272
60% 60.0% 51,255 51,231
50% 51.3% 42,712 43,803
40% 39.9% 34,170 34,121
30% 29.4% 25,627 25,107
20% 19.8% 17,085 16,898
10% 10.2% 8,542 8,699
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,181
Calibration 2     86,069
Calibration 3     84,967
ssj_ops@calibrated=85,518
100% 98.6% 85,518 84,360
90% 89.5% 76,966 76,527
80% 80.2% 68,414 68,588
70% 70.4% 59,863 60,208
60% 60.1% 51,311 51,374
50% 50.2% 42,759 42,928
40% 40.5% 34,207 34,623
30% 29.5% 25,655 25,222
20% 19.9% 17,104 17,024
10% 9.9% 8,552 8,450
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,346
Calibration 2     86,941
Calibration 3     85,505
ssj_ops@calibrated=86,223
100% 99.3% 86,223 85,581
90% 90.2% 77,601 77,736
80% 79.5% 68,978 68,520
70% 69.8% 60,356 60,201
60% 60.7% 51,734 52,327
50% 49.7% 43,112 42,877
40% 39.8% 34,489 34,331
30% 30.2% 25,867 26,038
20% 20.5% 17,245 17,691
10% 10.1% 8,622 8,719
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,502
Calibration 2     86,976
Calibration 3     86,112
ssj_ops@calibrated=86,544
100% 99.4% 86,544 86,034
90% 89.1% 77,889 77,112
80% 79.7% 69,235 68,990
70% 69.1% 60,581 59,810
60% 59.4% 51,926 51,400
50% 51.0% 43,272 44,171
40% 40.3% 34,617 34,881
30% 29.6% 25,963 25,633
20% 20.2% 17,309 17,501
10% 10.0% 8,654 8,664
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,876
Calibration 2     86,902
Calibration 3     85,502
ssj_ops@calibrated=86,202
100% 99.3% 86,202 85,620
90% 90.1% 77,582 77,702
80% 79.6% 68,961 68,581
70% 69.8% 60,341 60,130
60% 60.0% 51,721 51,693
50% 50.7% 43,101 43,674
40% 39.4% 34,481 33,977
30% 30.5% 25,861 26,325
20% 19.8% 17,240 17,099
10% 10.2% 8,620 8,795
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,521
Calibration 2     86,970
Calibration 3     85,742
ssj_ops@calibrated=86,356
100% 99.1% 86,356 85,538
90% 90.0% 77,720 77,716
80% 79.9% 69,085 69,029
70% 69.8% 60,449 60,236
60% 60.4% 51,814 52,145
50% 49.8% 43,178 42,993
40% 40.0% 34,542 34,524
30% 29.5% 25,907 25,437
20% 20.2% 17,271 17,461
10% 9.8% 8,636 8,447
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,422
Calibration 2     87,757
Calibration 3     86,048
ssj_ops@calibrated=86,903
100% 99.2% 86,903 86,179
90% 90.2% 78,212 78,428
80% 79.7% 69,522 69,269
70% 70.2% 60,832 61,017
60% 59.9% 52,142 52,017
50% 49.9% 43,451 43,357
40% 41.0% 34,761 35,613
30% 29.4% 26,071 25,543
20% 19.7% 17,381 17,104
10% 10.0% 8,690 8,691
Active Idle   0 0

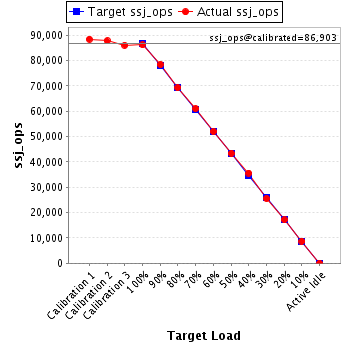

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,565
Calibration 2     87,032
Calibration 3     85,534
ssj_ops@calibrated=86,283
100% 98.6% 86,283 85,048
90% 88.9% 77,655 76,699
80% 80.1% 69,026 69,114
70% 69.7% 60,398 60,143
60% 59.5% 51,770 51,329
50% 50.0% 43,141 43,141
40% 39.9% 34,513 34,465
30% 30.0% 25,885 25,848
20% 20.1% 17,257 17,311
10% 9.6% 8,628 8,291
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,140
Calibration 2     87,492
Calibration 3     85,547
ssj_ops@calibrated=86,520
100% 99.4% 86,520 86,023
90% 90.2% 77,868 78,073
80% 80.3% 69,216 69,508
70% 70.2% 60,564 60,725
60% 60.0% 51,912 51,907
50% 49.7% 43,260 43,024
40% 40.2% 34,608 34,743
30% 29.6% 25,956 25,628
20% 20.4% 17,304 17,649
10% 10.0% 8,652 8,645
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,317
Calibration 2     86,911
Calibration 3     85,724
ssj_ops@calibrated=86,318
100% 99.6% 86,318 85,978
90% 90.0% 77,686 77,691
80% 80.1% 69,054 69,102
70% 69.4% 60,422 59,896
60% 60.9% 51,791 52,569
50% 49.7% 43,159 42,891
40% 40.8% 34,527 35,195
30% 30.4% 25,895 26,243
20% 19.9% 17,264 17,178
10% 9.9% 8,632 8,570
Active Idle   0 0

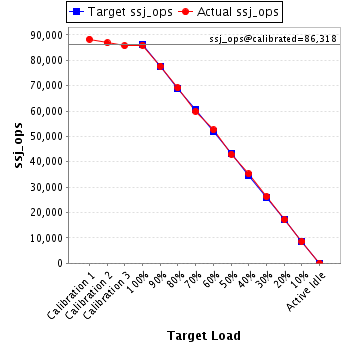

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,465
Calibration 2     86,986
Calibration 3     86,228
ssj_ops@calibrated=86,607
100% 99.9% 86,607 86,521
90% 90.1% 77,946 78,019
80% 80.1% 69,286 69,371
70% 69.7% 60,625 60,334
60% 61.2% 51,964 53,014
50% 50.0% 43,304 43,297
40% 39.2% 34,643 33,944
30% 30.4% 25,982 26,286
20% 20.0% 17,321 17,317
10% 10.8% 8,661 9,320
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,663
Calibration 2     85,646
Calibration 3     84,284
ssj_ops@calibrated=84,965
100% 99.7% 84,965 84,684
90% 89.4% 76,468 75,999
80% 79.9% 67,972 67,857
70% 70.5% 59,475 59,941
60% 59.9% 50,979 50,922
50% 50.0% 42,482 42,459
40% 40.4% 33,986 34,361
30% 30.2% 25,489 25,624
20% 20.2% 16,993 17,154
10% 10.1% 8,496 8,579
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,736
Calibration 2     86,976
Calibration 3     85,932
ssj_ops@calibrated=86,454
100% 99.1% 86,454 85,684
90% 90.4% 77,809 78,149
80% 79.6% 69,163 68,813
70% 70.0% 60,518 60,494
60% 61.0% 51,872 52,740
50% 50.2% 43,227 43,370
40% 40.2% 34,582 34,796
30% 30.2% 25,936 26,143
20% 20.1% 17,291 17,388
10% 10.0% 8,645 8,633
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,784
Calibration 2     86,699
Calibration 3     85,210
ssj_ops@calibrated=85,955
100% 99.4% 85,955 85,427
90% 89.9% 77,359 77,273
80% 78.8% 68,764 67,768
70% 70.0% 60,168 60,178
60% 59.5% 51,573 51,132
50% 50.2% 42,977 43,131
40% 40.1% 34,382 34,465
30% 29.9% 25,786 25,668
20% 20.2% 17,191 17,326
10% 9.6% 8,595 8,256
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,160
Calibration 2     86,024
Calibration 3     85,083
ssj_ops@calibrated=85,553
100% 98.8% 85,553 84,502
90% 90.6% 76,998 77,481
80% 80.2% 68,443 68,615
70% 70.4% 59,887 60,271
60% 59.9% 51,332 51,265
50% 50.2% 42,777 42,962
40% 40.0% 34,221 34,228
30% 30.2% 25,666 25,857
20% 19.5% 17,111 16,699
10% 10.0% 8,555 8,562
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,958
Calibration 2     87,884
Calibration 3     86,201
ssj_ops@calibrated=87,042
100% 99.2% 87,042 86,310
90% 89.5% 78,338 77,875
80% 81.2% 69,634 70,684
70% 69.9% 60,930 60,856
60% 59.3% 52,225 51,630
50% 50.8% 43,521 44,229
40% 40.2% 34,817 34,964
30% 29.5% 26,113 25,693
20% 20.6% 17,408 17,949
10% 9.6% 8,704 8,374
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,098
Calibration 2     86,464
Calibration 3     84,926
ssj_ops@calibrated=85,695
100% 98.9% 85,695 84,760
90% 89.8% 77,126 76,975
80% 81.0% 68,556 69,399
70% 69.5% 59,987 59,595
60% 60.1% 51,417 51,486
50% 50.4% 42,848 43,168
40% 39.7% 34,278 34,042
30% 30.2% 25,709 25,861
20% 19.9% 17,139 17,091
10% 10.0% 8,570 8,545
Active Idle   0 0

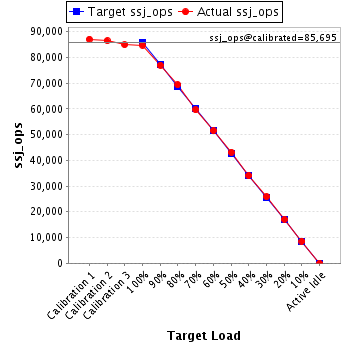

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-C.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,886
Calibration 2     86,318
Calibration 3     84,859
ssj_ops@calibrated=85,589
100% 99.3% 85,589 84,964
90% 89.7% 77,030 76,812
80% 79.8% 68,471 68,332
70% 70.6% 59,912 60,451
60% 60.2% 51,353 51,521
50% 50.1% 42,794 42,873
40% 39.7% 34,235 33,976
30% 29.9% 25,677 25,630
20% 20.2% 17,118 17,324
10% 10.2% 8,559 8,712
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
