ASUSTeK Computer Inc. RS720Q-E9-RS8 ssj_ops@100% = 4,810,949
ssj_ops@100% per JVM = 85,910
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Multi Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: Jan 10, 2019
Hardware Availability: Jan-2019 Software Availability: Aug-2018 Publication: May 10, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,921,463
Calibration 2     4,918,870
Calibration 3     4,813,914
ssj_ops@calibrated=4,866,392
100% 98.9% 4,866,392 4,810,949
90% 89.8% 4,379,753 4,370,842
80% 80.0% 3,893,114 3,892,606
70% 70.0% 3,406,474 3,405,145
60% 60.0% 2,919,835 2,918,723
50% 49.9% 2,433,196 2,427,055
40% 40.0% 1,946,557 1,948,374
30% 30.1% 1,459,918 1,462,399
20% 20.0% 973,278 974,580
10% 10.0% 486,639 484,297
Active Idle   0 0
Graph of results
System Under Test
Set: 'RS720QE9RS8'
Set Identifier: RS720QE9RS8
Set Description: System Under Test
# of Identical Nodes: 4
Comment: 'SUT'
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS720Q-E9-RS8
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176M
CPU Characteristics: 28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2666V ECC RDIMM; slots DIMM_A1, DIMMM_B1, DIMMM_C1, DIMMM_D1, DIMMM_E1, DIMMM_F1, DIMMM_G1, DIMMM_H1, DIMMM_J1, DIMMM_K1, DIMMM_L1, DIMMM_M1
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB Intel DC S3520 SATA 2.5 SSD
Disk Controller: Marvell 9230 SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -Xmx1550m -Xms1550m -Xmn1300m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParalleOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2,] /AFFINITY [3, C, 30, C0, C000, 30000, C0000, 30000000, C0000000, 300000000, C00000000, C0000000000, 300000000000, C00000000000]; start /NODE [1,3] /AFFINITY [3, C, 30, 3000, C000, 30000, C0000, 30000000, C0000000, 300000000, 30000000000, C0000000000, 300000000000, C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 3501
Management Firmware Version: 1.12.8
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: MS-KB4343891
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-D.001 86,633
WIN-D.002 85,874
WIN-D.003 85,199
WIN-D.004 84,631
WIN-D.005 86,840
WIN-D.006 86,751
WIN-D.007 85,727
WIN-D.008 87,205
WIN-D.009 87,110
WIN-D.010 84,277
WIN-D.011 84,906
WIN-D.012 85,431
WIN-D.013 85,956
WIN-D.014 85,235
WIN-D.015 84,809
WIN-D.016 88,349
WIN-D.017 85,725
WIN-D.018 85,846
WIN-D.019 86,060
WIN-D.020 86,310
WIN-D.021 86,874
WIN-D.022 86,559
WIN-D.023 87,256
WIN-D.024 86,886
WIN-D.025 85,321
WIN-D.026 87,599
WIN-D.027 85,937
WIN-D.028 85,823
WIN-D.029 87,255
WIN-D.030 86,356
WIN-D.031 86,332
WIN-D.032 85,614
WIN-D.033 85,573
WIN-D.034 85,469
WIN-D.035 87,010
WIN-D.036 85,976
WIN-D.037 87,379
WIN-D.038 85,009
WIN-D.039 84,427
WIN-D.040 84,574
WIN-D.041 86,444
WIN-D.042 85,182
WIN-D.043 86,018
WIN-D.044 86,037
WIN-D.045 84,934
WIN-D.046 85,151
WIN-D.047 85,701
WIN-D.048 85,749
WIN-D.049 86,416
WIN-D.050 84,893
WIN-D.051 84,820
WIN-D.052 86,831
WIN-D.053 84,968
WIN-D.054 84,529
WIN-D.055 85,377
WIN-D.056 85,797
ssj_ops@100% 4,810,949
ssj_ops@100% per JVM 85,910

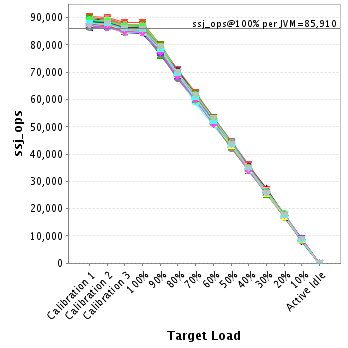

Graph of per-instance results
JVM 'WIN-D.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,776
Calibration 2     89,085
Calibration 3     86,877
ssj_ops@calibrated=87,981
100% 98.5% 87,981 86,633
90% 89.0% 79,183 78,263
80% 79.7% 70,385 70,129
70% 69.7% 61,587 61,294
60% 59.9% 52,788 52,672
50% 49.6% 43,990 43,650
40% 40.6% 35,192 35,745
30% 30.4% 26,394 26,711
20% 20.0% 17,596 17,571
10% 10.0% 8,798 8,820
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,421
Calibration 2     87,657
Calibration 3     85,762
ssj_ops@calibrated=86,710
100% 99.0% 86,710 85,874
90% 90.1% 78,039 78,154
80% 79.2% 69,368 68,633
70% 69.7% 60,697 60,454
60% 60.3% 52,026 52,322
50% 49.7% 43,355 43,097
40% 40.0% 34,684 34,711
30% 30.0% 26,013 26,005
20% 20.3% 17,342 17,620
10% 9.6% 8,671 8,341
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,212
Calibration 2     87,032
Calibration 3     85,132
ssj_ops@calibrated=86,082
100% 99.0% 86,082 85,199
90% 89.6% 77,474 77,103
80% 80.2% 68,866 68,996
70% 69.9% 60,257 60,163
60% 60.3% 51,649 51,884
50% 49.5% 43,041 42,623
40% 40.0% 34,433 34,408
30% 30.3% 25,825 26,108
20% 20.2% 17,216 17,374
10% 9.6% 8,608 8,233
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,850
Calibration 2     86,633
Calibration 3     84,513
ssj_ops@calibrated=85,573
100% 98.9% 85,573 84,631
90% 90.9% 77,016 77,786
80% 79.0% 68,458 67,622
70% 70.3% 59,901 60,199
60% 60.0% 51,344 51,374
50% 49.5% 42,787 42,327
40% 40.1% 34,229 34,321
30% 30.2% 25,672 25,879
20% 19.9% 17,115 17,016
10% 10.2% 8,557 8,733
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,023
Calibration 2     88,519
Calibration 3     86,391
ssj_ops@calibrated=87,455
100% 99.3% 87,455 86,840
90% 89.7% 78,710 78,462
80% 79.4% 69,964 69,432
70% 71.2% 61,219 62,300
60% 60.7% 52,473 53,119
50% 49.8% 43,728 43,557
40% 39.5% 34,982 34,573
30% 29.4% 26,237 25,682
20% 20.2% 17,491 17,703
10% 10.1% 8,746 8,816
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,208
Calibration 2     88,714
Calibration 3     86,869
ssj_ops@calibrated=87,792
100% 98.8% 87,792 86,751
90% 90.0% 79,012 78,989
80% 80.8% 70,233 70,924
70% 70.7% 61,454 62,098
60% 60.2% 52,675 52,843
50% 49.6% 43,896 43,575
40% 40.4% 35,117 35,502
30% 30.7% 26,337 26,921
20% 19.9% 17,558 17,466
10% 10.0% 8,779 8,770
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

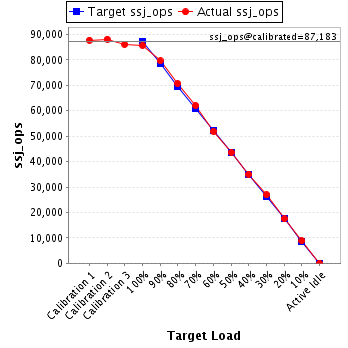

JVM 'WIN-D.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,830
Calibration 2     88,184
Calibration 3     86,182
ssj_ops@calibrated=87,183
100% 98.3% 87,183 85,727
90% 91.3% 78,464 79,633
80% 81.1% 69,746 70,689
70% 71.2% 61,028 62,098
60% 59.5% 52,310 51,882
50% 50.1% 43,591 43,658
40% 40.2% 34,873 35,062
30% 30.8% 26,155 26,888
20% 20.1% 17,437 17,490
10% 10.1% 8,718 8,785
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,113
Calibration 2     89,061
Calibration 3     87,044
ssj_ops@calibrated=88,052
100% 99.0% 88,052 87,205
90% 89.3% 79,247 78,627
80% 80.5% 70,442 70,922
70% 70.0% 61,637 61,660
60% 60.1% 52,831 52,889
50% 50.2% 44,026 44,159
40% 39.4% 35,221 34,657
30% 30.0% 26,416 26,379
20% 20.0% 17,610 17,585
10% 10.0% 8,805 8,799
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,060
Calibration 2     88,937
Calibration 3     86,952
ssj_ops@calibrated=87,945
100% 99.1% 87,945 87,110
90% 89.2% 79,150 78,467
80% 80.1% 70,356 70,436
70% 70.4% 61,561 61,898
60% 59.7% 52,767 52,479
50% 50.1% 43,972 44,029
40% 40.7% 35,178 35,800
30% 29.8% 26,383 26,173
20% 20.2% 17,589 17,760
10% 9.9% 8,794 8,749
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,319
Calibration 2     86,592
Calibration 3     84,733
ssj_ops@calibrated=85,662
100% 98.4% 85,662 84,277
90% 89.9% 77,096 77,039
80% 80.3% 68,530 68,755
70% 70.0% 59,964 59,934
60% 59.9% 51,397 51,307
50% 49.4% 42,831 42,310
40% 39.7% 34,265 34,031
30% 30.3% 25,699 25,914
20% 19.6% 17,132 16,807
10% 9.9% 8,566 8,458
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,676
Calibration 2     86,622
Calibration 3     84,755
ssj_ops@calibrated=85,689
100% 99.1% 85,689 84,906
90% 88.7% 77,120 76,032
80% 80.2% 68,551 68,723
70% 69.7% 59,982 59,731
60% 59.7% 51,413 51,170
50% 50.3% 42,844 43,097
40% 40.3% 34,275 34,509
30% 29.6% 25,707 25,332
20% 20.6% 17,138 17,611
10% 10.4% 8,569 8,874
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

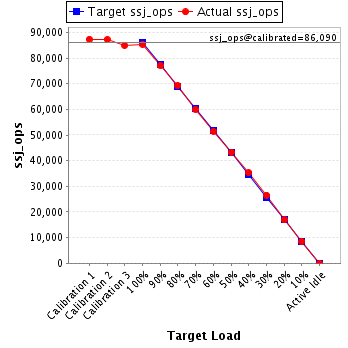

JVM 'WIN-D.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,358
Calibration 2     87,242
Calibration 3     84,937
ssj_ops@calibrated=86,090
100% 99.2% 86,090 85,431
90% 89.5% 77,481 77,052
80% 80.5% 68,872 69,281
70% 69.8% 60,263 60,085
60% 59.8% 51,654 51,440
50% 50.3% 43,045 43,272
40% 41.0% 34,436 35,254
30% 30.9% 25,827 26,606
20% 19.6% 17,218 16,878
10% 9.9% 8,609 8,524
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,734
Calibration 2     87,690
Calibration 3     85,951
ssj_ops@calibrated=86,821
100% 99.0% 86,821 85,956
90% 90.1% 78,139 78,187
80% 81.2% 69,457 70,479
70% 69.6% 60,774 60,445
60% 60.1% 52,092 52,162
50% 50.6% 43,410 43,903
40% 40.1% 34,728 34,813
30% 30.6% 26,046 26,610
20% 20.0% 17,364 17,362
10% 10.1% 8,682 8,787
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,618
Calibration 2     87,507
Calibration 3     85,276
ssj_ops@calibrated=86,391
100% 98.7% 86,391 85,235
90% 90.0% 77,752 77,720
80% 80.6% 69,113 69,611
70% 70.1% 60,474 60,589
60% 60.2% 51,835 51,976
50% 50.1% 43,196 43,273
40% 39.6% 34,557 34,180
30% 30.0% 25,917 25,903
20% 19.9% 17,278 17,152
10% 10.2% 8,639 8,783
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,766
Calibration 2     86,649
Calibration 3     85,058
ssj_ops@calibrated=85,853
100% 98.8% 85,853 84,809
90% 89.2% 77,268 76,554
80% 79.1% 68,682 67,905
70% 71.6% 60,097 61,475
60% 60.1% 51,512 51,555
50% 50.3% 42,927 43,171
40% 40.5% 34,341 34,808
30% 30.3% 25,756 26,017
20% 20.0% 17,171 17,130
10% 10.0% 8,585 8,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,491
Calibration 2     89,895
Calibration 3     88,293
ssj_ops@calibrated=89,094
100% 99.2% 89,094 88,349
90% 89.4% 80,184 79,687
80% 79.8% 71,275 71,138
70% 70.1% 62,366 62,465
60% 60.1% 53,456 53,566
50% 50.3% 44,547 44,804
40% 40.5% 35,638 36,040
30% 30.4% 26,728 27,040
20% 19.9% 17,819 17,757
10% 10.2% 8,909 9,091
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

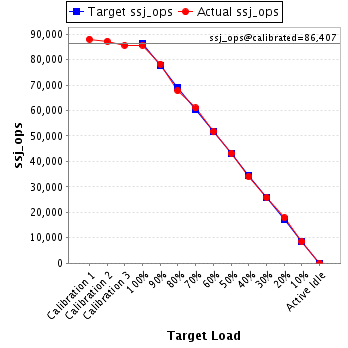

JVM 'WIN-D.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,026
Calibration 2     87,187
Calibration 3     85,628
ssj_ops@calibrated=86,407
100% 99.2% 86,407 85,725
90% 90.6% 77,767 78,257
80% 78.5% 69,126 67,823
70% 70.6% 60,485 61,010
60% 59.9% 51,844 51,772
50% 50.0% 43,204 43,172
40% 39.5% 34,563 34,147
30% 29.9% 25,922 25,824
20% 20.7% 17,281 17,884
10% 9.8% 8,641 8,495
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,630
Calibration 2     87,897
Calibration 3     85,827
ssj_ops@calibrated=86,862
100% 98.8% 86,862 85,846
90% 90.1% 78,176 78,231
80% 80.2% 69,490 69,631
70% 69.3% 60,803 60,229
60% 60.2% 52,117 52,294
50% 49.3% 43,431 42,827
40% 40.1% 34,745 34,856
30% 29.6% 26,059 25,705
20% 19.8% 17,372 17,178
10% 10.1% 8,686 8,795
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,632
Calibration 2     87,844
Calibration 3     85,912
ssj_ops@calibrated=86,878
100% 99.1% 86,878 86,060
90% 90.0% 78,190 78,209
80% 80.5% 69,502 69,900
70% 69.6% 60,814 60,463
60% 60.6% 52,127 52,639
50% 49.8% 43,439 43,233
40% 39.4% 34,751 34,226
30% 30.4% 26,063 26,448
20% 19.9% 17,376 17,290
10% 9.7% 8,688 8,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,706
Calibration 2     87,724
Calibration 3     86,413
ssj_ops@calibrated=87,068
100% 99.1% 87,068 86,310
90% 89.8% 78,362 78,166
80% 79.4% 69,655 69,148
70% 70.4% 60,948 61,294
60% 58.9% 52,241 51,285
50% 49.9% 43,534 43,446
40% 39.6% 34,827 34,456
30% 29.8% 26,121 25,973
20% 19.6% 17,414 17,105
10% 10.3% 8,707 8,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,884
Calibration 2     88,849
Calibration 3     86,413
ssj_ops@calibrated=87,631
100% 99.1% 87,631 86,874
90% 89.4% 78,868 78,322
80% 80.7% 70,105 70,711
70% 70.2% 61,342 61,483
60% 60.6% 52,579 53,119
50% 49.3% 43,815 43,187
40% 40.6% 35,052 35,538
30% 30.2% 26,289 26,460
20% 19.4% 17,526 17,039
10% 10.1% 8,763 8,854
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,870
Calibration 2     87,826
Calibration 3     86,157
ssj_ops@calibrated=86,991
100% 99.5% 86,991 86,559
90% 90.0% 78,292 78,288
80% 80.9% 69,593 70,397
70% 69.6% 60,894 60,547
60% 59.3% 52,195 51,546
50% 50.3% 43,496 43,793
40% 40.0% 34,796 34,837
30% 30.1% 26,097 26,205
20% 20.1% 17,398 17,470
10% 9.6% 8,699 8,370
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,971
Calibration 2     89,694
Calibration 3     87,639
ssj_ops@calibrated=88,666
100% 98.4% 88,666 87,256
90% 89.0% 79,800 78,927
80% 78.2% 70,933 69,379
70% 69.9% 62,066 61,981
60% 59.4% 53,200 52,691
50% 49.3% 44,333 43,730
40% 39.9% 35,467 35,344
30% 30.8% 26,600 27,266
20% 19.6% 17,733 17,378
10% 10.1% 8,867 8,959
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,156
Calibration 2     88,180
Calibration 3     86,492
ssj_ops@calibrated=87,336
100% 99.5% 87,336 86,886
90% 90.3% 78,602 78,902
80% 80.2% 69,869 70,007
70% 69.3% 61,135 60,553
60% 60.0% 52,402 52,431
50% 49.2% 43,668 43,005
40% 39.7% 34,934 34,687
30% 29.4% 26,201 25,670
20% 20.0% 17,467 17,427
10% 9.3% 8,734 8,145
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,489
Calibration 2     86,555
Calibration 3     85,446
ssj_ops@calibrated=86,001
100% 99.2% 86,001 85,321
90% 89.7% 77,401 77,136
80% 80.2% 68,801 68,955
70% 69.2% 60,201 59,517
60% 60.2% 51,601 51,803
50% 49.6% 43,000 42,649
40% 40.4% 34,400 34,773
30% 29.6% 25,800 25,480
20% 19.7% 17,200 16,932
10% 10.3% 8,600 8,891
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,896
Calibration 2     89,340
Calibration 3     87,660
ssj_ops@calibrated=88,500
100% 99.0% 88,500 87,599
90% 90.8% 79,650 80,319
80% 79.4% 70,800 70,310
70% 70.1% 61,950 62,067
60% 60.3% 53,100 53,389
50% 50.2% 44,250 44,439
40% 40.2% 35,400 35,614
30% 30.3% 26,550 26,836
20% 20.0% 17,700 17,724
10% 9.8% 8,850 8,695
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,163
Calibration 2     86,770
Calibration 3     85,615
ssj_ops@calibrated=86,193
100% 99.7% 86,193 85,937
90% 89.9% 77,574 77,528
80% 79.0% 68,954 68,117
70% 70.2% 60,335 60,523
60% 59.9% 51,716 51,657
50% 49.4% 43,096 42,578
40% 40.2% 34,477 34,673
30% 29.8% 25,858 25,651
20% 20.1% 17,239 17,320
10% 10.0% 8,619 8,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,128
Calibration 2     87,153
Calibration 3     85,721
ssj_ops@calibrated=86,437
100% 99.3% 86,437 85,823
90% 89.6% 77,793 77,450
80% 79.7% 69,150 68,896
70% 70.7% 60,506 61,073
60% 59.9% 51,862 51,777
50% 49.5% 43,219 42,790
40% 39.4% 34,575 34,072
30% 29.4% 25,931 25,415
20% 20.3% 17,287 17,554
10% 10.0% 8,644 8,682
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

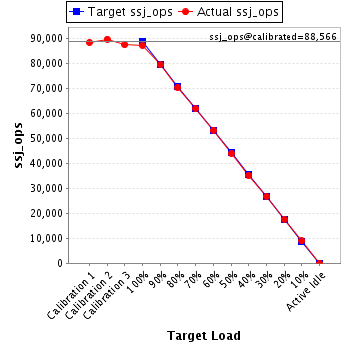

JVM 'WIN-D.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,363
Calibration 2     89,699
Calibration 3     87,434
ssj_ops@calibrated=88,566
100% 98.5% 88,566 87,255
90% 89.7% 79,709 79,413
80% 79.5% 70,853 70,386
70% 69.9% 61,996 61,908
60% 60.1% 53,140 53,224
50% 49.6% 44,283 43,914
40% 39.8% 35,426 35,262
30% 30.2% 26,570 26,768
20% 19.9% 17,713 17,649
10% 10.1% 8,857 8,936
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,030
Calibration 2     88,868
Calibration 3     86,802
ssj_ops@calibrated=87,835
100% 98.3% 87,835 86,356
90% 90.6% 79,052 79,578
80% 79.9% 70,268 70,213
70% 70.6% 61,485 61,997
60% 60.0% 52,701 52,693
50% 50.8% 43,918 44,620
40% 40.6% 35,134 35,650
30% 30.0% 26,351 26,309
20% 20.1% 17,567 17,628
10% 9.9% 8,784 8,687
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,089
Calibration 2     88,886
Calibration 3     86,489
ssj_ops@calibrated=87,687
100% 98.5% 87,687 86,332
90% 89.1% 78,918 78,093
80% 79.9% 70,150 70,066
70% 69.0% 61,381 60,462
60% 59.5% 52,612 52,185
50% 49.8% 43,844 43,681
40% 39.8% 35,075 34,936
30% 30.0% 26,306 26,288
20% 20.4% 17,537 17,849
10% 10.1% 8,769 8,849
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,274
Calibration 2     87,521
Calibration 3     85,985
ssj_ops@calibrated=86,753
100% 98.7% 86,753 85,614
90% 89.4% 78,078 77,542
80% 80.1% 69,403 69,472
70% 69.5% 60,727 60,319
60% 59.8% 52,052 51,908
50% 49.4% 43,377 42,814
40% 39.9% 34,701 34,590
30% 30.0% 26,026 26,014
20% 20.5% 17,351 17,791
10% 10.0% 8,675 8,641
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,309
Calibration 2     87,265
Calibration 3     85,638
ssj_ops@calibrated=86,452
100% 99.0% 86,452 85,573
90% 90.2% 77,807 77,969
80% 80.3% 69,161 69,381
70% 69.6% 60,516 60,183
60% 60.1% 51,871 51,947
50% 49.0% 43,226 42,346
40% 40.2% 34,581 34,712
30% 30.5% 25,936 26,399
20% 19.8% 17,290 17,114
10% 9.5% 8,645 8,255
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,723
Calibration 2     87,540
Calibration 3     85,727
ssj_ops@calibrated=86,633
100% 98.7% 86,633 85,469
90% 89.3% 77,970 77,331
80% 79.6% 69,307 68,982
70% 69.7% 60,643 60,410
60% 60.6% 51,980 52,505
50% 49.8% 43,317 43,125
40% 40.2% 34,653 34,803
30% 29.8% 25,990 25,814
20% 19.9% 17,327 17,267
10% 10.2% 8,663 8,804
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,980
Calibration 2     88,953
Calibration 3     87,210
ssj_ops@calibrated=88,082
100% 98.8% 88,082 87,010
90% 89.5% 79,274 78,792
80% 80.6% 70,465 70,959
70% 69.1% 61,657 60,896
60% 59.9% 52,849 52,751
50% 50.1% 44,041 44,088
40% 39.9% 35,233 35,177
30% 29.9% 26,425 26,328
20% 20.0% 17,616 17,628
10% 10.0% 8,808 8,766
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,490
Calibration 2     88,179
Calibration 3     86,445
ssj_ops@calibrated=87,312
100% 98.5% 87,312 85,976
90% 89.6% 78,581 78,265
80% 80.9% 69,850 70,625
70% 68.5% 61,118 59,849
60% 59.8% 52,387 52,215
50% 50.2% 43,656 43,848
40% 39.6% 34,925 34,582
30% 29.7% 26,194 25,957
20% 20.0% 17,462 17,437
10% 10.2% 8,731 8,908
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,484
Calibration 2     88,589
Calibration 3     86,994
ssj_ops@calibrated=87,792
100% 99.5% 87,792 87,379
90% 91.2% 79,012 80,027
80% 80.1% 70,233 70,329
70% 70.9% 61,454 62,224
60% 59.6% 52,675 52,328
50% 49.1% 43,896 43,124
40% 39.7% 35,117 34,811
30% 30.6% 26,337 26,828
20% 19.9% 17,558 17,435
10% 9.8% 8,779 8,599
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,883
Calibration 2     87,499
Calibration 3     85,486
ssj_ops@calibrated=86,492
100% 98.3% 86,492 85,009
90% 88.8% 77,843 76,763
80% 79.5% 69,194 68,782
70% 68.7% 60,545 59,455
60% 60.3% 51,895 52,130
50% 49.7% 43,246 42,993
40% 40.3% 34,597 34,854
30% 30.2% 25,948 26,119
20% 19.9% 17,298 17,234
10% 9.8% 8,649 8,501
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,664
Calibration 2     86,410
Calibration 3     84,466
ssj_ops@calibrated=85,438
100% 98.8% 85,438 84,427
90% 90.5% 76,894 77,362
80% 79.4% 68,350 67,801
70% 69.3% 59,806 59,226
60% 60.5% 51,263 51,659
50% 49.8% 42,719 42,553
40% 39.9% 34,175 34,052
30% 30.4% 25,631 26,002
20% 20.3% 17,088 17,334
10% 9.6% 8,544 8,216
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,247
Calibration 2     86,704
Calibration 3     84,426
ssj_ops@calibrated=85,565
100% 98.8% 85,565 84,574
90% 89.8% 77,008 76,842
80% 80.3% 68,452 68,693
70% 68.4% 59,895 58,513
60% 59.0% 51,339 50,446
50% 49.6% 42,782 42,429
40% 39.8% 34,226 34,053
30% 29.7% 25,669 25,419
20% 20.6% 17,113 17,664
10% 9.8% 8,556 8,416
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,751
Calibration 2     88,168
Calibration 3     86,588
ssj_ops@calibrated=87,378
100% 98.9% 87,378 86,444
90% 89.3% 78,640 78,036
80% 80.3% 69,902 70,145
70% 70.4% 61,164 61,493
60% 59.7% 52,427 52,169
50% 49.9% 43,689 43,578
40% 40.6% 34,951 35,509
30% 30.6% 26,213 26,736
20% 20.0% 17,476 17,507
10% 10.1% 8,738 8,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,426
Calibration 2     86,812
Calibration 3     85,262
ssj_ops@calibrated=86,037
100% 99.0% 86,037 85,182
90% 89.0% 77,433 76,549
80% 78.6% 68,830 67,635
70% 69.7% 60,226 59,931
60% 59.5% 51,622 51,200
50% 49.1% 43,019 42,205
40% 40.0% 34,415 34,403
30% 29.9% 25,811 25,688
20% 19.9% 17,207 17,158
10% 9.9% 8,604 8,541
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,177
Calibration 2     87,642
Calibration 3     86,294
ssj_ops@calibrated=86,968
100% 98.9% 86,968 86,018
90% 90.1% 78,271 78,353
80% 79.8% 69,574 69,386
70% 70.0% 60,877 60,904
60% 59.8% 52,181 52,026
50% 49.9% 43,484 43,381
40% 40.0% 34,787 34,818
30% 29.9% 26,090 26,028
20% 20.2% 17,394 17,606
10% 9.9% 8,697 8,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,729
Calibration 2     88,412
Calibration 3     86,112
ssj_ops@calibrated=87,262
100% 98.6% 87,262 86,037
90% 89.4% 78,536 77,979
80% 80.8% 69,810 70,519
70% 70.4% 61,083 61,470
60% 60.9% 52,357 53,152
50% 50.2% 43,631 43,799
40% 39.6% 34,905 34,598
30% 30.1% 26,179 26,237
20% 19.9% 17,452 17,406
10% 9.7% 8,726 8,455
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

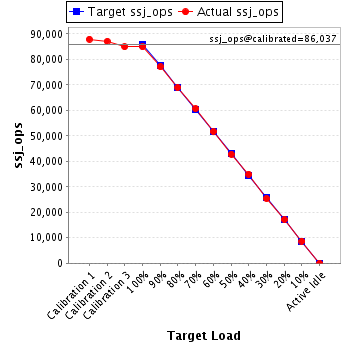

JVM 'WIN-D.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,959
Calibration 2     87,157
Calibration 3     84,917
ssj_ops@calibrated=86,037
100% 98.7% 86,037 84,934
90% 89.6% 77,433 77,116
80% 80.2% 68,830 68,995
70% 70.5% 60,226 60,683
60% 60.1% 51,622 51,697
50% 49.7% 43,018 42,790
40% 40.6% 34,415 34,968
30% 29.6% 25,811 25,432
20% 19.9% 17,207 17,139
10% 10.1% 8,604 8,679
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,319
Calibration 2     87,359
Calibration 3     85,069
ssj_ops@calibrated=86,214
100% 98.8% 86,214 85,151
90% 91.0% 77,593 78,440
80% 80.9% 68,971 69,777
70% 69.3% 60,350 59,711
60% 59.3% 51,728 51,140
50% 49.7% 43,107 42,828
40% 39.9% 34,486 34,435
30% 29.7% 25,864 25,593
20% 19.6% 17,243 16,882
10% 9.8% 8,621 8,418
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,191
Calibration 2     87,697
Calibration 3     85,439
ssj_ops@calibrated=86,568
100% 99.0% 86,568 85,701
90% 90.2% 77,911 78,044
80% 80.1% 69,254 69,340
70% 69.7% 60,598 60,334
60% 59.8% 51,941 51,776
50% 50.1% 43,284 43,365
40% 39.5% 34,627 34,221
30% 29.4% 25,970 25,465
20% 20.0% 17,314 17,356
10% 9.9% 8,657 8,566
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

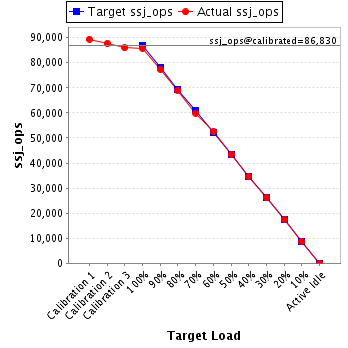

JVM 'WIN-D.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,422
Calibration 2     87,705
Calibration 3     85,954
ssj_ops@calibrated=86,830
100% 98.8% 86,830 85,749
90% 89.2% 78,147 77,431
80% 79.5% 69,464 69,069
70% 69.0% 60,781 59,953
60% 60.5% 52,098 52,513
50% 49.9% 43,415 43,303
40% 40.0% 34,732 34,692
30% 30.0% 26,049 26,058
20% 20.1% 17,366 17,453
10% 10.2% 8,683 8,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,416
Calibration 2     88,157
Calibration 3     86,304
ssj_ops@calibrated=87,230
100% 99.1% 87,230 86,416
90% 89.8% 78,507 78,365
80% 80.9% 69,784 70,534
70% 70.7% 61,061 61,667
60% 60.7% 52,338 52,980
50% 50.3% 43,615 43,873
40% 40.8% 34,892 35,595
30% 30.0% 26,169 26,139
20% 19.7% 17,446 17,221
10% 9.6% 8,723 8,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,606
Calibration 2     86,970
Calibration 3     85,069
ssj_ops@calibrated=86,019
100% 98.7% 86,019 84,893
90% 89.2% 77,417 76,729
80% 80.4% 68,815 69,148
70% 70.0% 60,214 60,210
60% 60.3% 51,612 51,869
50% 50.4% 43,010 43,364
40% 40.3% 34,408 34,669
30% 30.2% 25,806 26,015
20% 19.8% 17,204 17,024
10% 9.7% 8,602 8,320
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,638
Calibration 2     87,450
Calibration 3     85,197
ssj_ops@calibrated=86,323
100% 98.3% 86,323 84,820
90% 89.5% 77,691 77,225
80% 79.6% 69,059 68,688
70% 70.7% 60,426 61,035
60% 59.4% 51,794 51,260
50% 50.4% 43,162 43,479
40% 39.7% 34,529 34,285
30% 30.1% 25,897 26,017
20% 20.1% 17,265 17,336
10% 10.2% 8,632 8,774
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,170
Calibration 2     88,723
Calibration 3     87,002
ssj_ops@calibrated=87,862
100% 98.8% 87,862 86,831
90% 89.4% 79,076 78,532
80% 79.4% 70,290 69,797
70% 70.5% 61,503 61,908
60% 60.5% 52,717 53,120
50% 50.3% 43,931 44,192
40% 39.8% 35,145 34,999
30% 30.0% 26,359 26,326
20% 20.7% 17,572 18,207
10% 9.7% 8,786 8,502
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,935
Calibration 2     87,384
Calibration 3     85,384
ssj_ops@calibrated=86,384
100% 98.4% 86,384 84,968
90% 90.5% 77,746 78,182
80% 80.1% 69,107 69,198
70% 70.4% 60,469 60,844
60% 59.3% 51,830 51,238
50% 50.1% 43,192 43,242
40% 39.6% 34,554 34,203
30% 29.4% 25,915 25,398
20% 20.0% 17,277 17,316
10% 10.1% 8,638 8,716
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,175
Calibration 2     86,566
Calibration 3     84,772
ssj_ops@calibrated=85,669
100% 98.7% 85,669 84,529
90% 90.2% 77,102 77,272
80% 80.0% 68,535 68,505
70% 70.2% 59,968 60,102
60% 59.5% 51,401 50,992
50% 51.1% 42,834 43,788
40% 39.7% 34,267 34,005
30% 30.4% 25,701 26,053
20% 20.8% 17,134 17,795
10% 10.3% 8,567 8,816
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,240
Calibration 2     87,577
Calibration 3     85,696
ssj_ops@calibrated=86,637
100% 98.5% 86,637 85,377
90% 90.2% 77,973 78,141
80% 80.0% 69,309 69,302
70% 69.7% 60,646 60,401
60% 59.6% 51,982 51,629
50% 50.1% 43,318 43,445
40% 40.5% 34,655 35,060
30% 30.2% 25,991 26,130
20% 19.9% 17,327 17,232
10% 9.8% 8,664 8,491
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,768
Calibration 2     87,940
Calibration 3     86,110
ssj_ops@calibrated=87,025
100% 98.6% 87,025 85,797
90% 90.8% 78,323 78,978
80% 80.4% 69,620 69,928
70% 70.6% 60,918 61,429
60% 60.8% 52,215 52,928
50% 50.0% 43,513 43,534
40% 40.0% 34,810 34,798
30% 29.6% 26,108 25,738
20% 19.9% 17,405 17,332
10% 10.0% 8,703 8,733
Active Idle   0 0

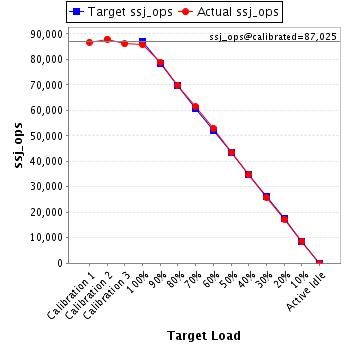

Graph of results
See the JVM Instance Performance Report for additional details.
