Hewlett Packard Enterprise ProLiant DL580 Gen10 | SPECpower_ssj2008 = 11,234 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 7, 2019 |
Hardware Availability: | Apr-2019 | Software Availability: | Mar-2019 | Publication: | Apr 2, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

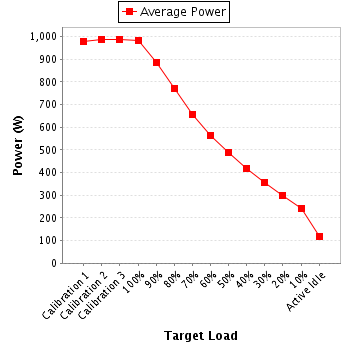

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 979 | 21.6 |
Calibration 2 | 989 | 21.6 |
Calibration 3 | 986 | 21.6 |
100% | 982 | 21.6 |
90% | 888 | 21.7 |
80% | 773 | 21.7 |
70% | 657 | 21.7 |
60% | 563 | 21.7 |
50% | 487 | 21.7 |
40% | 419 | 21.7 |
30% | 356 | 21.7 |
20% | 297 | 21.7 |
10% | 243 | 21.7 |
Active Idle | 119 | 21.6 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB53023 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EJ4KB-20-1 |
Date of Calibration: | 20-Apr-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supply 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 215 | 300.0 | 4.61 | 5.0 | 0.990 | 979 | 0.3% |
Calibration 2 | 214 | 300.0 | 4.66 | 5.0 | 0.990 | 989 | 0.3% |
Calibration 3 | 214 | 300.0 | 4.64 | 5.0 | 0.990 | 986 | 0.3% |
100% | 214 | 300.0 | 4.63 | 5.0 | 0.990 | 982 | 0.3% |
90% | 215 | 300.0 | 4.19 | 5.0 | 0.988 | 888 | 0.3% |
80% | 215 | 300.0 | 3.66 | 5.0 | 0.985 | 773 | 0.4% |
70% | 215 | 300.0 | 3.12 | 5.0 | 0.980 | 657 | 0.4% |
60% | 215 | 300.0 | 2.69 | 5.0 | 0.975 | 563 | 0.5% |
50% | 215 | 300.0 | 2.33 | 5.0 | 0.969 | 487 | 0.5% |
40% | 215 | 300.0 | 2.02 | 2.0 | 0.961 | 419 | 0.4% |
30% | 215 | 300.0 | 1.72 | 2.0 | 0.961 | 356 | 0.4% |
20% | 215 | 300.0 | 1.46 | 2.0 | 0.948 | 297 | 0.4% |
10% | 215 | 300.0 | 1.22 | 2.0 | 0.928 | 243 | 0.5% |
Active Idle | 215 | 300.0 | 0.716 | 2.0 | 0.774 | 119 | 0.8% |
