SPECpower_ssj2008 Host 'NODE05' Performance Report

SPECpower_ssj2008

Host 'NODE05' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,455,440 ssj_ops@100% per JVM = 1,431,930
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 9, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,491,684
Calibration 2			11,481,027
Calibration 3			11,493,660
ssj_ops@calibrated=11,487,344
100%	99.7%	11,487,344	11,455,440
90%	90.1%	10,338,609	10,346,501
80%	80.1%	9,189,875	9,196,519
70%	70.0%	8,041,140	8,036,614
60%	60.0%	6,892,406	6,890,947
50%	50.0%	5,743,672	5,743,633
40%	40.0%	4,594,937	4,600,042
30%	30.0%	3,446,203	3,445,925
20%	20.0%	2,297,469	2,294,550
10%	10.0%	1,148,734	1,150,424
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	5
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

JVM Instance Summary

JVM Instance	ssj_ops@100%
NODE05.001	1,437,388
NODE05.002	1,425,593
NODE05.003	1,436,860
NODE05.004	1,419,262
NODE05.005	1,432,493
NODE05.006	1,436,755
NODE05.007	1,420,749
NODE05.008	1,446,340
ssj_ops@100%	11,455,440
ssj_ops@100% per JVM	1,431,930

JVM 'NODE05.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,440,738
Calibration 2			1,440,963
Calibration 3			1,442,835
ssj_ops@calibrated=1,441,899
100%	99.7%	1,441,899	1,437,388
90%	90.2%	1,297,709	1,300,199
80%	80.2%	1,153,519	1,156,421
70%	70.1%	1,009,330	1,010,371
60%	60.0%	865,140	865,653
50%	50.1%	720,950	721,777
40%	40.1%	576,760	578,347
30%	30.0%	432,570	432,874
20%	20.0%	288,380	288,633
10%	10.0%	144,190	144,401
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE05.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,427,530
Calibration 2			1,427,455
Calibration 3			1,429,121
ssj_ops@calibrated=1,428,288
100%	99.8%	1,428,288	1,425,593
90%	90.0%	1,285,459	1,286,063
80%	80.2%	1,142,631	1,144,881
70%	70.0%	999,802	999,879
60%	59.8%	856,973	853,408
50%	49.9%	714,144	712,565
40%	40.1%	571,315	572,304
30%	29.9%	428,486	427,126
20%	19.9%	285,658	283,562
10%	9.9%	142,829	142,039
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE05.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,441,332
Calibration 2			1,440,959
Calibration 3			1,443,487
ssj_ops@calibrated=1,442,223
100%	99.6%	1,442,223	1,436,860
90%	90.0%	1,298,000	1,297,350
80%	80.0%	1,153,778	1,153,468
70%	70.0%	1,009,556	1,010,013
60%	60.0%	865,334	865,849
50%	50.1%	721,111	722,890
40%	39.9%	576,889	576,058
30%	29.9%	432,667	430,864
20%	20.0%	288,445	288,634
10%	10.0%	144,222	144,427
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE05.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,422,615
Calibration 2			1,422,266
Calibration 3			1,421,689
ssj_ops@calibrated=1,421,977
100%	99.8%	1,421,977	1,419,262
90%	90.2%	1,279,780	1,282,060
80%	80.0%	1,137,582	1,137,877
70%	69.9%	995,384	993,662
60%	60.0%	853,186	853,484
50%	50.1%	710,989	713,114
40%	40.0%	568,791	569,472
30%	30.1%	426,593	428,174
20%	20.0%	284,395	284,999
10%	10.0%	142,198	141,801
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE05.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,436,283
Calibration 2			1,433,949
Calibration 3			1,436,599
ssj_ops@calibrated=1,435,274
100%	99.8%	1,435,274	1,432,493
90%	90.0%	1,291,747	1,292,422
80%	79.9%	1,148,219	1,146,316
70%	70.0%	1,004,692	1,004,380
60%	60.2%	861,164	863,894
50%	50.1%	717,637	718,932
40%	39.9%	574,110	572,920
30%	30.0%	430,582	430,292
20%	20.0%	287,055	286,523
10%	10.1%	143,527	144,333
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

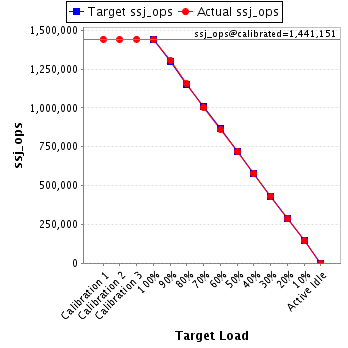

JVM 'NODE05.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,441,812
Calibration 2			1,440,201
Calibration 3			1,442,102
ssj_ops@calibrated=1,441,151
100%	99.7%	1,441,151	1,436,755
90%	90.5%	1,297,036	1,303,899
80%	80.1%	1,152,921	1,154,204
70%	69.7%	1,008,806	1,003,996
60%	59.8%	864,691	861,687
50%	50.0%	720,576	720,147
40%	40.0%	576,461	576,695
30%	30.0%	432,345	432,808
20%	19.8%	288,230	285,802
10%	10.0%	144,115	144,299
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE05.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,427,969
Calibration 2			1,423,529
Calibration 3			1,425,613
ssj_ops@calibrated=1,424,571
100%	99.7%	1,424,571	1,420,749
90%	90.0%	1,282,114	1,281,811
80%	80.2%	1,139,657	1,141,838
70%	70.1%	997,199	998,479
60%	59.9%	854,742	853,837
50%	49.7%	712,285	708,192
40%	40.1%	569,828	570,815
30%	30.0%	427,371	427,991
20%	20.0%	284,914	285,519
10%	10.0%	142,457	142,755
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE05.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,453,405
Calibration 2			1,451,705
Calibration 3			1,452,214
ssj_ops@calibrated=1,451,960
100%	99.6%	1,451,960	1,446,340
90%	89.7%	1,306,764	1,302,697
80%	80.0%	1,161,568	1,161,514
70%	70.0%	1,016,372	1,015,833
60%	60.1%	871,176	873,134
50%	50.0%	725,980	726,018
40%	40.2%	580,784	583,430
30%	30.0%	435,588	435,797
20%	20.0%	290,392	290,876
10%	10.1%	145,196	146,369
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
