Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module SPECpower_ssj2008 = 11,179 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 10, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 5,934 22.2
Calibration 2 6,027 22.4
Calibration 3 6,024 22.5
100% 5,989 22.6
90% 5,401 22.7
80% 4,667 22.7
70% 3,940 22.5
60% 3,404 22.4
50% 2,946 22.3
40% 2,543 22.2
30% 2,171 22.2
20% 1,816 22.1
10% 1,505 22.1
Active Idle 679 22.2

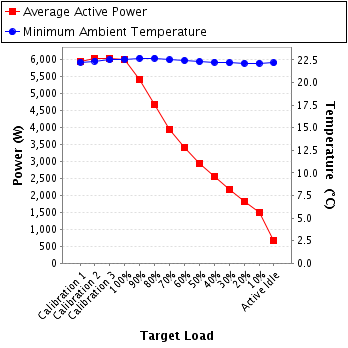

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 3
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 6.75 20.0 0.997 1,440 0.6%
Calibration 2 214 300.0 6.80 20.0 0.997 1,451 0.6%
Calibration 3 214 300.0 6.80 20.0 0.997 1,452 0.6%
100% 215 300.0 6.77 20.0 0.997 1,449 0.6%
90% 215 300.0 6.06 20.0 0.996 1,297 0.6%
80% 215 300.0 5.24 10.0 0.995 1,124 0.4%
70% 216 300.0 4.31 10.0 0.993 923 0.5%
60% 216 300.0 3.79 10.0 0.991 809 0.5%
50% 216 300.0 3.35 10.0 0.990 715 0.6%
40% 216 300.0 2.94 10.0 0.987 626 0.7%
30% 216 300.0 2.54 5.0 0.982 538 0.5%
20% 216 300.0 2.10 5.0 0.973 441 0.5%
10% 216 300.0 1.69 2.0 0.959 350 0.4%
Active Idle 216 300.0 0.862 1.0 0.812 152 0.5%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 14.2 20.0 0.997 3,022 0.4%
Calibration 2 213 300.0 14.4 20.0 0.997 3,057 0.4%
Calibration 3 213 300.0 14.4 20.0 0.997 3,066 0.4%
100% 214 300.0 14.3 20.0 0.997 3,052 0.4%
90% 214 300.0 13.0 20.0 0.997 2,766 0.4%
80% 214 300.0 11.2 10.0 0.996 2,386 0.4%
70% 215 300.0 9.56 10.0 0.996 2,044 0.3%
60% 215 300.0 8.18 10.0 0.995 1,751 0.3%
50% 215 300.0 7.02 10.0 0.992 1,502 0.4%
40% 216 300.0 6.07 10.0 0.990 1,296 0.4%
30% 216 300.0 5.21 5.0 0.986 1,108 0.3%
20% 216 300.0 4.40 5.0 0.981 931 0.4%
10% 216 300.0 3.72 5.0 0.973 782 0.4%
Active Idle 217 300.0 1.94 5.0 0.879 369 0.7%

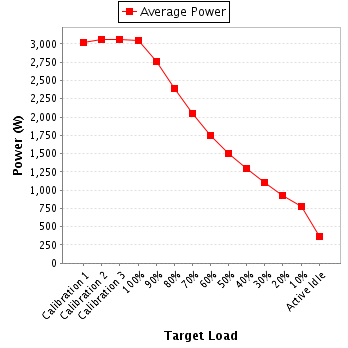

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 6.99 10.0 0.996 1,473 0.4%
Calibration 2 212 300.0 7.19 10.0 0.996 1,518 0.4%
Calibration 3 212 300.0 7.13 10.0 0.996 1,505 0.4%
100% 212 300.0 7.04 10.0 0.996 1,487 0.4%
90% 213 300.0 6.32 10.0 0.996 1,338 0.4%
80% 213 300.0 5.46 10.0 0.995 1,157 0.4%
70% 213 300.0 4.59 10.0 0.993 973 0.5%
60% 213 300.0 3.99 5.0 0.992 844 0.4%
50% 214 300.0 3.45 5.0 0.989 729 0.4%
40% 213 300.0 2.95 5.0 0.985 621 0.4%
30% 213 300.0 2.52 5.0 0.979 526 0.5%
20% 214 300.0 2.14 5.0 0.971 444 0.5%
10% 214 300.0 1.82 5.0 0.960 373 0.6%
Active Idle 214 300.0 0.906 2.0 0.814 158 0.7%
Power details for pwr3
