SPECpower_ssj2008 Host 'SY660-03' Performance Report

SPECpower_ssj2008

Host 'SY660-03' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,827,661 ssj_ops@100% per JVM = 1,478,458
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,885,598
Calibration 2			11,861,904
Calibration 3			11,868,608
ssj_ops@calibrated=11,865,256
100%	99.7%	11,865,256	11,827,661
90%	89.9%	10,678,731	10,671,669
80%	80.0%	9,492,205	9,493,174
70%	70.0%	8,305,679	8,306,111
60%	60.0%	7,119,154	7,122,453
50%	50.0%	5,932,628	5,931,153
40%	40.1%	4,746,102	4,753,876
30%	30.1%	3,559,577	3,565,566
20%	20.0%	2,373,051	2,371,443
10%	10.0%	1,186,526	1,188,460
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	5
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: Dynamic Power Savings Mode (default)
Intel Turbo Boost Technology: Disabled
Energy Efficient Turbo: Disabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Power Savings Mode (default: Balanced Performance)
Collaborative Power Control: Disabled (default: Enabled)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

systemctl stop irqbalance.service
echo 970000 > /proc/sys/kernel/sched_rt_runtime_us
echo 40000000 > /proc/sys/kernel/sched_latency_ns
echo 15000 > /proc/sys/vm/dirty_expire_centisecs
echo 64 > /proc/sys/kernel/sched_nr_migrate

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

Notes

None

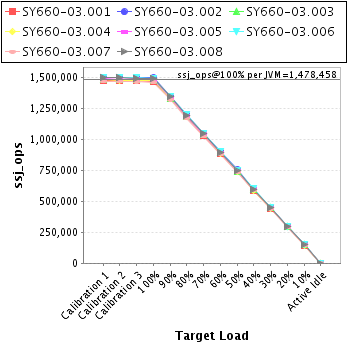

JVM Instance Summary

JVM Instance	ssj_ops@100%
SY660-03.001	1,464,355
SY660-03.002	1,494,508
SY660-03.003	1,477,384
SY660-03.004	1,469,955
SY660-03.005	1,481,256
SY660-03.006	1,488,296
SY660-03.007	1,459,742
SY660-03.008	1,492,165
ssj_ops@100%	11,827,661
ssj_ops@100% per JVM	1,478,458

JVM 'SY660-03.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,473,792
Calibration 2			1,470,598
Calibration 3			1,469,837
ssj_ops@calibrated=1,470,217
100%	99.6%	1,470,217	1,464,355
90%	90.2%	1,323,196	1,325,925
80%	80.4%	1,176,174	1,181,858
70%	69.9%	1,029,152	1,027,303
60%	60.1%	882,130	883,245
50%	50.2%	735,109	738,140
40%	40.1%	588,087	589,554
30%	30.1%	441,065	443,174
20%	20.1%	294,043	295,250
10%	10.0%	147,022	146,804
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,500,100
Calibration 2			1,497,246
Calibration 3			1,499,964
ssj_ops@calibrated=1,498,605
100%	99.7%	1,498,605	1,494,508
90%	90.0%	1,348,745	1,348,031
80%	79.9%	1,198,884	1,197,283
70%	70.0%	1,049,024	1,049,603
60%	60.0%	899,163	898,657
50%	50.2%	749,303	752,955
40%	39.9%	599,442	598,092
30%	30.0%	449,582	450,253
20%	19.9%	299,721	298,680
10%	10.1%	149,861	150,806
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,482,742
Calibration 2			1,479,355
Calibration 3			1,482,448
ssj_ops@calibrated=1,480,901
100%	99.8%	1,480,901	1,477,384
90%	89.9%	1,332,811	1,331,310
80%	80.2%	1,184,721	1,187,001
70%	70.0%	1,036,631	1,036,408
60%	60.2%	888,541	891,403
50%	49.9%	740,451	739,287
40%	40.1%	592,361	594,063
30%	30.2%	444,270	447,300
20%	20.2%	296,180	298,848
10%	10.0%	148,090	147,637
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,477,910
Calibration 2			1,475,184
Calibration 3			1,474,562
ssj_ops@calibrated=1,474,873
100%	99.7%	1,474,873	1,469,955
90%	89.8%	1,327,385	1,324,418
80%	80.1%	1,179,898	1,181,953
70%	70.1%	1,032,411	1,034,280
60%	60.1%	884,924	886,023
50%	49.9%	737,436	736,330
40%	40.0%	589,949	590,314
30%	29.9%	442,462	441,609
20%	19.9%	294,975	293,670
10%	10.0%	147,487	146,985
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,488,523
Calibration 2			1,484,257
Calibration 3			1,488,064
ssj_ops@calibrated=1,486,160
100%	99.7%	1,486,160	1,481,256
90%	89.9%	1,337,544	1,335,493
80%	79.8%	1,188,928	1,185,258
70%	69.9%	1,040,312	1,039,499
60%	60.0%	891,696	891,209
50%	49.9%	743,080	741,343
40%	40.2%	594,464	597,200
30%	30.1%	445,848	446,759
20%	19.9%	297,232	296,200
10%	10.0%	148,616	148,592
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,497,938
Calibration 2			1,494,473
Calibration 3			1,495,211
ssj_ops@calibrated=1,494,842
100%	99.6%	1,494,842	1,488,296
90%	90.0%	1,345,358	1,345,100
80%	80.0%	1,195,873	1,195,813
70%	70.1%	1,046,389	1,048,323
60%	60.1%	896,905	898,296
50%	49.8%	747,421	744,851
40%	40.1%	597,937	599,626
30%	30.0%	448,453	448,542
20%	20.0%	298,968	298,513
10%	10.1%	149,484	151,237
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,467,774
Calibration 2			1,465,640
Calibration 3			1,464,986
ssj_ops@calibrated=1,465,313
100%	99.6%	1,465,313	1,459,742
90%	90.0%	1,318,781	1,318,460
80%	79.9%	1,172,250	1,170,815
70%	69.8%	1,025,719	1,023,120
60%	59.9%	879,188	878,341
50%	50.1%	732,656	733,678
40%	40.1%	586,125	587,397
30%	30.1%	439,594	440,828
20%	19.9%	293,063	292,187
10%	10.0%	146,531	146,499
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,496,819
Calibration 2			1,495,151
Calibration 3			1,493,537
ssj_ops@calibrated=1,494,344
100%	99.9%	1,494,344	1,492,165
90%	89.9%	1,344,910	1,342,931
80%	79.8%	1,195,475	1,193,193
70%	70.1%	1,046,041	1,047,575
60%	59.9%	896,607	895,278
50%	49.8%	747,172	744,569
40%	40.0%	597,738	597,630
30%	29.9%	448,303	447,101
20%	19.9%	298,869	298,095
10%	10.0%	149,434	149,900
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
