SPECpower_ssj2008 Host 'SY660-01' Performance Report

SPECpower_ssj2008

Host 'SY660-01' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,871,889 ssj_ops@100% per JVM = 1,483,986
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,956,346
Calibration 2			11,911,247
Calibration 3			11,911,762
ssj_ops@calibrated=11,911,504
100%	99.7%	11,911,504	11,871,889
90%	90.0%	10,720,354	10,723,997
80%	80.0%	9,529,204	9,532,490
70%	70.0%	8,338,053	8,337,969
60%	60.0%	7,146,903	7,149,110
50%	50.1%	5,955,752	5,961,747
40%	40.1%	4,764,602	4,770,644
30%	30.0%	3,573,451	3,573,330
20%	20.0%	2,382,301	2,384,169
10%	10.0%	1,191,150	1,191,411
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	4
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: Dynamic Power Savings Mode (default)
Intel Turbo Boost Technology: Disabled
Energy Efficient Turbo: Disabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Power Savings Mode (default: Balanced Performance)
Collaborative Power Control: Disabled (default: Enabled)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

systemctl stop irqbalance.service
echo 970000 > /proc/sys/kernel/sched_rt_runtime_us
echo 40000000 > /proc/sys/kernel/sched_latency_ns
echo 15000 > /proc/sys/vm/dirty_expire_centisecs
echo 64 > /proc/sys/kernel/sched_nr_migrate

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

Notes

None

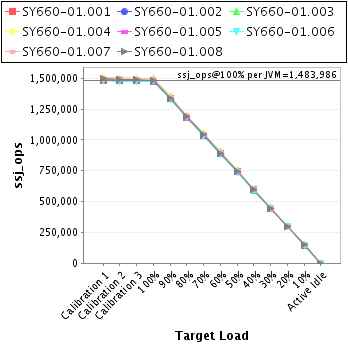

JVM Instance Summary

JVM Instance	ssj_ops@100%
SY660-01.001	1,474,624
SY660-01.002	1,477,072
SY660-01.003	1,494,702
SY660-01.004	1,492,068
SY660-01.005	1,481,765
SY660-01.006	1,471,662
SY660-01.007	1,496,021
SY660-01.008	1,483,974
ssj_ops@100%	11,871,889
ssj_ops@100% per JVM	1,483,986

JVM 'SY660-01.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,484,472
Calibration 2			1,481,660
Calibration 3			1,482,513
ssj_ops@calibrated=1,482,087
100%	99.5%	1,482,087	1,474,624
90%	90.2%	1,333,878	1,336,377
80%	79.9%	1,185,669	1,184,622
70%	69.8%	1,037,461	1,034,312
60%	60.2%	889,252	891,728
50%	50.0%	741,043	741,400
40%	40.1%	592,835	594,320
30%	29.8%	444,626	442,000
20%	20.1%	296,417	297,327
10%	9.9%	148,209	147,104
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,490,217
Calibration 2			1,479,951
Calibration 3			1,484,353
ssj_ops@calibrated=1,482,152
100%	99.7%	1,482,152	1,477,072
90%	90.2%	1,333,937	1,336,390
80%	80.0%	1,185,721	1,186,247
70%	70.0%	1,037,506	1,037,763
60%	59.8%	889,291	886,476
50%	50.0%	741,076	741,095
40%	40.1%	592,861	593,622
30%	30.0%	444,646	444,733
20%	19.9%	296,430	295,664
10%	10.0%	148,215	148,003
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,509,042
Calibration 2			1,500,458
Calibration 3			1,500,740
ssj_ops@calibrated=1,500,599
100%	99.6%	1,500,599	1,494,702
90%	90.0%	1,350,539	1,350,318
80%	79.9%	1,200,479	1,199,211
70%	70.1%	1,050,419	1,051,829
60%	60.2%	900,359	902,619
50%	50.2%	750,300	752,864
40%	40.0%	600,240	600,583
30%	30.0%	450,180	450,783
20%	19.9%	300,120	299,077
10%	10.0%	150,060	150,137
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,503,325
Calibration 2			1,494,624
Calibration 3			1,496,831
ssj_ops@calibrated=1,495,728
100%	99.8%	1,495,728	1,492,068
90%	89.9%	1,346,155	1,344,459
80%	80.2%	1,196,582	1,199,294
70%	70.0%	1,047,009	1,046,889
60%	60.0%	897,437	898,178
50%	49.9%	747,864	746,689
40%	40.2%	598,291	600,570
30%	29.9%	448,718	447,359
20%	20.1%	299,146	300,692
10%	10.0%	149,573	149,766
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,493,265
Calibration 2			1,486,159
Calibration 3			1,484,272
ssj_ops@calibrated=1,485,216
100%	99.8%	1,485,216	1,481,765
90%	90.2%	1,336,694	1,340,210
80%	79.9%	1,188,173	1,187,401
70%	70.1%	1,039,651	1,041,153
60%	60.0%	891,129	891,691
50%	50.1%	742,608	743,515
40%	40.1%	594,086	595,052
30%	30.1%	445,565	446,670
20%	20.1%	297,043	297,933
10%	10.1%	148,522	149,488
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,480,522
Calibration 2			1,476,241
Calibration 3			1,475,539
ssj_ops@calibrated=1,475,890
100%	99.7%	1,475,890	1,471,662
90%	90.1%	1,328,301	1,330,313
80%	80.1%	1,180,712	1,182,016
70%	69.8%	1,033,123	1,030,887
60%	59.9%	885,534	884,068
50%	50.1%	737,945	739,504
40%	40.0%	590,356	590,529
30%	30.1%	442,767	444,330
20%	20.0%	295,178	294,850
10%	10.0%	147,589	147,262
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

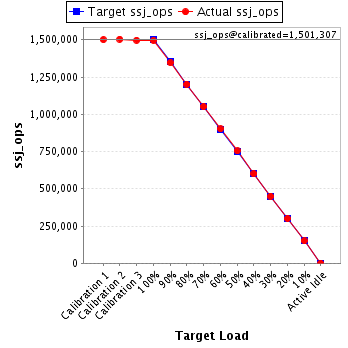

JVM 'SY660-01.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,500,821
Calibration 2			1,504,316
Calibration 3			1,498,298
ssj_ops@calibrated=1,501,307
100%	99.6%	1,501,307	1,496,021
90%	89.6%	1,351,177	1,345,663
80%	80.0%	1,201,046	1,201,579
70%	70.0%	1,050,915	1,051,304
60%	60.0%	900,784	901,526
50%	50.2%	750,654	753,740
40%	40.0%	600,523	600,005
30%	30.0%	450,392	451,018
20%	20.0%	300,261	299,924
10%	10.0%	150,131	150,390
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,494,681
Calibration 2			1,487,838
Calibration 3			1,489,216
ssj_ops@calibrated=1,488,527
100%	99.7%	1,488,527	1,483,974
90%	90.0%	1,339,674	1,340,265
80%	80.1%	1,190,821	1,192,119
70%	70.1%	1,041,969	1,043,831
60%	60.0%	893,116	892,824
50%	49.9%	744,263	742,940
40%	40.0%	595,411	595,964
30%	30.0%	446,558	446,435
20%	20.1%	297,705	298,702
10%	10.0%	148,853	149,261
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
