SPECpower_ssj2008 Host 'SY660-02' Performance Report

SPECpower_ssj2008

Host 'SY660-02' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,847,107 ssj_ops@100% per JVM = 1,480,888
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,923,281
Calibration 2			11,888,413
Calibration 3			11,895,034
ssj_ops@calibrated=11,891,724
100%	99.6%	11,891,724	11,847,107
90%	90.0%	10,702,551	10,700,219
80%	80.0%	9,513,379	9,516,439
70%	70.0%	8,324,207	8,318,912
60%	60.0%	7,135,034	7,136,620
50%	50.0%	5,945,862	5,951,310
40%	40.0%	4,756,689	4,755,416
30%	30.0%	3,567,517	3,570,705
20%	20.0%	2,378,345	2,383,024
10%	10.0%	1,189,172	1,190,467
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	4
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: Dynamic Power Savings Mode (default)
Intel Turbo Boost Technology: Disabled
Energy Efficient Turbo: Disabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Power Savings Mode (default: Balanced Performance)
Collaborative Power Control: Disabled (default: Enabled)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

systemctl stop irqbalance.service
echo 970000 > /proc/sys/kernel/sched_rt_runtime_us
echo 40000000 > /proc/sys/kernel/sched_latency_ns
echo 15000 > /proc/sys/vm/dirty_expire_centisecs
echo 64 > /proc/sys/kernel/sched_nr_migrate

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

Notes

None

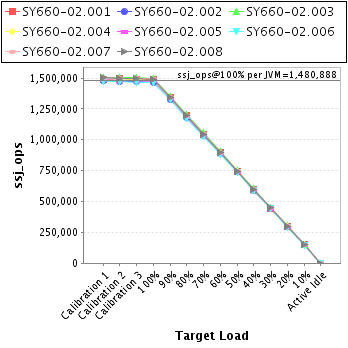

JVM Instance Summary

JVM Instance	ssj_ops@100%
SY660-02.001	1,484,260
SY660-02.002	1,467,664
SY660-02.003	1,499,910
SY660-02.004	1,478,574
SY660-02.005	1,473,880
SY660-02.006	1,462,404
SY660-02.007	1,492,154
SY660-02.008	1,488,261
ssj_ops@100%	11,847,107
ssj_ops@100% per JVM	1,480,888

JVM 'SY660-02.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,491,660
Calibration 2			1,493,585
Calibration 3			1,490,148
ssj_ops@calibrated=1,491,867
100%	99.5%	1,491,867	1,484,260
90%	90.1%	1,342,680	1,344,328
80%	80.0%	1,193,493	1,193,429
70%	69.9%	1,044,307	1,042,538
60%	59.9%	895,120	894,031
50%	50.0%	745,933	746,125
40%	40.1%	596,747	598,215
30%	29.9%	447,560	445,827
20%	20.0%	298,373	298,836
10%	10.0%	149,187	149,327
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-02.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,476,014
Calibration 2			1,471,571
Calibration 3			1,473,381
ssj_ops@calibrated=1,472,476
100%	99.7%	1,472,476	1,467,664
90%	90.0%	1,325,228	1,325,308
80%	80.2%	1,177,981	1,180,801
70%	70.1%	1,030,733	1,031,617
60%	60.4%	883,486	888,799
50%	50.3%	736,238	740,515
40%	39.9%	588,990	587,813
30%	30.1%	441,743	443,060
20%	20.1%	294,495	296,622
10%	10.1%	147,248	148,199
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-02.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,506,760
Calibration 2			1,502,600
Calibration 3			1,505,858
ssj_ops@calibrated=1,504,229
100%	99.7%	1,504,229	1,499,910
90%	90.0%	1,353,806	1,353,468
80%	79.9%	1,203,383	1,201,400
70%	70.1%	1,052,960	1,054,865
60%	60.0%	902,537	902,797
50%	50.0%	752,114	752,126
40%	40.1%	601,692	603,236
30%	30.1%	451,269	452,712
20%	20.1%	300,846	302,133
10%	10.1%	150,423	151,339
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-02.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,486,862
Calibration 2			1,482,637
Calibration 3			1,484,751
ssj_ops@calibrated=1,483,694
100%	99.7%	1,483,694	1,478,574
90%	90.0%	1,335,324	1,334,951
80%	80.0%	1,186,955	1,187,580
70%	69.7%	1,038,586	1,034,061
60%	60.0%	890,216	889,607
50%	50.0%	741,847	741,854
40%	39.9%	593,478	592,091
30%	30.0%	445,108	445,570
20%	20.0%	296,739	296,404
10%	10.0%	148,369	148,251
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-02.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,486,044
Calibration 2			1,478,318
Calibration 3			1,479,103
ssj_ops@calibrated=1,478,711
100%	99.7%	1,478,711	1,473,880
90%	89.9%	1,330,839	1,328,922
80%	80.2%	1,182,968	1,186,555
70%	69.9%	1,035,097	1,033,186
60%	60.0%	887,226	887,349
50%	50.1%	739,355	740,412
40%	39.9%	591,484	589,408
30%	29.9%	443,613	442,388
20%	19.9%	295,742	294,882
10%	10.0%	147,871	147,760
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-02.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,473,395
Calibration 2			1,469,142
Calibration 3			1,466,023
ssj_ops@calibrated=1,467,583
100%	99.6%	1,467,583	1,462,404
90%	90.1%	1,320,824	1,322,858
80%	80.0%	1,174,066	1,173,418
70%	70.1%	1,027,308	1,028,504
60%	60.0%	880,550	880,060
50%	50.0%	733,791	733,985
40%	40.0%	587,033	586,934
30%	30.1%	440,275	441,250
20%	20.0%	293,517	293,005
10%	10.0%	146,758	147,222
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-02.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,500,649
Calibration 2			1,497,380
Calibration 3			1,499,700
ssj_ops@calibrated=1,498,540
100%	99.6%	1,498,540	1,492,154
90%	89.8%	1,348,686	1,345,311
80%	79.8%	1,198,832	1,195,580
70%	70.0%	1,048,978	1,048,365
60%	59.8%	899,124	896,739
50%	50.0%	749,270	749,813
40%	40.0%	599,416	599,656
30%	30.1%	449,562	451,378
20%	20.2%	299,708	302,143
10%	10.0%	149,854	149,211
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

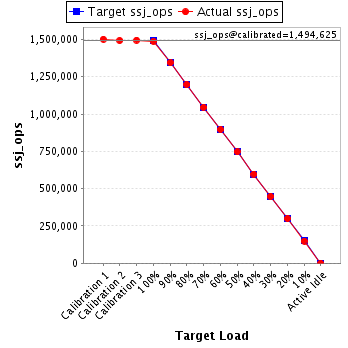

JVM 'SY660-02.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,501,896
Calibration 2			1,493,179
Calibration 3			1,496,070
ssj_ops@calibrated=1,494,625
100%	99.6%	1,494,625	1,488,261
90%	90.0%	1,345,162	1,345,074
80%	80.1%	1,195,700	1,197,675
70%	70.0%	1,046,237	1,045,776
60%	60.0%	896,775	897,239
50%	49.9%	747,312	746,480
40%	40.0%	597,850	598,063
30%	30.0%	448,387	448,520
20%	20.0%	298,925	299,000
10%	10.0%	149,462	149,157
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
