Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module ssj_ops@100% = 11,780,716
ssj_ops@100% per JVM = 1,472,589
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 10, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,858,379
Calibration 2     11,828,354
Calibration 3     11,823,509
ssj_ops@calibrated=11,825,932
100% 99.6% 11,825,932 11,780,716
90% 90.0% 10,643,338 10,641,746
80% 80.0% 9,460,745 9,462,336
70% 69.9% 8,278,152 8,271,063
60% 60.1% 7,095,559 7,102,896
50% 50.0% 5,912,966 5,913,166
40% 40.0% 4,730,373 4,734,980
30% 30.0% 3,547,779 3,547,115
20% 20.0% 2,365,186 2,362,634
10% 10.0% 1,182,593 1,178,749
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 4
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 660 Gen10 Compute Module
Form Factor: blade
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 8
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I43 v2.10 (01/18/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SY660-04.001 1,475,366
SY660-04.002 1,474,717
SY660-04.003 1,462,843
SY660-04.004 1,505,048
SY660-04.005 1,474,555
SY660-04.006 1,457,115
SY660-04.007 1,466,786
SY660-04.008 1,464,285
ssj_ops@100% 11,780,716
ssj_ops@100% per JVM 1,472,589
Graph of per-instance results
JVM 'SY660-04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,484,152
Calibration 2     1,480,024
Calibration 3     1,481,481
ssj_ops@calibrated=1,480,752
100% 99.6% 1,480,752 1,475,366
90% 90.0% 1,332,677 1,332,919
80% 80.0% 1,184,602 1,184,501
70% 69.9% 1,036,527 1,034,805
60% 60.1% 888,451 890,451
50% 50.2% 740,376 742,748
40% 40.2% 592,301 594,807
30% 29.9% 444,226 442,026
20% 20.0% 296,150 295,905
10% 10.1% 148,075 149,518
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,483,620
Calibration 2     1,480,408
Calibration 3     1,481,319
ssj_ops@calibrated=1,480,863
100% 99.6% 1,480,863 1,474,717
90% 89.8% 1,332,777 1,330,027
80% 80.0% 1,184,691 1,185,184
70% 69.9% 1,036,604 1,034,538
60% 60.2% 888,518 892,005
50% 49.9% 740,432 738,519
40% 40.2% 592,345 595,112
30% 30.1% 444,259 445,155
20% 20.0% 296,173 296,356
10% 10.0% 148,086 147,426
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,469,773
Calibration 2     1,466,793
Calibration 3     1,467,981
ssj_ops@calibrated=1,467,387
100% 99.7% 1,467,387 1,462,843
90% 90.0% 1,320,649 1,320,978
80% 80.0% 1,173,910 1,174,250
70% 69.8% 1,027,171 1,023,625
60% 60.2% 880,432 882,672
50% 50.0% 733,694 733,366
40% 40.2% 586,955 589,572
30% 30.1% 440,216 442,179
20% 19.9% 293,477 292,102
10% 10.0% 146,739 146,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,511,313
Calibration 2     1,514,163
Calibration 3     1,508,347
ssj_ops@calibrated=1,511,255
100% 99.6% 1,511,255 1,505,048
90% 90.2% 1,360,129 1,363,513
80% 79.7% 1,209,004 1,204,610
70% 70.1% 1,057,878 1,059,225
60% 60.0% 906,753 907,208
50% 50.0% 755,627 756,260
40% 40.1% 604,502 605,863
30% 30.0% 453,376 453,512
20% 20.0% 302,251 301,996
10% 10.0% 151,125 150,915
Active Idle   0 0

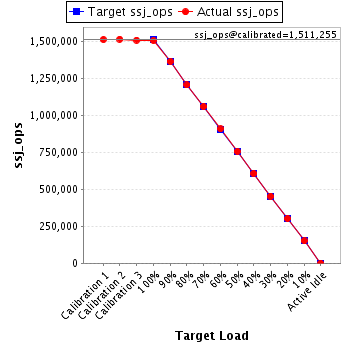

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-04.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,484,203
Calibration 2     1,479,600
Calibration 3     1,479,134
ssj_ops@calibrated=1,479,367
100% 99.7% 1,479,367 1,474,555
90% 89.9% 1,331,430 1,329,693
80% 80.1% 1,183,494 1,185,171
70% 70.2% 1,035,557 1,038,328
60% 60.1% 887,620 889,372
50% 50.0% 739,684 740,387
40% 39.8% 591,747 589,347
30% 30.0% 443,810 444,522
20% 19.9% 295,873 293,850
10% 10.0% 147,937 147,423
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-04.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,467,898
Calibration 2     1,460,691
Calibration 3     1,460,554
ssj_ops@calibrated=1,460,622
100% 99.8% 1,460,622 1,457,115
90% 90.2% 1,314,560 1,317,208
80% 79.9% 1,168,498 1,166,855
70% 69.9% 1,022,436 1,021,060
60% 60.0% 876,373 876,936
50% 49.9% 730,311 728,594
40% 40.0% 584,249 583,758
30% 30.0% 438,187 438,839
20% 20.1% 292,124 293,922
10% 9.9% 146,062 144,731
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-04.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,484,749
Calibration 2     1,475,217
Calibration 3     1,478,637
ssj_ops@calibrated=1,476,927
100% 99.3% 1,476,927 1,466,786
90% 89.7% 1,329,235 1,325,372
80% 80.4% 1,181,542 1,187,398
70% 69.8% 1,033,849 1,030,592
60% 60.1% 886,156 888,158
50% 50.1% 738,464 739,886
40% 40.1% 590,771 591,545
30% 29.9% 443,078 441,709
20% 20.0% 295,385 295,935
10% 9.9% 147,693 146,780
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-04.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,472,671
Calibration 2     1,471,458
Calibration 3     1,466,056
ssj_ops@calibrated=1,468,757
100% 99.7% 1,468,757 1,464,285
90% 90.0% 1,321,881 1,322,036
80% 80.0% 1,175,006 1,174,367
70% 70.1% 1,028,130 1,028,891
60% 59.6% 881,254 876,093
50% 49.9% 734,378 733,406
40% 39.8% 587,503 584,976
30% 29.9% 440,627 439,173
20% 19.9% 293,751 292,568
10% 9.9% 146,876 145,620
Active Idle   0 0

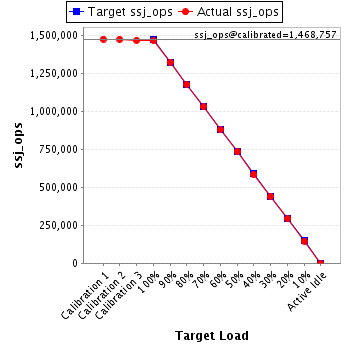

Graph of results
See the JVM Instance Performance Report for additional details.
