Supermicro Inc. SuperServer SYS-6029P-WTR SPECpower_ssj2008 = 13,295 overall ssj_ops/watt
Test Sponsor: Supermicro Inc. SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Inc. Test Location: San Jose, CA, USA Test Date: Jan 6, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 5,622,643 416 13,505
90% 88.3% 4,982,142 325 15,341
80% 78.5% 4,430,870 280 15,807
70% 69.2% 3,902,602 246 15,839
60% 59.7% 3,370,268 217 15,509
50% 49.5% 2,790,347 194 14,409
40% 40.0% 2,256,218 175 12,920
30% 30.1% 1,695,722 156 10,869
20% 20.0% 1,128,408 137 8,218
10% 10.0% 565,016 118 4,800
Active Idle 0 48.1 0
∑ssj_ops / ∑power = 13,295

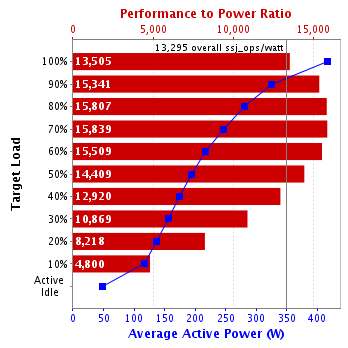

Graph of results
System Under Test
Set: 'X11DDW-L'
Set Identifier: X11DDW-L
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro Inc.
Model: SuperServer SYS-6029P-WTR
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8276M 2.20GHz
CPU Characteristics: 28-Core, 2.20 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2666V; CPU1/2 A1,B1,C1,D1,E1,F1 populated.
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: PWS-802A-1R (S/N:P802ACH19A00324)
Disk Drive: 1 x Samsung SATA III 480 GB SSD (S/N:MZ7KM480HAHP-00005)
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-Port Intel X722 Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver (see SUT Notes)
Operating System (OS): Microsoft Windows Server Enterprise 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2] /AFFINITY [3, C, 30, C0, C000, 30000, C0000, 30000000, C0000000, 300000000, C00000000, C0000000000, 300000000000, C00000000000];start /NODE [1,3] /AFFINITY [3, C, 30, 3000, C000, 30000, C0000, 30000000, C0000000, 300000000, C00000000, C0000000000, 300000000000, C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: X11DDW9_112
Management Firmware Version: SMT_X11AST2500_164
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4054519
Boot Firmware Settings
  • Power Technology: Custom
  • Power Performance Tuning: BIOS Controls EPB
  • ENERGY_PERF_BIAS_CFG: Max Power Efficient
  • Management Firmware Settings
  • Fan mode: Set Fan to PUE2
  • System Under Test Notes
    Controller System
    Hardware
    Hardware Vendor: Supermicro Inc.
    Model: X11DDW
    CPU Description: Intel(R) Core(R) Skylake
    Memory amount (GB): 192.0
    Software
    Operating System (OS): Microsoft Windows 2012 R2
    JVM Vendor: Oracle Corporation
    JVM Version: Jave(TM) SE Runtime Environment (build 1.7.0_80-b15) Java HotSpot(TM) 64-Bit Server VM(build 24.80-b11)
    CCS Version: 1.2.6
    Measurement Devices
    Power Analyzer pwr1
    Hardware Vendor: Yokogawa Meters and Instruments Corporation.
    Model: WT310
    Serial Number: C2QH25018V
    Connectivity: GPIB
    Input Connection: Default
    Metrology Institute: NIST (National Institute of Standards and Technology)
    Accredited by: Trescal
    Calibration Label: C56-0177
    Date of Calibration: 15-Feb-2018
    PTDaemon Host System: same as CCS
    PTDaemon Host OS: same as CCS
    PTDaemon Version: 1.8.1-260d064e-20161220
    Setup Description: SUT Power Supply
    Temperature Sensor temp1
    Hardware Vendor: Digi International Inc.
    Model: Watchport/H
    Driver Version: 5.70.105.0
    Connectivity: Prolific USB-to-Serial
    PTDaemon Host System: same as CCS
    PTDaemon Host OS: same as CCS
    Setup Description: 50 mm in front of SUT main air flow inlet
    Notes
    None
    Aggregate Electrical and Environmental Data
    Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
    100% 416 24.1
    90% 325 24.0
    80% 280 24.0
    70% 246 24.0
    60% 217 24.0
    50% 194 23.9
    40% 175 23.9
    30% 156 23.9
    20% 137 23.9
    10% 118 23.9
    Active Idle 48.1 23.9
    Line Standard Minimum Temperature (°C) Elevation (m)
    208V / 60 Hz / 1 phase / 2 wires 23.9 50
    Aggregate Performance Data
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     5,683,572
    Calibration 2     5,641,547
    Calibration 3     5,642,532
    ssj_ops@calibrated=5,642,039
    100% 99.7% 5,642,039 5,622,643
    90% 88.3% 5,077,835 4,982,142
    80% 78.5% 4,513,631 4,430,870
    70% 69.2% 3,949,428 3,902,602
    60% 59.7% 3,385,224 3,370,268
    50% 49.5% 2,821,020 2,790,347
    40% 40.0% 2,256,816 2,256,218
    30% 30.1% 1,692,612 1,695,722
    20% 20.0% 1,128,408 1,128,408
    10% 10.0% 564,204 565,016
    Active Idle   0 0
    Graph of results
