Hewlett Packard Enterprise ProLiant DL360 Gen10 ssj_ops@100% = 3,025,574
ssj_ops@100% per JVM = 1,512,787
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 11, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,034,819
Calibration 2     3,034,092
Calibration 3     3,035,111
ssj_ops@calibrated=3,034,601
100% 99.7% 3,034,601 3,025,574
90% 90.1% 2,731,141 2,733,038
80% 80.0% 2,427,681 2,426,565
70% 70.1% 2,124,221 2,126,188
60% 59.9% 1,820,761 1,817,419
50% 50.0% 1,517,301 1,518,431
40% 40.0% 1,213,840 1,215,306
30% 29.9% 910,380 908,421
20% 20.0% 606,920 607,240
10% 10.0% 303,460 302,015
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen10
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 28 cores, 1 chip, 28 cores/chip
Hardware Threads: 56 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 6 x 8182 MB
Memory Details: 6 x 8GB 2Rx8 PC4-2666V-R; slots 1, 3, 5, 8, 10, and 12 populated in each socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply 96% (865438-B21)
Disk Drive: 1 x HPE 240GB SATA M.2 2280 SSD (875488-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 331i Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: XFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=37 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: numactl --cpunodebind=[0-1] --localalloc
JVM Instances: 2
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: U32 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
DL360.001 1,524,003
DL360.002 1,501,571
ssj_ops@100% 3,025,574
ssj_ops@100% per JVM 1,512,787
Graph of per-instance results
JVM 'DL360.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,529,113
Calibration 2     1,527,969
Calibration 3     1,527,533
ssj_ops@calibrated=1,527,751
100% 99.8% 1,527,751 1,524,003
90% 90.1% 1,374,976 1,376,630
80% 79.9% 1,222,201 1,220,880
70% 70.0% 1,069,426 1,068,663
60% 59.9% 916,651 914,547
50% 50.2% 763,876 766,497
40% 40.0% 611,100 611,271
30% 30.1% 458,325 459,572
20% 20.0% 305,550 304,913
10% 9.9% 152,775 151,806
Active Idle   0 0
Graph of results

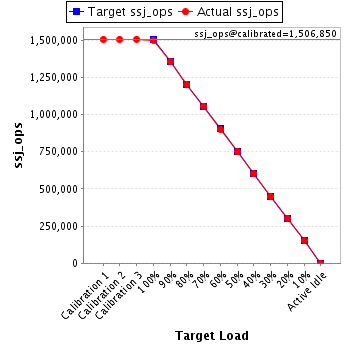

JVM 'DL360.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,505,706
Calibration 2     1,506,123
Calibration 3     1,507,577
ssj_ops@calibrated=1,506,850
100% 99.6% 1,506,850 1,501,571
90% 90.0% 1,356,165 1,356,408
80% 80.0% 1,205,480 1,205,685
70% 70.2% 1,054,795 1,057,525
60% 59.9% 904,110 902,872
50% 49.9% 753,425 751,934
40% 40.1% 602,740 604,035
30% 29.8% 452,055 448,849
20% 20.1% 301,370 302,326
10% 10.0% 150,685 150,208
Active Idle   0 0
Graph of results
