Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,943,145
ssj_ops@100% per JVM = 1,485,786
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 12, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,975,164
Calibration 2     5,963,922
Calibration 3     5,962,180
ssj_ops@calibrated=5,963,051
100% 99.7% 5,963,051 5,943,145
90% 90.0% 5,366,746 5,364,761
80% 80.1% 4,770,441 4,774,750
70% 70.5% 4,174,135 4,201,407
60% 60.0% 3,577,830 3,575,547
50% 50.0% 2,981,525 2,984,188
40% 40.1% 2,385,220 2,392,441
30% 30.0% 1,788,915 1,789,582
20% 20.0% 1,192,610 1,191,278
10% 10.0% 596,305 593,418
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 11
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: blade
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=37 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: numactl --cpunodebind=[0-3] --localalloc
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SY480-03.001 1,489,398
SY480-03.002 1,487,321
SY480-03.003 1,479,183
SY480-03.004 1,487,243
ssj_ops@100% 5,943,145
ssj_ops@100% per JVM 1,485,786
Graph of per-instance results
JVM 'SY480-03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,496,241
Calibration 2     1,492,921
Calibration 3     1,490,864
ssj_ops@calibrated=1,491,892
100% 99.8% 1,491,892 1,489,398
90% 90.1% 1,342,703 1,343,931
80% 80.1% 1,193,514 1,195,658
70% 71.4% 1,044,325 1,065,073
60% 60.0% 895,135 895,255
50% 50.1% 745,946 747,439
40% 40.2% 596,757 599,081
30% 29.9% 447,568 446,120
20% 20.0% 298,378 298,571
10% 9.9% 149,189 148,301
Active Idle   0 0
Graph of results
JVM 'SY480-03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,493,508
Calibration 2     1,493,341
Calibration 3     1,494,742
ssj_ops@calibrated=1,494,042
100% 99.6% 1,494,042 1,487,321
90% 89.9% 1,344,637 1,343,583
80% 80.0% 1,195,233 1,194,681
70% 70.0% 1,045,829 1,046,511
60% 60.0% 896,425 896,125
50% 50.0% 747,021 746,951
40% 40.1% 597,617 599,526
30% 30.1% 448,212 449,304
20% 19.9% 298,808 297,991
10% 9.9% 149,404 148,583
Active Idle   0 0
Graph of results

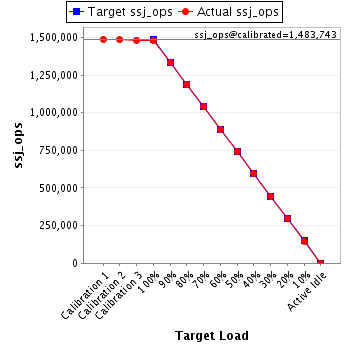

JVM 'SY480-03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,488,314
Calibration 2     1,485,165
Calibration 3     1,482,321
ssj_ops@calibrated=1,483,743
100% 99.7% 1,483,743 1,479,183
90% 89.9% 1,335,369 1,334,093
80% 80.2% 1,186,994 1,189,264
70% 70.0% 1,038,620 1,038,972
60% 59.7% 890,246 886,525
50% 50.0% 741,871 742,512
40% 40.1% 593,497 595,451
30% 30.1% 445,123 446,358
20% 20.0% 296,749 296,920
10% 9.9% 148,374 147,279
Active Idle   0 0
Graph of results
JVM 'SY480-03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,497,101
Calibration 2     1,492,495
Calibration 3     1,494,253
ssj_ops@calibrated=1,493,374
100% 99.6% 1,493,374 1,487,243
90% 89.9% 1,344,037 1,343,154
80% 80.0% 1,194,699 1,195,147
70% 70.4% 1,045,362 1,050,852
60% 60.1% 896,024 897,642
50% 50.0% 746,687 747,286
40% 40.1% 597,350 598,384
30% 30.0% 448,012 447,801
20% 19.9% 298,675 297,795
10% 10.0% 149,337 149,256
Active Idle   0 0
Graph of results
