Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,868,643
ssj_ops@100% per JVM = 1,467,161
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 12, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,900,877
Calibration 2     5,884,254
Calibration 3     5,893,787
ssj_ops@calibrated=5,889,021
100% 99.7% 5,889,021 5,868,643
90% 89.9% 5,300,119 5,295,887
80% 80.6% 4,711,217 4,745,517
70% 70.1% 4,122,314 4,126,494
60% 60.0% 3,533,412 3,534,111
50% 50.0% 2,944,510 2,943,882
40% 40.0% 2,355,608 2,357,074
30% 30.0% 1,766,706 1,767,398
20% 20.0% 1,177,804 1,179,158
10% 10.0% 588,902 587,284
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 7
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: blade
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=37 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: numactl --cpunodebind=[0-3] --localalloc
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SY480-04.001 1,461,938
SY480-04.002 1,467,388
SY480-04.003 1,482,342
SY480-04.004 1,456,974
ssj_ops@100% 5,868,643
ssj_ops@100% per JVM 1,467,161

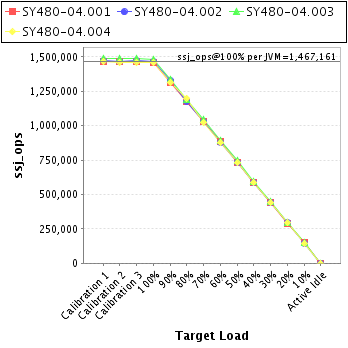

Graph of per-instance results
JVM 'SY480-04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,469,034
Calibration 2     1,466,066
Calibration 3     1,469,174
ssj_ops@calibrated=1,467,620
100% 99.6% 1,467,620 1,461,938
90% 89.8% 1,320,858 1,317,602
80% 80.2% 1,174,096 1,176,404
70% 70.2% 1,027,334 1,030,740
60% 60.1% 880,572 882,757
50% 49.8% 733,810 731,249
40% 40.0% 587,048 586,628
30% 30.0% 440,286 439,814
20% 19.9% 293,524 292,616
10% 10.1% 146,762 147,602
Active Idle   0 0
Graph of results
JVM 'SY480-04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,473,704
Calibration 2     1,470,108
Calibration 3     1,470,564
ssj_ops@calibrated=1,470,336
100% 99.8% 1,470,336 1,467,388
90% 90.1% 1,323,302 1,325,490
80% 80.2% 1,176,269 1,178,625
70% 69.9% 1,029,235 1,027,957
60% 59.9% 882,202 881,438
50% 50.1% 735,168 736,032
40% 40.0% 588,134 587,929
30% 29.9% 441,101 440,352
20% 20.1% 294,067 295,347
10% 10.0% 147,034 146,380
Active Idle   0 0
Graph of results
JVM 'SY480-04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,490,616
Calibration 2     1,486,465
Calibration 3     1,491,035
ssj_ops@calibrated=1,488,750
100% 99.6% 1,488,750 1,482,342
90% 90.0% 1,339,875 1,339,153
80% 79.9% 1,191,000 1,189,708
70% 70.1% 1,042,125 1,043,815
60% 60.0% 893,250 893,857
50% 50.1% 744,375 745,526
40% 40.0% 595,500 594,762
30% 30.1% 446,625 447,927
20% 20.0% 297,750 298,402
10% 9.9% 148,875 147,884
Active Idle   0 0
Graph of results

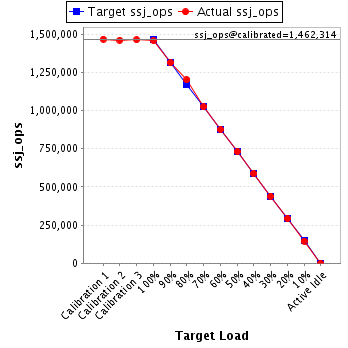

JVM 'SY480-04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,467,523
Calibration 2     1,461,615
Calibration 3     1,463,013
ssj_ops@calibrated=1,462,314
100% 99.6% 1,462,314 1,456,974
90% 89.8% 1,316,083 1,313,641
80% 82.1% 1,169,852 1,200,780
70% 70.0% 1,023,620 1,023,983
60% 59.9% 877,389 876,059
50% 50.0% 731,157 731,075
40% 40.2% 584,926 587,756
30% 30.0% 438,694 439,305
20% 20.0% 292,463 292,794
10% 9.9% 146,231 145,418
Active Idle   0 0
Graph of results
