Lenovo Global Technology ThinkSystem SR950 ssj_ops@100% = 90,062
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 9, 2019
Hardware Availability: Apr-2019 Software Availability: Dec-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,913
Calibration 2     89,617
Calibration 3     90,379
ssj_ops@calibrated=89,998
100% 100.1% 89,998 90,062
90% 88.8% 80,998 79,963
80% 81.4% 71,999 73,235
70% 70.8% 62,999 63,758
60% 60.7% 53,999 54,625
50% 49.9% 44,999 44,892
40% 40.3% 35,999 36,306
30% 30.2% 26,999 27,137
20% 19.5% 18,000 17,566
10% 10.0% 9,000 9,042
Active Idle   0 0

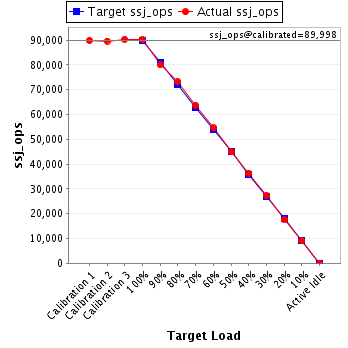

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR950
Form Factor: 4U
CPU Name: Intel Xeon Platinum 8276L
CPU Characteristics: 28-Core, 2.2GHz, 39424KB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 224 cores, 8 chips, 28 cores/chip
Hardware Threads: 448 (2 / core)
CPU(s) Orderable: 2,4,6,8 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 768
# and size of DIMM: 48 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2933Y-RE2-12-DC1; slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, 24, 25, 27, 29, 32, 34, 36, 37, 39, 41, 44, 46, 48, 49, 51, 53, 56, 58, 60, 61, 63, 65, 68, 70, 72, 73, 75, 77, 80, 82, 84, 85, 87, 89, 92, 94, 96 populated
Power Supply Quantity and Rating (W): 2 x 1100
Power Supply Details: Lenovo P/N:7N67A00885
Disk Drive: 1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom NetXtreme Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: Kernel 4.12.14-94.41-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId,physicalCoreId + 224 }
JVM Instances: 224
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: PSE121I
Management Firmware Version: PSI321C
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 448 due to a known inconsistency in processor reporting with this Java version.
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,539,206 1,545
Payment 6,539,206
Order Status 653,922
Delivery 653,920
Stock Level 653,921
Customer Report 6,539,209
Calibration 2 New Order 6,517,619 1,545
Payment 6,517,616
Order Status 651,762
Delivery 651,761
Stock Level 651,762
Customer Report 6,517,615
Calibration 3 New Order 6,573,049 1,545
Payment 6,573,049
Order Status 657,305
Delivery 657,304
Stock Level 657,305
Customer Report 6,573,048
100% 100.1% New Order 6,549,954 1,545
Payment 6,549,954
Order Status 654,996
Delivery 654,996
Stock Level 654,996
Customer Report 6,549,955
90% 88.8% New Order 5,815,526 1,545
Payment 5,815,527
Order Status 581,551
Delivery 581,551
Stock Level 581,552
Customer Report 5,815,528
80% 81.4% New Order 5,326,225 1,545
Payment 5,326,219
Order Status 532,621
Delivery 532,621
Stock Level 532,623
Customer Report 5,326,217
70% 70.8% New Order 4,636,984 1,545
Payment 4,636,979
Order Status 463,698
Delivery 463,697
Stock Level 463,698
Customer Report 4,636,981
60% 60.7% New Order 3,972,751 1,545
Payment 3,972,750
Order Status 397,275
Delivery 397,276
Stock Level 397,275
Customer Report 3,972,752
50% 49.9% New Order 3,264,897 1,545
Payment 3,264,895
Order Status 326,490
Delivery 326,491
Stock Level 326,491
Customer Report 3,264,900
40% 40.3% New Order 2,640,430 1,545
Payment 2,640,436
Order Status 264,044
Delivery 264,044
Stock Level 264,043
Customer Report 2,640,430
30% 30.2% New Order 1,973,634 1,545
Payment 1,973,635
Order Status 197,363
Delivery 197,362
Stock Level 197,364
Customer Report 1,973,635
20% 19.5% New Order 1,277,504 1,545
Payment 1,277,496
Order Status 127,750
Delivery 127,749
Stock Level 127,750
Customer Report 1,277,505
10% 10.0% New Order 657,576 1,545
Payment 657,577
Order Status 65,758
Delivery 65,757
Stock Level 65,759
Customer Report 657,573
Active Idle New Order 0 1,545
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
