SPECpower_ssj2008

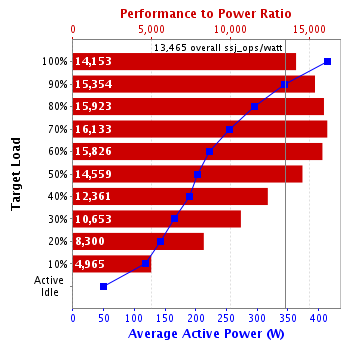

Huawei Technologies Co., Ltd Fusion Server 1288H V5			SPECpower_ssj2008 = 13,465 overall ssj_ops/watt
Test Sponsor:	Huawei Technologies Co., Ltd	SPEC License #:	3175	Test Method:	Single Node
Tested By:	Huawei Technologies Co., Ltd	Test Location:	Shenzhen, Guangdong, China	Test Date:	Mar 13, 2019
Hardware Availability:	Apr-2019	Software Availability:	Jul-2018	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Huawei Technologies Co., Ltd
Model:	Fusion Server 1288H V5
Form Factor:	1U
CPU Name:	Intel Xeon Platinum 8280
CPU Characteristics:	28-Core, 2.7GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16 GB
Memory Details:	12 x 16GB 2Rx8 PC4-2933Y ECC RDIMM;slots DIMM000, DIMM010, DIMM020, DIMM030,DIMM040, DIMM050, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, and DIMM150 populated
Power Supply Quantity and Rating (W):	1 x 550
Power Supply Details:	Huawei P/N 02312DEP
Disk Drive:	1 x 960GB SSD 2.5" SATA Huawei P/N 02312DXT
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	LOM with 2 x 10GbE + 2 x GbE Intel X722 Ethernet controller
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Ondemand cpupower mode enabled in OS
Operating System (OS):	Red Hat Enterprise Linux Server 7.6 (Maipo)
OS Version:	Kernel 3.10.0-957.el7.x86_64
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80-b15
JVM Command-line Options:	-server -Xmx1024m -Xms1024m -Xmn853m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=1 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=8 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=220 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseCompressedStrings -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC
JVM Affinity:	numactl --cpunodebind=[0-3] --localalloc
JVM Instances:	56
JVM Initial Heap (MB):	1024
JVM Maximum Heap (MB):	1024
JVM Address Bits:	64
Boot Firmware Version:	3.63
Management Firmware Version:	3.29
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

none

Benchmark started via ssh.
Each JVM instance was affinitized to two logical processors.
cpupower frequency-set -g ondemand.
N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise SP1
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT210
Serial Number:	91M412342
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by:	Calibration and Testing Center of CEPREI
Calibration Label:	B18008105-0029
Date of Calibration:	4-Aug-2018
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	Connected to PSU 1

Temperature Sensor temp1
Hardware Vendor:	Digi
Model:	Watchport/H
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50mm.

SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.

.

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	414	21.8
90%	345	21.9
80%	295	21.9
70%	255	22.0
60%	223	22.1
50%	202	22.1
40%	190	22.1
30%	165	22.1
20%	142	22.4
10%	119	22.5
Active Idle	50.3	22.3

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	21.8	101

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
