Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 1,427,588
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 28, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,433,336
Calibration 2     1,433,735
Calibration 3     1,432,847
ssj_ops@calibrated=1,433,291
100% 99.6% 1,433,291 1,427,588
90% 90.2% 1,289,962 1,292,917
80% 80.0% 1,146,633 1,147,167
70% 69.7% 1,003,304 999,155
60% 60.0% 859,974 859,350
50% 49.9% 716,645 715,047
40% 39.8% 573,316 570,503
30% 30.1% 429,987 431,216
20% 19.9% 286,658 284,799
10% 10.1% 143,329 144,227
Active Idle   0 0

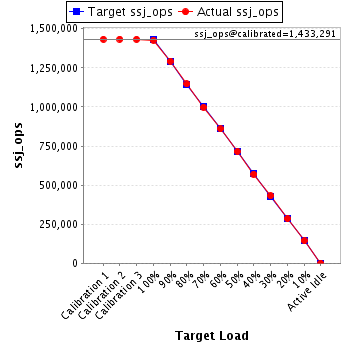

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 3
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn21000m -Xms24000m -Xmx24000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 24000
JVM Maximum Heap (MB): 24000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 104,249,273 23,934
Payment 104,249,280
Order Status 10,424,929
Delivery 10,424,932
Stock Level 10,424,928
Customer Report 104,249,260
Calibration 2 New Order 104,278,328 23,932
Payment 104,278,311
Order Status 10,427,828
Delivery 10,427,828
Stock Level 10,427,832
Customer Report 104,278,319
Calibration 3 New Order 104,213,751 23,932
Payment 104,213,750
Order Status 10,421,371
Delivery 10,421,370
Stock Level 10,421,374
Customer Report 104,213,754
100% 99.6% New Order 103,830,781 23,932
Payment 103,830,769
Order Status 10,383,076
Delivery 10,383,080
Stock Level 10,383,076
Customer Report 103,830,776
90% 90.2% New Order 94,035,928 23,932
Payment 94,035,927
Order Status 9,403,591
Delivery 9,403,591
Stock Level 9,403,595
Customer Report 94,035,943
80% 80.0% New Order 83,432,779 23,932
Payment 83,432,776
Order Status 8,343,277
Delivery 8,343,277
Stock Level 8,343,279
Customer Report 83,432,799
70% 69.7% New Order 72,670,110 23,932
Payment 72,670,095
Order Status 7,267,011
Delivery 7,267,009
Stock Level 7,267,014
Customer Report 72,670,135
60% 60.0% New Order 62,501,885 23,932
Payment 62,501,890
Order Status 6,250,190
Delivery 6,250,185
Stock Level 6,250,188
Customer Report 62,501,883
50% 49.9% New Order 52,006,353 23,930
Payment 52,006,366
Order Status 5,200,633
Delivery 5,200,635
Stock Level 5,200,635
Customer Report 52,006,349
40% 39.8% New Order 41,493,552 23,914
Payment 41,493,550
Order Status 4,149,353
Delivery 4,149,351
Stock Level 4,149,352
Customer Report 41,493,527
30% 30.1% New Order 31,363,035 23,914
Payment 31,363,022
Order Status 3,136,300
Delivery 3,136,301
Stock Level 3,136,303
Customer Report 31,363,046
20% 19.9% New Order 20,713,875 23,914
Payment 20,713,873
Order Status 2,071,392
Delivery 2,071,387
Stock Level 2,071,394
Customer Report 20,713,882
10% 10.1% New Order 10,489,798 23,910
Payment 10,489,816
Order Status 1,048,981
Delivery 1,048,980
Stock Level 1,048,979
Customer Report 10,489,828
Active Idle New Order 0 23,910
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
