Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module | SPECpower_ssj2008 = 11,676 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 26, 2019 |
Hardware Availability: | Apr-2019 | Software Availability: | Mar-2019 | Publication: | May 8, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 4,078 | 21.9 |
Calibration 2 | 4,074 | 22.1 |
Calibration 3 | 4,081 | 22.1 |
100% | 4,073 | 22.2 |
90% | 3,593 | 22.2 |
80% | 3,045 | 22.2 |
70% | 2,653 | 22.3 |
60% | 2,310 | 22.3 |
50% | 2,017 | 22.3 |
40% | 1,797 | 22.3 |
30% | 1,607 | 22.2 |
20% | 1,420 | 22.2 |
10% | 1,223 | 22.2 |
Active Idle | 714 | 22.1 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB53024 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-80-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supplies 1 and 4 |
Power Analyzer pwr2 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB47168 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-60-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supplies 2 and 5 |
Power Analyzer pwr3 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GC21887 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-20-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supplies 3 and 6 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 210 | 300.0 | 4.93 | 10.0 | 0.993 | 1,031 | 0.5% |
Calibration 2 | 210 | 300.0 | 4.92 | 10.0 | 0.993 | 1,029 | 0.5% |
Calibration 3 | 210 | 300.0 | 4.94 | 10.0 | 0.993 | 1,031 | 0.5% |
100% | 210 | 300.0 | 4.91 | 10.0 | 0.993 | 1,026 | 0.5% |
90% | 210 | 300.0 | 4.31 | 10.0 | 0.991 | 898 | 0.5% |
80% | 211 | 300.0 | 3.62 | 5.0 | 0.987 | 754 | 0.4% |
70% | 211 | 300.0 | 3.16 | 5.0 | 0.984 | 654 | 0.4% |
60% | 211 | 300.0 | 2.75 | 5.0 | 0.979 | 568 | 0.5% |
50% | 211 | 300.0 | 2.42 | 5.0 | 0.971 | 495 | 0.5% |
40% | 211 | 300.0 | 2.17 | 5.0 | 0.965 | 443 | 0.5% |
30% | 211 | 300.0 | 1.97 | 5.0 | 0.957 | 398 | 0.6% |
20% | 211 | 300.0 | 1.77 | 2.0 | 0.947 | 353 | 0.4% |
10% | 211 | 300.0 | 1.56 | 2.0 | 0.933 | 306 | 0.4% |
Active Idle | 211 | 300.0 | 1.01 | 2.0 | 0.804 | 172 | 0.6% |

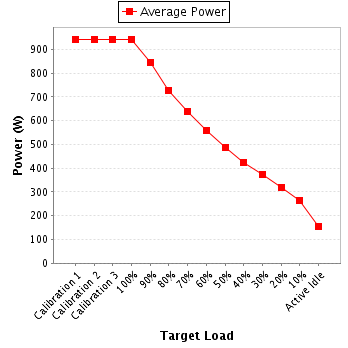

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 213 | 300.0 | 4.44 | 10.0 | 0.994 | 942 | 0.5% |
Calibration 2 | 213 | 300.0 | 4.45 | 10.0 | 0.994 | 943 | 0.5% |
Calibration 3 | 213 | 300.0 | 4.44 | 10.0 | 0.994 | 942 | 0.5% |
100% | 213 | 300.0 | 4.44 | 10.0 | 0.995 | 943 | 0.5% |
90% | 213 | 300.0 | 3.98 | 10.0 | 0.994 | 843 | 0.5% |
80% | 214 | 300.0 | 3.43 | 5.0 | 0.991 | 726 | 0.4% |
70% | 214 | 300.0 | 3.03 | 5.0 | 0.989 | 640 | 0.4% |
60% | 214 | 300.0 | 2.66 | 5.0 | 0.986 | 560 | 0.5% |
50% | 214 | 300.0 | 2.32 | 5.0 | 0.982 | 487 | 0.5% |
40% | 214 | 300.0 | 2.03 | 5.0 | 0.976 | 425 | 0.5% |
30% | 214 | 300.0 | 1.79 | 5.0 | 0.970 | 372 | 0.6% |
20% | 214 | 300.0 | 1.56 | 2.0 | 0.960 | 320 | 0.4% |
10% | 214 | 300.0 | 1.31 | 2.0 | 0.943 | 264 | 0.4% |
Active Idle | 214 | 300.0 | 0.862 | 2.0 | 0.842 | 155 | 0.7% |

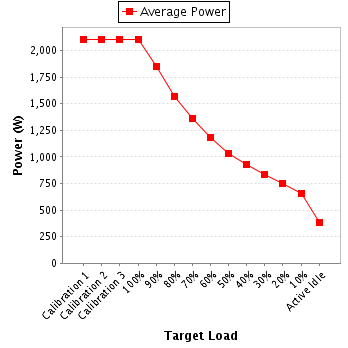

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 209 | 300.0 | 10.1 | 10.0 | 0.996 | 2,105 | 0.3% |
Calibration 2 | 209 | 300.0 | 10.1 | 10.0 | 0.996 | 2,102 | 0.3% |
Calibration 3 | 209 | 300.0 | 10.1 | 10.0 | 0.996 | 2,108 | 0.3% |
100% | 209 | 300.0 | 10.1 | 10.0 | 0.996 | 2,103 | 0.3% |
90% | 209 | 300.0 | 8.89 | 10.0 | 0.995 | 1,852 | 0.3% |
80% | 210 | 300.0 | 7.51 | 10.0 | 0.993 | 1,565 | 0.4% |
70% | 210 | 300.0 | 6.54 | 10.0 | 0.991 | 1,360 | 0.4% |
60% | 210 | 300.0 | 5.68 | 10.0 | 0.988 | 1,181 | 0.4% |
50% | 210 | 300.0 | 4.99 | 10.0 | 0.985 | 1,035 | 0.5% |
40% | 211 | 300.0 | 4.49 | 10.0 | 0.981 | 929 | 0.5% |
30% | 211 | 300.0 | 4.07 | 10.0 | 0.977 | 837 | 0.6% |
20% | 211 | 300.0 | 3.65 | 5.0 | 0.971 | 746 | 0.4% |
10% | 211 | 300.0 | 3.21 | 5.0 | 0.964 | 652 | 0.4% |
Active Idle | 211 | 300.0 | 2.05 | 5.0 | 0.895 | 387 | 0.6% |
