Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module | ssj_ops@100% = 5,728,344 ssj_ops@100% per JVM = 1,432,086 |
||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 26, 2019 |
Hardware Availability: | Apr-2019 | Software Availability: | Mar-2019 | Publication: | May 8, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 5,745,306 | ||
Calibration 2 | 5,741,931 | ||
Calibration 3 | 5,743,952 | ||
ssj_ops@calibrated=5,742,941 | |||
100% | 99.7% | 5,742,941 | 5,728,344 |
90% | 90.0% | 5,168,647 | 5,167,897 |
80% | 80.0% | 4,594,353 | 4,594,847 |
70% | 70.0% | 4,020,059 | 4,018,324 |
60% | 59.9% | 3,445,765 | 3,442,023 |
50% | 49.9% | 2,871,471 | 2,867,070 |
40% | 40.0% | 2,297,177 | 2,295,951 |
30% | 30.0% | 1,722,882 | 1,724,149 |
20% | 20.1% | 1,148,588 | 1,152,504 |
10% | 10.0% | 574,294 | 576,423 |
Active Idle | 0 | 0 |
Set Identifier: | SUT |
Set Description: | System Under Test |
# of Identical Nodes: | 6 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | Hewlett Packard Enterprise |
Model: | Synergy 480 Gen10 Compute Module |
Form Factor: | 7U |
CPU Name: | Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz) |
CPU Characteristics: | 28-Core, 2.70 GHz, 38.5MB L3 Cache |
CPU Frequency (MHz): | 2700 |
CPU(s) Enabled: | 56 cores, 2 chips, 28 cores/chip |
Hardware Threads: | 112 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 39424 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 192 |
# and size of DIMM: | 12 x 16384 MB |
Memory Details: | 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | N/A |
Disk Drive: | 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21) |
Disk Controller: | HPE Smart Array S100i SR Gen10 |
# and type of Network Interface Cards (NICs) Installed: | 1 x HPE Synergy 3820C 10/20Gb CNA |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | H/S: Standard |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | Windows Server 2012 R2 Datacenter |
OS Version: | Version 6.3 (Build 9600) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -server -Xmn21000m -Xms24000m -Xmx24000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC |
JVM Affinity: | start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF] |
JVM Instances: | 4 |
JVM Initial Heap (MB): | 24000 |
JVM Maximum Heap (MB): | 24000 |
JVM Address Bits: | 64 |
Boot Firmware Version: | I42 v2.00 (02/02/2019) |
Management Firmware Version: | 1.40 Feb 05 2019 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815 |

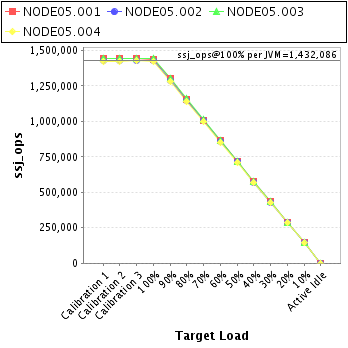

JVM Instance | ssj_ops@100% |
---|---|
NODE05.001 | 1,438,574 |
NODE05.002 | 1,426,462 |
NODE05.003 | 1,440,605 |
NODE05.004 | 1,422,703 |
ssj_ops@100% | 5,728,344 |
ssj_ops@100% per JVM | 1,432,086 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,444,259 | ||
Calibration 2 | 1,442,655 | ||
Calibration 3 | 1,443,405 | ||
ssj_ops@calibrated=1,443,030 | |||
100% | 99.7% | 1,443,030 | 1,438,574 |
90% | 90.0% | 1,298,727 | 1,299,230 |
80% | 79.9% | 1,154,424 | 1,153,454 |
70% | 69.8% | 1,010,121 | 1,006,852 |
60% | 59.8% | 865,818 | 862,867 |
50% | 49.9% | 721,515 | 720,582 |
40% | 39.9% | 577,212 | 575,201 |
30% | 30.1% | 432,909 | 434,702 |
20% | 20.1% | 288,606 | 290,235 |
10% | 10.0% | 144,303 | 143,707 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,430,751 | ||
Calibration 2 | 1,429,145 | ||
Calibration 3 | 1,429,980 | ||
ssj_ops@calibrated=1,429,562 | |||
100% | 99.8% | 1,429,562 | 1,426,462 |
90% | 90.1% | 1,286,606 | 1,288,013 |
80% | 80.0% | 1,143,650 | 1,143,798 |
70% | 70.1% | 1,000,694 | 1,002,530 |
60% | 60.2% | 857,737 | 860,290 |
50% | 50.0% | 714,781 | 714,372 |
40% | 40.0% | 571,825 | 572,216 |
30% | 30.0% | 428,869 | 428,653 |
20% | 20.1% | 285,912 | 287,468 |
10% | 10.1% | 142,956 | 143,710 |
Active Idle | 0 | 0 |

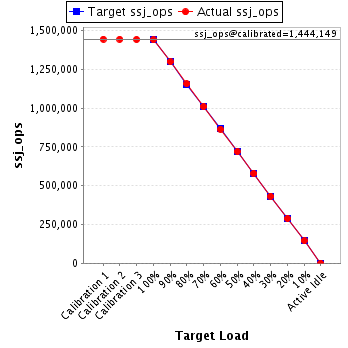

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,445,185 | ||
Calibration 2 | 1,444,994 | ||
Calibration 3 | 1,443,305 | ||
ssj_ops@calibrated=1,444,149 | |||
100% | 99.8% | 1,444,149 | 1,440,605 |
90% | 90.0% | 1,299,734 | 1,299,406 |
80% | 80.2% | 1,155,319 | 1,157,959 |
70% | 70.0% | 1,010,905 | 1,010,895 |
60% | 59.9% | 866,490 | 864,974 |
50% | 49.8% | 722,075 | 719,767 |
40% | 40.1% | 577,660 | 578,982 |
30% | 30.0% | 433,245 | 433,241 |
20% | 20.0% | 288,830 | 288,134 |
10% | 10.1% | 144,415 | 145,163 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,425,111 | ||
Calibration 2 | 1,425,137 | ||
Calibration 3 | 1,427,262 | ||
ssj_ops@calibrated=1,426,199 | |||
100% | 99.8% | 1,426,199 | 1,422,703 |
90% | 89.8% | 1,283,580 | 1,281,248 |
80% | 79.9% | 1,140,960 | 1,139,636 |
70% | 70.0% | 998,340 | 998,048 |
60% | 59.9% | 855,720 | 853,891 |
50% | 49.9% | 713,100 | 712,349 |
40% | 39.9% | 570,480 | 569,552 |
30% | 30.0% | 427,860 | 427,553 |
20% | 20.1% | 285,240 | 286,667 |
10% | 10.1% | 142,620 | 143,843 |
Active Idle | 0 | 0 |
