Fujitsu FUJITSU Server PRIMERGY CX2560 M5 ssj_ops@100% = 4,386,726
ssj_ops@100% per JVM = 91,390
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Apr 6, 2019
Hardware Availability: Jun-2019 Software Availability: Dec-2018 Publication: May 22, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,365,311
Calibration 2     4,410,728
Calibration 3     4,408,280
ssj_ops@calibrated=4,409,504
100% 99.5% 4,409,504 4,386,726
90% 90.1% 3,968,554 3,974,342
80% 80.2% 3,527,603 3,535,621
70% 71.0% 3,086,653 3,131,518
60% 59.9% 2,645,702 2,641,171
50% 50.1% 2,204,752 2,207,563
40% 40.0% 1,763,802 1,764,796
30% 30.0% 1,322,851 1,321,603
20% 20.0% 881,901 882,064
10% 10.0% 440,950 441,395
Active Idle   0 0
Graph of results
System Under Test
Set: 'CX2560M5'
Set Identifier: CX2560M5
Set Description: System Under Test
# of Identical Nodes: 4
Comment: Multi Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY CX2560 M5
Form Factor: Blade
CPU Name: Intel Xeon Platinum 6252
CPU Characteristics: 24-Core, 2.10GHz, 35.75MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 48 cores, 2 chips, 24 cores/chip
Hardware Threads: 96 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 36608 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16 GB 2Rx8 PC4-2933Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x SSD M.2 SATA 6Gbps 128GB N H-P, S26361-F5658-L128
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=8 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: chrt -r 1 taskset -c [(0,48),(1,49),(2,50),(3,51),(7,55),(8,56),(9,57),(13,61),(14,62),(15,63),(19,67),(20,68),(4,52),(5,53),(6,54),(10,58),(11,59),(12,60),(16,64),(17,65),(18,66),(21,69),(22,70),(23,71),(24,72),(25,73),(26,74),(27,75),(31,79),(32,80),(33,81),(37,85),(38,86),(39,87),(43,91),(44,92),(28,76),(29,77),(30,78),(34,82),(35,83),(36,84),(40,88),(41,89),(42,90),(45,93),(46,94),(47,95)] numactl --membind=[0-3]
JVM Instances: 48
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: R1.6.0
Management Firmware Version: 2.41P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
linux.001 71,482
linux.002 94,566
linux.003 93,635
linux.004 92,862
linux.005 92,781
linux.006 91,238
linux.007 94,304
linux.008 88,703
linux.009 91,869
linux.010 92,197
linux.011 93,567
linux.012 93,175
linux.013 90,455
linux.014 93,218
linux.015 91,150
linux.016 93,245
linux.017 93,044
linux.018 91,689
linux.019 91,738
linux.020 91,287
linux.021 92,080
linux.022 91,975
linux.023 93,954
linux.024 92,403
linux.025 86,431
linux.026 93,288
linux.027 88,930
linux.028 91,615
linux.029 92,337
linux.030 88,970
linux.031 91,163
linux.032 92,474
linux.033 92,033
linux.034 90,862
linux.035 94,487
linux.036 89,510
linux.037 91,277
linux.038 91,800
linux.039 92,121
linux.040 90,728
linux.041 91,821
linux.042 87,437
linux.043 91,770
linux.044 91,870
linux.045 92,568
linux.046 90,942
linux.047 92,847
linux.048 92,830
ssj_ops@100% 4,386,726
ssj_ops@100% per JVM 91,390

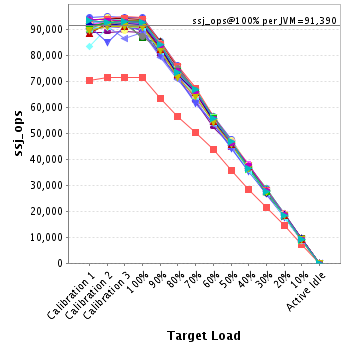

Graph of per-instance results

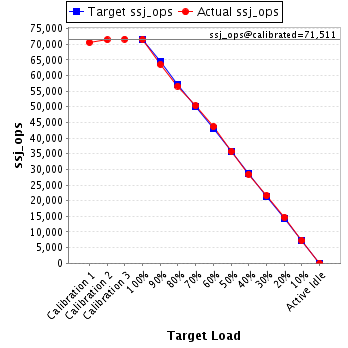

JVM 'linux.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     70,575
Calibration 2     71,423
Calibration 3     71,598
ssj_ops@calibrated=71,511
100% 100.0% 71,511 71,482
90% 88.9% 64,360 63,544
80% 79.1% 57,209 56,591
70% 70.4% 50,057 50,330
60% 61.1% 42,906 43,683
50% 50.0% 35,755 35,748
40% 39.8% 28,604 28,452
30% 30.1% 21,453 21,560
20% 20.6% 14,302 14,700
10% 10.1% 7,151 7,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,561
Calibration 2     95,103
Calibration 3     94,634
ssj_ops@calibrated=94,868
100% 99.7% 94,868 94,566
90% 89.9% 85,382 85,284
80% 80.3% 75,895 76,190
70% 70.2% 66,408 66,643
60% 59.6% 56,921 56,588
50% 50.3% 47,434 47,703
40% 39.4% 37,947 37,399
30% 30.3% 28,461 28,747
20% 20.0% 18,974 18,971
10% 10.2% 9,487 9,642
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,421
Calibration 2     93,675
Calibration 3     93,363
ssj_ops@calibrated=93,519
100% 100.1% 93,519 93,635
90% 91.3% 84,167 85,396
80% 79.6% 74,815 74,398
70% 70.7% 65,463 66,076
60% 60.3% 56,111 56,350
50% 49.9% 46,759 46,663
40% 40.1% 37,407 37,526
30% 30.6% 28,056 28,627
20% 20.1% 18,704 18,829
10% 10.0% 9,352 9,376
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,645
Calibration 2     93,103
Calibration 3     92,764
ssj_ops@calibrated=92,933
100% 99.9% 92,933 92,862
90% 91.0% 83,640 84,600
80% 79.7% 74,347 74,057
70% 70.9% 65,053 65,848
60% 59.3% 55,760 55,100
50% 49.9% 46,467 46,331
40% 39.5% 37,173 36,671
30% 30.0% 27,880 27,875
20% 20.2% 18,587 18,801
10% 9.6% 9,293 8,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,011
Calibration 2     92,970
Calibration 3     92,639
ssj_ops@calibrated=92,804
100% 100.0% 92,804 92,781
90% 89.9% 83,524 83,477
80% 80.2% 74,243 74,432
70% 69.8% 64,963 64,759
60% 60.6% 55,683 56,220
50% 50.4% 46,402 46,814
40% 39.6% 37,122 36,738
30% 30.2% 27,841 28,014
20% 19.6% 18,561 18,187
10% 10.0% 9,280 9,308
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

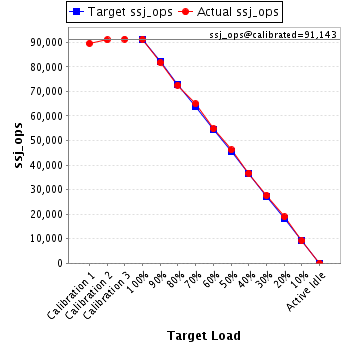

JVM 'linux.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,547
Calibration 2     91,007
Calibration 3     91,278
ssj_ops@calibrated=91,143
100% 100.1% 91,143 91,238
90% 89.7% 82,028 81,744
80% 79.6% 72,914 72,542
70% 71.2% 63,800 64,933
60% 60.1% 54,686 54,735
50% 50.7% 45,571 46,200
40% 40.3% 36,457 36,705
30% 30.3% 27,343 27,652
20% 20.7% 18,229 18,892
10% 10.1% 9,114 9,175
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

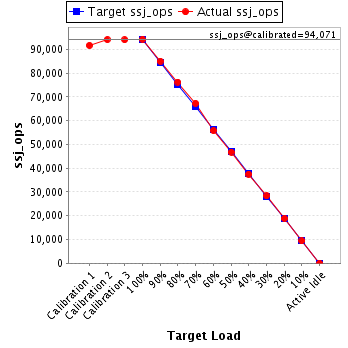

JVM 'linux.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,706
Calibration 2     94,111
Calibration 3     94,031
ssj_ops@calibrated=94,071
100% 100.2% 94,071 94,304
90% 90.4% 84,664 85,054
80% 81.1% 75,257 76,272
70% 71.6% 65,850 67,349
60% 59.3% 56,443 55,821
50% 49.7% 47,035 46,797
40% 39.9% 37,628 37,554
30% 30.1% 28,221 28,308
20% 20.1% 18,814 18,871
10% 10.0% 9,407 9,421
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

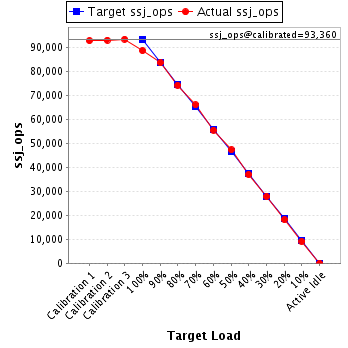

JVM 'linux.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,884
Calibration 2     93,158
Calibration 3     93,562
ssj_ops@calibrated=93,360
100% 95.0% 93,360 88,703
90% 89.7% 84,024 83,750
80% 79.6% 74,688 74,327
70% 70.8% 65,352 66,121
60% 59.6% 56,016 55,627
50% 50.8% 46,680 47,398
40% 39.7% 37,344 37,070
30% 29.9% 28,008 27,929
20% 19.5% 18,672 18,171
10% 9.8% 9,336 9,144
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

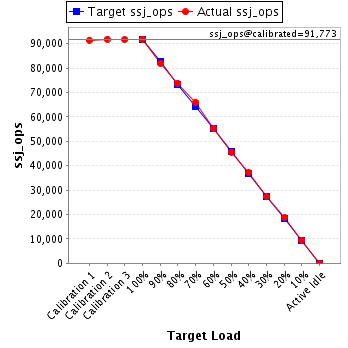

JVM 'linux.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,464
Calibration 2     91,845
Calibration 3     91,700
ssj_ops@calibrated=91,773
100% 100.1% 91,773 91,869
90% 89.3% 82,596 81,923
80% 80.5% 73,418 73,834
70% 72.0% 64,241 66,083
60% 60.2% 55,064 55,272
50% 49.7% 45,886 45,568
40% 40.5% 36,709 37,142
30% 29.8% 27,532 27,384
20% 20.3% 18,355 18,664
10% 10.2% 9,177 9,402
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

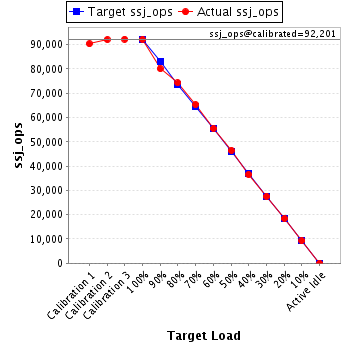

JVM 'linux.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,338
Calibration 2     92,118
Calibration 3     92,283
ssj_ops@calibrated=92,201
100% 100.0% 92,201 92,197
90% 86.9% 82,981 80,104
80% 80.6% 73,761 74,295
70% 70.9% 64,540 65,349
60% 60.2% 55,320 55,542
50% 50.4% 46,100 46,485
40% 39.6% 36,880 36,538
30% 29.9% 27,660 27,590
20% 20.0% 18,440 18,421
10% 10.0% 9,220 9,250
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,835
Calibration 2     93,367
Calibration 3     93,432
ssj_ops@calibrated=93,399
100% 100.2% 93,399 93,567
90% 89.8% 84,060 83,910
80% 80.2% 74,720 74,926
70% 71.4% 65,380 66,707
60% 59.2% 56,040 55,333
50% 49.8% 46,700 46,559
40% 39.9% 37,360 37,251
30% 29.9% 28,020 27,928
20% 19.6% 18,680 18,332
10% 10.3% 9,340 9,573
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,547
Calibration 2     93,046
Calibration 3     93,321
ssj_ops@calibrated=93,184
100% 100.0% 93,184 93,175
90% 91.1% 83,865 84,859
80% 80.0% 74,547 74,560
70% 71.1% 65,228 66,284
60% 59.8% 55,910 55,761
50% 50.5% 46,592 47,076
40% 39.4% 37,273 36,751
30% 30.0% 27,955 27,910
20% 20.2% 18,637 18,865
10% 10.1% 9,318 9,367
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,535
Calibration 2     90,862
Calibration 3     90,616
ssj_ops@calibrated=90,739
100% 99.7% 90,739 90,455
90% 90.4% 81,665 81,986
80% 79.8% 72,591 72,419
70% 70.1% 63,517 63,629
60% 60.6% 54,443 54,987
50% 49.7% 45,369 45,086
40% 40.7% 36,296 36,889
30% 30.2% 27,222 27,371
20% 20.1% 18,148 18,246
10% 10.3% 9,074 9,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

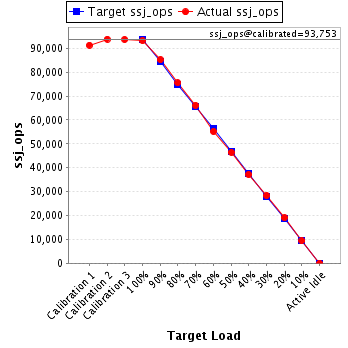

JVM 'linux.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,329
Calibration 2     93,825
Calibration 3     93,680
ssj_ops@calibrated=93,753
100% 99.4% 93,753 93,218
90% 90.9% 84,378 85,254
80% 80.5% 75,002 75,500
70% 70.6% 65,627 66,146
60% 58.8% 56,252 55,158
50% 49.5% 46,876 46,446
40% 39.6% 37,501 37,167
30% 30.3% 28,126 28,380
20% 20.3% 18,751 19,071
10% 10.0% 9,375 9,405
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,147
Calibration 2     91,280
Calibration 3     91,314
ssj_ops@calibrated=91,297
100% 99.8% 91,297 91,150
90% 90.8% 82,167 82,906
80% 80.5% 73,038 73,502
70% 70.8% 63,908 64,634
60% 60.0% 54,778 54,771
50% 50.0% 45,648 45,665
40% 40.4% 36,519 36,903
30% 30.4% 27,389 27,750
20% 20.0% 18,259 18,275
10% 9.8% 9,130 8,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,852
Calibration 2     93,383
Calibration 3     93,430
ssj_ops@calibrated=93,406
100% 99.8% 93,406 93,245
90% 89.9% 84,066 84,009
80% 80.8% 74,725 75,434
70% 71.2% 65,384 66,526
60% 60.1% 56,044 56,140
50% 49.3% 46,703 46,091
40% 39.5% 37,363 36,887
30% 30.1% 28,022 28,096
20% 19.7% 18,681 18,407
10% 9.9% 9,341 9,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,164
Calibration 2     93,104
Calibration 3     93,238
ssj_ops@calibrated=93,171
100% 99.9% 93,171 93,044
90% 90.5% 83,854 84,275
80% 81.2% 74,537 75,611
70% 71.1% 65,220 66,245
60% 60.6% 55,903 56,455
50% 50.3% 46,586 46,863
40% 40.8% 37,268 38,042
30% 29.7% 27,951 27,667
20% 19.7% 18,634 18,320
10% 10.0% 9,317 9,347
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,196
Calibration 2     92,499
Calibration 3     92,083
ssj_ops@calibrated=92,291
100% 99.3% 92,291 91,689
90% 90.6% 83,062 83,601
80% 80.4% 73,833 74,243
70% 71.3% 64,604 65,826
60% 59.5% 55,375 54,905
50% 50.2% 46,146 46,363
40% 39.1% 36,916 36,064
30% 30.4% 27,687 28,058
20% 19.7% 18,458 18,212
10% 9.7% 9,229 8,946
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,700
Calibration 2     91,630
Calibration 3     91,748
ssj_ops@calibrated=91,689
100% 100.1% 91,689 91,738
90% 89.6% 82,520 82,136
80% 79.3% 73,351 72,723
70% 71.4% 64,182 65,484
60% 60.2% 55,013 55,165
50% 50.5% 45,845 46,262
40% 39.6% 36,676 36,278
30% 30.1% 27,507 27,604
20% 19.6% 18,338 17,961
10% 10.0% 9,169 9,149
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,126
Calibration 2     91,267
Calibration 3     91,559
ssj_ops@calibrated=91,413
100% 99.9% 91,413 91,287
90% 91.7% 82,272 83,842
80% 80.4% 73,130 73,455
70% 72.3% 63,989 66,136
60% 59.2% 54,848 54,088
50% 49.7% 45,706 45,441
40% 39.9% 36,565 36,498
30% 30.2% 27,424 27,571
20% 20.4% 18,283 18,621
10% 9.9% 9,141 9,069
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,158
Calibration 2     92,136
Calibration 3     92,193
ssj_ops@calibrated=92,165
100% 99.9% 92,165 92,080
90% 89.8% 82,948 82,747
80% 80.4% 73,732 74,106
70% 71.1% 64,515 65,531
60% 59.4% 55,299 54,766
50% 49.9% 46,082 46,010
40% 40.3% 36,866 37,132
30% 30.0% 27,649 27,629
20% 20.1% 18,433 18,521
10% 9.8% 9,216 9,015
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,470
Calibration 2     92,729
Calibration 3     92,463
ssj_ops@calibrated=92,596
100% 99.3% 92,596 91,975
90% 90.8% 83,336 84,095
80% 81.0% 74,077 74,981
70% 71.0% 64,817 65,786
60% 60.3% 55,557 55,870
50% 50.0% 46,298 46,331
40% 40.6% 37,038 37,596
30% 29.6% 27,779 27,375
20% 20.0% 18,519 18,512
10% 10.1% 9,260 9,342
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,576
Calibration 2     94,288
Calibration 3     94,151
ssj_ops@calibrated=94,220
100% 99.7% 94,220 93,954
90% 90.8% 84,798 85,541
80% 79.7% 75,376 75,140
70% 70.3% 65,954 66,245
60% 59.6% 56,532 56,169
50% 49.3% 47,110 46,425
40% 39.8% 37,688 37,498
30% 29.8% 28,266 28,078
20% 19.6% 18,844 18,504
10% 10.3% 9,422 9,729
Active Idle   0 0

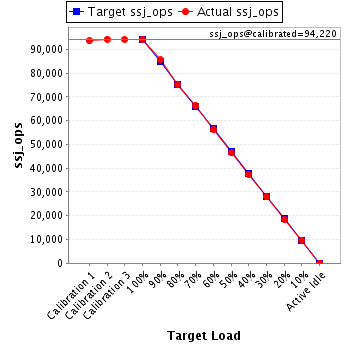

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,325
Calibration 2     92,479
Calibration 3     92,699
ssj_ops@calibrated=92,589
100% 99.8% 92,589 92,403
90% 90.0% 83,330 83,292
80% 81.1% 74,071 75,074
70% 70.0% 64,812 64,838
60% 59.9% 55,553 55,453
50% 49.9% 46,295 46,212
40% 39.7% 37,036 36,745
30% 30.3% 27,777 28,092
20% 20.4% 18,518 18,913
10% 9.9% 9,259 9,202
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,571
Calibration 2     92,758
Calibration 3     93,064
ssj_ops@calibrated=92,911
100% 93.0% 92,911 86,431
90% 91.1% 83,620 84,642
80% 80.0% 74,329 74,284
70% 71.4% 65,038 66,352
60% 59.8% 55,746 55,554
50% 49.8% 46,455 46,252
40% 39.8% 37,164 36,995
30% 29.6% 27,873 27,504
20% 19.4% 18,582 18,025
10% 10.0% 9,291 9,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,058
Calibration 2     93,145
Calibration 3     93,564
ssj_ops@calibrated=93,355
100% 99.9% 93,355 93,288
90% 89.5% 84,019 83,520
80% 80.6% 74,684 75,216
70% 70.7% 65,348 65,997
60% 60.3% 56,013 56,268
50% 50.0% 46,677 46,631
40% 40.4% 37,342 37,702
30% 29.5% 28,006 27,496
20% 19.3% 18,671 18,042
10% 10.3% 9,335 9,650
Active Idle   0 0

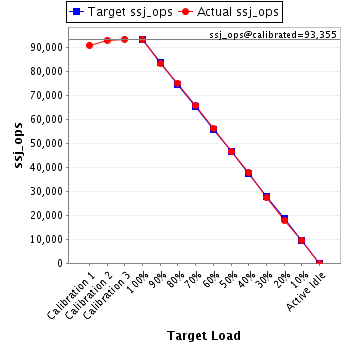

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,008
Calibration 2     88,907
Calibration 3     89,402
ssj_ops@calibrated=89,155
100% 99.7% 89,155 88,930
90% 89.9% 80,239 80,143
80% 80.1% 71,324 71,371
70% 70.0% 62,408 62,448
60% 58.8% 53,493 52,395
50% 50.9% 44,577 45,401
40% 40.5% 35,662 36,072
30% 29.7% 26,746 26,508
20% 20.2% 17,831 18,003
10% 10.0% 8,915 8,908
Active Idle   0 0

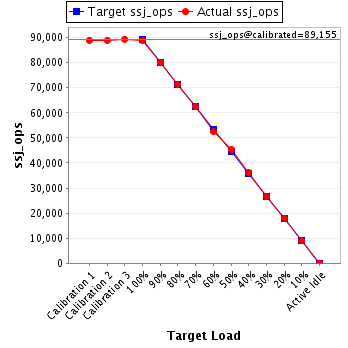

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,838
Calibration 2     92,243
Calibration 3     92,104
ssj_ops@calibrated=92,174
100% 99.4% 92,174 91,615
90% 89.3% 82,956 82,275
80% 80.5% 73,739 74,230
70% 71.9% 64,522 66,266
60% 59.1% 55,304 54,446
50% 50.0% 46,087 46,097
40% 40.4% 36,869 37,243
30% 30.0% 27,652 27,641
20% 19.6% 18,435 18,100
10% 10.1% 9,217 9,305
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,489
Calibration 2     92,933
Calibration 3     92,817
ssj_ops@calibrated=92,875
100% 99.4% 92,875 92,337
90% 91.1% 83,587 84,627
80% 80.1% 74,300 74,349
70% 71.7% 65,012 66,598
60% 59.6% 55,725 55,353
50% 49.8% 46,437 46,237
40% 39.6% 37,150 36,751
30% 29.9% 27,862 27,794
20% 20.6% 18,575 19,090
10% 9.8% 9,287 9,129
Active Idle   0 0

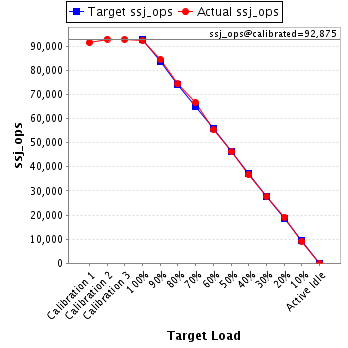

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,361
Calibration 2     91,308
Calibration 3     86,472
ssj_ops@calibrated=88,890
100% 100.1% 88,890 88,970
90% 89.2% 80,001 79,265
80% 79.5% 71,112 70,708
70% 70.5% 62,223 62,695
60% 60.0% 53,334 53,311
50% 49.9% 44,445 44,394
40% 40.1% 35,556 35,604
30% 29.9% 26,667 26,537
20% 19.9% 17,778 17,656
10% 9.8% 8,889 8,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,331
Calibration 2     91,797
Calibration 3     91,798
ssj_ops@calibrated=91,798
100% 99.3% 91,798 91,163
90% 90.0% 82,618 82,588
80% 81.2% 73,438 74,576
70% 70.5% 64,258 64,745
60% 61.1% 55,079 56,123
50% 49.9% 45,899 45,772
40% 40.7% 36,719 37,381
30% 29.9% 27,539 27,430
20% 20.1% 18,360 18,496
10% 10.0% 9,180 9,164
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,315
Calibration 2     94,517
Calibration 3     89,635
ssj_ops@calibrated=92,076
100% 100.4% 92,076 92,474
90% 90.9% 82,868 83,656
80% 80.2% 73,661 73,857
70% 71.3% 64,453 65,616
60% 59.2% 55,246 54,503
50% 51.2% 46,038 47,171
40% 41.5% 36,830 38,197
30% 29.7% 27,623 27,310
20% 20.1% 18,415 18,518
10% 10.1% 9,208 9,275
Active Idle   0 0

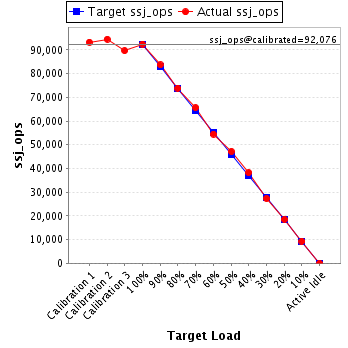

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,423
Calibration 2     92,097
Calibration 3     92,521
ssj_ops@calibrated=92,309
100% 99.7% 92,309 92,033
90% 90.3% 83,078 83,347
80% 80.1% 73,847 73,938
70% 71.0% 64,616 65,500
60% 59.6% 55,385 55,031
50% 50.3% 46,155 46,420
40% 40.0% 36,924 36,935
30% 30.1% 27,693 27,750
20% 20.2% 18,462 18,646
10% 10.1% 9,231 9,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,526
Calibration 2     90,984
Calibration 3     91,269
ssj_ops@calibrated=91,127
100% 99.7% 91,127 90,862
90% 90.4% 82,014 82,358
80% 80.2% 72,901 73,105
70% 71.8% 63,789 65,401
60% 60.5% 54,676 55,176
50% 49.3% 45,563 44,941
40% 39.6% 36,451 36,069
30% 30.2% 27,338 27,542
20% 20.2% 18,225 18,427
10% 9.8% 9,113 8,896
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

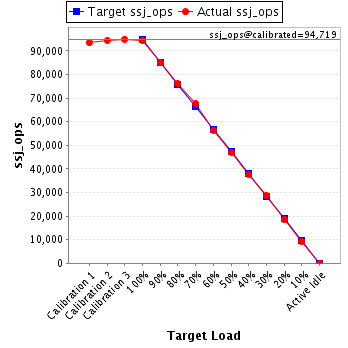

JVM 'linux.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,411
Calibration 2     94,464
Calibration 3     94,975
ssj_ops@calibrated=94,719
100% 99.8% 94,719 94,487
90% 89.6% 85,248 84,895
80% 80.4% 75,776 76,183
70% 71.5% 66,304 67,713
60% 59.6% 56,832 56,445
50% 49.5% 47,360 46,927
40% 39.9% 37,888 37,782
30% 30.2% 28,416 28,583
20% 19.6% 18,944 18,558
10% 9.9% 9,472 9,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,149
Calibration 2     85,114
Calibration 3     91,279
ssj_ops@calibrated=88,196
100% 101.5% 88,196 89,510
90% 90.9% 79,377 80,141
80% 81.0% 70,557 71,447
70% 69.8% 61,738 61,520
60% 61.0% 52,918 53,809
50% 50.2% 44,098 44,318
40% 39.9% 35,279 35,185
30% 30.6% 26,459 27,003
20% 20.0% 17,639 17,662
10% 10.3% 8,820 9,108
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,392
Calibration 2     91,658
Calibration 3     91,546
ssj_ops@calibrated=91,602
100% 99.6% 91,602 91,277
90% 90.8% 82,442 83,152
80% 80.6% 73,282 73,863
70% 72.0% 64,122 65,995
60% 60.6% 54,961 55,513
50% 50.3% 45,801 46,114
40% 39.3% 36,641 36,040
30% 29.7% 27,481 27,180
20% 19.8% 18,320 18,129
10% 10.0% 9,160 9,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,861
Calibration 2     91,405
Calibration 3     92,049
ssj_ops@calibrated=91,727
100% 100.1% 91,727 91,800
90% 90.7% 82,555 83,222
80% 81.2% 73,382 74,442
70% 71.7% 64,209 65,733
60% 60.3% 55,036 55,288
50% 50.6% 45,864 46,375
40% 40.6% 36,691 37,268
30% 30.3% 27,518 27,771
20% 20.2% 18,345 18,572
10% 9.8% 9,173 8,986
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

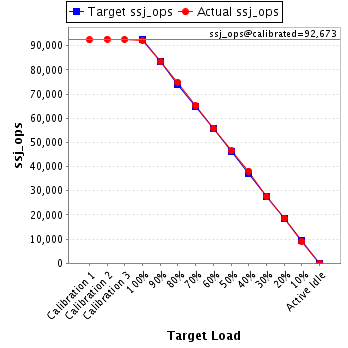

JVM 'linux.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,395
Calibration 2     92,729
Calibration 3     92,616
ssj_ops@calibrated=92,673
100% 99.4% 92,673 92,121
90% 90.0% 83,406 83,431
80% 80.8% 74,138 74,880
70% 70.4% 64,871 65,275
60% 60.3% 55,604 55,850
50% 50.2% 46,336 46,494
40% 41.2% 37,069 38,175
30% 29.8% 27,802 27,616
20% 20.2% 18,535 18,709
10% 9.7% 9,267 9,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,285
Calibration 2     91,100
Calibration 3     91,012
ssj_ops@calibrated=91,056
100% 99.6% 91,056 90,728
90% 89.5% 81,950 81,476
80% 80.4% 72,845 73,224
70% 70.7% 63,739 64,342
60% 59.6% 54,634 54,311
50% 50.6% 45,528 46,107
40% 39.4% 36,422 35,908
30% 29.9% 27,317 27,182
20% 19.3% 18,211 17,587
10% 10.1% 9,106 9,217
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,713
Calibration 2     92,010
Calibration 3     92,219
ssj_ops@calibrated=92,115
100% 99.7% 92,115 91,821
90% 90.4% 82,903 83,286
80% 79.7% 73,692 73,380
70% 70.4% 64,480 64,891
60% 59.3% 55,269 54,590
50% 50.5% 46,057 46,505
40% 39.9% 36,846 36,750
30% 29.8% 27,634 27,471
20% 20.2% 18,423 18,639
10% 10.1% 9,211 9,292
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

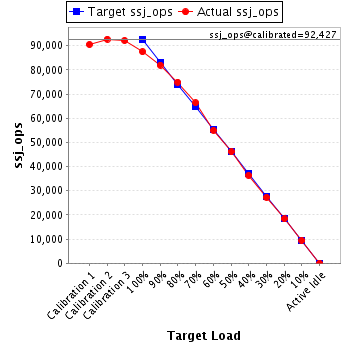

JVM 'linux.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,513
Calibration 2     92,713
Calibration 3     92,140
ssj_ops@calibrated=92,427
100% 94.6% 92,427 87,437
90% 88.7% 83,184 82,014
80% 81.1% 73,941 74,953
70% 71.8% 64,699 66,353
60% 59.5% 55,456 55,033
50% 49.9% 46,213 46,148
40% 39.4% 36,971 36,378
30% 29.6% 27,728 27,335
20% 19.8% 18,485 18,343
10% 10.2% 9,243 9,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

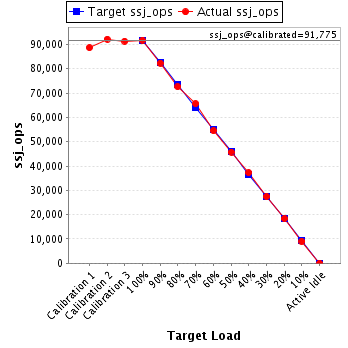

JVM 'linux.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,623
Calibration 2     92,173
Calibration 3     91,377
ssj_ops@calibrated=91,775
100% 100.0% 91,775 91,770
90% 89.7% 82,598 82,317
80% 79.1% 73,420 72,613
70% 71.5% 64,243 65,632
60% 59.4% 55,065 54,517
50% 49.9% 45,888 45,752
40% 40.6% 36,710 37,224
30% 29.9% 27,533 27,475
20% 20.0% 18,355 18,366
10% 9.8% 9,178 8,994
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,986
Calibration 2     91,654
Calibration 3     92,227
ssj_ops@calibrated=91,941
100% 99.9% 91,941 91,870
90% 90.5% 82,747 83,179
80% 78.9% 73,553 72,520
70% 71.5% 64,359 65,734
60% 59.9% 55,164 55,110
50% 49.9% 45,970 45,892
40% 40.3% 36,776 37,074
30% 29.4% 27,582 27,034
20% 20.3% 18,388 18,658
10% 10.3% 9,194 9,439
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

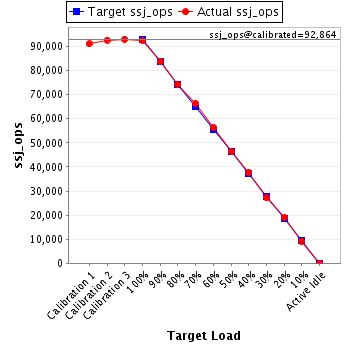

JVM 'linux.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,063
Calibration 2     92,682
Calibration 3     93,047
ssj_ops@calibrated=92,864
100% 99.7% 92,864 92,568
90% 90.3% 83,578 83,822
80% 80.1% 74,292 74,367
70% 71.3% 65,005 66,211
60% 60.6% 55,719 56,315
50% 49.9% 46,432 46,384
40% 40.5% 37,146 37,653
30% 29.2% 27,859 27,129
20% 20.3% 18,573 18,843
10% 9.9% 9,286 9,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,536
Calibration 2     91,376
Calibration 3     91,073
ssj_ops@calibrated=91,224
100% 99.7% 91,224 90,942
90% 89.8% 82,102 81,932
80% 78.4% 72,980 71,480
70% 70.3% 63,857 64,100
60% 59.6% 54,735 54,325
50% 50.2% 45,612 45,770
40% 40.0% 36,490 36,476
30% 30.1% 27,367 27,442
20% 20.1% 18,245 18,324
10% 10.0% 9,122 9,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,919
Calibration 2     93,715
Calibration 3     93,310
ssj_ops@calibrated=93,513
100% 99.3% 93,513 92,847
90% 89.4% 84,161 83,629
80% 79.6% 74,810 74,407
70% 70.5% 65,459 65,953
60% 60.0% 56,108 56,108
50% 49.3% 46,756 46,111
40% 40.5% 37,405 37,895
30% 30.2% 28,054 28,209
20% 20.2% 18,703 18,924
10% 10.1% 9,351 9,420
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

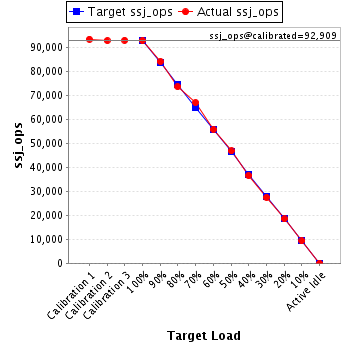

JVM 'linux.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,433
Calibration 2     92,835
Calibration 3     92,983
ssj_ops@calibrated=92,909
100% 99.9% 92,909 92,830
90% 90.5% 83,618 84,100
80% 79.2% 74,327 73,618
70% 72.0% 65,036 66,937
60% 60.1% 55,745 55,835
50% 50.4% 46,455 46,808
40% 39.3% 37,164 36,537
30% 29.6% 27,873 27,463
20% 19.9% 18,582 18,475
10% 10.0% 9,291 9,321
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
