Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 11,845 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 8, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 5,368 20.7
Calibration 2 5,389 20.7
Calibration 3 5,395 20.8
100% 5,384 20.9
90% 4,704 20.9
80% 4,027 20.9
70% 3,510 20.9
60% 3,056 20.9
50% 2,664 21.0
40% 2,360 21.0
30% 2,103 21.0
20% 1,854 21.0
10% 1,591 20.9
Active Idle 922 20.9

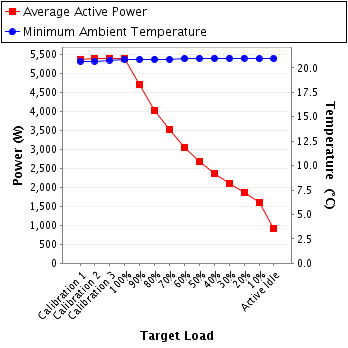

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: sameas CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: SUT Power Supplies 1 and 4
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: SUT Power Supplies 2 and 5
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: SUT Power Supplies 3 and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 210 300.0 8.66 10.0 0.995 1,813 0.3%
Calibration 2 210 300.0 8.69 10.0 0.995 1,818 0.3%
Calibration 3 210 300.0 8.70 10.0 0.995 1,821 0.3%
100% 210 300.0 8.68 10.0 0.995 1,816 0.3%
90% 211 300.0 7.59 10.0 0.994 1,588 0.4%
80% 211 300.0 6.47 10.0 0.992 1,352 0.4%
70% 211 300.0 5.63 10.0 0.990 1,176 0.4%
60% 211 300.0 4.91 10.0 0.986 1,021 0.5%
50% 211 300.0 4.31 10.0 0.981 894 0.5%
40% 211 300.0 3.87 5.0 0.977 798 0.4%
30% 211 300.0 3.51 5.0 0.971 720 0.4%
20% 211 300.0 3.15 5.0 0.965 642 0.4%
10% 211 300.0 2.88 5.0 0.957 583 0.5%
Active Idle 212 300.0 1.77 5.0 0.873 327 0.7%

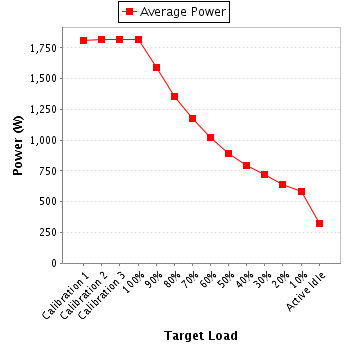

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 8.34 10.0 0.996 1,767 0.3%
Calibration 2 213 300.0 8.39 10.0 0.996 1,777 0.3%
Calibration 3 213 300.0 8.40 10.0 0.996 1,779 0.3%
100% 213 300.0 8.39 10.0 0.996 1,777 0.3%
90% 213 300.0 7.33 10.0 0.995 1,552 0.4%
80% 213 300.0 6.32 5.0 0.993 1,338 0.4%
70% 213 300.0 5.52 5.0 0.991 1,167 0.4%
60% 214 300.0 4.78 5.0 0.988 1,009 0.3%
50% 214 300.0 4.12 5.0 0.984 867 0.4%
40% 214 300.0 3.61 5.0 0.979 756 0.4%
30% 214 300.0 3.16 5.0 0.972 658 0.4%
20% 214 300.0 2.73 5.0 0.963 564 0.5%
10% 214 300.0 2.08 2.0 0.924 412 0.4%
Active Idle 214 300.0 1.45 2.0 0.847 264 0.5%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 210 300.0 8.55 10.0 0.994 1,788 0.3%
Calibration 2 210 300.0 8.58 10.0 0.994 1,794 0.3%
Calibration 3 210 300.0 8.59 10.0 0.994 1,795 0.3%
100% 210 300.0 8.56 10.0 0.994 1,790 0.3%
90% 210 300.0 7.48 10.0 0.992 1,563 0.4%
80% 211 300.0 6.40 10.0 0.990 1,337 0.4%
70% 211 300.0 5.60 10.0 0.987 1,167 0.4%
60% 211 300.0 4.94 10.0 0.983 1,026 0.5%
50% 211 300.0 4.37 10.0 0.978 904 0.5%
40% 211 300.0 3.92 10.0 0.973 806 0.6%
30% 211 300.0 3.56 5.0 0.967 726 0.4%
20% 211 300.0 3.20 5.0 0.959 648 0.4%
10% 211 300.0 2.97 5.0 0.950 596 0.5%
Active Idle 212 300.0 1.83 5.0 0.857 331 0.7%
Power details for pwr3
