Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,762,552
ssj_ops@100% per JVM = 1,440,638
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 8, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,780,630
Calibration 2     5,779,963
Calibration 3     5,780,328
ssj_ops@calibrated=5,780,145
100% 99.7% 5,780,145 5,762,552
90% 90.0% 5,202,131 5,201,358
80% 80.0% 4,624,116 4,623,988
70% 69.9% 4,046,102 4,042,657
60% 60.0% 3,468,087 3,466,472
50% 50.0% 2,890,073 2,890,468
40% 39.8% 2,312,058 2,302,743
30% 30.0% 1,734,044 1,734,664
20% 20.0% 1,156,029 1,156,593
10% 10.0% 578,015 577,751
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 12
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE01.001 1,458,887
NODE01.002 1,431,133
NODE01.003 1,438,991
NODE01.004 1,433,541
ssj_ops@100% 5,762,552
ssj_ops@100% per JVM 1,440,638

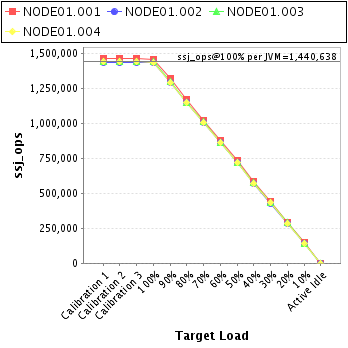

Graph of per-instance results
JVM 'NODE01.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,460,337
Calibration 2     1,463,597
Calibration 3     1,464,826
ssj_ops@calibrated=1,464,212
100% 99.6% 1,464,212 1,458,887
90% 90.0% 1,317,791 1,318,292
80% 80.1% 1,171,369 1,172,496
70% 69.8% 1,024,948 1,021,428
60% 60.1% 878,527 879,413
50% 50.0% 732,106 732,094
40% 39.9% 585,685 583,605
30% 30.0% 439,264 439,622
20% 20.0% 292,842 292,859
10% 10.0% 146,421 146,147
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE01.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,436,620
Calibration 2     1,433,966
Calibration 3     1,435,778
ssj_ops@calibrated=1,434,872
100% 99.7% 1,434,872 1,431,133
90% 90.1% 1,291,385 1,293,517
80% 80.2% 1,147,898 1,150,404
70% 70.0% 1,004,410 1,004,130
60% 60.0% 860,923 860,984
50% 49.9% 717,436 716,172
40% 39.8% 573,949 570,541
30% 29.9% 430,462 428,746
20% 19.9% 286,974 285,563
10% 10.0% 143,487 143,567
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE01.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,444,463
Calibration 2     1,444,031
Calibration 3     1,441,559
ssj_ops@calibrated=1,442,795
100% 99.7% 1,442,795 1,438,991
90% 90.1% 1,298,516 1,299,324
80% 79.8% 1,154,236 1,150,696
70% 70.0% 1,009,957 1,009,901
60% 59.9% 865,677 864,631
50% 50.1% 721,398 722,886
40% 39.9% 577,118 575,407
30% 30.1% 432,839 434,185
20% 20.1% 288,559 290,650
10% 10.0% 144,280 144,446
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE01.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,439,211
Calibration 2     1,438,369
Calibration 3     1,438,164
ssj_ops@calibrated=1,438,266
100% 99.7% 1,438,266 1,433,541
90% 89.7% 1,294,440 1,290,226
80% 80.0% 1,150,613 1,150,392
70% 70.0% 1,006,786 1,007,198
60% 59.9% 862,960 861,444
50% 50.0% 719,133 719,316
40% 39.9% 575,307 573,190
30% 30.0% 431,480 432,111
20% 20.0% 287,653 287,522
10% 10.0% 143,827 143,592
Active Idle   0 0

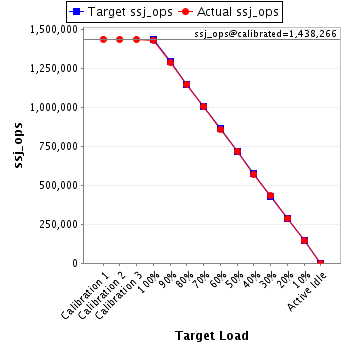

Graph of results
See the JVM Instance Performance Report for additional details.
