New H3C Technologies Co., Ltd. H3C UniServer R6700 G3 SPECpower_ssj2008 = 11,964 overall ssj_ops/watt
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Apr 18, 2019
Hardware Availability: Dec-2018 Software Availability: Dec-2018 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 953 21.1
Calibration 2 959 21.9
Calibration 3 954 20.9
100% 957 21.8
90% 787 20.9
80% 665 21.5
70% 576 21.1
60% 497 21.4
50% 431 21.0
40% 383 21.2
30% 339 20.9
20% 294 20.9
10% 245 21.0
Active Idle 99.8 20.8

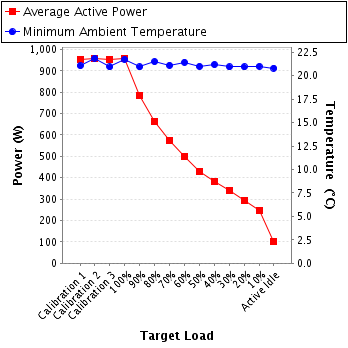

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: CHROMA
Model: 66202
Serial Number: 662025003870
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: 2GB18J02050-0001
Date of Calibration: 20-Apr-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: Connected to PSU 1 and 2
Temperature Sensor temp1
Hardware Vendor: DIGI.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 234 300.0 4.09 20.0 0.996 953 0.7%
Calibration 2 234 300.0 4.12 20.0 0.996 959 0.7%
Calibration 3 234 300.0 4.09 20.0 0.996 954 0.7%
100% 234 300.0 4.10 20.0 0.996 957 0.7%
90% 234 300.0 3.38 20.0 0.994 787 0.9%
80% 234 300.0 2.86 2.0 0.992 665 0.2%
70% 234 300.0 2.49 2.0 0.990 576 0.2%
60% 234 300.0 2.15 2.0 0.989 497 0.2%
50% 234 300.0 1.87 2.0 0.985 431 0.2%
40% 234 300.0 1.66 2.0 0.985 383 0.3%
30% 234 300.0 1.48 2.0 0.978 339 0.3%
20% 234 300.0 1.29 2.0 0.972 294 0.3%
10% 234 300.0 1.09 2.0 0.964 245 0.3%
Active Idle 235 300.0 0.497 2.0 0.855 99.8 0.7%
Power details for pwr1
