New H3C Technologies Co., Ltd. H3C UniServer R6700 G3 SPECpower_ssj2008 = 12,190 overall ssj_ops/watt
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Apr 29, 2019
Hardware Availability: Dec-2018 Software Availability: Dec-2018 Publication: Jun 5, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 945 20.9
Calibration 2 957 21.4
Calibration 3 958 22.2
100% 956 21.6
90% 779 21.5
80% 662 21.9
70% 574 22.6
60% 497 21.6
50% 429 21.6
40% 380 21.9
30% 335 22.1
20% 291 21.5
10% 248 21.1
Active Idle 99.6 21.2
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: CHROMA
Model: 66202
Serial Number: 662025003313
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: GUANG ZHOU GRG METROLOGY & TEST CO.,LTD
Calibration Label: J201903263852A-0051
Date of Calibration: 1-Apr-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: Connected to PSU 1 and 2
Temperature Sensor temp1
Hardware Vendor: DIGI.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 234 300.0 4.07 20.0 0.994 945 0.7%
Calibration 2 234 300.0 4.12 20.0 0.994 957 0.7%
Calibration 3 234 300.0 4.12 20.0 0.994 958 0.7%
100% 234 300.0 4.11 20.0 0.994 956 0.7%
90% 235 300.0 3.35 20.0 0.991 779 0.9%
80% 235 300.0 2.85 2.0 0.988 662 0.2%
70% 235 300.0 2.48 2.0 0.987 574 0.2%
60% 235 300.0 2.15 2.0 0.986 497 0.2%
50% 235 300.0 1.86 2.0 0.980 429 0.2%
40% 236 300.0 1.64 2.0 0.981 380 0.3%
30% 235 300.0 1.47 2.0 0.972 335 0.3%
20% 235 300.0 1.28 2.0 0.966 291 0.3%
10% 236 300.0 1.10 2.0 0.957 248 0.3%
Active Idle 236 300.0 0.502 2.0 0.842 99.6 0.7%

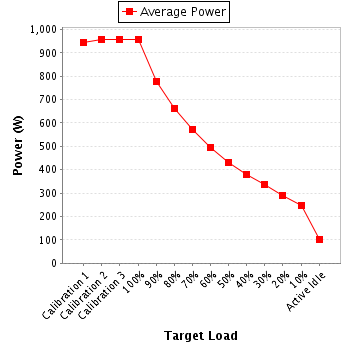

Power details for pwr1
