Lenovo Global Technology ThinkSystem SR850 SPECpower_ssj2008 = 13,154 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Taipei, Taiwan Test Date: May 7, 2019
Hardware Availability: Apr-2019 Software Availability: Jun-2019 Publication: Jun 5, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.0% 10,349,524 711 14,566
90% 90.0% 9,411,360 625 15,061
80% 80.1% 8,373,597 547 15,314
70% 70.0% 7,321,064 477 15,345
60% 60.0% 6,275,220 418 15,025
50% 50.0% 5,229,828 370 14,121
40% 40.0% 4,181,458 331 12,637
30% 30.0% 3,139,103 294 10,684
20% 19.9% 2,085,830 256 8,141
10% 10.0% 1,044,063 217 4,807
Active Idle 0 119 0
∑ssj_ops / ∑power = 13,154

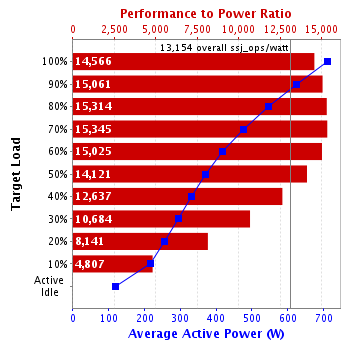

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: The machine type of the SUT is 7X19.
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR850
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8276L CPU 2.20 GHz
CPU Characteristics: 28 core, 2.20GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 2Rx8 PC4-2933Y-RE2-12-MH1; Slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, 24, 25, 27, 29, 32, 34, 36, 37, 39, 41, 44, 46, and 48 populated.
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: Lenovo P/N:7N67A00886
Disk Drive: 1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1Gb 2-Port RJ45 LOM (Lenovo P/N: 7ZT7A00544)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: 1 x ThinkSystem M.2 Enablement Kit (Lenovo P/N 7Y37A01092)
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: Kernel 4.12.14-94.41-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 112 }
JVM Instances: 112
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: TEE136S (2019/3/08)
Management Firmware Version: TEI342S (2019/3/08)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Lenovo Power Plan V1.0 for SuSE Linux Enterprise Server 12 SP4
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Lenovo System x3550 M5
CPU Description: 2 x Intel Xeon E5-2699 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2012 R2 Datacenter (Version 6.3.9600, Build 9600)
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_144 (build 25.144-b01, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT210
Serial Number: 91H245649
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 18-07-BAC-578-02
Date of Calibration: 30-Jul-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 711 26.6
90% 625 26.8
80% 547 27.0
70% 477 27.2
60% 418 27.1
50% 370 26.7
40% 331 26.1
30% 294 25.4
20% 256 24.9
10% 217 24.3
Active Idle 119 23.6
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 23.6 63
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     9,921,243
Calibration 2     10,520,916
Calibration 3     10,390,961
ssj_ops@calibrated=10,455,938
100% 99.0% 10,455,938 10,349,524
90% 90.0% 9,410,345 9,411,360
80% 80.1% 8,364,751 8,373,597
70% 70.0% 7,319,157 7,321,064
60% 60.0% 6,273,563 6,275,220
50% 50.0% 5,227,969 5,229,828
40% 40.0% 4,182,375 4,181,458
30% 30.0% 3,136,782 3,139,103
20% 19.9% 2,091,188 2,085,830
10% 10.0% 1,045,594 1,044,063
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
