New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 | ssj_ops@100% = 5,674,076 ssj_ops@100% per JVM = 1,418,519 |
||||
Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Multi Node |
Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | May 14, 2019 |
Hardware Availability: | Jan-2019 | Software Availability: | Jan-2019 | Publication: | Jun 12, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 5,687,992 | ||
Calibration 2 | 5,681,651 | ||
Calibration 3 | 5,693,281 | ||
ssj_ops@calibrated=5,687,466 | |||
100% | 99.8% | 5,687,466 | 5,674,076 |
90% | 90.0% | 5,118,719 | 5,117,732 |
80% | 80.0% | 4,549,973 | 4,550,231 |
70% | 69.9% | 3,981,226 | 3,976,610 |
60% | 60.0% | 3,412,480 | 3,409,669 |
50% | 49.9% | 2,843,733 | 2,839,435 |
40% | 40.0% | 2,274,986 | 2,276,249 |
30% | 30.0% | 1,706,240 | 1,708,354 |
20% | 20.0% | 1,137,493 | 1,137,482 |
10% | 10.0% | 568,747 | 566,245 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 11 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | New H3C Technologies Co., Ltd. |
Model: | H3C UniServer B5700 G3 |
Form Factor: | Other |
CPU Name: | Intel Xeon Platinum 8180 2.50GHz |
CPU Characteristics: | 28-Core, 2.50 GHz, 38.5 MB L3 Cache |
CPU Frequency (MHz): | 2500 |
CPU(s) Enabled: | 56 cores, 2 chips, 28 cores/chip |
Hardware Threads: | 112 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 39424 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 192.0 |
# and size of DIMM: | 12 x 16384 MB |
Memory Details: | 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | SATA DOM 128GB P/N DESSH-A28D09BCADCA |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel I350 Gigabit Ethernet Controller |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced Mode enabled in OS (see SUT Notes) |
Operating System (OS): | Microsoft Windows Server 2012 R2 Datacenter |
OS Version: | Version 6.3 (Build 9600) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts |
JVM Affinity: | start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F] |
JVM Instances: | 4 |
JVM Initial Heap (MB): | 21000 |
JVM Maximum Heap (MB): | 21000 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 2.00.25 |
Management Firmware Version: | UIS-OM 1.00.10 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 7,2019 |
JVM Instance | ssj_ops@100% |
---|---|
WIN-SUT106.001 | 1,436,663 |
WIN-SUT106.002 | 1,414,024 |
WIN-SUT106.003 | 1,411,942 |
WIN-SUT106.004 | 1,411,448 |
ssj_ops@100% | 5,674,076 |
ssj_ops@100% per JVM | 1,418,519 |

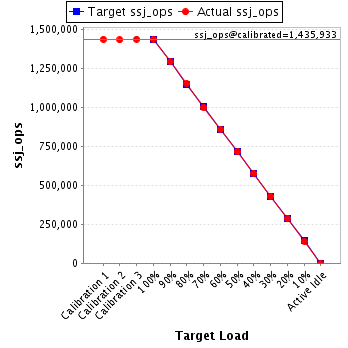

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,436,795 | ||
Calibration 2 | 1,433,658 | ||
Calibration 3 | 1,438,208 | ||
ssj_ops@calibrated=1,435,933 | |||
100% | 100.1% | 1,435,933 | 1,436,663 |
90% | 90.0% | 1,292,340 | 1,292,397 |
80% | 80.3% | 1,148,746 | 1,153,560 |
70% | 69.7% | 1,005,153 | 1,000,483 |
60% | 59.9% | 861,560 | 860,763 |
50% | 49.8% | 717,967 | 715,793 |
40% | 40.1% | 574,373 | 575,702 |
30% | 30.0% | 430,780 | 430,785 |
20% | 19.9% | 287,187 | 286,101 |
10% | 9.9% | 143,593 | 142,493 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,416,275 | ||
Calibration 2 | 1,417,408 | ||
Calibration 3 | 1,419,243 | ||
ssj_ops@calibrated=1,418,326 | |||
100% | 99.7% | 1,418,326 | 1,414,024 |
90% | 90.1% | 1,276,493 | 1,277,382 |
80% | 79.9% | 1,134,661 | 1,133,901 |
70% | 70.1% | 992,828 | 993,815 |
60% | 60.0% | 850,995 | 851,322 |
50% | 50.0% | 709,163 | 708,833 |
40% | 39.7% | 567,330 | 562,545 |
30% | 30.2% | 425,498 | 427,686 |
20% | 20.0% | 283,665 | 284,015 |
10% | 10.0% | 141,833 | 141,163 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,417,310 | ||
Calibration 2 | 1,415,749 | ||
Calibration 3 | 1,419,537 | ||
ssj_ops@calibrated=1,417,643 | |||
100% | 99.6% | 1,417,643 | 1,411,942 |
90% | 89.9% | 1,275,879 | 1,274,018 |
80% | 79.7% | 1,134,114 | 1,129,753 |
70% | 70.2% | 992,350 | 995,854 |
60% | 59.9% | 850,586 | 849,775 |
50% | 50.0% | 708,821 | 708,472 |
40% | 40.1% | 567,057 | 569,086 |
30% | 29.9% | 425,293 | 423,271 |
20% | 20.1% | 283,529 | 284,607 |
10% | 9.9% | 141,764 | 140,427 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,417,611 | ||
Calibration 2 | 1,414,836 | ||
Calibration 3 | 1,416,293 | ||
ssj_ops@calibrated=1,415,564 | |||
100% | 99.7% | 1,415,564 | 1,411,448 |
90% | 90.0% | 1,274,008 | 1,273,935 |
80% | 80.0% | 1,132,451 | 1,133,017 |
70% | 69.7% | 990,895 | 986,458 |
60% | 59.9% | 849,339 | 847,809 |
50% | 49.9% | 707,782 | 706,338 |
40% | 40.2% | 566,226 | 568,916 |
30% | 30.1% | 424,669 | 426,612 |
20% | 20.0% | 283,113 | 282,760 |
10% | 10.0% | 141,556 | 142,161 |
Active Idle | 0 | 0 |
