New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 | ssj_ops@100% = 5,695,506 ssj_ops@100% per JVM = 1,423,877 |
||||
Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Multi Node |
Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | May 14, 2019 |
Hardware Availability: | Jan-2019 | Software Availability: | Jan-2019 | Publication: | Jun 12, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 5,701,208 | ||
Calibration 2 | 5,702,610 | ||
Calibration 3 | 5,706,094 | ||
ssj_ops@calibrated=5,704,352 | |||
100% | 99.8% | 5,704,352 | 5,695,506 |
90% | 90.0% | 5,133,917 | 5,135,420 |
80% | 79.7% | 4,563,481 | 4,548,485 |
70% | 70.1% | 3,993,046 | 3,999,607 |
60% | 60.0% | 3,422,611 | 3,420,942 |
50% | 49.9% | 2,852,176 | 2,849,284 |
40% | 40.1% | 2,281,741 | 2,286,425 |
30% | 30.0% | 1,711,306 | 1,713,219 |
20% | 19.9% | 1,140,870 | 1,137,015 |
10% | 9.9% | 570,435 | 566,452 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 11 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | New H3C Technologies Co., Ltd. |
Model: | H3C UniServer B5700 G3 |
Form Factor: | Other |
CPU Name: | Intel Xeon Platinum 8180 2.50GHz |
CPU Characteristics: | 28-Core, 2.50 GHz, 38.5 MB L3 Cache |
CPU Frequency (MHz): | 2500 |
CPU(s) Enabled: | 56 cores, 2 chips, 28 cores/chip |
Hardware Threads: | 112 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 39424 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 192.0 |
# and size of DIMM: | 12 x 16384 MB |
Memory Details: | 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | SATA DOM 128GB P/N DESSH-A28D09BCADCA |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel I350 Gigabit Ethernet Controller |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced Mode enabled in OS (see SUT Notes) |
Operating System (OS): | Microsoft Windows Server 2012 R2 Datacenter |
OS Version: | Version 6.3 (Build 9600) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts |
JVM Affinity: | start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F] |
JVM Instances: | 4 |
JVM Initial Heap (MB): | 21000 |
JVM Maximum Heap (MB): | 21000 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 2.00.25 |
Management Firmware Version: | UIS-OM 1.00.10 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 7,2019 |
JVM Instance | ssj_ops@100% |
---|---|
WIN-SUT107.001 | 1,415,191 |
WIN-SUT107.002 | 1,435,321 |
WIN-SUT107.003 | 1,418,251 |
WIN-SUT107.004 | 1,426,744 |
ssj_ops@100% | 5,695,506 |
ssj_ops@100% per JVM | 1,423,877 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,418,689 | ||
Calibration 2 | 1,417,803 | ||
Calibration 3 | 1,417,767 | ||
ssj_ops@calibrated=1,417,785 | |||
100% | 99.8% | 1,417,785 | 1,415,191 |
90% | 89.8% | 1,276,006 | 1,273,642 |
80% | 79.8% | 1,134,228 | 1,132,036 |
70% | 70.0% | 992,449 | 992,793 |
60% | 59.9% | 850,671 | 849,334 |
50% | 50.0% | 708,892 | 708,506 |
40% | 39.8% | 567,114 | 564,947 |
30% | 30.1% | 425,335 | 426,879 |
20% | 19.9% | 283,557 | 282,042 |
10% | 10.0% | 141,778 | 141,906 |
Active Idle | 0 | 0 |

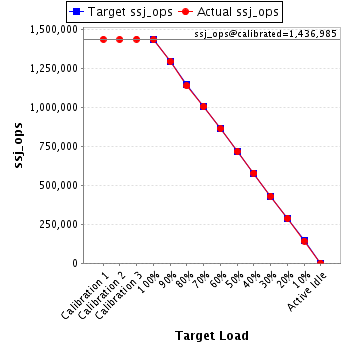

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,436,899 | ||
Calibration 2 | 1,436,021 | ||
Calibration 3 | 1,437,948 | ||
ssj_ops@calibrated=1,436,985 | |||
100% | 99.9% | 1,436,985 | 1,435,321 |
90% | 90.1% | 1,293,286 | 1,294,975 |
80% | 79.2% | 1,149,588 | 1,138,794 |
70% | 70.0% | 1,005,889 | 1,005,384 |
60% | 60.1% | 862,191 | 863,287 |
50% | 49.9% | 718,492 | 716,872 |
40% | 40.2% | 574,794 | 578,323 |
30% | 30.0% | 431,095 | 431,104 |
20% | 20.1% | 287,397 | 288,229 |
10% | 9.9% | 143,698 | 142,565 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,419,447 | ||
Calibration 2 | 1,418,034 | ||
Calibration 3 | 1,419,962 | ||
ssj_ops@calibrated=1,418,998 | |||
100% | 99.9% | 1,418,998 | 1,418,251 |
90% | 90.1% | 1,277,098 | 1,279,164 |
80% | 80.0% | 1,135,198 | 1,135,153 |
70% | 70.2% | 993,299 | 995,682 |
60% | 59.9% | 851,399 | 849,902 |
50% | 49.9% | 709,499 | 707,647 |
40% | 40.2% | 567,599 | 569,945 |
30% | 30.0% | 425,699 | 426,370 |
20% | 19.9% | 283,800 | 282,963 |
10% | 9.9% | 141,900 | 140,721 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,426,173 | ||
Calibration 2 | 1,430,752 | ||
Calibration 3 | 1,430,416 | ||
ssj_ops@calibrated=1,430,584 | |||
100% | 99.7% | 1,430,584 | 1,426,744 |
90% | 90.0% | 1,287,526 | 1,287,639 |
80% | 79.9% | 1,144,467 | 1,142,502 |
70% | 70.3% | 1,001,409 | 1,005,748 |
60% | 60.0% | 858,351 | 858,419 |
50% | 50.1% | 715,292 | 716,258 |
40% | 40.1% | 572,234 | 573,210 |
30% | 30.0% | 429,175 | 428,865 |
20% | 19.8% | 286,117 | 283,781 |
10% | 9.9% | 143,058 | 141,259 |
Active Idle | 0 | 0 |
