New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 | ssj_ops@100% = 5,722,724 ssj_ops@100% per JVM = 1,430,681 |
||||
Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Multi Node |
Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | May 13, 2019 |
Hardware Availability: | Jan-2019 | Software Availability: | Jan-2019 | Publication: | Jun 12, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 5,732,376 | ||
Calibration 2 | 5,725,481 | ||
Calibration 3 | 5,733,808 | ||
ssj_ops@calibrated=5,729,644 | |||
100% | 99.9% | 5,729,644 | 5,722,724 |
90% | 90.0% | 5,156,680 | 5,159,515 |
80% | 79.9% | 4,583,716 | 4,578,713 |
70% | 70.3% | 4,010,751 | 4,029,331 |
60% | 59.9% | 3,437,787 | 3,434,019 |
50% | 50.1% | 2,864,822 | 2,869,754 |
40% | 40.0% | 2,291,858 | 2,290,793 |
30% | 30.0% | 1,718,893 | 1,718,087 |
20% | 20.0% | 1,145,929 | 1,143,492 |
10% | 10.0% | 572,964 | 575,286 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 12 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | New H3C Technologies Co., Ltd. |
Model: | H3C UniServer B5700 G3 |
Form Factor: | Other |
CPU Name: | Intel Xeon Platinum 8180 2.50GHz |
CPU Characteristics: | 28-Core, 2.50 GHz, 38.5 MB L3 Cache |
CPU Frequency (MHz): | 2500 |
CPU(s) Enabled: | 56 cores, 2 chips, 28 cores/chip |
Hardware Threads: | 112 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 39424 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 192.0 |
# and size of DIMM: | 12 x 16384 MB |
Memory Details: | 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | SATA DOM 128GB P/N DESSH-A28D09BCADCA |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel I350 Gigabit Ethernet Controller |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced Mode enabled in OS (see SUT Notes) |
Operating System (OS): | Microsoft Windows Server 2012 R2 Datacenter |
OS Version: | Version 6.3 (Build 9600) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts |
JVM Affinity: | start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F] |
JVM Instances: | 4 |
JVM Initial Heap (MB): | 21000 |
JVM Maximum Heap (MB): | 21000 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 2.00.25 |
Management Firmware Version: | UIS-OM 1.00.10 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 8, 2019 |
JVM Instance | ssj_ops@100% |
---|---|
WIN-SUT103.001 | 1,438,171 |
WIN-SUT103.002 | 1,428,555 |
WIN-SUT103.003 | 1,433,143 |
WIN-SUT103.004 | 1,422,856 |
ssj_ops@100% | 5,722,724 |
ssj_ops@100% per JVM | 1,430,681 |

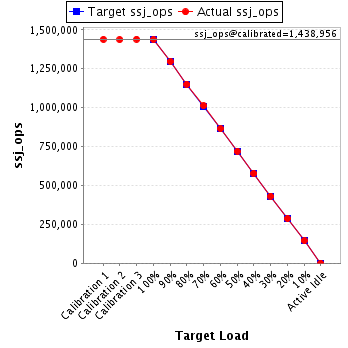

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,439,301 | ||
Calibration 2 | 1,437,610 | ||
Calibration 3 | 1,440,302 | ||
ssj_ops@calibrated=1,438,956 | |||
100% | 99.9% | 1,438,956 | 1,438,171 |
90% | 90.1% | 1,295,060 | 1,296,996 |
80% | 80.0% | 1,151,165 | 1,150,587 |
70% | 70.4% | 1,007,269 | 1,012,707 |
60% | 60.1% | 863,374 | 864,327 |
50% | 50.0% | 719,478 | 720,062 |
40% | 40.1% | 575,582 | 577,243 |
30% | 30.0% | 431,687 | 432,122 |
20% | 19.9% | 287,791 | 286,663 |
10% | 10.1% | 143,896 | 145,215 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,434,247 | ||
Calibration 2 | 1,429,899 | ||
Calibration 3 | 1,433,778 | ||
ssj_ops@calibrated=1,431,839 | |||
100% | 99.8% | 1,431,839 | 1,428,555 |
90% | 90.3% | 1,288,655 | 1,292,489 |
80% | 79.9% | 1,145,471 | 1,144,272 |
70% | 69.9% | 1,002,287 | 1,000,649 |
60% | 60.1% | 859,103 | 859,960 |
50% | 50.1% | 715,919 | 717,208 |
40% | 40.0% | 572,736 | 572,645 |
30% | 30.0% | 429,552 | 430,227 |
20% | 20.0% | 286,368 | 285,866 |
10% | 10.0% | 143,184 | 143,503 |
Active Idle | 0 | 0 |

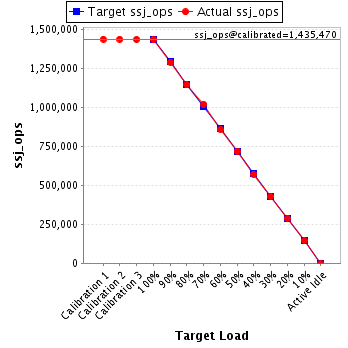

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,437,245 | ||
Calibration 2 | 1,436,362 | ||
Calibration 3 | 1,434,578 | ||
ssj_ops@calibrated=1,435,470 | |||
100% | 99.8% | 1,435,470 | 1,433,143 |
90% | 89.8% | 1,291,923 | 1,288,911 |
80% | 79.8% | 1,148,376 | 1,145,364 |
70% | 71.1% | 1,004,829 | 1,020,983 |
60% | 59.9% | 861,282 | 859,351 |
50% | 50.1% | 717,735 | 719,290 |
40% | 39.8% | 574,188 | 571,959 |
30% | 29.8% | 430,641 | 428,163 |
20% | 20.0% | 287,094 | 286,706 |
10% | 10.1% | 143,547 | 144,661 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,421,583 | ||
Calibration 2 | 1,421,610 | ||
Calibration 3 | 1,425,149 | ||
ssj_ops@calibrated=1,423,380 | |||
100% | 100.0% | 1,423,380 | 1,422,856 |
90% | 90.0% | 1,281,042 | 1,281,119 |
80% | 80.0% | 1,138,704 | 1,138,490 |
70% | 69.9% | 996,366 | 994,991 |
60% | 59.7% | 854,028 | 850,382 |
50% | 50.1% | 711,690 | 713,195 |
40% | 40.0% | 569,352 | 568,946 |
30% | 30.0% | 427,014 | 427,575 |
20% | 20.0% | 284,676 | 284,257 |
10% | 10.0% | 142,338 | 141,908 |
Active Idle | 0 | 0 |
