New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 | ssj_ops@100% = 5,717,866 ssj_ops@100% per JVM = 1,429,466 |
||||
Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Multi Node |
Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | May 17, 2019 |
Hardware Availability: | Jan-2019 | Software Availability: | Jan-2019 | Publication: | Jun 12, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 5,725,882 | ||
Calibration 2 | 5,715,078 | ||
Calibration 3 | 5,729,136 | ||
ssj_ops@calibrated=5,722,107 | |||
100% | 99.9% | 5,722,107 | 5,717,866 |
90% | 90.1% | 5,149,897 | 5,154,384 |
80% | 80.1% | 4,577,686 | 4,582,246 |
70% | 69.9% | 4,005,475 | 4,001,512 |
60% | 60.2% | 3,433,264 | 3,446,321 |
50% | 50.0% | 2,861,054 | 2,863,458 |
40% | 40.0% | 2,288,843 | 2,287,577 |
30% | 29.9% | 1,716,632 | 1,713,754 |
20% | 20.0% | 1,144,421 | 1,143,316 |
10% | 9.9% | 572,211 | 568,917 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 13 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | New H3C Technologies Co., Ltd. |
Model: | H3C UniServer B5700 G3 |
Form Factor: | Other |
CPU Name: | Intel Xeon Platinum 8180 2.50GHz |
CPU Characteristics: | 28-Core, 2.50 GHz, 38.5 MB L3 Cache |
CPU Frequency (MHz): | 2500 |
CPU(s) Enabled: | 56 cores, 2 chips, 28 cores/chip |
Hardware Threads: | 112 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 39424 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 192.0 |
# and size of DIMM: | 12 x 16384 MB |
Memory Details: | 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | SATA DOM 128GB P/N DESSH-A28D09BCADCA |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel I350 Gigabit Ethernet Controller |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced Mode enabled in OS (see SUT Notes) |
Operating System (OS): | Microsoft Windows Server 2012 R2 Datacenter |
OS Version: | Version 6.3 (Build 9600) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts |
JVM Affinity: | start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F] |
JVM Instances: | 4 |
JVM Initial Heap (MB): | 21000 |
JVM Maximum Heap (MB): | 21000 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 2.00.25 |
Management Firmware Version: | UIS-OM 1.00.10 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 15, 2019 |

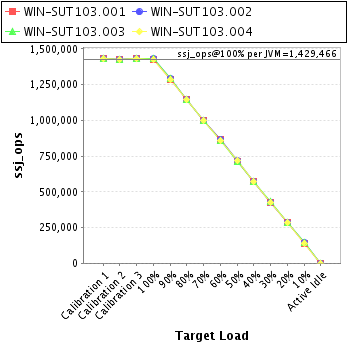

JVM Instance | ssj_ops@100% |
---|---|
WIN-SUT103.001 | 1,429,002 |
WIN-SUT103.002 | 1,430,085 |
WIN-SUT103.003 | 1,430,607 |
WIN-SUT103.004 | 1,428,173 |
ssj_ops@100% | 5,717,866 |
ssj_ops@100% per JVM | 1,429,466 |

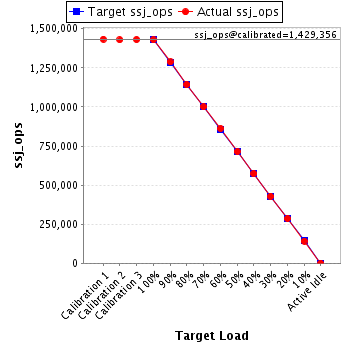

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,433,437 | ||
Calibration 2 | 1,428,540 | ||
Calibration 3 | 1,430,171 | ||
ssj_ops@calibrated=1,429,356 | |||
100% | 100.0% | 1,429,356 | 1,429,002 |
90% | 90.1% | 1,286,420 | 1,287,491 |
80% | 80.0% | 1,143,485 | 1,143,822 |
70% | 70.0% | 1,000,549 | 1,000,387 |
60% | 60.4% | 857,614 | 862,894 |
50% | 49.9% | 714,678 | 713,953 |
40% | 40.1% | 571,742 | 572,458 |
30% | 30.0% | 428,807 | 428,529 |
20% | 19.9% | 285,871 | 285,135 |
10% | 9.9% | 142,936 | 141,499 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,431,077 | ||
Calibration 2 | 1,428,933 | ||
Calibration 3 | 1,435,663 | ||
ssj_ops@calibrated=1,432,298 | |||
100% | 99.8% | 1,432,298 | 1,430,085 |
90% | 90.2% | 1,289,068 | 1,291,384 |
80% | 80.1% | 1,145,838 | 1,147,154 |
70% | 69.8% | 1,002,608 | 999,176 |
60% | 60.3% | 859,379 | 863,479 |
50% | 50.1% | 716,149 | 716,975 |
40% | 39.9% | 572,919 | 571,784 |
30% | 29.9% | 429,689 | 428,429 |
20% | 20.0% | 286,460 | 286,664 |
10% | 10.0% | 143,230 | 143,461 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,430,660 | ||
Calibration 2 | 1,429,877 | ||
Calibration 3 | 1,430,421 | ||
ssj_ops@calibrated=1,430,149 | |||
100% | 100.0% | 1,430,149 | 1,430,607 |
90% | 90.2% | 1,287,134 | 1,290,543 |
80% | 80.1% | 1,144,119 | 1,145,637 |
70% | 69.9% | 1,001,104 | 999,276 |
60% | 60.1% | 858,089 | 860,002 |
50% | 50.0% | 715,075 | 714,661 |
40% | 40.0% | 572,060 | 571,444 |
30% | 30.0% | 429,045 | 429,447 |
20% | 20.0% | 286,030 | 286,476 |
10% | 9.9% | 143,015 | 142,154 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,430,709 | ||
Calibration 2 | 1,427,728 | ||
Calibration 3 | 1,432,881 | ||
ssj_ops@calibrated=1,430,305 | |||
100% | 99.9% | 1,430,305 | 1,428,173 |
90% | 89.8% | 1,287,274 | 1,284,967 |
80% | 80.1% | 1,144,244 | 1,145,633 |
70% | 70.1% | 1,001,213 | 1,002,672 |
60% | 60.1% | 858,183 | 859,945 |
50% | 50.2% | 715,152 | 717,869 |
40% | 40.0% | 572,122 | 571,891 |
30% | 29.9% | 429,091 | 427,349 |
20% | 19.9% | 286,061 | 285,041 |
10% | 9.9% | 143,030 | 141,802 |
Active Idle | 0 | 0 |
