New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,687,749
ssj_ops@100% per JVM = 1,421,937
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 17, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,696,821
Calibration 2     5,693,952
Calibration 3     5,698,330
ssj_ops@calibrated=5,696,141
100% 99.9% 5,696,141 5,687,749
90% 90.1% 5,126,527 5,130,101
80% 80.0% 4,556,913 4,556,926
70% 70.1% 3,987,299 3,990,209
60% 60.0% 3,417,685 3,417,845
50% 49.9% 2,848,070 2,845,057
40% 40.0% 2,278,456 2,280,499
30% 30.0% 1,708,842 1,710,051
20% 20.0% 1,139,228 1,140,005
10% 10.0% 569,614 567,577
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 15, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT102.001 1,423,414
WIN-SUT102.002 1,416,799
WIN-SUT102.003 1,431,371
WIN-SUT102.004 1,416,166
ssj_ops@100% 5,687,749
ssj_ops@100% per JVM 1,421,937
Graph of per-instance results
JVM 'WIN-SUT102.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,423,838
Calibration 2     1,425,475
Calibration 3     1,425,746
ssj_ops@calibrated=1,425,610
100% 99.8% 1,425,610 1,423,414
90% 90.3% 1,283,049 1,287,957
80% 80.2% 1,140,488 1,144,038
70% 70.3% 997,927 1,001,712
60% 59.7% 855,366 850,982
50% 49.9% 712,805 711,067
40% 40.1% 570,244 571,442
30% 30.0% 427,683 428,176
20% 20.0% 285,122 285,388
10% 10.0% 142,561 142,231
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT102.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,420,269
Calibration 2     1,418,787
Calibration 3     1,420,833
ssj_ops@calibrated=1,419,810
100% 99.8% 1,419,810 1,416,799
90% 90.2% 1,277,829 1,280,035
80% 80.0% 1,135,848 1,136,478
70% 70.0% 993,867 994,248
60% 60.0% 851,886 851,450
50% 49.9% 709,905 708,255
40% 40.0% 567,924 567,228
30% 29.9% 425,943 424,908
20% 20.1% 283,962 285,367
10% 10.0% 141,981 142,031
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT102.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,434,377
Calibration 2     1,431,806
Calibration 3     1,433,341
ssj_ops@calibrated=1,432,573
100% 99.9% 1,432,573 1,431,371
90% 89.9% 1,289,316 1,287,491
80% 79.9% 1,146,059 1,144,485
70% 69.8% 1,002,801 1,000,284
60% 60.2% 859,544 862,552
50% 50.0% 716,287 716,497
40% 40.2% 573,029 576,295
30% 30.1% 429,772 431,669
20% 19.9% 286,515 285,374
10% 9.9% 143,257 142,105
Active Idle   0 0

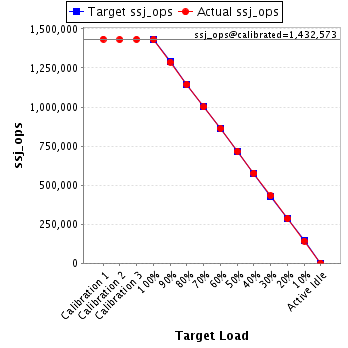

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT102.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,418,338
Calibration 2     1,417,885
Calibration 3     1,418,410
ssj_ops@calibrated=1,418,147
100% 99.9% 1,418,147 1,416,166
90% 89.9% 1,276,333 1,274,618
80% 79.8% 1,134,518 1,131,925
70% 70.1% 992,703 993,965
60% 60.1% 850,888 852,861
50% 50.0% 709,074 709,238
40% 39.9% 567,259 565,535
30% 30.0% 425,444 425,298
20% 20.0% 283,629 283,877
10% 10.0% 141,815 141,209
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
