New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,694,665
ssj_ops@100% per JVM = 1,423,666
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 23, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 26, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,706,830
Calibration 2     5,700,950
Calibration 3     5,710,714
ssj_ops@calibrated=5,705,832
100% 99.8% 5,705,832 5,694,665
90% 90.0% 5,135,249 5,136,163
80% 80.0% 4,564,665 4,566,712
70% 70.1% 3,994,082 3,997,918
60% 60.0% 3,423,499 3,423,741
50% 50.0% 2,852,916 2,853,646
40% 40.0% 2,282,333 2,283,618
30% 30.0% 1,711,750 1,709,437
20% 20.0% 1,141,166 1,141,200
10% 10.0% 570,583 569,208
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 15
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 16, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT109.001 1,420,549
WIN-SUT109.002 1,427,178
WIN-SUT109.003 1,433,925
WIN-SUT109.004 1,413,012
ssj_ops@100% 5,694,665
ssj_ops@100% per JVM 1,423,666
Graph of per-instance results
JVM 'WIN-SUT109.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,422,752
Calibration 2     1,421,803
Calibration 3     1,426,924
ssj_ops@calibrated=1,424,363
100% 99.7% 1,424,363 1,420,549
90% 90.1% 1,281,927 1,283,018
80% 80.0% 1,139,491 1,139,492
70% 70.1% 997,054 998,432
60% 59.9% 854,618 853,373
50% 50.0% 712,182 712,026
40% 40.1% 569,745 571,511
30% 30.0% 427,309 427,345
20% 20.0% 284,873 284,812
10% 10.0% 142,436 143,005
Active Idle   0 0
Graph of results
JVM 'WIN-SUT109.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,429,602
Calibration 2     1,427,926
Calibration 3     1,429,089
ssj_ops@calibrated=1,428,508
100% 99.9% 1,428,508 1,427,178
90% 90.0% 1,285,657 1,285,434
80% 79.8% 1,142,806 1,139,417
70% 70.2% 999,955 1,002,751
60% 60.3% 857,105 861,534
50% 50.1% 714,254 715,107
40% 40.0% 571,403 571,929
30% 29.8% 428,552 425,368
20% 20.0% 285,702 285,200
10% 9.9% 142,851 141,600
Active Idle   0 0
Graph of results

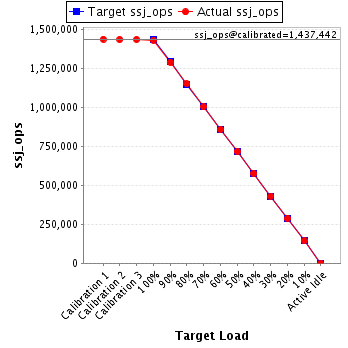

JVM 'WIN-SUT109.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,439,683
Calibration 2     1,437,463
Calibration 3     1,437,421
ssj_ops@calibrated=1,437,442
100% 99.8% 1,437,442 1,433,925
90% 89.9% 1,293,698 1,292,565
80% 80.2% 1,149,954 1,153,408
70% 69.9% 1,006,210 1,004,731
60% 59.9% 862,465 860,497
50% 50.0% 718,721 718,253
40% 40.0% 574,977 575,665
30% 30.0% 431,233 431,880
20% 20.1% 287,488 288,252
10% 10.0% 143,744 144,200
Active Idle   0 0
Graph of results
JVM 'WIN-SUT109.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,414,792
Calibration 2     1,413,758
Calibration 3     1,417,280
ssj_ops@calibrated=1,415,519
100% 99.8% 1,415,519 1,413,012
90% 90.1% 1,273,967 1,275,146
80% 80.1% 1,132,415 1,134,395
70% 70.1% 990,863 992,004
60% 59.9% 849,311 848,337
50% 50.0% 707,759 708,260
40% 39.9% 566,207 564,512
30% 30.0% 424,656 424,844
20% 20.0% 283,104 282,936
10% 9.9% 141,552 140,402
Active Idle   0 0
Graph of results
