New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 SPECpower_ssj2008 = 11,066 overall ssj_ops/watt
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 24, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 26, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 90,968,790 7,967 11,419
90% 90.0% 81,996,590 6,979 11,749
80% 80.0% 72,887,128 5,791 12,587
70% 70.1% 63,839,878 4,933 12,942
60% 60.0% 54,685,466 4,232 12,923
50% 50.0% 45,600,356 3,681 12,387
40% 40.0% 36,431,837 3,263 11,166
30% 30.0% 27,332,155 2,888 9,465
20% 20.0% 18,216,470 2,501 7,285
10% 10.0% 9,106,447 2,089 4,359
Active Idle 0 959 0
∑ssj_ops / ∑power = 11,066
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
16 32 896 1,792 3,072 16 64
System Under Test
Shared Hardware
Shared Hardware
Enclosure: H3C UniServer B16000
Form Factor: 12U
Power Supply Quantity and Rating (W): 4 x 3000
Power Supply Details: DELTA DPS-3000AB-6 P/N PSR3000-12A
Network Switch: 1
Network Switch Details: H3C S5500 Series
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch not measured for power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: SUT
Hardware per Node
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 16, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hangzhou H3C Technologies Co., Ltd.
Model: UIS R390X G2
CPU Description: Intel Xeon CPU E5-2620 V4 @2.10GHz
Memory amount (GB): 208.0
Software
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80-b15
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: Yokogawa WT1800E
Serial Number: C3VA04022E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment )
Accredited by: Calibration and Testing Center of CEPEI
Calibration Label: 1GA19J01715-0012
Date of Calibration: 4-Apr-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: SUT Power Supply 1 and 2
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: Yokogawa WT1800E
Serial Number: C3VA04023E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment )
Accredited by: Calibration and Testing Center of CEPEI
Calibration Label: 1GA19J01715-0013
Date of Calibration: 4-Apr-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: SUT Power Supply 3 and 4
Temperature Sensor temp1
Hardware Vendor: iButtonLink
Model: LinkUSBi + T-Probe
Driver Version: 2.12.28.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 7,967 28.9
90% 6,979 28.9
80% 5,791 28.6
70% 4,933 27.8
60% 4,232 27.7
50% 3,681 28.4
40% 3,263 28.6
30% 2,888 29.6
20% 2,501 30.9
10% 2,089 30.4
Active Idle 959 28.3
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 27.7 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,189,399
Calibration 2     91,039,818
Calibration 3     91,201,822
ssj_ops@calibrated=91,120,820
100% 99.8% 91,120,820 90,968,790
90% 90.0% 82,008,738 81,996,590
80% 80.0% 72,896,656 72,887,128
70% 70.1% 63,784,574 63,839,878
60% 60.0% 54,672,492 54,685,466
50% 50.0% 45,560,410 45,600,356
40% 40.0% 36,448,328 36,431,837
30% 30.0% 27,336,246 27,332,155
20% 20.0% 18,224,164 18,216,470
10% 10.0% 9,112,082 9,106,447
Active Idle   0 0

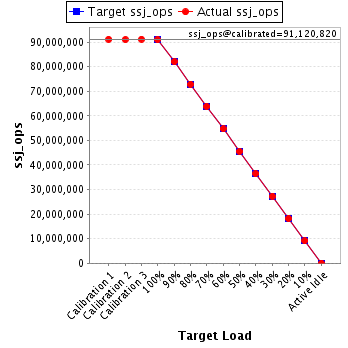

Graph of results
