Hewlett Packard Enterprise ProLiant DL325 Gen10 ssj_ops@100% = 5,801,076
ssj_ops@100% per JVM = 362,567
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 1, 2018
Hardware Availability: Aug-2019 Software Availability: Jul-2019 Publication: Aug 7, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,831,488
Calibration 2     5,827,818
Calibration 3     5,830,440
ssj_ops@calibrated=5,829,129
100% 99.5% 5,829,129 5,801,076
90% 89.9% 5,246,216 5,242,259
80% 80.0% 4,663,303 4,664,078
70% 70.0% 4,080,390 4,080,521
60% 60.0% 3,497,477 3,499,172
50% 50.1% 2,914,564 2,917,502
40% 40.0% 2,331,652 2,333,278
30% 30.0% 1,748,739 1,749,588
20% 20.0% 1,165,826 1,168,652
10% 10.0% 582,913 582,648
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL325 Gen10
Form Factor: 1U
CPU Name: AMD EPYC 7702P 2.00 GHz
CPU Characteristics: 64-Core, 2.00 GHz, 256MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 7, 10, 12, 14 and 16 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 331i Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx7680m -Xms7680m -Xmn6000m -XX:SurvivorRatio=15 -XX:InlineSmallCode=9000 -XX:FreqInlineSize=5000 -XX:+UseLargePages -XX:+UseBiasedLocking -XX:ParallelGCThreads=8 -XX:+UseParallelOldGC -XX:+OptimizeStringConcat -XX:AllocatePrefetchLines=7 -XX:MaxInlineSize=80 -XX:LoopUnrollLimit=30 -XX:AllocatePrefetchDistance=192 -XX:InitialTenuringThreshold=10
JVM Affinity: numactl --cpunodebind=[0-15] --localalloc
JVM Instances: 16
JVM Initial Heap (MB): 7680
JVM Maximum Heap (MB): 7680
JVM Address Bits: 64
Boot Firmware Version: A41 v2.00 (07/15/2019)
Management Firmware Version: 1.43 May 23 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
dl325-sut06.001 366,510
dl325-sut06.002 361,451
dl325-sut06.003 362,107
dl325-sut06.004 363,935
dl325-sut06.005 365,046
dl325-sut06.006 362,685
dl325-sut06.007 360,233
dl325-sut06.008 362,890
dl325-sut06.009 365,186
dl325-sut06.010 364,681
dl325-sut06.011 356,233
dl325-sut06.012 360,222
dl325-sut06.013 360,439
dl325-sut06.014 359,552
dl325-sut06.015 364,595
dl325-sut06.016 365,310
ssj_ops@100% 5,801,076
ssj_ops@100% per JVM 362,567

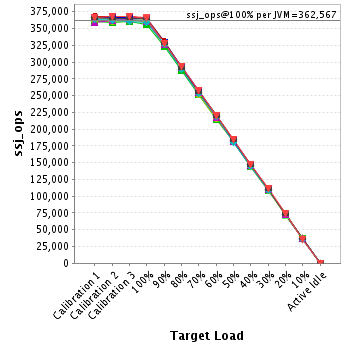

Graph of per-instance results
JVM 'dl325-sut06.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     365,909
Calibration 2     366,849
Calibration 3     367,896
ssj_ops@calibrated=367,373
100% 99.8% 367,373 366,510
90% 89.8% 330,635 329,785
80% 79.7% 293,898 292,616
70% 70.0% 257,161 256,998
60% 59.8% 220,424 219,526
50% 49.9% 183,686 183,463
40% 40.0% 146,949 146,983
30% 29.9% 110,212 109,841
20% 20.2% 73,475 74,223
10% 9.9% 36,737 36,187
Active Idle   0 0
Graph of results
JVM 'dl325-sut06.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     365,519
Calibration 2     364,648
Calibration 3     362,258
ssj_ops@calibrated=363,453
100% 99.4% 363,453 361,451
90% 89.8% 327,108 326,348
80% 80.1% 290,762 291,066
70% 70.1% 254,417 254,645
60% 60.1% 218,072 218,294
50% 50.2% 181,727 182,528
40% 40.1% 145,381 145,739
30% 29.9% 109,036 108,679
20% 19.9% 72,691 72,481
10% 10.0% 36,345 36,312
Active Idle   0 0
Graph of results
JVM 'dl325-sut06.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     363,909
Calibration 2     364,630
Calibration 3     363,618
ssj_ops@calibrated=364,124
100% 99.4% 364,124 362,107
90% 89.9% 327,711 327,296
80% 80.4% 291,299 292,918
70% 70.2% 254,887 255,640
60% 60.5% 218,474 220,463
50% 49.8% 182,062 181,388
40% 40.0% 145,649 145,520
30% 29.9% 109,237 108,865
20% 19.7% 72,825 71,856
10% 10.2% 36,412 36,992
Active Idle   0 0
Graph of results
JVM 'dl325-sut06.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     366,533
Calibration 2     365,524
Calibration 3     366,558
ssj_ops@calibrated=366,041
100% 99.4% 366,041 363,935
90% 90.2% 329,437 330,308
80% 79.5% 292,833 290,996
70% 70.2% 256,229 256,785
60% 60.1% 219,625 219,929
50% 50.1% 183,021 183,531
40% 40.0% 146,416 146,271
30% 29.8% 109,812 109,134
20% 20.0% 73,208 73,114
10% 10.0% 36,604 36,701
Active Idle   0 0
Graph of results
JVM 'dl325-sut06.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     367,414
Calibration 2     366,867
Calibration 3     367,112
ssj_ops@calibrated=366,990
100% 99.5% 366,990 365,046
90% 89.5% 330,291 328,616
80% 80.1% 293,592 293,967
70% 70.1% 256,893 257,225
60% 59.7% 220,194 218,929
50% 49.8% 183,495 182,653
40% 40.2% 146,796 147,474
30% 29.9% 110,097 109,764
20% 19.9% 73,398 73,097
10% 10.1% 36,699 36,885
Active Idle   0 0
Graph of results

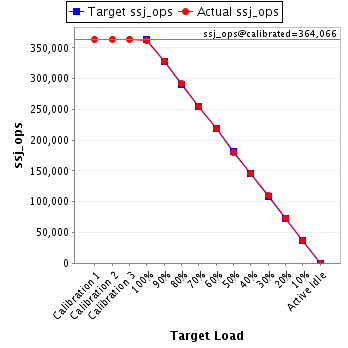

JVM 'dl325-sut06.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     363,667
Calibration 2     363,957
Calibration 3     364,175
ssj_ops@calibrated=364,066
100% 99.6% 364,066 362,685
90% 90.2% 327,659 328,404
80% 80.1% 291,253 291,644
70% 70.0% 254,846 254,701
60% 60.0% 218,439 218,480
50% 49.6% 182,033 180,654
40% 40.0% 145,626 145,556
30% 30.3% 109,220 110,283
20% 20.2% 72,813 73,399
10% 10.2% 36,407 36,989
Active Idle   0 0
Graph of results
JVM 'dl325-sut06.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     362,176
Calibration 2     361,469
Calibration 3     361,944
ssj_ops@calibrated=361,706
100% 99.6% 361,706 360,233
90% 90.0% 325,536 325,639
80% 79.8% 289,365 288,577
70% 69.9% 253,194 252,941
60% 60.2% 217,024 217,777
50% 49.8% 180,853 179,996
40% 39.8% 144,682 144,019
30% 29.8% 108,512 107,657
20% 20.1% 72,341 72,674
10% 10.1% 36,171 36,450
Active Idle   0 0
Graph of results
JVM 'dl325-sut06.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     364,243
Calibration 2     363,574
Calibration 3     364,192
ssj_ops@calibrated=363,883
100% 99.7% 363,883 362,890
90% 90.0% 327,495 327,324
80% 79.9% 291,106 290,868
70% 70.1% 254,718 255,173
60% 60.2% 218,330 219,009
50% 50.6% 181,942 184,206
40% 40.0% 145,553 145,461
30% 30.0% 109,165 109,332
20% 19.8% 72,777 72,070
10% 10.0% 36,388 36,284
Active Idle   0 0
Graph of results
JVM 'dl325-sut06.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     367,872
Calibration 2     367,606
Calibration 3     368,140
ssj_ops@calibrated=367,873
100% 99.3% 367,873 365,186
90% 89.9% 331,086 330,547
80% 79.2% 294,299 291,527
70% 69.6% 257,511 255,901
60% 59.8% 220,724 220,150
50% 49.8% 183,937 183,034
40% 40.0% 147,149 147,022
30% 29.7% 110,362 109,104
20% 20.1% 73,575 73,876
10% 9.8% 36,787 36,221
Active Idle   0 0
Graph of results
JVM 'dl325-sut06.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     366,009
Calibration 2     366,898
Calibration 3     365,764
ssj_ops@calibrated=366,331
100% 99.5% 366,331 364,681
90% 89.9% 329,698 329,377
80% 80.0% 293,065 292,945
70% 70.5% 256,432 258,252
60% 60.2% 219,799 220,437
50% 50.0% 183,166 183,276
40% 40.2% 146,533 147,427
30% 30.1% 109,899 110,125
20% 19.9% 73,266 73,000
10% 10.0% 36,633 36,582
Active Idle   0 0
Graph of results
JVM 'dl325-sut06.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     360,814
Calibration 2     358,959
Calibration 3     360,139
ssj_ops@calibrated=359,549
100% 99.1% 359,549 356,233
90% 89.9% 323,594 323,202
80% 80.0% 287,639 287,740
70% 70.0% 251,684 251,619
60% 59.8% 215,729 214,929
50% 50.4% 179,775 181,042
40% 40.0% 143,820 143,798
30% 30.2% 107,865 108,456
20% 20.2% 71,910 72,664
10% 10.1% 35,955 36,225
Active Idle   0 0
Graph of results
JVM 'dl325-sut06.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     362,284
Calibration 2     361,142
Calibration 3     361,383
ssj_ops@calibrated=361,263
100% 99.7% 361,263 360,222
90% 90.1% 325,137 325,494
80% 80.8% 289,010 292,000
70% 69.6% 252,884 251,453
60% 59.6% 216,758 215,135
50% 50.2% 180,631 181,425
40% 40.0% 144,505 144,443
30% 30.1% 108,379 108,771
20% 20.0% 72,253 72,184
10% 10.0% 36,126 36,191
Active Idle   0 0
Graph of results
JVM 'dl325-sut06.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     359,175
Calibration 2     362,187
Calibration 3     363,346
ssj_ops@calibrated=362,767
100% 99.4% 362,767 360,439
90% 90.1% 326,490 326,848
80% 80.5% 290,213 292,178
70% 70.0% 253,937 253,882
60% 60.1% 217,660 217,899
50% 50.1% 181,383 181,839
40% 40.0% 145,107 145,136
30% 30.2% 108,830 109,605
20% 20.0% 72,553 72,690
10% 10.0% 36,277 36,219
Active Idle   0 0
Graph of results
JVM 'dl325-sut06.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     363,001
Calibration 2     361,514
Calibration 3     361,097
ssj_ops@calibrated=361,306
100% 99.5% 361,306 359,552
90% 90.4% 325,175 326,692
80% 80.2% 289,044 289,607
70% 69.9% 252,914 252,620
60% 60.4% 216,783 218,291
50% 49.9% 180,653 180,411
40% 39.8% 144,522 143,962
30% 30.0% 108,392 108,350
20% 20.4% 72,261 73,595
10% 9.8% 36,131 35,344
Active Idle   0 0
Graph of results
JVM 'dl325-sut06.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     366,312
Calibration 2     364,747
Calibration 3     364,854
ssj_ops@calibrated=364,801
100% 99.9% 364,801 364,595
90% 90.0% 328,321 328,476
80% 80.0% 291,841 291,707
70% 70.0% 255,361 255,424
60% 60.4% 218,880 220,198
50% 50.3% 182,400 183,539
40% 40.4% 145,920 147,217
30% 30.3% 109,440 110,446
20% 20.1% 72,960 73,226
10% 10.2% 36,480 37,035
Active Idle   0 0
Graph of results
JVM 'dl325-sut06.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     366,650
Calibration 2     367,247
Calibration 3     367,961
ssj_ops@calibrated=367,604
100% 99.4% 367,604 365,310
90% 89.2% 330,844 327,902
80% 79.9% 294,083 293,723
70% 70.0% 257,323 257,260
60% 59.8% 220,563 219,727
50% 50.2% 183,802 184,517
40% 40.1% 147,042 147,251
30% 30.2% 110,281 111,177
20% 20.3% 73,521 74,501
10% 9.8% 36,760 36,032
Active Idle   0 0
Graph of results
