SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL385 Gen10 | SPECpower_ssj2008 = 18,051 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Jul 16, 2019 |
| Hardware Availability: | Aug-2019 | Software Availability: | Jun-2019 | Publication: | Aug 7, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

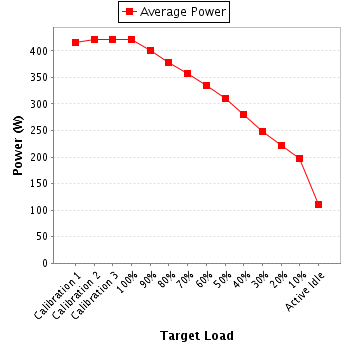

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 415 | 23.4 |
| Calibration 2 | 421 | 23.2 |
| Calibration 3 | 422 | 23.0 |
| 100% | 422 | 22.9 |
| 90% | 401 | 22.9 |
| 80% | 378 | 22.6 |
| 70% | 357 | 22.4 |
| 60% | 335 | 22.3 |
| 50% | 311 | 22.2 |
| 40% | 280 | 22.2 |
| 30% | 248 | 22.2 |
| 20% | 221 | 22.1 |
| 10% | 197 | 22.2 |
| Active Idle | 111 | 22.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GC21887 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-E62NT-80-1 |
| Date of Calibration: | 11-Jun-2019 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.0-ee285d08-20190201 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 216 | 300.0 | 2.11 | 5.0 | 0.912 | 415 | 0.6% |
| Calibration 2 | 216 | 300.0 | 2.13 | 5.0 | 0.915 | 421 | 0.6% |
| Calibration 3 | 216 | 300.0 | 2.13 | 5.0 | 0.916 | 422 | 0.6% |
| 100% | 216 | 300.0 | 2.13 | 5.0 | 0.915 | 422 | 0.6% |
| 90% | 216 | 300.0 | 2.05 | 5.0 | 0.908 | 401 | 0.6% |
| 80% | 216 | 300.0 | 1.95 | 5.0 | 0.898 | 378 | 0.6% |
| 70% | 216 | 300.0 | 1.86 | 2.0 | 0.887 | 357 | 0.4% |
| 60% | 216 | 300.0 | 1.77 | 2.0 | 0.875 | 335 | 0.4% |
| 50% | 216 | 300.0 | 1.68 | 2.0 | 0.859 | 311 | 0.5% |
| 40% | 216 | 300.0 | 1.55 | 2.0 | 0.836 | 280 | 0.5% |
| 30% | 216 | 300.0 | 1.43 | 2.0 | 0.804 | 248 | 0.5% |
| 20% | 216 | 300.0 | 1.33 | 2.0 | 0.771 | 221 | 0.6% |
| 10% | 216 | 300.0 | 1.25 | 2.0 | 0.730 | 197 | 0.6% |
| Active Idle | 216 | 300.0 | 0.992 | 1.0 | 0.518 | 111 | 0.8% |
