GIGA-BYTE Technology Co., Ltd. R282-Z90 SPECpower_ssj2008 = 18,748 overall ssj_ops/watt
Test Sponsor: GIGA-BYTE Technology Co., Ltd. SPEC License #: 9082 Test Method: Single Node
Tested By: GIGA-BYTE Technology Co., Ltd. Test Location: New Taipei City, Taiwan Test Date: Jul 17, 2019
Hardware Availability: Aug-2019 Software Availability: Jul-2019 Publication: Aug 28, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 484 20.2
Calibration 2 492 20.5
Calibration 3 493 20.7
100% 492 20.8
90% 464 20.8
80% 437 20.7
70% 407 20.6
60% 383 20.6
50% 364 20.6
40% 331 20.6
30% 298 20.5
20% 265 20.5
10% 232 20.4
Active Idle 133 20.4

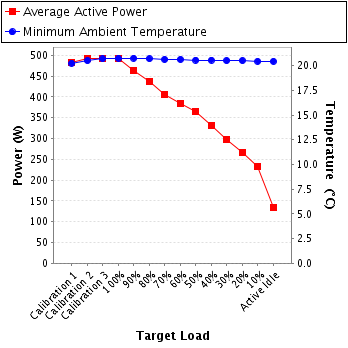

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC17356
Connectivity: RS-232
Input Connection: Default
Metrology Institute: TAF
Accredited by: Chroma ATE Inc. Calibration Lab
Calibration Label: RE1070705596
Date of Calibration: 18-Jul-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: Connect to SUT PSU directly
Temperature Sensor temp1
Hardware Vendor: TEMPERATURE@LERT
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10mm in front of SUT main airflow intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 256 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 2.20 5.0 0.996 484 0.5%
Calibration 2 220 300.0 2.24 5.0 0.996 492 0.5%
Calibration 3 220 300.0 2.25 5.0 0.996 493 0.5%
100% 220 300.0 2.25 5.0 0.996 492 0.5%
90% 220 300.0 2.12 5.0 0.996 464 0.5%
80% 220 300.0 1.99 5.0 0.996 437 0.5%
70% 220 300.0 1.86 5.0 0.994 407 0.5%
60% 221 300.0 1.75 2.0 0.993 383 0.3%
50% 220 300.0 1.67 2.0 0.992 364 0.3%
40% 220 300.0 1.52 2.0 0.991 331 0.4%
30% 221 300.0 1.36 2.0 0.989 298 0.4%
20% 221 300.0 1.22 2.0 0.985 265 0.4%
10% 221 300.0 1.07 2.0 0.981 232 0.4%
Active Idle 221 300.0 0.638 1.0 0.944 133 0.4%
Power details for pwr1
