Nokia Corporation AE-SER1U-A ssj_ops@100% = 1,475,226
ssj_ops@100% per JVM = 73,761
Test Sponsor: Nokia Corporation SPEC License #: 6037 Test Method: Multi Node
Tested By: Nokia Corporation Test Location: HangZhou, Zhejiang, China Test Date: Dec 23, 2019
Hardware Availability: Dec-2019 Software Availability: Dec-2019 Publication: Feb 14, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,480,471
Calibration 2     1,472,348
Calibration 3     1,471,419
ssj_ops@calibrated=1,471,883
100% 100.2% 1,471,883 1,475,226
90% 90.2% 1,324,695 1,327,611
80% 80.0% 1,177,507 1,177,047
70% 69.8% 1,030,318 1,027,933
60% 60.0% 883,130 882,969
50% 49.8% 735,942 733,532
40% 40.0% 588,753 588,949
30% 30.1% 441,565 442,798
20% 19.9% 294,377 292,666
10% 10.0% 147,188 146,936
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 5
Comment: 'SUT'
Hardware
Hardware Vendor: Nokia Corporation
Model: AE-SER1U-A
Form Factor: 3U
CPU Name: Intel(R) Xeon(R) Gold 6210U CPU @ 2.50GHz
CPU Characteristics: 20 Core, 2.5GHz, 27.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 20 cores, 1 chip, 20 cores/chip
Hardware Threads: 40 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 28160 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 4 x 16 GB
Memory Details: 4 x 16 GB 2Rx4 PC4-2933Y-RB2-12-DC1; slots 0,1,4 and 5 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x M.2 SSD 480G, Intel S4510 P/N: SSDSCKJB480G7
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Corporation I210 Gigabit Network Connection(onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): CentOS Linux release 8.0.1905 (Core)
OS Version: Kernel 4.18.0-80.el8.x86_64
Filesystem: EXT4
JVM Vendor: Oracle Corporation
JVM Version: OpenJDK 64-Bit Server VM (build 25.181-b13, mixed mode),1.8.0_181
JVM Command-line Options: -Djava.awt.headless=true -server -Xms1300m -Xmx1300m -Xmn1100m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: None
JVM Instances: 20
JVM Initial Heap (MB): 1300
JVM Maximum Heap (MB): 1300
JVM Address Bits: 64
Boot Firmware Version: 3B17(Oct-2019)
Management Firmware Version: 3.42.00(Nov-2019)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
GinCamp.001 73,277
GinCamp.002 73,225
GinCamp.003 75,015
GinCamp.004 73,527
GinCamp.005 73,639
GinCamp.006 74,516
GinCamp.007 75,029
GinCamp.008 74,235
GinCamp.009 74,357
GinCamp.010 74,248
GinCamp.011 72,775
GinCamp.012 74,612
GinCamp.013 71,706
GinCamp.014 72,734
GinCamp.015 73,534
GinCamp.016 74,450
GinCamp.017 72,739
GinCamp.018 73,245
GinCamp.019 74,986
GinCamp.020 73,375
ssj_ops@100% 1,475,226
ssj_ops@100% per JVM 73,761
Graph of per-instance results
JVM 'GinCamp.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,634
Calibration 2     72,657
Calibration 3     72,324
ssj_ops@calibrated=72,491
100% 101.1% 72,491 73,277
90% 89.5% 65,242 64,895
80% 80.6% 57,993 58,410
70% 70.3% 50,743 50,935
60% 60.3% 43,494 43,731
50% 49.9% 36,245 36,206
40% 40.3% 28,996 29,199
30% 30.0% 21,747 21,729
20% 20.0% 14,498 14,483
10% 10.1% 7,249 7,287
Active Idle   0 0

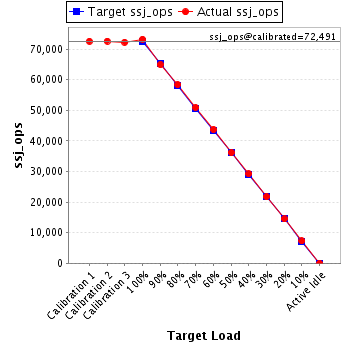

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,358
Calibration 2     73,356
Calibration 3     73,321
ssj_ops@calibrated=73,339
100% 99.8% 73,339 73,225
90% 90.4% 66,005 66,287
80% 78.8% 58,671 57,827
70% 69.6% 51,337 51,055
60% 58.8% 44,003 43,114
50% 50.1% 36,669 36,756
40% 40.0% 29,335 29,350
30% 30.4% 22,002 22,296
20% 20.2% 14,668 14,817
10% 9.6% 7,334 7,021
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,703
Calibration 2     74,305
Calibration 3     74,466
ssj_ops@calibrated=74,385
100% 100.8% 74,385 75,015
90% 90.7% 66,947 67,440
80% 80.9% 59,508 60,192
70% 69.7% 52,070 51,871
60% 59.6% 44,631 44,344
50% 49.8% 37,193 37,041
40% 39.8% 29,754 29,596
30% 30.1% 22,316 22,399
20% 19.8% 14,877 14,750
10% 10.4% 7,439 7,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,130
Calibration 2     73,522
Calibration 3     73,588
ssj_ops@calibrated=73,555
100% 100.0% 73,555 73,527
90% 90.7% 66,200 66,684
80% 79.3% 58,844 58,330
70% 69.4% 51,489 51,052
60% 59.8% 44,133 43,985
50% 49.7% 36,778 36,582
40% 39.6% 29,422 29,136
30% 30.1% 22,067 22,156
20% 19.6% 14,711 14,412
10% 9.5% 7,356 6,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,820
Calibration 2     73,390
Calibration 3     72,924
ssj_ops@calibrated=73,157
100% 100.7% 73,157 73,639
90% 90.5% 65,842 66,180
80% 80.6% 58,526 58,999
70% 69.6% 51,210 50,904
60% 61.0% 43,894 44,609
50% 49.7% 36,579 36,367
40% 40.3% 29,263 29,517
30% 29.2% 21,947 21,362
20% 20.2% 14,631 14,764
10% 10.0% 7,316 7,325
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,272
Calibration 2     75,908
Calibration 3     74,862
ssj_ops@calibrated=75,385
100% 98.8% 75,385 74,516
90% 88.9% 67,847 66,982
80% 80.0% 60,308 60,341
70% 69.2% 52,770 52,129
60% 60.6% 45,231 45,712
50% 50.9% 37,693 38,400
40% 40.7% 30,154 30,646
30% 29.3% 22,616 22,092
20% 19.8% 15,077 14,955
10% 10.2% 7,539 7,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,848
Calibration 2     74,172
Calibration 3     74,964
ssj_ops@calibrated=74,568
100% 100.6% 74,568 75,029
90% 90.6% 67,111 67,585
80% 80.3% 59,654 59,899
70% 70.7% 52,198 52,730
60% 60.0% 44,741 44,756
50% 49.9% 37,284 37,183
40% 40.1% 29,827 29,871
30% 30.7% 22,370 22,880
20% 19.8% 14,914 14,742
10% 10.3% 7,457 7,646
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,580
Calibration 2     73,435
Calibration 3     74,426
ssj_ops@calibrated=73,930
100% 100.4% 73,930 74,235
90% 89.3% 66,537 66,044
80% 79.6% 59,144 58,857
70% 70.0% 51,751 51,771
60% 60.8% 44,358 44,933
50% 49.2% 36,965 36,375
40% 40.0% 29,572 29,548
30% 29.5% 22,179 21,774
20% 19.7% 14,786 14,592
10% 10.0% 7,393 7,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,909
Calibration 2     73,920
Calibration 3     73,724
ssj_ops@calibrated=73,822
100% 100.7% 73,822 74,357
90% 89.8% 66,440 66,286
80% 80.0% 59,058 59,024
70% 69.7% 51,675 51,485
60% 59.0% 44,293 43,559
50% 50.3% 36,911 37,142
40% 40.1% 29,529 29,571
30% 30.4% 22,147 22,419
20% 20.2% 14,764 14,879
10% 10.2% 7,382 7,504
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,300
Calibration 2     73,648
Calibration 3     73,337
ssj_ops@calibrated=73,493
100% 101.0% 73,493 74,248
90% 90.1% 66,144 66,197
80% 80.3% 58,794 59,034
70% 70.5% 51,445 51,836
60% 60.4% 44,096 44,400
50% 50.0% 36,746 36,774
40% 40.7% 29,397 29,908
30% 30.5% 22,048 22,435
20% 19.7% 14,699 14,458
10% 10.0% 7,349 7,334
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,832
Calibration 2     72,142
Calibration 3     72,724
ssj_ops@calibrated=72,433
100% 100.5% 72,433 72,775
90% 90.5% 65,190 65,540
80% 80.2% 57,946 58,095
70% 69.8% 50,703 50,579
60% 60.2% 43,460 43,592
50% 50.2% 36,216 36,348
40% 39.5% 28,973 28,599
30% 30.2% 21,730 21,894
20% 19.9% 14,487 14,379
10% 10.5% 7,243 7,616
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,069
Calibration 2     74,834
Calibration 3     74,930
ssj_ops@calibrated=74,882
100% 99.6% 74,882 74,612
90% 90.6% 67,394 67,818
80% 79.5% 59,906 59,497
70% 69.6% 52,418 52,139
60% 60.3% 44,929 45,150
50% 48.9% 37,441 36,587
40% 39.7% 29,953 29,729
30% 29.7% 22,465 22,204
20% 20.0% 14,976 14,983
10% 10.0% 7,488 7,521
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,328
Calibration 2     71,651
Calibration 3     71,863
ssj_ops@calibrated=71,757
100% 99.9% 71,757 71,706
90% 91.2% 64,581 65,415
80% 79.2% 57,406 56,813
70% 70.0% 50,230 50,217
60% 59.7% 43,054 42,812
50% 49.5% 35,878 35,554
40% 40.0% 28,703 28,698
30% 29.4% 21,527 21,100
20% 19.6% 14,351 14,050
10% 10.1% 7,176 7,254
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,976
Calibration 2     72,395
Calibration 3     72,792
ssj_ops@calibrated=72,593
100% 100.2% 72,593 72,734
90% 90.9% 65,334 65,990
80% 80.1% 58,075 58,156
70% 68.9% 50,815 50,017
60% 59.9% 43,556 43,492
50% 49.4% 36,297 35,896
40% 39.9% 29,037 28,975
30% 30.2% 21,778 21,947
20% 20.2% 14,519 14,642
10% 9.8% 7,259 7,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,400
Calibration 2     74,211
Calibration 3     73,764
ssj_ops@calibrated=73,987
100% 99.4% 73,987 73,534
90% 89.7% 66,589 66,341
80% 79.6% 59,190 58,875
70% 69.6% 51,791 51,471
60% 59.6% 44,392 44,124
50% 50.1% 36,994 37,093
40% 40.1% 29,595 29,654
30% 30.0% 22,196 22,192
20% 19.8% 14,797 14,644
10% 9.9% 7,399 7,308
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,282
Calibration 2     74,760
Calibration 3     74,698
ssj_ops@calibrated=74,729
100% 99.6% 74,729 74,450
90% 91.0% 67,256 67,991
80% 80.5% 59,783 60,190
70% 69.6% 52,310 51,996
60% 59.5% 44,837 44,431
50% 49.6% 37,365 37,033
40% 40.5% 29,892 30,262
30% 30.2% 22,419 22,558
20% 19.9% 14,946 14,857
10% 9.4% 7,473 7,050
Active Idle   0 0

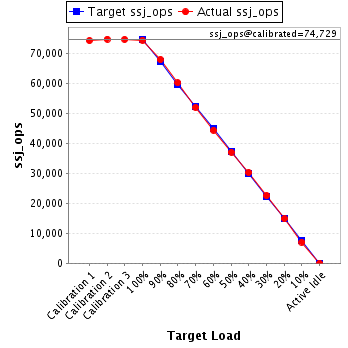

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,134
Calibration 2     72,801
Calibration 3     73,184
ssj_ops@calibrated=72,993
100% 99.7% 72,993 72,739
90% 89.9% 65,693 65,629
80% 79.9% 58,394 58,316
70% 69.8% 51,095 50,948
60% 60.7% 43,796 44,283
50% 49.9% 36,496 36,436
40% 39.7% 29,197 28,981
30% 30.0% 21,898 21,900
20% 20.0% 14,599 14,589
10% 9.9% 7,299 7,196
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,359
Calibration 2     72,450
Calibration 3     72,289
ssj_ops@calibrated=72,370
100% 101.2% 72,370 73,245
90% 90.4% 65,133 65,435
80% 79.8% 57,896 57,758
70% 69.9% 50,659 50,610
60% 59.6% 43,422 43,166
50% 49.9% 36,185 36,128
40% 40.2% 28,948 29,079
30% 30.4% 21,711 21,975
20% 20.0% 14,474 14,455
10% 10.1% 7,237 7,333
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,274
Calibration 2     74,632
Calibration 3     73,823
ssj_ops@calibrated=74,227
100% 101.0% 74,227 74,986
90% 89.7% 66,804 66,586
80% 80.5% 59,382 59,730
70% 70.6% 51,959 52,423
60% 59.6% 44,536 44,259
50% 49.3% 37,114 36,587
40% 39.5% 29,691 29,324
30% 30.7% 22,268 22,770
20% 19.7% 14,845 14,596
10% 10.0% 7,423 7,458
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinCamp.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,263
Calibration 2     74,158
Calibration 3     73,416
ssj_ops@calibrated=73,787
100% 99.4% 73,787 73,375
90% 89.8% 66,408 66,287
80% 79.6% 59,029 58,705
70% 70.2% 51,651 51,764
60% 60.3% 44,272 44,515
50% 50.2% 36,893 37,043
40% 39.7% 29,515 29,305
30% 30.8% 22,136 22,714
20% 19.8% 14,757 14,618
10% 9.7% 7,379 7,183
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
