Lenovo Global Technology Think System SR645 ssj_ops@100% = 184,638
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 3, 2020
Hardware Availability: Jun-2020 Software Availability: Dec-2019 Publication: May 11, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,823
Calibration 2     184,874
Calibration 3     185,143
ssj_ops@calibrated=185,009
100% 99.8% 185,009 184,638
90% 89.7% 166,508 165,973
80% 80.2% 148,007 148,400
70% 70.1% 129,506 129,654
60% 59.6% 111,005 110,273
50% 49.7% 92,504 91,975
40% 40.4% 74,003 74,772
30% 30.4% 55,503 56,315
20% 20.0% 37,002 36,960
10% 10.0% 18,501 18,472
Active Idle   0 0

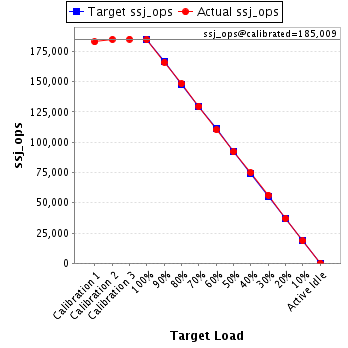

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR645
Form Factor: 1U
CPU Name: AMD EPYC 7742 2.25GHz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16, 17, 19, 21, 23, 26, 28, 30,and 32 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:SP57A14665
Disk Drive: 1 x 128GB M.2 SSD P/N:SSS7A06667
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.3+12-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 64 }
JVM Instances: 64
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: d8e105f-1.00
Management Firmware Version: d8bt05s-2.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,296,484 1,690
Payment 13,296,488
Order Status 1,329,649
Delivery 1,329,650
Stock Level 1,329,647
Customer Report 13,296,486
Calibration 2 New Order 13,445,426 1,690
Payment 13,445,420
Order Status 1,344,542
Delivery 1,344,542
Stock Level 1,344,541
Customer Report 13,445,416
Calibration 3 New Order 13,464,959 1,690
Payment 13,464,958
Order Status 1,346,493
Delivery 1,346,494
Stock Level 1,346,497
Customer Report 13,464,953
100% 99.8% New Order 13,428,233 1,690
Payment 13,428,235
Order Status 1,342,825
Delivery 1,342,826
Stock Level 1,342,824
Customer Report 13,428,227
90% 89.7% New Order 12,070,967 1,690
Payment 12,070,961
Order Status 1,207,096
Delivery 1,207,097
Stock Level 1,207,096
Customer Report 12,070,959
80% 80.2% New Order 10,792,900 1,690
Payment 10,792,896
Order Status 1,079,290
Delivery 1,079,288
Stock Level 1,079,290
Customer Report 10,792,898
70% 70.1% New Order 9,429,397 1,690
Payment 9,429,399
Order Status 942,941
Delivery 942,939
Stock Level 942,939
Customer Report 9,429,397
60% 59.6% New Order 8,020,159 1,690
Payment 8,020,165
Order Status 802,016
Delivery 802,016
Stock Level 802,015
Customer Report 8,020,156
50% 49.7% New Order 6,689,125 1,690
Payment 6,689,121
Order Status 668,914
Delivery 668,911
Stock Level 668,914
Customer Report 6,689,130
40% 40.4% New Order 5,438,004 1,690
Payment 5,438,005
Order Status 543,800
Delivery 543,802
Stock Level 543,803
Customer Report 5,438,006
30% 30.4% New Order 4,095,604 1,690
Payment 4,095,608
Order Status 409,564
Delivery 409,562
Stock Level 409,561
Customer Report 4,095,604
20% 20.0% New Order 2,687,978 1,690
Payment 2,687,979
Order Status 268,798
Delivery 268,797
Stock Level 268,796
Customer Report 2,687,979
10% 10.0% New Order 1,343,429 1,690
Payment 1,343,433
Order Status 134,343
Delivery 134,342
Stock Level 134,342
Customer Report 1,343,431
Active Idle New Order 0 1,690
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
