Hewlett Packard Enterprise Apollo XL225n Gen10 Plus SPECpower_ssj2008 = 17,076 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 14, 2019
Hardware Availability: Jun-2020 Software Availability: Feb-2020 Publication: Apr 22, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,264 23.8
Calibration 2 1,280 23.7
Calibration 3 1,282 23.7
100% 1,281 23.7
90% 1,216 23.6
80% 1,148 23.6
70% 1,082 23.6
60% 1,017 23.6
50% 955 23.7
40% 886 23.7
30% 814 23.7
20% 745 23.8
10% 667 23.8
Active Idle 524 23.8

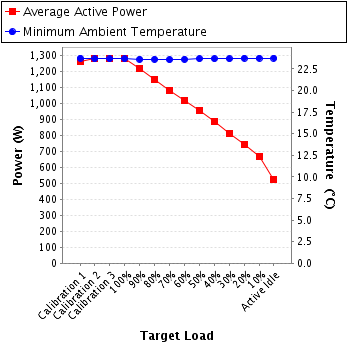

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310E
Serial Number: C2SF14001V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-C4B4U-60-1
Date of Calibration: 01-Aug-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: SUT Power Supply 1
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB45371
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-E553M-60-1
Date of Calibration: 21-Jun-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: SUT connected to Power Supply 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 3.08 5.0 0.978 646 0.3%
Calibration 2 215 300.0 3.12 5.0 0.979 655 0.3%
Calibration 3 215 300.0 3.12 5.0 0.979 656 0.3%
100% 215 300.0 3.12 5.0 0.979 655 0.3%
90% 215 300.0 2.96 5.0 0.977 622 0.3%
80% 215 300.0 2.81 5.0 0.973 587 0.3%
70% 214 300.0 2.68 5.0 0.969 556 0.3%
60% 214 300.0 2.53 5.0 0.966 523 0.3%
50% 214 300.0 2.40 5.0 0.958 492 0.3%
40% 214 300.0 2.23 5.0 0.959 458 0.3%
30% 214 300.0 2.08 5.0 0.946 421 0.3%
20% 215 300.0 1.92 5.0 0.941 388 0.4%
10% 215 300.0 1.76 2.0 0.926 349 0.3%
Active Idle 215 300.0 1.44 2.0 0.900 279 0.3%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 2.94 5.0 0.978 618 0.4%
Calibration 2 215 300.0 2.98 5.0 0.979 625 0.4%
Calibration 3 215 300.0 2.98 5.0 0.979 626 0.4%
100% 215 300.0 2.98 5.0 0.979 626 0.4%
90% 215 300.0 2.83 5.0 0.977 594 0.4%
80% 215 300.0 2.68 5.0 0.974 561 0.5%
70% 214 300.0 2.54 5.0 0.969 527 0.5%
60% 214 300.0 2.39 5.0 0.966 495 0.5%
50% 214 300.0 2.26 5.0 0.958 463 0.5%
40% 214 300.0 2.08 5.0 0.959 428 0.6%
30% 214 300.0 1.94 5.0 0.945 392 0.6%
20% 214 300.0 1.77 5.0 0.939 356 0.6%
10% 214 300.0 1.61 2.0 0.923 318 0.4%
Active Idle 215 300.0 1.29 2.0 0.889 246 0.5%

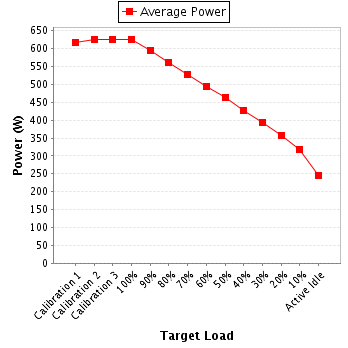

Power details for pwr2
