Hewlett Packard Enterprise Apollo XL225n Gen10 Plus ssj_ops@100% = 10,603,548
ssj_ops@100% per JVM = 331,361
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 14, 2019
Hardware Availability: Jun-2020 Software Availability: Feb-2020 Publication: Apr 22, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,643,928
Calibration 2     10,648,889
Calibration 3     10,652,687
ssj_ops@calibrated=10,650,788
100% 99.6% 10,650,788 10,603,548
90% 90.1% 9,585,709 9,597,051
80% 79.9% 8,520,630 8,511,130
70% 70.0% 7,455,552 7,454,676
60% 60.0% 6,390,473 6,389,653
50% 50.0% 5,325,394 5,320,916
40% 40.0% 4,260,315 4,261,382
30% 30.0% 3,195,236 3,194,351
20% 20.0% 2,130,158 2,134,040
10% 10.0% 1,065,079 1,065,903
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 2
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Apollo XL225n Gen10 Plus
Form Factor: Blade
CPU Name: AMD EPYC 7702 2.0 GHz
CPU Characteristics: 64-Core, 2.0GHz, 256MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP1
OS Version: 4.12.14-195-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 13.0.1+9, mixed mode, sharing); version 13.0.1
JVM Command-line Options: -server -Xmn2400m -Xms2800m -Xmx2800m -XX:MaxTenuringThreshold=1 -XX:ParallelGCThreads=4 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=3000 -XX:+UseParallelOldGC -XX:+UseHugeTLBFS
JVM Affinity: numactl --cpunodebind=[0-31] --localalloc
JVM Instances: 32
JVM Initial Heap (MB): 2800
JVM Maximum Heap (MB): 2800
JVM Address Bits: 64
Boot Firmware Version: A46 v1.20 (02/28/2020)
Management Firmware Version: 2.14 Feb 11 2020
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
node-02.001 333,718
node-02.002 331,727
node-02.003 311,392
node-02.004 334,245
node-02.005 324,641
node-02.006 332,054
node-02.007 332,979
node-02.008 328,747
node-02.009 326,280
node-02.010 335,159
node-02.011 327,768
node-02.012 331,544
node-02.013 333,265
node-02.014 328,419
node-02.015 333,865
node-02.016 329,460
node-02.017 328,151
node-02.018 332,114
node-02.019 336,402
node-02.020 331,961
node-02.021 336,584
node-02.022 330,659
node-02.023 329,651
node-02.024 338,318
node-02.025 332,910
node-02.026 335,485
node-02.027 329,497
node-02.028 336,808
node-02.029 329,079
node-02.030 332,263
node-02.031 333,156
node-02.032 335,247
ssj_ops@100% 10,603,548
ssj_ops@100% per JVM 331,361

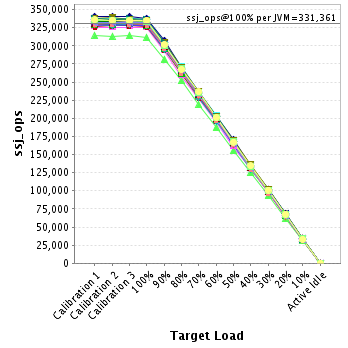

Graph of per-instance results
JVM 'node-02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     334,241
Calibration 2     334,874
Calibration 3     334,665
ssj_ops@calibrated=334,769
100% 99.7% 334,769 333,718
90% 90.7% 301,292 303,574
80% 79.6% 267,815 266,330
70% 70.0% 234,338 234,497
60% 60.0% 200,862 200,967
50% 49.9% 167,385 167,047
40% 40.0% 133,908 133,751
30% 30.0% 100,431 100,482
20% 19.6% 66,954 65,723
10% 9.8% 33,477 32,881
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     334,149
Calibration 2     334,903
Calibration 3     334,286
ssj_ops@calibrated=334,595
100% 99.1% 334,595 331,727
90% 89.8% 301,135 300,492
80% 79.1% 267,676 264,715
70% 70.0% 234,216 234,329
60% 59.9% 200,757 200,271
50% 50.0% 167,297 167,291
40% 40.0% 133,838 133,763
30% 30.1% 100,378 100,860
20% 20.0% 66,919 66,941
10% 9.8% 33,459 32,914
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     313,703
Calibration 2     312,236
Calibration 3     313,766
ssj_ops@calibrated=313,001
100% 99.5% 313,001 311,392
90% 90.0% 281,701 281,759
80% 80.5% 250,401 251,865
70% 69.9% 219,101 218,721
60% 60.0% 187,800 187,821
50% 49.7% 156,500 155,619
40% 40.0% 125,200 125,076
30% 30.1% 93,900 94,100
20% 19.7% 62,600 61,548
10% 10.0% 31,300 31,183
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     334,083
Calibration 2     334,549
Calibration 3     334,750
ssj_ops@calibrated=334,650
100% 99.9% 334,650 334,245
90% 90.5% 301,185 302,779
80% 80.2% 267,720 268,494
70% 70.3% 234,255 235,394
60% 60.2% 200,790 201,620
50% 49.4% 167,325 165,479
40% 40.3% 133,860 134,913
30% 29.7% 100,395 99,550
20% 20.2% 66,930 67,627
10% 10.0% 33,465 33,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     325,646
Calibration 2     324,778
Calibration 3     325,377
ssj_ops@calibrated=325,077
100% 99.9% 325,077 324,641
90% 90.1% 292,569 292,759
80% 79.3% 260,062 257,811
70% 70.1% 227,554 227,963
60% 59.9% 195,046 194,866
50% 49.3% 162,539 160,219
40% 40.4% 130,031 131,172
30% 29.9% 97,523 97,070
20% 19.9% 65,015 64,834
10% 10.0% 32,508 32,391
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,255
Calibration 2     333,617
Calibration 3     333,203
ssj_ops@calibrated=333,410
100% 99.6% 333,410 332,054
90% 90.1% 300,069 300,347
80% 79.7% 266,728 265,740
70% 70.0% 233,387 233,473
60% 59.9% 200,046 199,793
50% 50.4% 166,705 168,000
40% 40.4% 133,364 134,587
30% 30.3% 100,023 100,988
20% 20.4% 66,682 67,937
10% 10.1% 33,341 33,778
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,318
Calibration 2     334,132
Calibration 3     334,027
ssj_ops@calibrated=334,080
100% 99.7% 334,080 332,979
90% 89.7% 300,672 299,793
80% 80.0% 267,264 267,167
70% 70.0% 233,856 233,960
60% 60.1% 200,448 200,906
50% 50.0% 167,040 166,999
40% 40.0% 133,632 133,776
30% 29.9% 100,224 99,953
20% 20.2% 66,816 67,334
10% 10.1% 33,408 33,858
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     329,933
Calibration 2     328,748
Calibration 3     330,072
ssj_ops@calibrated=329,410
100% 99.8% 329,410 328,747
90% 90.2% 296,469 297,131
80% 79.9% 263,528 263,174
70% 69.9% 230,587 230,388
60% 59.7% 197,646 196,523
50% 50.2% 164,705 165,251
40% 40.1% 131,764 132,216
30% 30.0% 98,823 98,767
20% 20.1% 65,882 66,280
10% 10.1% 32,941 33,124
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     326,976
Calibration 2     327,949
Calibration 3     328,328
ssj_ops@calibrated=328,138
100% 99.4% 328,138 326,280
90% 90.0% 295,325 295,364
80% 79.7% 262,511 261,477
70% 69.7% 229,697 228,685
60% 59.9% 196,883 196,500
50% 50.2% 164,069 164,607
40% 40.0% 131,255 131,097
30% 30.2% 98,442 99,018
20% 19.9% 65,628 65,287
10% 10.0% 32,814 32,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     336,109
Calibration 2     336,402
Calibration 3     335,893
ssj_ops@calibrated=336,148
100% 99.7% 336,148 335,159
90% 89.5% 302,533 300,851
80% 80.4% 268,918 270,172
70% 69.9% 235,303 234,861
60% 60.2% 201,689 202,242
50% 50.3% 168,074 169,248
40% 39.7% 134,459 133,502
30% 30.0% 100,844 100,867
20% 20.3% 67,230 68,313
10% 10.1% 33,615 33,849
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     329,936
Calibration 2     329,726
Calibration 3     330,270
ssj_ops@calibrated=329,998
100% 99.3% 329,998 327,768
90% 89.8% 296,998 296,329
80% 79.4% 263,998 262,093
70% 70.3% 230,999 231,992
60% 60.0% 197,999 198,125
50% 50.0% 164,999 165,005
40% 40.0% 131,999 131,924
30% 30.2% 98,999 99,776
20% 20.2% 66,000 66,573
10% 10.0% 33,000 33,107
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     332,157
Calibration 2     333,012
Calibration 3     332,372
ssj_ops@calibrated=332,692
100% 99.7% 332,692 331,544
90% 89.8% 299,423 298,905
80% 80.1% 266,154 266,332
70% 69.4% 232,884 230,745
60% 60.3% 199,615 200,737
50% 50.0% 166,346 166,263
40% 40.4% 133,077 134,319
30% 29.8% 99,808 99,075
20% 20.5% 66,538 68,173
10% 10.1% 33,269 33,750
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     334,266
Calibration 2     334,632
Calibration 3     335,093
ssj_ops@calibrated=334,863
100% 99.5% 334,863 333,265
90% 90.6% 301,376 303,238
80% 79.8% 267,890 267,384
70% 70.0% 234,404 234,417
60% 59.6% 200,918 199,590
50% 49.8% 167,431 166,861
40% 39.7% 133,945 132,796
30% 30.2% 100,459 101,222
20% 19.9% 66,973 66,792
10% 10.1% 33,486 33,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     329,460
Calibration 2     328,718
Calibration 3     330,107
ssj_ops@calibrated=329,413
100% 99.7% 329,413 328,419
90% 89.6% 296,472 295,042
80% 80.3% 263,530 264,625
70% 69.6% 230,589 229,203
60% 59.6% 197,648 196,267
50% 49.8% 164,706 164,098
40% 39.4% 131,765 129,950
30% 30.2% 98,824 99,603
20% 20.1% 65,883 66,178
10% 10.2% 32,941 33,567
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,427
Calibration 2     336,336
Calibration 3     336,541
ssj_ops@calibrated=336,438
100% 99.2% 336,438 333,865
90% 90.3% 302,795 303,901
80% 79.8% 269,151 268,604
70% 69.6% 235,507 234,308
60% 59.9% 201,863 201,665
50% 50.0% 168,219 168,195
40% 39.6% 134,575 133,385
30% 30.2% 100,932 101,442
20% 19.8% 67,288 66,701
10% 10.0% 33,644 33,546
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     329,586
Calibration 2     330,818
Calibration 3     331,219
ssj_ops@calibrated=331,019
100% 99.5% 331,019 329,460
90% 89.8% 297,917 297,173
80% 79.8% 264,815 264,059
70% 69.9% 231,713 231,281
60% 60.2% 198,611 199,148
50% 49.4% 165,509 163,538
40% 40.5% 132,407 133,909
30% 29.7% 99,306 98,219
20% 19.7% 66,204 65,113
10% 10.0% 33,102 33,120
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     328,563
Calibration 2     329,223
Calibration 3     328,328
ssj_ops@calibrated=328,776
100% 99.8% 328,776 328,151
90% 90.1% 295,898 296,253
80% 80.3% 263,021 264,031
70% 70.3% 230,143 231,228
60% 60.2% 197,265 198,066
50% 49.6% 164,388 163,026
40% 40.1% 131,510 131,923
30% 29.8% 98,633 97,928
20% 19.9% 65,755 65,507
10% 9.8% 32,878 32,283
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,702
Calibration 2     335,410
Calibration 3     336,249
ssj_ops@calibrated=335,829
100% 98.9% 335,829 332,114
90% 90.0% 302,246 302,341
80% 79.9% 268,663 268,435
70% 70.3% 235,081 236,079
60% 60.3% 201,498 202,560
50% 50.1% 167,915 168,329
40% 40.3% 134,332 135,315
30% 30.1% 100,749 101,107
20% 20.3% 67,166 68,165
10% 10.2% 33,583 34,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     336,613
Calibration 2     337,114
Calibration 3     337,317
ssj_ops@calibrated=337,215
100% 99.8% 337,215 336,402
90% 90.3% 303,494 304,338
80% 80.1% 269,772 270,071
70% 69.7% 236,051 234,954
60% 60.1% 202,329 202,502
50% 50.0% 168,608 168,728
40% 40.1% 134,886 135,199
30% 30.2% 101,165 101,726
20% 20.1% 67,443 67,867
10% 10.0% 33,722 33,781
Active Idle   0 0

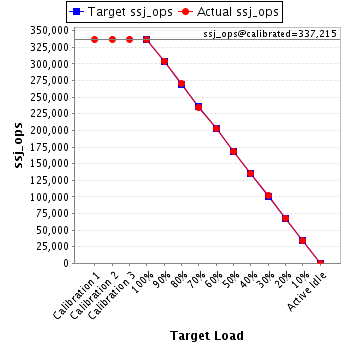

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,189
Calibration 2     333,486
Calibration 3     333,641
ssj_ops@calibrated=333,563
100% 99.5% 333,563 331,961
90% 90.3% 300,207 301,273
80% 79.7% 266,851 265,898
70% 69.9% 233,494 233,219
60% 60.0% 200,138 199,995
50% 50.0% 166,782 166,788
40% 40.3% 133,425 134,423
30% 29.9% 100,069 99,786
20% 19.7% 66,713 65,852
10% 10.0% 33,356 33,504
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     338,053
Calibration 2     337,719
Calibration 3     337,692
ssj_ops@calibrated=337,705
100% 99.7% 337,705 336,584
90% 90.2% 303,935 304,633
80% 80.3% 270,164 271,140
70% 70.0% 236,394 236,501
60% 60.3% 202,623 203,480
50% 50.0% 168,853 168,918
40% 40.1% 135,082 135,252
30% 30.0% 101,312 101,217
20% 20.0% 67,541 67,675
10% 10.0% 33,771 33,673
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,286
Calibration 2     332,822
Calibration 3     333,049
ssj_ops@calibrated=332,935
100% 99.3% 332,935 330,659
90% 90.1% 299,642 300,095
80% 80.4% 266,348 267,587
70% 69.9% 233,055 232,571
60% 60.0% 199,761 199,784
50% 50.1% 166,468 166,777
40% 39.7% 133,174 132,082
30% 30.2% 99,881 100,565
20% 20.0% 66,587 66,466
10% 10.0% 33,294 33,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     331,325
Calibration 2     332,269
Calibration 3     331,656
ssj_ops@calibrated=331,962
100% 99.3% 331,962 329,651
90% 90.2% 298,766 299,308
80% 80.3% 265,570 266,454
70% 70.2% 232,374 232,904
60% 60.0% 199,177 199,059
50% 50.1% 165,981 166,306
40% 40.0% 132,785 132,622
30% 29.6% 99,589 98,423
20% 20.2% 66,392 66,958
10% 10.2% 33,196 33,951
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     340,694
Calibration 2     340,251
Calibration 3     340,133
ssj_ops@calibrated=340,192
100% 99.4% 340,192 338,318
90% 90.5% 306,173 307,835
80% 79.4% 272,154 270,223
70% 69.7% 238,134 236,993
60% 59.6% 204,115 202,913
50% 50.0% 170,096 170,219
40% 39.7% 136,077 135,170
30% 29.9% 102,058 101,609
20% 20.1% 68,038 68,413
10% 9.9% 34,019 33,531
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     332,909
Calibration 2     334,268
Calibration 3     335,051
ssj_ops@calibrated=334,659
100% 99.5% 334,659 332,910
90% 90.0% 301,193 301,235
80% 80.0% 267,728 267,778
70% 70.4% 234,262 235,754
60% 60.0% 200,796 200,643
50% 49.8% 167,330 166,812
40% 40.2% 133,864 134,605
30% 30.1% 100,398 100,566
20% 20.0% 66,932 66,966
10% 9.9% 33,466 33,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     337,984
Calibration 2     338,524
Calibration 3     336,894
ssj_ops@calibrated=337,709
100% 99.3% 337,709 335,485
90% 90.2% 303,938 304,452
80% 79.9% 270,167 269,812
70% 70.0% 236,396 236,434
60% 59.9% 202,625 202,218
50% 50.3% 168,854 169,894
40% 40.2% 135,084 135,705
30% 30.1% 101,313 101,574
20% 20.0% 67,542 67,425
10% 10.1% 33,771 34,143
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     331,289
Calibration 2     331,421
Calibration 3     331,187
ssj_ops@calibrated=331,304
100% 99.5% 331,304 329,497
90% 90.5% 298,174 299,893
80% 80.3% 265,043 265,946
70% 69.7% 231,913 230,860
60% 59.9% 198,782 198,433
50% 50.2% 165,652 166,464
40% 40.1% 132,522 132,828
30% 30.3% 99,391 100,363
20% 19.9% 66,261 66,074
10% 10.0% 33,130 33,015
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     337,568
Calibration 2     336,902
Calibration 3     337,799
ssj_ops@calibrated=337,351
100% 99.8% 337,351 336,808
90% 90.2% 303,616 304,261
80% 79.4% 269,881 268,016
70% 69.3% 236,145 233,815
60% 60.1% 202,410 202,595
50% 50.0% 168,675 168,602
40% 39.7% 134,940 133,952
30% 29.9% 101,205 100,744
20% 20.0% 67,470 67,422
10% 9.9% 33,735 33,433
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     330,491
Calibration 2     331,325
Calibration 3     331,026
ssj_ops@calibrated=331,175
100% 99.4% 331,175 329,079
90% 90.0% 298,058 298,176
80% 79.3% 264,940 262,749
70% 70.5% 231,823 233,527
60% 59.7% 198,705 197,729
50% 49.8% 165,588 164,983
40% 39.7% 132,470 131,346
30% 29.5% 99,353 97,725
20% 20.2% 66,235 66,849
10% 9.9% 33,118 32,940
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     332,642
Calibration 2     332,799
Calibration 3     332,757
ssj_ops@calibrated=332,778
100% 99.8% 332,778 332,263
90% 90.3% 299,500 300,630
80% 80.1% 266,222 266,649
70% 70.3% 232,945 233,930
60% 60.3% 199,667 200,717
50% 49.8% 166,389 165,643
40% 39.8% 133,111 132,536
30% 29.8% 99,833 99,118
20% 20.0% 66,556 66,536
10% 10.0% 33,278 33,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,502
Calibration 2     334,531
Calibration 3     335,237
ssj_ops@calibrated=334,884
100% 99.5% 334,884 333,156
90% 89.9% 301,396 300,928
80% 80.2% 267,907 268,694
70% 70.2% 234,419 235,197
60% 60.0% 200,930 200,836
50% 50.3% 167,442 168,399
40% 40.0% 133,954 133,968
30% 29.9% 100,465 99,985
20% 19.9% 66,977 66,639
10% 10.0% 33,488 33,520
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,874
Calibration 2     335,395
Calibration 3     334,704
ssj_ops@calibrated=335,050
100% 100.1% 335,050 335,247
90% 90.1% 301,545 301,963
80% 79.9% 268,040 267,605
70% 70.6% 234,535 236,496
60% 60.0% 201,030 201,079
50% 49.9% 167,525 167,305
40% 40.1% 134,020 134,319
30% 30.1% 100,515 100,923
20% 20.3% 67,010 67,870
10% 9.9% 33,505 33,191
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
