Inspur Corporation Inspur NF5180M5 SPECpower_ssj2008 = 14,223 overall ssj_ops/watt
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Jun 16, 2020
Hardware Availability: Jun-2020 Software Availability: Dec-2019 Publication: Jul 2, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 414 22.0
Calibration 2 414 21.9
Calibration 3 414 21.8
100% 414 21.7
90% 335 21.9
80% 282 22.2
70% 247 22.4
60% 218 21.7
50% 184 21.4
40% 155 21.8
30% 141 22.2
20% 122 22.4
10% 108 22.5
Active Idle 48.2 22.5

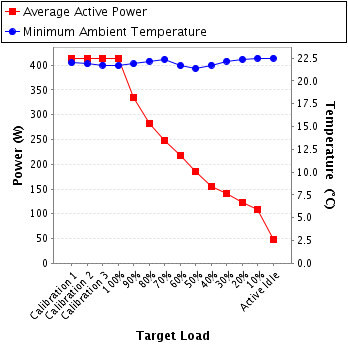

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C2QK23022V
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: LT1923338725Z-21
Date of Calibration: 12-Oct-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: Connected to PSU 0
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300.0 2.04 5.0 0.914 414 0.4%
Calibration 2 222 300.0 2.04 5.0 0.914 414 0.4%
Calibration 3 222 300.0 2.04 5.0 0.914 414 0.4%
100% 221 300.0 2.05 5.0 0.914 414 0.4%
90% 221 300.0 1.67 5.0 0.905 335 0.4%
80% 222 300.0 1.43 5.0 0.889 282 0.4%
70% 222 300.0 1.26 5.0 0.881 247 0.5%
60% 222 300.0 1.14 5.0 0.859 218 0.5%
50% 222 300.0 0.915 5.0 0.908 184 0.6%
40% 222 300.0 0.789 5.0 0.883 155 0.6%
30% 222 300.0 0.731 5.0 0.868 141 0.7%
20% 223 300.0 0.649 5.0 0.846 122 0.8%
10% 223 300.0 0.588 2.0 0.826 108 0.5%
Active Idle 223 300.0 0.353 2.0 0.614 48.2 0.7%

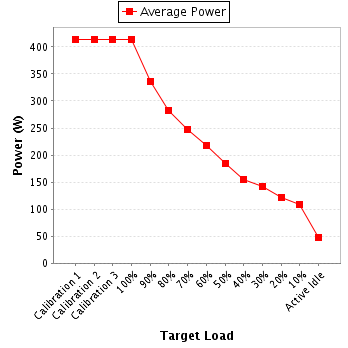

Power details for pwr1
