Lenovo Global Technology Think System SR655 ssj_ops@100% = 6,617,761
ssj_ops@100% per JVM = 206,805
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jul 9, 2020
Hardware Availability: Apr-2020 Software Availability: Sep-2019 Publication: Aug 6, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,628,668
Calibration 2     6,642,444
Calibration 3     6,646,441
ssj_ops@calibrated=6,644,442
100% 99.6% 6,644,442 6,617,761
90% 89.9% 5,979,998 5,976,392
80% 80.1% 5,315,554 5,321,714
70% 69.9% 4,651,110 4,642,104
60% 60.0% 3,986,665 3,986,582
50% 50.1% 3,322,221 3,325,701
40% 40.1% 2,657,777 2,664,395
30% 30.1% 1,993,333 1,996,980
20% 20.0% 1,328,888 1,326,709
10% 10.0% 664,444 662,282
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR655
Form Factor: 2U
CPU Name: AMD EPYC 7742 2.25GHz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 8 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, and 16 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:7N67A00883
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 4 x Broadcom 1Gb RJ45 4-port Ethernet
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: Using the performance fan module test PN:4F17A14484
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.737)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.4+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0-15] /AFFINITY [0xF,0xF0]
JVM Instances: 32
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: CFE111B
Management Firmware Version: AMBT07P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB4512578
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-RIQQBT4BNOH.001 202,957
WIN-RIQQBT4BNOH.002 206,316
WIN-RIQQBT4BNOH.003 207,916
WIN-RIQQBT4BNOH.004 205,297
WIN-RIQQBT4BNOH.005 209,465
WIN-RIQQBT4BNOH.006 208,660
WIN-RIQQBT4BNOH.007 209,243
WIN-RIQQBT4BNOH.008 210,120
WIN-RIQQBT4BNOH.009 205,840
WIN-RIQQBT4BNOH.010 206,351
WIN-RIQQBT4BNOH.011 201,397
WIN-RIQQBT4BNOH.012 205,937
WIN-RIQQBT4BNOH.013 206,165
WIN-RIQQBT4BNOH.014 205,950
WIN-RIQQBT4BNOH.015 207,768
WIN-RIQQBT4BNOH.016 208,162
WIN-RIQQBT4BNOH.017 211,859
WIN-RIQQBT4BNOH.018 206,947
WIN-RIQQBT4BNOH.019 210,582
WIN-RIQQBT4BNOH.020 205,419
WIN-RIQQBT4BNOH.021 206,796
WIN-RIQQBT4BNOH.022 205,761
WIN-RIQQBT4BNOH.023 210,131
WIN-RIQQBT4BNOH.024 205,948
WIN-RIQQBT4BNOH.025 203,207
WIN-RIQQBT4BNOH.026 205,450
WIN-RIQQBT4BNOH.027 205,919
WIN-RIQQBT4BNOH.028 202,278
WIN-RIQQBT4BNOH.029 207,565
WIN-RIQQBT4BNOH.030 204,470
WIN-RIQQBT4BNOH.031 210,091
WIN-RIQQBT4BNOH.032 207,793
ssj_ops@100% 6,617,761
ssj_ops@100% per JVM 206,805
Graph of per-instance results
JVM 'WIN-RIQQBT4BNOH.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,896
Calibration 2     203,785
Calibration 3     203,957
ssj_ops@calibrated=203,871
100% 99.6% 203,871 202,957
90% 89.9% 183,484 183,249
80% 79.9% 163,097 162,939
70% 70.4% 142,710 143,492
60% 60.3% 122,323 122,885
50% 49.5% 101,936 100,914
40% 39.9% 81,548 81,444
30% 29.8% 61,161 60,811
20% 19.7% 40,774 40,126
10% 10.0% 20,387 20,358
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     206,200
Calibration 2     207,242
Calibration 3     206,943
ssj_ops@calibrated=207,093
100% 99.6% 207,093 206,316
90% 90.4% 186,383 187,188
80% 81.1% 165,674 167,948
70% 69.4% 144,965 143,755
60% 59.5% 124,256 123,256
50% 49.5% 103,546 102,409
40% 40.2% 82,837 83,261
30% 29.7% 62,128 61,446
20% 20.1% 41,419 41,540
10% 9.9% 20,709 20,423
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     207,596
Calibration 2     208,578
Calibration 3     208,659
ssj_ops@calibrated=208,618
100% 99.7% 208,618 207,916
90% 90.1% 187,756 188,052
80% 80.5% 166,895 167,896
70% 70.2% 146,033 146,483
60% 60.3% 125,171 125,809
50% 50.4% 104,309 105,112
40% 40.3% 83,447 83,988
30% 30.1% 62,585 62,890
20% 19.8% 41,724 41,268
10% 10.0% 20,862 20,787
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     206,724
Calibration 2     207,312
Calibration 3     207,091
ssj_ops@calibrated=207,201
100% 99.1% 207,201 205,297
90% 90.3% 186,481 187,115
80% 79.9% 165,761 165,596
70% 69.3% 145,041 143,548
60% 59.6% 124,321 123,561
50% 49.9% 103,601 103,392
40% 40.5% 82,881 83,842
30% 29.8% 62,160 61,648
20% 20.1% 41,440 41,584
10% 10.2% 20,720 21,195
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     208,182
Calibration 2     208,866
Calibration 3     209,229
ssj_ops@calibrated=209,047
100% 100.2% 209,047 209,465
90% 90.0% 188,143 188,067
80% 80.4% 167,238 168,044
70% 70.5% 146,333 147,402
60% 60.1% 125,428 125,695
50% 50.1% 104,524 104,723
40% 40.0% 83,619 83,541
30% 29.6% 62,714 61,889
20% 19.6% 41,809 41,064
10% 10.0% 20,905 20,858
Active Idle   0 0
Graph of results

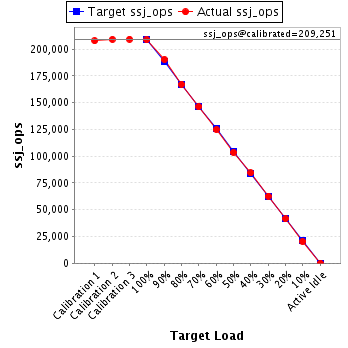

JVM 'WIN-RIQQBT4BNOH.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     207,726
Calibration 2     209,160
Calibration 3     209,342
ssj_ops@calibrated=209,251
100% 99.7% 209,251 208,660
90% 91.0% 188,326 190,319
80% 79.9% 167,401 167,197
70% 69.9% 146,476 146,201
60% 59.7% 125,551 124,884
50% 49.5% 104,625 103,561
40% 40.3% 83,700 84,375
30% 30.0% 62,775 62,769
20% 19.8% 41,850 41,515
10% 9.7% 20,925 20,378
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     209,009
Calibration 2     209,631
Calibration 3     210,112
ssj_ops@calibrated=209,872
100% 99.7% 209,872 209,243
90% 90.0% 188,884 188,977
80% 80.5% 167,897 168,853
70% 69.6% 146,910 145,984
60% 60.3% 125,923 126,567
50% 50.6% 104,936 106,293
40% 39.5% 83,949 82,975
30% 29.9% 62,961 62,784
20% 19.8% 41,974 41,651
10% 10.1% 20,987 21,236
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     212,402
Calibration 2     211,877
Calibration 3     212,203
ssj_ops@calibrated=212,040
100% 99.1% 212,040 210,120
90% 89.7% 190,836 190,254
80% 79.7% 169,632 168,941
70% 70.1% 148,428 148,688
60% 59.9% 127,224 126,988
50% 50.0% 106,020 106,001
40% 40.6% 84,816 86,002
30% 30.1% 63,612 63,877
20% 19.8% 42,408 42,072
10% 10.0% 21,204 21,274
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     205,283
Calibration 2     205,581
Calibration 3     205,723
ssj_ops@calibrated=205,652
100% 100.1% 205,652 205,840
90% 89.6% 185,087 184,239
80% 79.8% 164,522 164,126
70% 69.9% 143,957 143,726
60% 59.7% 123,391 122,871
50% 50.0% 102,826 102,924
40% 39.9% 82,261 82,142
30% 29.7% 61,696 61,113
20% 20.0% 41,130 41,077
10% 10.1% 20,565 20,733
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     207,579
Calibration 2     207,580
Calibration 3     207,554
ssj_ops@calibrated=207,567
100% 99.4% 207,567 206,351
90% 89.4% 186,810 185,579
80% 80.4% 166,054 166,814
70% 69.7% 145,297 144,709
60% 59.9% 124,540 124,434
50% 49.5% 103,784 102,786
40% 40.3% 83,027 83,749
30% 30.4% 62,270 63,018
20% 19.8% 41,513 41,085
10% 10.3% 20,757 21,370
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,718
Calibration 2     202,556
Calibration 3     203,185
ssj_ops@calibrated=202,871
100% 99.3% 202,871 201,397
90% 89.9% 182,584 182,308
80% 79.5% 162,297 161,231
70% 69.8% 142,009 141,662
60% 60.6% 121,722 122,838
50% 50.1% 101,435 101,573
40% 39.9% 81,148 80,943
30% 30.3% 60,861 61,467
20% 20.1% 40,574 40,860
10% 10.2% 20,287 20,612
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     208,802
Calibration 2     207,446
Calibration 3     207,347
ssj_ops@calibrated=207,396
100% 99.3% 207,396 205,937
90% 89.5% 186,657 185,596
80% 79.9% 165,917 165,640
70% 69.4% 145,177 143,981
60% 60.7% 124,438 125,800
50% 49.5% 103,698 102,707
40% 40.4% 82,959 83,749
30% 29.8% 62,219 61,888
20% 19.8% 41,479 40,977
10% 10.0% 20,740 20,712
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     206,499
Calibration 2     207,657
Calibration 3     207,765
ssj_ops@calibrated=207,711
100% 99.3% 207,711 206,165
90% 90.2% 186,940 187,294
80% 80.2% 166,169 166,483
70% 69.5% 145,398 144,318
60% 59.9% 124,627 124,416
50% 50.7% 103,856 105,280
40% 40.1% 83,085 83,312
30% 29.8% 62,313 61,868
20% 19.9% 41,542 41,357
10% 10.0% 20,771 20,849
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     205,922
Calibration 2     206,662
Calibration 3     206,358
ssj_ops@calibrated=206,510
100% 99.7% 206,510 205,950
90% 90.3% 185,859 186,409
80% 79.0% 165,208 163,141
70% 69.5% 144,557 143,563
60% 60.1% 123,906 124,050
50% 49.8% 103,255 102,827
40% 39.6% 82,604 81,770
30% 30.0% 61,953 61,935
20% 20.2% 41,302 41,670
10% 10.1% 20,651 20,783
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     207,448
Calibration 2     208,716
Calibration 3     208,681
ssj_ops@calibrated=208,699
100% 99.6% 208,699 207,768
90% 90.3% 187,829 188,369
80% 80.1% 166,959 167,135
70% 70.3% 146,089 146,644
60% 59.8% 125,219 124,754
50% 50.7% 104,349 105,761
40% 40.0% 83,479 83,471
30% 30.1% 62,610 62,809
20% 20.1% 41,740 41,956
10% 10.0% 20,870 20,836
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     209,251
Calibration 2     208,908
Calibration 3     209,340
ssj_ops@calibrated=209,124
100% 99.5% 209,124 208,162
90% 89.6% 188,211 187,291
80% 79.9% 167,299 167,176
70% 70.0% 146,387 146,327
60% 60.1% 125,474 125,664
50% 50.5% 104,562 105,689
40% 39.7% 83,650 83,030
30% 29.9% 62,737 62,625
20% 20.1% 41,825 42,066
10% 9.9% 20,912 20,695
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     211,335
Calibration 2     212,591
Calibration 3     213,080
ssj_ops@calibrated=212,835
100% 99.5% 212,835 211,859
90% 90.0% 191,552 191,592
80% 80.8% 170,268 172,062
70% 69.5% 148,985 147,878
60% 59.4% 127,701 126,420
50% 49.8% 106,418 105,981
40% 40.8% 85,134 86,906
30% 30.3% 63,851 64,471
20% 19.6% 42,567 41,735
10% 10.0% 21,284 21,341
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     206,118
Calibration 2     206,831
Calibration 3     207,029
ssj_ops@calibrated=206,930
100% 100.0% 206,930 206,947
90% 89.6% 186,237 185,382
80% 79.9% 165,544 165,384
70% 70.4% 144,851 145,648
60% 59.5% 124,158 123,220
50% 50.3% 103,465 104,097
40% 40.0% 82,772 82,682
30% 30.3% 62,079 62,636
20% 20.0% 41,386 41,410
10% 9.6% 20,693 19,916
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     211,493
Calibration 2     211,703
Calibration 3     211,659
ssj_ops@calibrated=211,681
100% 99.5% 211,681 210,582
90% 89.7% 190,513 189,927
80% 80.4% 169,345 170,297
70% 70.1% 148,177 148,352
60% 59.3% 127,009 125,565
50% 49.8% 105,840 105,514
40% 40.0% 84,672 84,774
30% 30.5% 63,504 64,458
20% 20.1% 42,336 42,575
10% 10.0% 21,168 21,257
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     205,649
Calibration 2     206,800
Calibration 3     207,003
ssj_ops@calibrated=206,902
100% 99.3% 206,902 205,419
90% 89.7% 186,212 185,655
80% 79.6% 165,521 164,657
70% 69.7% 144,831 144,248
60% 59.9% 124,141 123,966
50% 49.6% 103,451 102,631
40% 40.0% 82,761 82,731
30% 30.2% 62,071 62,425
20% 20.0% 41,380 41,301
10% 9.9% 20,690 20,494
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     206,676
Calibration 2     207,667
Calibration 3     207,293
ssj_ops@calibrated=207,480
100% 99.7% 207,480 206,796
90% 90.0% 186,732 186,752
80% 80.4% 165,984 166,890
70% 69.9% 145,236 145,008
60% 59.9% 124,488 124,182
50% 50.5% 103,740 104,677
40% 40.3% 82,992 83,674
30% 30.0% 62,244 62,212
20% 19.9% 41,496 41,214
10% 9.8% 20,748 20,285
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     207,513
Calibration 2     206,436
Calibration 3     206,547
ssj_ops@calibrated=206,491
100% 99.6% 206,491 205,761
90% 90.6% 185,842 187,081
80% 80.2% 165,193 165,664
70% 69.7% 144,544 143,927
60% 60.0% 123,895 123,986
50% 50.6% 103,246 104,440
40% 40.2% 82,596 82,918
30% 30.4% 61,947 62,847
20% 20.1% 41,298 41,543
10% 10.0% 20,649 20,722
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     206,822
Calibration 2     209,988
Calibration 3     210,406
ssj_ops@calibrated=210,197
100% 100.0% 210,197 210,131
90% 89.4% 189,177 188,017
80% 80.2% 168,158 168,659
70% 69.3% 147,138 145,597
60% 60.5% 126,118 127,168
50% 50.1% 105,098 105,262
40% 40.1% 84,079 84,362
30% 30.0% 63,059 63,075
20% 20.0% 42,039 42,002
10% 9.7% 21,020 20,449
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     204,563
Calibration 2     205,849
Calibration 3     206,425
ssj_ops@calibrated=206,137
100% 99.9% 206,137 205,948
90% 90.2% 185,524 185,884
80% 80.3% 164,910 165,606
70% 70.0% 144,296 144,285
60% 60.3% 123,682 124,200
50% 50.3% 103,069 103,688
40% 40.2% 82,455 82,912
30% 29.9% 61,841 61,646
20% 20.0% 41,227 41,261
10% 9.8% 20,614 20,289
Active Idle   0 0

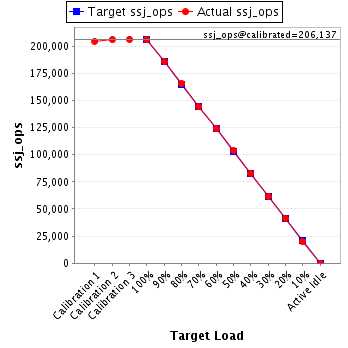

Graph of results
JVM 'WIN-RIQQBT4BNOH.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     205,268
Calibration 2     203,338
Calibration 3     204,574
ssj_ops@calibrated=203,956
100% 99.6% 203,956 203,207
90% 90.3% 183,561 184,086
80% 79.8% 163,165 162,663
70% 70.1% 142,769 142,978
60% 60.4% 122,374 123,120
50% 49.6% 101,978 101,215
40% 40.2% 81,583 81,930
30% 30.2% 61,187 61,577
20% 20.1% 40,791 40,904
10% 9.8% 20,396 20,003
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     205,599
Calibration 2     206,998
Calibration 3     207,071
ssj_ops@calibrated=207,034
100% 99.2% 207,034 205,450
90% 89.4% 186,331 184,986
80% 80.8% 165,628 167,312
70% 70.5% 144,924 145,943
60% 59.7% 124,221 123,506
50% 50.3% 103,517 104,076
40% 40.1% 82,814 82,959
30% 29.7% 62,110 61,497
20% 20.2% 41,407 41,758
10% 10.2% 20,703 21,111
Active Idle   0 0

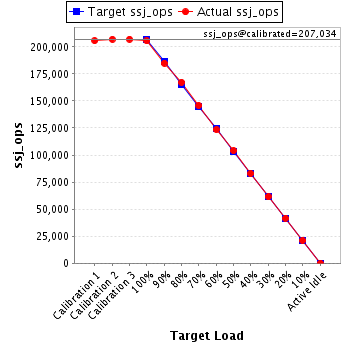

Graph of results
JVM 'WIN-RIQQBT4BNOH.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     205,483
Calibration 2     205,799
Calibration 3     206,199
ssj_ops@calibrated=205,999
100% 100.0% 205,999 205,919
90% 89.4% 185,399 184,133
80% 80.0% 164,799 164,736
70% 70.0% 144,199 144,246
60% 60.3% 123,599 124,159
50% 50.4% 102,999 103,829
40% 39.8% 82,400 81,906
30% 30.3% 61,800 62,379
20% 20.3% 41,200 41,735
10% 10.2% 20,600 20,928
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     204,174
Calibration 2     203,026
Calibration 3     203,174
ssj_ops@calibrated=203,100
100% 99.6% 203,100 202,278
90% 90.1% 182,790 183,083
80% 79.9% 162,480 162,254
70% 70.0% 142,170 142,266
60% 59.9% 121,860 121,556
50% 50.0% 101,550 101,632
40% 40.2% 81,240 81,590
30% 30.2% 60,930 61,372
20% 20.1% 40,620 40,759
10% 10.1% 20,310 20,438
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     209,313
Calibration 2     208,659
Calibration 3     208,414
ssj_ops@calibrated=208,537
100% 99.5% 208,537 207,565
90% 90.3% 187,683 188,289
80% 79.7% 166,829 166,221
70% 69.5% 145,976 144,920
60% 59.7% 125,122 124,424
50% 49.6% 104,268 103,497
40% 40.1% 83,415 83,586
30% 29.9% 62,561 62,400
20% 20.2% 41,707 42,205
10% 9.7% 20,854 20,178
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     205,501
Calibration 2     206,773
Calibration 3     206,639
ssj_ops@calibrated=206,706
100% 98.9% 206,706 204,470
90% 89.3% 186,035 184,624
80% 79.9% 165,365 165,161
70% 70.0% 144,694 144,682
60% 60.3% 124,023 124,552
50% 50.3% 103,353 103,902
40% 40.5% 82,682 83,676
30% 30.1% 62,012 62,303
20% 19.8% 41,341 40,939
10% 9.8% 20,671 20,326
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     209,346
Calibration 2     209,823
Calibration 3     210,033
ssj_ops@calibrated=209,928
100% 100.1% 209,928 210,091
90% 90.0% 188,935 188,999
80% 79.9% 167,942 167,657
70% 70.0% 146,949 146,945
60% 60.4% 125,957 126,855
50% 50.2% 104,964 105,367
40% 40.0% 83,971 83,891
30% 30.8% 62,978 64,624
20% 20.1% 41,986 42,181
10% 9.8% 20,993 20,678
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     209,579
Calibration 2     208,606
Calibration 3     207,404
ssj_ops@calibrated=208,005
100% 99.9% 208,005 207,793
90% 90.2% 187,205 187,596
80% 80.4% 166,404 167,329
70% 69.6% 145,604 144,696
60% 60.2% 124,803 125,234
50% 50.0% 104,003 103,944
40% 39.6% 83,202 82,304
30% 29.9% 62,402 62,219
20% 19.9% 41,601 41,320
10% 10.0% 20,801 20,773
Active Idle   0 0
Graph of results
