ASUSTeK Computer Inc. RS620SA-E10-RS12 ssj_ops@100% = 6,157,657
ssj_ops@100% per JVM = 192,427
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Multi Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: Sep 15, 2020
Hardware Availability: Sep-2020 Software Availability: Aug-2020 Publication: Oct 7, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,152,601
Calibration 2     6,171,176
Calibration 3     6,176,231
ssj_ops@calibrated=6,173,703
100% 99.7% 6,173,703 6,157,657
90% 90.1% 5,556,333 5,561,549
80% 79.9% 4,938,963 4,935,860
70% 70.0% 4,321,592 4,319,456
60% 60.0% 3,704,222 3,701,709
50% 50.0% 3,086,852 3,086,816
40% 39.9% 2,469,481 2,465,591
30% 30.0% 1,852,111 1,851,472
20% 20.0% 1,234,741 1,234,908
10% 10.0% 617,370 617,900
Active Idle   0 0
Graph of results
System Under Test
Set: 'RS620SA-E10-RS12'
Set Identifier: RS620SA-E10-RS12
Set Description: System Under Test
# of Identical Nodes: 6
Comment: 'SUT'
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS620SA-E10-RS12
Form Factor: 1U
CPU Name: AMD EPYC 7742 2.25Ghz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 8 x 16GB 2Rx8 PC4-3200AA-R ECC RDIMM; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 240GB Seagate Nytro 510DCT M.2 PCIE SSD P/N: 03B03-00130200
Disk Controller: Integrated PCIE controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I210 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled(See SUT Notes)
Operating System (OS): Microsoft Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.1397)
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 14.0.2+12-46, mixed mode, sharing), version 14.0.2
JVM Command-line Options: -server -Xmn1200m -Xms1400m -Xmx1400m -XX:MaxTenuringThreshold=1 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=3000 -XX:+UseParallelGC -XX:+UseLargePages
JVM Affinity: start /NODE [0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15] /AFFINITY [0xF,0xF0]
JVM Instances: 32
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: 0305
Management Firmware Version: 2.1.09
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: MS-KB4565349
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-STEC76V9EAP.001 193,352
WIN-STEC76V9EAP.002 191,041
WIN-STEC76V9EAP.003 190,947
WIN-STEC76V9EAP.004 193,812
WIN-STEC76V9EAP.005 193,471
WIN-STEC76V9EAP.006 194,578
WIN-STEC76V9EAP.007 194,709
WIN-STEC76V9EAP.008 196,200
WIN-STEC76V9EAP.009 194,286
WIN-STEC76V9EAP.010 192,769
WIN-STEC76V9EAP.011 190,114
WIN-STEC76V9EAP.012 189,444
WIN-STEC76V9EAP.013 189,970
WIN-STEC76V9EAP.014 192,848
WIN-STEC76V9EAP.015 191,206
WIN-STEC76V9EAP.016 191,696
WIN-STEC76V9EAP.017 190,819
WIN-STEC76V9EAP.018 190,823
WIN-STEC76V9EAP.019 192,739
WIN-STEC76V9EAP.020 193,424
WIN-STEC76V9EAP.021 195,573
WIN-STEC76V9EAP.022 190,166
WIN-STEC76V9EAP.023 195,834
WIN-STEC76V9EAP.024 192,936
WIN-STEC76V9EAP.025 190,906
WIN-STEC76V9EAP.026 191,709
WIN-STEC76V9EAP.027 194,920
WIN-STEC76V9EAP.028 190,768
WIN-STEC76V9EAP.029 192,013
WIN-STEC76V9EAP.030 189,370
WIN-STEC76V9EAP.031 191,903
WIN-STEC76V9EAP.032 193,308
ssj_ops@100% 6,157,657
ssj_ops@100% per JVM 192,427
Graph of per-instance results
JVM 'WIN-STEC76V9EAP.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,841
Calibration 2     194,077
Calibration 3     193,094
ssj_ops@calibrated=193,585
100% 99.9% 193,585 193,352
90% 90.4% 174,227 175,044
80% 79.9% 154,868 154,596
70% 70.7% 135,510 136,955
60% 59.4% 116,151 115,005
50% 50.1% 96,793 97,062
40% 39.9% 77,434 77,293
30% 30.0% 58,076 58,076
20% 19.9% 38,717 38,515
10% 9.8% 19,359 18,968
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,691
Calibration 2     191,541
Calibration 3     190,897
ssj_ops@calibrated=191,219
100% 99.9% 191,219 191,041
90% 88.8% 172,097 169,776
80% 79.7% 152,975 152,444
70% 69.9% 133,853 133,617
60% 59.5% 114,731 113,851
50% 50.2% 95,610 95,898
40% 39.3% 76,488 75,180
30% 30.0% 57,366 57,359
20% 20.1% 38,244 38,428
10% 9.9% 19,122 18,857
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,038
Calibration 2     190,974
Calibration 3     191,669
ssj_ops@calibrated=191,322
100% 99.8% 191,322 190,947
90% 90.1% 172,189 172,300
80% 79.7% 153,057 152,396
70% 69.4% 133,925 132,811
60% 59.9% 114,793 114,561
50% 49.5% 95,661 94,710
40% 39.6% 76,529 75,754
30% 30.1% 57,396 57,510
20% 19.6% 38,264 37,524
10% 10.1% 19,132 19,310
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,728
Calibration 2     194,431
Calibration 3     194,993
ssj_ops@calibrated=194,712
100% 99.5% 194,712 193,812
90% 90.0% 175,241 175,260
80% 80.6% 155,770 156,861
70% 70.3% 136,298 136,807
60% 59.0% 116,827 114,967
50% 49.9% 97,356 97,169
40% 40.0% 77,885 77,791
30% 30.2% 58,414 58,847
20% 20.4% 38,942 39,636
10% 10.1% 19,471 19,622
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,607
Calibration 2     194,232
Calibration 3     194,790
ssj_ops@calibrated=194,511
100% 99.5% 194,511 193,471
90% 90.0% 175,060 175,097
80% 80.2% 155,609 156,001
70% 70.4% 136,158 136,867
60% 60.0% 116,706 116,613
50% 50.5% 97,255 98,295
40% 40.4% 77,804 78,589
30% 29.8% 58,353 57,908
20% 20.2% 38,902 39,348
10% 10.0% 19,451 19,360
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,953
Calibration 2     195,034
Calibration 3     195,494
ssj_ops@calibrated=195,264
100% 99.6% 195,264 194,578
90% 89.8% 175,738 175,321
80% 80.2% 156,211 156,668
70% 69.8% 136,685 136,287
60% 59.8% 117,158 116,802
50% 50.2% 97,632 97,951
40% 39.5% 78,106 77,164
30% 30.1% 58,579 58,770
20% 19.9% 39,053 38,895
10% 10.1% 19,526 19,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,211
Calibration 2     194,909
Calibration 3     195,064
ssj_ops@calibrated=194,987
100% 99.9% 194,987 194,709
90% 90.3% 175,488 176,124
80% 79.5% 155,989 155,081
70% 70.8% 136,491 138,104
60% 59.8% 116,992 116,663
50% 49.7% 97,493 96,870
40% 40.0% 77,995 78,046
30% 29.7% 58,496 57,828
20% 19.9% 38,997 38,741
10% 10.0% 19,499 19,420
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,910
Calibration 2     195,826
Calibration 3     196,009
ssj_ops@calibrated=195,918
100% 100.1% 195,918 196,200
90% 90.3% 176,326 176,877
80% 79.8% 156,734 156,305
70% 70.1% 137,142 137,410
60% 59.7% 117,551 116,966
50% 50.0% 97,959 98,054
40% 39.6% 78,367 77,676
30% 29.7% 58,775 58,129
20% 20.2% 39,184 39,483
10% 9.9% 19,592 19,363
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,698
Calibration 2     194,136
Calibration 3     194,363
ssj_ops@calibrated=194,250
100% 100.0% 194,250 194,286
90% 89.9% 174,825 174,601
80% 79.9% 155,400 155,217
70% 70.4% 135,975 136,690
60% 60.0% 116,550 116,543
50% 49.8% 97,125 96,757
40% 39.9% 77,700 77,587
30% 29.7% 58,275 57,630
20% 19.7% 38,850 38,253
10% 10.0% 19,425 19,449
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,898
Calibration 2     192,550
Calibration 3     192,163
ssj_ops@calibrated=192,357
100% 100.2% 192,357 192,769
90% 89.4% 173,121 171,980
80% 80.0% 153,885 153,798
70% 70.3% 134,650 135,232
60% 59.8% 115,414 115,029
50% 49.9% 96,178 95,949
40% 39.5% 76,943 75,950
30% 30.1% 57,707 57,926
20% 20.0% 38,471 38,545
10% 10.1% 19,236 19,469
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,694
Calibration 2     190,794
Calibration 3     191,219
ssj_ops@calibrated=191,006
100% 99.5% 191,006 190,114
90% 89.9% 171,906 171,789
80% 80.4% 152,805 153,614
70% 69.7% 133,704 133,111
60% 60.0% 114,604 114,636
50% 50.2% 95,503 95,921
40% 40.0% 76,403 76,396
30% 30.5% 57,302 58,238
20% 20.0% 38,201 38,215
10% 10.0% 19,101 19,117
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,974
Calibration 2     190,365
Calibration 3     190,510
ssj_ops@calibrated=190,438
100% 99.5% 190,438 189,444
90% 90.7% 171,394 172,782
80% 79.3% 152,350 151,036
70% 69.9% 133,306 133,057
60% 60.7% 114,263 115,523
50% 50.5% 95,219 96,126
40% 40.0% 76,175 76,175
30% 30.0% 57,131 57,201
20% 20.2% 38,088 38,491
10% 10.0% 19,044 18,953
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,029
Calibration 2     189,521
Calibration 3     189,634
ssj_ops@calibrated=189,577
100% 100.2% 189,577 189,970
90% 90.4% 170,620 171,335
80% 80.1% 151,662 151,917
70% 70.1% 132,704 132,868
60% 59.9% 113,746 113,588
50% 49.5% 94,789 93,761
40% 40.1% 75,831 76,079
30% 30.1% 56,873 57,154
20% 20.1% 37,915 38,187
10% 9.9% 18,958 18,757
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

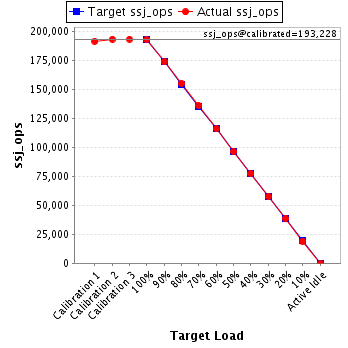

JVM 'WIN-STEC76V9EAP.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,433
Calibration 2     193,189
Calibration 3     193,266
ssj_ops@calibrated=193,228
100% 99.8% 193,228 192,848
90% 89.9% 173,905 173,618
80% 80.3% 154,582 155,091
70% 70.3% 135,259 135,799
60% 60.0% 115,937 115,957
50% 49.8% 96,614 96,251
40% 40.0% 77,291 77,296
30% 29.9% 57,968 57,734
20% 19.9% 38,646 38,517
10% 9.9% 19,323 19,132
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,991
Calibration 2     192,236
Calibration 3     193,127
ssj_ops@calibrated=192,681
100% 99.2% 192,681 191,206
90% 90.6% 173,413 174,624
80% 79.8% 154,145 153,745
70% 69.9% 134,877 134,769
60% 60.2% 115,609 115,961
50% 50.2% 96,341 96,695
40% 39.8% 77,073 76,599
30% 29.6% 57,804 57,060
20% 19.9% 38,536 38,419
10% 10.1% 19,268 19,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,439
Calibration 2     192,262
Calibration 3     192,213
ssj_ops@calibrated=192,238
100% 99.7% 192,238 191,696
90% 90.1% 173,014 173,161
80% 79.1% 153,790 152,028
70% 70.4% 134,566 135,260
60% 60.2% 115,343 115,734
50% 49.4% 96,119 94,898
40% 39.8% 76,895 76,438
30% 30.3% 57,671 58,155
20% 19.7% 38,448 37,952
10% 9.9% 19,224 19,083
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,676
Calibration 2     192,296
Calibration 3     192,322
ssj_ops@calibrated=192,309
100% 99.2% 192,309 190,819
90% 89.5% 173,078 172,203
80% 80.7% 153,847 155,270
70% 70.3% 134,616 135,107
60% 59.5% 115,386 114,405
50% 50.0% 96,155 96,096
40% 39.8% 76,924 76,589
30% 30.6% 57,693 58,767
20% 20.2% 38,462 38,848
10% 9.7% 19,231 18,725
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

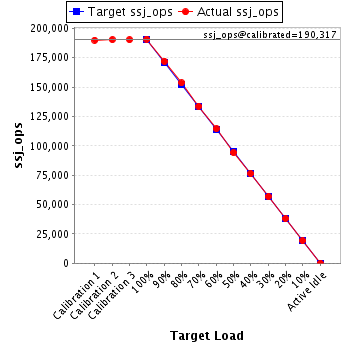

JVM 'WIN-STEC76V9EAP.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,979
Calibration 2     190,366
Calibration 3     190,269
ssj_ops@calibrated=190,317
100% 100.3% 190,317 190,823
90% 90.4% 171,286 172,015
80% 80.7% 152,254 153,536
70% 70.2% 133,222 133,697
60% 60.2% 114,190 114,511
50% 49.5% 95,159 94,205
40% 40.1% 76,127 76,365
30% 29.9% 57,095 56,820
20% 20.0% 38,063 37,986
10% 10.1% 19,032 19,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,057
Calibration 2     194,706
Calibration 3     194,784
ssj_ops@calibrated=194,745
100% 99.0% 194,745 192,739
90% 90.2% 175,271 175,653
80% 79.6% 155,796 154,961
70% 69.3% 136,322 134,879
60% 60.1% 116,847 117,046
50% 50.0% 97,373 97,294
40% 40.0% 77,898 77,914
30% 30.0% 58,424 58,360
20% 19.9% 38,949 38,845
10% 9.9% 19,475 19,348
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,282
Calibration 2     193,434
Calibration 3     193,404
ssj_ops@calibrated=193,419
100% 100.0% 193,419 193,424
90% 90.2% 174,077 174,414
80% 79.7% 154,735 154,074
70% 69.8% 135,394 134,968
60% 59.5% 116,052 115,044
50% 50.0% 96,710 96,670
40% 40.1% 77,368 77,636
30% 30.1% 58,026 58,169
20% 20.1% 38,684 38,903
10% 10.1% 19,342 19,495
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,245
Calibration 2     195,299
Calibration 3     195,388
ssj_ops@calibrated=195,343
100% 100.1% 195,343 195,573
90% 90.7% 175,809 177,130
80% 80.0% 156,275 156,187
70% 70.2% 136,740 137,035
60% 60.1% 117,206 117,420
50% 49.9% 97,672 97,477
40% 39.8% 78,137 77,771
30% 30.0% 58,603 58,649
20% 19.9% 39,069 38,957
10% 10.0% 19,534 19,611
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,046
Calibration 2     190,552
Calibration 3     190,383
ssj_ops@calibrated=190,467
100% 99.8% 190,467 190,166
90% 90.3% 171,421 172,060
80% 80.6% 152,374 153,560
70% 70.0% 133,327 133,412
60% 60.2% 114,280 114,723
50% 50.0% 95,234 95,242
40% 39.6% 76,187 75,415
30% 30.5% 57,140 58,045
20% 20.3% 38,093 38,734
10% 10.1% 19,047 19,199
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,108
Calibration 2     196,166
Calibration 3     196,522
ssj_ops@calibrated=196,344
100% 99.7% 196,344 195,834
90% 90.0% 176,710 176,667
80% 79.6% 157,075 156,289
70% 69.3% 137,441 136,155
60% 60.1% 117,806 117,970
50% 50.1% 98,172 98,353
40% 40.0% 78,538 78,550
30% 29.7% 58,903 58,243
20% 20.1% 39,269 39,406
10% 10.1% 19,634 19,787
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,726
Calibration 2     194,049
Calibration 3     194,353
ssj_ops@calibrated=194,201
100% 99.3% 194,201 192,936
90% 89.1% 174,781 173,081
80% 80.3% 155,361 155,934
70% 69.5% 135,941 134,884
60% 59.9% 116,520 116,266
50% 50.7% 97,100 98,370
40% 40.0% 77,680 77,607
30% 30.1% 58,260 58,459
20% 19.7% 38,840 38,325
10% 10.2% 19,420 19,720
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,492
Calibration 2     191,430
Calibration 3     191,899
ssj_ops@calibrated=191,665
100% 99.6% 191,665 190,906
90% 90.8% 172,498 173,995
80% 80.2% 153,332 153,686
70% 70.1% 134,165 134,384
60% 60.6% 114,999 116,125
50% 50.1% 95,832 96,092
40% 39.8% 76,666 76,239
30% 29.8% 57,499 57,088
20% 20.0% 38,333 38,268
10% 10.1% 19,166 19,299
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,195
Calibration 2     191,522
Calibration 3     191,945
ssj_ops@calibrated=191,733
100% 100.0% 191,733 191,709
90% 89.7% 172,560 172,043
80% 79.9% 153,387 153,208
70% 69.9% 134,213 133,926
60% 59.8% 115,040 114,588
50% 50.2% 95,867 96,197
40% 40.1% 76,693 76,801
30% 29.8% 57,520 57,044
20% 19.6% 38,347 37,662
10% 9.8% 19,173 18,874
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,141
Calibration 2     193,818
Calibration 3     194,720
ssj_ops@calibrated=194,269
100% 100.3% 194,269 194,920
90% 90.5% 174,842 175,732
80% 79.0% 155,415 153,435
70% 69.8% 135,988 135,636
60% 60.7% 116,561 117,833
50% 49.9% 97,135 96,982
40% 40.3% 77,708 78,370
30% 30.2% 58,281 58,667
20% 20.5% 38,854 39,911
10% 10.0% 19,427 19,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,271
Calibration 2     192,655
Calibration 3     192,200
ssj_ops@calibrated=192,427
100% 99.1% 192,427 190,768
90% 90.5% 173,184 174,158
80% 79.6% 153,942 153,115
70% 69.7% 134,699 134,031
60% 60.6% 115,456 116,554
50% 49.8% 96,214 95,856
40% 40.3% 76,971 77,578
30% 29.7% 57,728 57,104
20% 19.9% 38,485 38,210
10% 10.1% 19,243 19,349
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,732
Calibration 2     192,447
Calibration 3     192,540
ssj_ops@calibrated=192,494
100% 99.8% 192,494 192,013
90% 90.1% 173,244 173,426
80% 79.9% 153,995 153,804
70% 70.2% 134,746 135,069
60% 59.6% 115,496 114,712
50% 49.8% 96,247 95,868
40% 40.3% 76,997 77,487
30% 29.9% 57,748 57,617
20% 19.9% 38,499 38,258
10% 10.0% 19,249 19,336
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,016
Calibration 2     190,412
Calibration 3     190,691
ssj_ops@calibrated=190,551
100% 99.4% 190,551 189,370
90% 90.3% 171,496 172,034
80% 80.3% 152,441 153,060
70% 70.0% 133,386 133,308
60% 59.9% 114,331 114,151
50% 50.0% 95,276 95,293
40% 40.2% 76,221 76,605
30% 30.1% 57,165 57,409
20% 19.9% 38,110 37,965
10% 10.3% 19,055 19,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-STEC76V9EAP.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,779
Calibration 2     191,459
Calibration 3     191,529
ssj_ops@calibrated=191,494
100% 100.2% 191,494 191,903
90% 90.1% 172,344 172,537
80% 79.8% 153,195 152,807
70% 69.2% 134,046 132,510
60% 60.0% 114,896 114,907
50% 50.4% 95,747 96,444
40% 40.0% 76,598 76,670
30% 29.9% 57,448 57,230
20% 20.3% 38,299 38,812
10% 10.1% 19,149 19,366
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

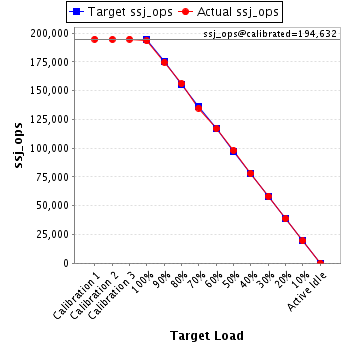

JVM 'WIN-STEC76V9EAP.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,721
Calibration 2     194,489
Calibration 3     194,776
ssj_ops@calibrated=194,632
100% 99.3% 194,632 193,308
90% 89.8% 175,169 174,713
80% 80.2% 155,706 156,137
70% 69.3% 136,243 134,810
60% 60.1% 116,779 117,054
50% 50.4% 97,316 98,009
40% 40.1% 77,853 77,979
30% 29.9% 58,390 58,279
20% 19.9% 38,926 38,670
10% 10.0% 19,463 19,478
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
