SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2020 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY RX4770 M6 | SPECpower_ssj2008 = 11,077 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Oct 7, 2020 |
| Hardware Availability: | Nov-2020 | Software Availability: | Jul-2020 | Publication: | Nov 4, 2020 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

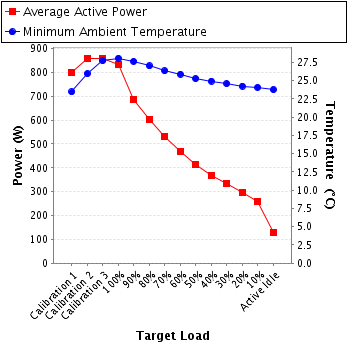

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 800 | 23.4 |
| Calibration 2 | 859 | 25.9 |
| Calibration 3 | 860 | 27.7 |
| 100% | 834 | 28.1 |
| 90% | 688 | 27.6 |
| 80% | 603 | 27.0 |
| 70% | 532 | 26.3 |
| 60% | 467 | 25.9 |
| 50% | 413 | 25.2 |
| 40% | 370 | 24.9 |
| 30% | 333 | 24.6 |
| 20% | 296 | 24.2 |
| 10% | 257 | 24.1 |
| Active Idle | 129 | 23.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | Hioki3336 |
| Serial Number: | 170130930 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
| Accredited by: | HIOKI E.E. CORPORATION |
| Calibration Label: | H06400086-2002 |
| Date of Calibration: | 12-Feb-2020 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.1-a2d19f26-20190717 |
| Setup Description: | Connected to PSU 1 and PSU 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 200 | 300.0 | 4.32 | 5.0 | 0.931 | 800 | 0.2% |
| Calibration 2 | 200 | 300.0 | 4.58 | 5.0 | 0.938 | 859 | 0.2% |
| Calibration 3 | 200 | 300.0 | 4.59 | 5.0 | 0.938 | 860 | 0.2% |
| 100% | 200 | 300.0 | 4.37 | 5.0 | 0.954 | 834 | 0.2% |
| 90% | 200 | 300.0 | 3.67 | 5.0 | 0.938 | 688 | 0.2% |
| 80% | 200 | 300.0 | 3.27 | 5.0 | 0.924 | 603 | 0.3% |
| 70% | 200 | 300.0 | 2.93 | 5.0 | 0.910 | 532 | 0.3% |
| 60% | 200 | 300.0 | 2.61 | 5.0 | 0.894 | 467 | 0.3% |
| 50% | 200 | 300.0 | 2.35 | 5.0 | 0.881 | 413 | 0.3% |
| 40% | 200 | 300.0 | 2.13 | 5.0 | 0.868 | 370 | 0.4% |
| 30% | 200 | 300.0 | 1.93 | 5.0 | 0.862 | 333 | 0.4% |
| 20% | 200 | 300.0 | 1.74 | 2.0 | 0.849 | 296 | 0.3% |
| 10% | 200 | 300.0 | 1.54 | 2.0 | 0.835 | 257 | 0.3% |
| Active Idle | 202 | 300.0 | 0.860 | 2.0 | 0.740 | 129 | 0.4% |
