Hewlett Packard Enterprise Superdome Flex 280 - 8 Socket SPECpower_ssj2008 = 7,369 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 15, 2020
Hardware Availability: Dec-2020 Software Availability: Jul-2020 Publication: Nov 4, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 2,094 23.5
Calibration 2 2,134 23.4
Calibration 3 2,139 23.4
100% 2,132 23.3
90% 1,960 23.3
80% 1,783 23.3
70% 1,584 23.4
60% 1,405 23.3
50% 1,273 23.4
40% 1,157 23.4
30% 1,046 23.3
20% 932 23.6
10% 815 23.7
Active Idle 503 23.4

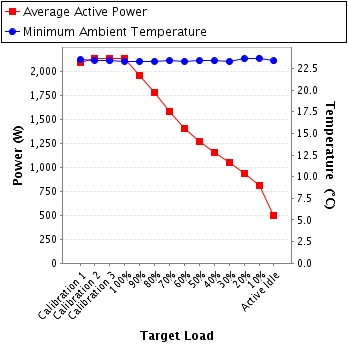

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB45372
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-FQ7PK-60-1
Date of Calibration: 12-Jun-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: SUT Power Supplies 1, and 2
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: C2SF14002V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-FQ7PK-40-1
Date of Calibration: 16-Jun-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: SUT Power Supplies 5 and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 4.94 10.0 0.991 1,046 0.5%
Calibration 2 214 300.0 4.95 10.0 0.991 1,050 0.5%
Calibration 3 214 300.0 4.95 10.0 0.991 1,051 0.5%
100% 214 300.0 4.93 10.0 0.991 1,048 0.5%
90% 214 300.0 4.60 10.0 0.990 976 0.5%
80% 214 300.0 4.24 5.0 0.990 900 0.3%
70% 214 300.0 3.78 5.0 0.989 801 0.4%
60% 215 300.0 3.36 5.0 0.986 712 0.4%
50% 215 300.0 3.06 5.0 0.982 645 0.4%
40% 215 300.0 2.79 5.0 0.978 588 0.4%
30% 215 300.0 2.54 5.0 0.974 532 0.5%
20% 215 300.0 2.28 5.0 0.970 474 0.5%
10% 215 300.0 2.00 5.0 0.964 415 0.6%
Active Idle 215 300.0 1.30 2.0 0.924 259 0.5%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 5.00 10.0 0.989 1,048 0.3%
Calibration 2 212 300.0 5.17 10.0 0.990 1,084 0.3%
Calibration 3 212 300.0 5.18 10.0 0.990 1,088 0.3%
100% 213 300.0 5.15 10.0 0.990 1,084 0.3%
90% 213 300.0 4.68 10.0 0.989 984 0.3%
80% 213 300.0 4.20 5.0 0.987 883 0.2%
70% 213 300.0 3.74 5.0 0.986 784 0.2%
60% 213 300.0 3.31 5.0 0.982 694 0.3%
50% 213 300.0 3.01 5.0 0.977 628 0.3%
40% 213 300.0 2.74 5.0 0.972 569 0.3%
30% 213 300.0 2.49 5.0 0.967 514 0.3%
20% 213 300.0 2.23 5.0 0.961 458 0.3%
10% 213 300.0 1.97 5.0 0.952 400 0.3%
Active Idle 214 300.0 1.28 2.0 0.894 244 0.3%

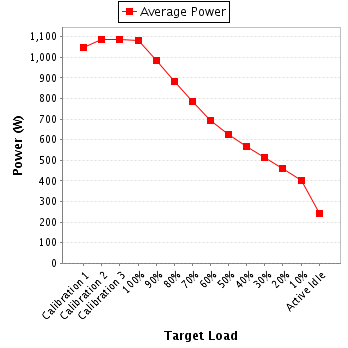

Power details for pwr2
