UNIWIDE RC2212 SPECpower_ssj2008 = 2,901 overall ssj_ops/watt
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Single Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Feb 1, 2021
Hardware Availability: Jul-2020 Software Availability: Sep-2018 Publication: Feb 26, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 292 22.0
Calibration 2 293 21.9
Calibration 3 294 22.1
100% 291 21.9
90% 278 22.2
80% 267 21.9
70% 258 22.2
60% 247 21.9
50% 237 22.0
40% 224 21.7
30% 210 21.4
20% 202 21.6
10% 171 21.4
Active Idle 127 21.1

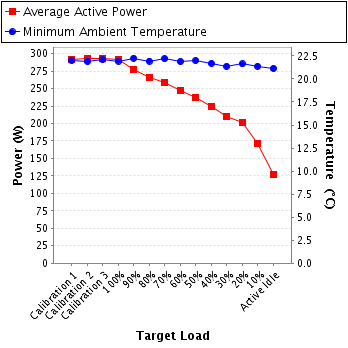

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Tektronix
Model: PA1000
Serial Number: C040933
Connectivity: USBtmc
Input Connection: Default
Metrology Institute: SS TECHNOLOGY INC.
Accredited by: KOLAS (Korea Laboratory Accreditation Scheme)
Calibration Label: SS-200417-0005
Date of Calibration: 20-Apr-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-3caa3cc4-20190717
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB(UART)
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 218 353.6 1.36 7.1 0.987 292 0.7%
Calibration 2 218 353.6 1.36 7.1 0.988 293 0.7%
Calibration 3 218 353.6 1.36 7.1 0.988 294 0.7%
100% 218 353.6 1.36 7.1 0.987 291 0.7%
90% 218 353.6 1.29 7.1 0.985 278 0.7%
80% 218 353.6 1.25 7.1 0.983 267 0.7%
70% 218 353.6 1.21 7.1 0.981 258 0.7%
60% 218 353.6 1.16 3.5 0.978 247 0.6%
50% 218 353.6 1.12 3.5 0.975 237 0.6%
40% 218 353.6 1.06 3.5 0.971 224 0.6%
30% 218 353.6 0.997 3.5 0.965 210 0.7%
20% 218 353.6 0.966 3.5 0.960 202 0.7%
10% 218 353.6 0.834 3.5 0.943 171 0.8%
Active Idle 218 353.6 0.605 1.4 0.961 127 0.7%
Power details for pwr1
