Hewlett Packard Enterprise ProLiant DL385 Gen10 Plus SPECpower_ssj2008 = 18,329 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 18, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2020 Publication: Mar 15, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 12,550,024 546 22,966
90% 90.1% 11,361,817 510 22,256
80% 79.9% 10,083,515 470 21,452
70% 70.0% 8,836,028 430 20,550
60% 60.0% 7,565,367 391 19,355
50% 50.0% 6,304,595 336 18,778
40% 40.0% 5,051,587 287 17,626
30% 30.0% 3,782,480 260 14,565
20% 20.0% 2,523,158 232 10,891
10% 10.0% 1,258,197 200 6,297
Active Idle 0 120 0
∑ssj_ops / ∑power = 18,329

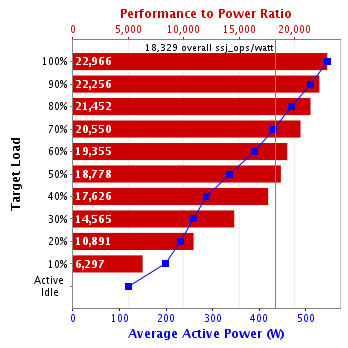

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL385 Gen10 Plus
Form Factor: 2U
CPU Name: AMD EPYC 7763 2.45 GHz
CPU Characteristics: 64-Core, 2.45GHz 256MB L3 Cache
CPU Frequency (MHz): 2450
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per core
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 8GB 1Rx8 PC4-3200AA-R slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: None
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP5
OS Version: 4.12.14-122.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 128 }
JVM Instances: 128
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: A42 v2.40 (02/15/2021)
Management Firmware Version: 2.40 Feb 07 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2012 R2
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_181-b13 (build 25.181-b13, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-FP7QP-100-1
Date of Calibration: 22-May-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 546 23.4
90% 510 23.4
80% 470 23.4
70% 430 23.4
60% 391 23.4
50% 336 23.5
40% 287 23.5
30% 260 23.6
20% 232 23.6
10% 200 23.6
Active Idle 120 23.6
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 23.4 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,621,368
Calibration 2     12,623,229
Calibration 3     12,605,892
ssj_ops@calibrated=12,614,560
100% 99.5% 12,614,560 12,550,024
90% 90.1% 11,353,104 11,361,817
80% 79.9% 10,091,648 10,083,515
70% 70.0% 8,830,192 8,836,028
60% 60.0% 7,568,736 7,565,367
50% 50.0% 6,307,280 6,304,595
40% 40.0% 5,045,824 5,051,587
30% 30.0% 3,784,368 3,782,480
20% 20.0% 2,522,912 2,523,158
10% 10.0% 1,261,456 1,258,197
Active Idle   0 0
