Hewlett Packard Enterprise ProLiant DL365 Gen10 Plus SPECpower_ssj2008 = 18,268 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 18, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2020 Publication: Mar 15, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 451 21.2
Calibration 2 466 21.2
Calibration 3 468 21.3
100% 468 21.3
90% 443 21.2
80% 417 21.2
70% 388 21.2
60% 348 21.2
50% 298 21.3
40% 267 21.2
30% 242 21.2
20% 215 21.2
10% 185 21.2
Active Idle 109 21.2

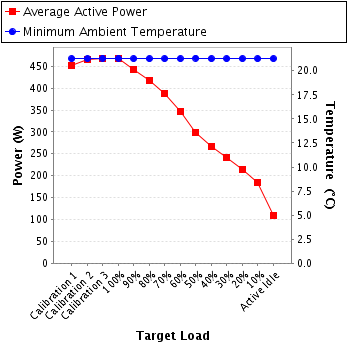

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K308556
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat
Calibration Label: 5-FQ7PK-200-1
Date of Calibration: 17-Jun-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supplies
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 216 300.0 2.12 5.0 0.987 451 0.5%
Calibration 2 216 300.0 2.19 5.0 0.988 466 0.5%
Calibration 3 216 300.0 2.20 5.0 0.988 468 0.5%
100% 216 300.0 2.20 5.0 0.988 468 0.5%
90% 216 300.0 2.08 5.0 0.987 443 0.5%
80% 216 300.0 1.96 5.0 0.984 417 0.5%
70% 216 300.0 1.83 5.0 0.982 388 0.6%
60% 216 300.0 1.64 5.0 0.980 348 0.6%
50% 216 300.0 1.42 2.0 0.974 298 0.4%
40% 216 300.0 1.27 2.0 0.970 267 0.4%
30% 216 300.0 1.16 2.0 0.964 242 0.5%
20% 216 300.0 1.04 2.0 0.960 215 0.5%
10% 216 300.0 0.903 2.0 0.947 185 0.5%
Active Idle 216 300.0 0.593 1.0 0.859 109 0.5%
Power details for pwr1
