Hewlett Packard Enterprise Apollo XL225n Gen10 Plus ssj_ops@100% = 12,468,900
ssj_ops@100% per JVM = 97,413
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 21, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2020 Publication: Mar 15, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,538,008
Calibration 2     12,534,840
Calibration 3     12,512,840
ssj_ops@calibrated=12,523,840
100% 99.6% 12,523,840 12,468,900
90% 90.1% 11,271,456 11,280,529
80% 80.1% 10,019,072 10,030,244
70% 70.1% 8,766,688 8,775,778
60% 60.1% 7,514,304 7,521,375
50% 50.0% 6,261,920 6,259,724
40% 40.0% 5,009,536 5,015,313
30% 30.0% 3,757,152 3,760,017
20% 20.0% 2,504,768 2,508,418
10% 10.0% 1,252,384 1,254,454
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 3
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Apollo XL225n Gen10 Plus
Form Factor: Blade
CPU Name: AMD EPYC 7763 2.45 GHz
CPU Characteristics: 64-Core, 2.45 GHz, 256MB L3 Cache
CPU Frequency (MHz): 2450
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP5
OS Version: 4.12.14-122.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 128 }
JVM Instances: 128
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: A46 v2.40 (01/21/2021)
Management Firmware Version: 2.40 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SLES12SP5-Node02.001 95,999
SLES12SP5-Node02.002 102,967
SLES12SP5-Node02.003 95,003
SLES12SP5-Node02.004 99,291
SLES12SP5-Node02.005 98,261
SLES12SP5-Node02.006 95,497
SLES12SP5-Node02.007 95,796
SLES12SP5-Node02.008 100,757
SLES12SP5-Node02.009 98,021

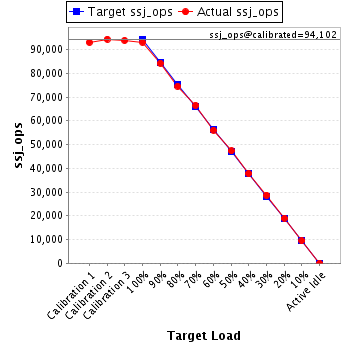

SLES12SP5-Node02.010 93,130
SLES12SP5-Node02.011 96,919

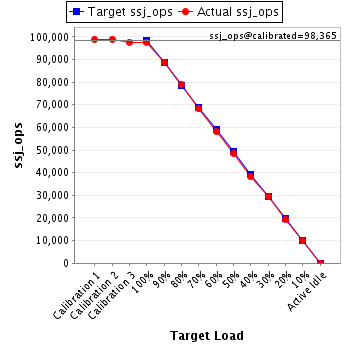

SLES12SP5-Node02.012 97,700
SLES12SP5-Node02.013 99,149
SLES12SP5-Node02.014 89,143
SLES12SP5-Node02.015 95,213

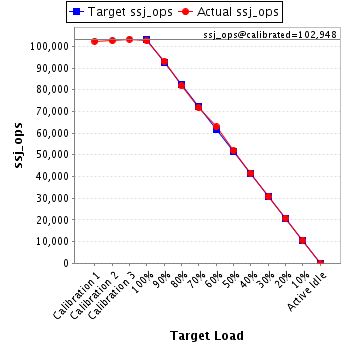

SLES12SP5-Node02.016 102,607
SLES12SP5-Node02.017 95,714
SLES12SP5-Node02.018 99,831
SLES12SP5-Node02.019 98,939
SLES12SP5-Node02.020 92,445
SLES12SP5-Node02.021 98,600
SLES12SP5-Node02.022 99,885
SLES12SP5-Node02.023 96,602
SLES12SP5-Node02.024 99,385
SLES12SP5-Node02.025 91,877
SLES12SP5-Node02.026 96,665
SLES12SP5-Node02.027 99,369
SLES12SP5-Node02.028 99,672
SLES12SP5-Node02.029 101,254
SLES12SP5-Node02.030 99,689
SLES12SP5-Node02.031 95,464
SLES12SP5-Node02.032 93,530
SLES12SP5-Node02.033 97,237
SLES12SP5-Node02.034 98,396
SLES12SP5-Node02.035 98,456
SLES12SP5-Node02.036 95,339

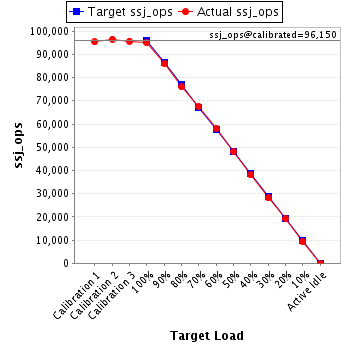

SLES12SP5-Node02.037 95,027
SLES12SP5-Node02.038 98,292
SLES12SP5-Node02.039 98,313
SLES12SP5-Node02.040 91,733
SLES12SP5-Node02.041 101,690

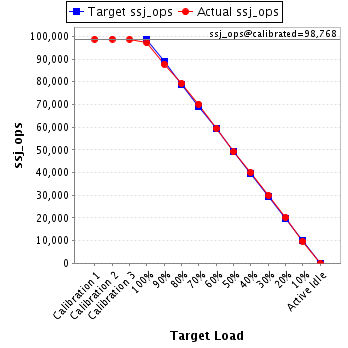

SLES12SP5-Node02.042 97,104
SLES12SP5-Node02.043 97,292
SLES12SP5-Node02.044 92,992
SLES12SP5-Node02.045 95,589
SLES12SP5-Node02.046 96,256
SLES12SP5-Node02.047 94,483
SLES12SP5-Node02.048 100,610
SLES12SP5-Node02.049 96,866
SLES12SP5-Node02.050 95,009

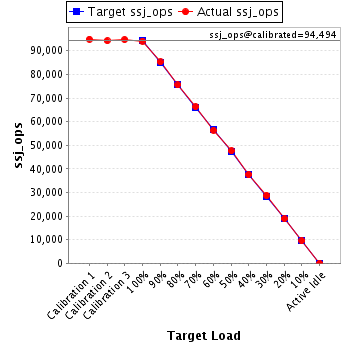

SLES12SP5-Node02.051 94,137
SLES12SP5-Node02.052 99,014
SLES12SP5-Node02.053 96,831
SLES12SP5-Node02.054 101,698

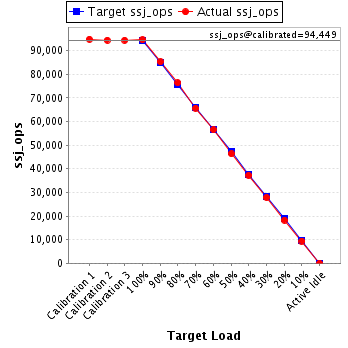

SLES12SP5-Node02.055 94,534
SLES12SP5-Node02.056 100,371
SLES12SP5-Node02.057 92,957
SLES12SP5-Node02.058 96,571
SLES12SP5-Node02.059 100,268
SLES12SP5-Node02.060 97,686
SLES12SP5-Node02.061 98,300
SLES12SP5-Node02.062 98,782
SLES12SP5-Node02.063 100,057
SLES12SP5-Node02.064 93,514
SLES12SP5-Node02.065 97,079
SLES12SP5-Node02.066 101,060
SLES12SP5-Node02.067 97,376
SLES12SP5-Node02.068 92,018
SLES12SP5-Node02.069 96,070
SLES12SP5-Node02.070 90,225
SLES12SP5-Node02.071 97,635
SLES12SP5-Node02.072 97,485
SLES12SP5-Node02.073 94,967
SLES12SP5-Node02.074 98,769
SLES12SP5-Node02.075 102,264
SLES12SP5-Node02.076 99,878
SLES12SP5-Node02.077 97,469
SLES12SP5-Node02.078 99,097
SLES12SP5-Node02.079 94,967
SLES12SP5-Node02.080 100,619
SLES12SP5-Node02.081 98,871
SLES12SP5-Node02.082 98,884
SLES12SP5-Node02.083 96,427
SLES12SP5-Node02.084 94,347
SLES12SP5-Node02.085 99,755
SLES12SP5-Node02.086 97,915
SLES12SP5-Node02.087 96,355
SLES12SP5-Node02.088 97,337
SLES12SP5-Node02.089 96,781
SLES12SP5-Node02.090 102,938
SLES12SP5-Node02.091 99,786
SLES12SP5-Node02.092 90,863
SLES12SP5-Node02.093 93,273
SLES12SP5-Node02.094 91,390
SLES12SP5-Node02.095 101,408
SLES12SP5-Node02.096 99,718
SLES12SP5-Node02.097 97,283
SLES12SP5-Node02.098 97,557
SLES12SP5-Node02.099 99,219
SLES12SP5-Node02.100 98,822
SLES12SP5-Node02.101 97,065
SLES12SP5-Node02.102 95,637
SLES12SP5-Node02.103 100,796
SLES12SP5-Node02.104 99,490
SLES12SP5-Node02.105 94,083
SLES12SP5-Node02.106 100,153
SLES12SP5-Node02.107 102,689
SLES12SP5-Node02.108 97,405

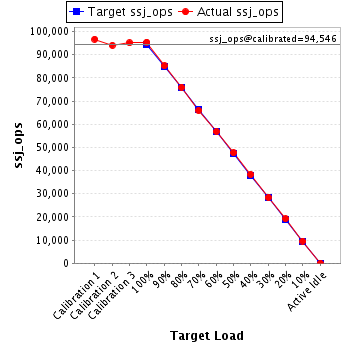

SLES12SP5-Node02.109 95,451
SLES12SP5-Node02.110 96,221
SLES12SP5-Node02.111 98,821
SLES12SP5-Node02.112 96,320
SLES12SP5-Node02.113 98,098
SLES12SP5-Node02.114 98,838
SLES12SP5-Node02.115 99,401
SLES12SP5-Node02.116 96,408
SLES12SP5-Node02.117 98,723
SLES12SP5-Node02.118 95,974
SLES12SP5-Node02.119 99,159
SLES12SP5-Node02.120 94,203
SLES12SP5-Node02.121 100,707
SLES12SP5-Node02.122 99,581
SLES12SP5-Node02.123 97,900
SLES12SP5-Node02.124 95,427
SLES12SP5-Node02.125 100,398
SLES12SP5-Node02.126 97,813
SLES12SP5-Node02.127 98,237
SLES12SP5-Node02.128 98,211
ssj_ops@100% 12,468,900
ssj_ops@100% per JVM 97,413
Graph of per-instance results
JVM 'SLES12SP5-Node02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,761
Calibration 2     96,469
Calibration 3     96,302
ssj_ops@calibrated=96,385
100% 99.6% 96,385 95,999
90% 90.2% 86,747 86,923
80% 79.7% 77,108 76,832
70% 69.3% 67,470 66,797
60% 60.1% 57,831 57,886
50% 50.6% 48,193 48,788
40% 40.2% 38,554 38,719
30% 30.0% 28,916 28,922
20% 20.2% 19,277 19,462
10% 9.7% 9,639 9,346
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,470
Calibration 2     103,081
Calibration 3     102,563
ssj_ops@calibrated=102,822
100% 100.1% 102,822 102,967
90% 90.1% 92,540 92,611
80% 80.4% 82,258 82,717
70% 70.4% 71,976 72,379
60% 60.5% 61,693 62,190
50% 50.1% 51,411 51,514
40% 40.1% 41,129 41,279
30% 30.3% 30,847 31,146
20% 20.1% 20,564 20,629
10% 9.9% 10,282 10,192
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,555
Calibration 2     95,037
Calibration 3     94,777
ssj_ops@calibrated=94,907
100% 100.1% 94,907 95,003
90% 89.7% 85,416 85,155
80% 80.4% 75,926 76,311
70% 70.3% 66,435 66,719
60% 59.7% 56,944 56,632
50% 50.2% 47,453 47,667
40% 39.8% 37,963 37,815
30% 29.8% 28,472 28,275
20% 19.8% 18,981 18,796
10% 10.3% 9,491 9,767
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,334
Calibration 2     99,454
Calibration 3     100,302
ssj_ops@calibrated=99,878
100% 99.4% 99,878 99,291
90% 89.8% 89,890 89,650
80% 79.9% 79,902 79,852
70% 70.2% 69,915 70,141
60% 60.0% 59,927 59,877
50% 51.1% 49,939 51,026
40% 40.1% 39,951 40,020
30% 30.4% 29,963 30,354
20% 20.3% 19,976 20,226
10% 9.9% 9,988 9,908
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,701
Calibration 2     97,589
Calibration 3     98,337
ssj_ops@calibrated=97,963
100% 100.3% 97,963 98,261
90% 90.3% 88,167 88,452
80% 81.0% 78,370 79,349
70% 70.3% 68,574 68,916
60% 59.2% 58,778 57,998
50% 49.7% 48,981 48,736
40% 39.7% 39,185 38,939
30% 30.3% 29,389 29,711
20% 20.3% 19,593 19,908
10% 9.9% 9,796 9,721
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,565
Calibration 2     96,208
Calibration 3     95,974
ssj_ops@calibrated=96,091
100% 99.4% 96,091 95,497
90% 90.0% 86,482 86,456
80% 79.8% 76,873 76,711
70% 69.5% 67,264 66,741
60% 58.9% 57,655 56,608
50% 49.6% 48,046 47,654
40% 40.2% 38,436 38,637
30% 29.6% 28,827 28,467
20% 19.6% 19,218 18,833
10% 10.5% 9,609 10,083
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,859
Calibration 2     95,597
Calibration 3     95,709
ssj_ops@calibrated=95,653
100% 100.1% 95,653 95,796
90% 89.8% 86,088 85,863
80% 80.2% 76,523 76,677
70% 69.5% 66,957 66,487
60% 61.3% 57,392 58,667
50% 49.3% 47,827 47,164
40% 39.9% 38,261 38,154
30% 29.9% 28,696 28,640
20% 19.9% 19,131 19,008
10% 10.4% 9,565 9,921
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,778
Calibration 2     102,496
Calibration 3     100,906
ssj_ops@calibrated=101,701
100% 99.1% 101,701 100,757
90% 90.4% 91,531 91,968
80% 79.6% 81,361 80,906
70% 69.7% 71,191 70,890
60% 59.2% 61,021 60,203
50% 50.2% 50,851 51,097
40% 39.8% 40,681 40,446
30% 30.0% 30,510 30,524
20% 20.0% 20,340 20,379
10% 10.2% 10,170 10,417
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,652
Calibration 2     98,436
Calibration 3     97,857
ssj_ops@calibrated=98,146
100% 99.9% 98,146 98,021
90% 90.4% 88,332 88,765
80% 80.0% 78,517 78,493
70% 69.2% 68,702 67,913
60% 60.2% 58,888 59,121
50% 50.2% 49,073 49,275
40% 40.1% 39,259 39,386
30% 29.5% 29,444 28,923
20% 19.9% 19,629 19,562
10% 10.0% 9,815 9,783
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,086
Calibration 2     94,366
Calibration 3     93,838
ssj_ops@calibrated=94,102
100% 99.0% 94,102 93,130
90% 89.5% 84,692 84,202
80% 79.2% 75,282 74,519
70% 70.7% 65,872 66,528
60% 59.6% 56,461 56,104
50% 50.3% 47,051 47,308
40% 40.1% 37,641 37,737
30% 30.5% 28,231 28,715
20% 20.2% 18,820 18,987
10% 10.1% 9,410 9,483
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,815
Calibration 2     96,549
Calibration 3     97,900
ssj_ops@calibrated=97,224
100% 99.7% 97,224 96,919
90% 91.0% 87,502 88,466
80% 80.9% 77,779 78,652
70% 69.5% 68,057 67,616
60% 60.7% 58,335 58,995
50% 50.3% 48,612 48,864
40% 40.7% 38,890 39,610
30% 29.4% 29,167 28,601
20% 19.7% 19,445 19,192
10% 9.9% 9,722 9,596
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,942
Calibration 2     98,994
Calibration 3     97,735
ssj_ops@calibrated=98,365
100% 99.3% 98,365 97,700
90% 90.3% 88,528 88,837
80% 80.4% 78,692 79,071
70% 69.4% 68,855 68,257
60% 59.1% 59,019 58,172
50% 49.3% 49,182 48,542
40% 38.8% 39,346 38,201
30% 30.1% 29,509 29,652
20% 19.8% 19,673 19,504
10% 10.1% 9,836 9,887
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,502
Calibration 2     100,535
Calibration 3     100,762
ssj_ops@calibrated=100,648
100% 98.5% 100,648 99,149
90% 91.3% 90,583 91,930
80% 80.5% 80,519 81,071
70% 70.4% 70,454 70,814
60% 60.2% 60,389 60,543
50% 49.6% 50,324 49,929
40% 40.1% 40,259 40,314
30% 30.6% 30,194 30,765
20% 19.8% 20,130 19,908
10% 9.8% 10,065 9,837
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,850
Calibration 2     90,706
Calibration 3     89,246
ssj_ops@calibrated=89,976
100% 99.1% 89,976 89,143
90% 90.3% 80,978 81,238
80% 78.9% 71,981 70,973
70% 69.7% 62,983 62,742
60% 60.6% 53,986 54,546
50% 50.8% 44,988 45,742
40% 39.2% 35,990 35,243
30% 30.2% 26,993 27,142
20% 20.1% 17,995 18,119
10% 10.3% 8,998 9,287
Active Idle   0 0
Graph of results

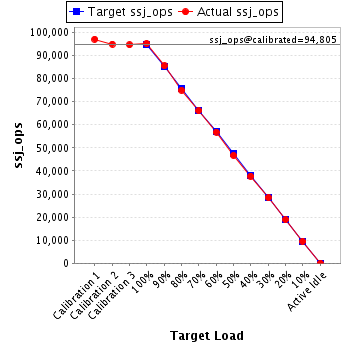

JVM 'SLES12SP5-Node02.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,087
Calibration 2     94,969
Calibration 3     94,641
ssj_ops@calibrated=94,805
100% 100.4% 94,805 95,213
90% 90.2% 85,325 85,507
80% 79.1% 75,844 75,034
70% 69.7% 66,364 66,065
60% 60.0% 56,883 56,867
50% 49.3% 47,403 46,741
40% 39.8% 37,922 37,762
30% 30.0% 28,442 28,437
20% 19.9% 18,961 18,851
10% 10.1% 9,481 9,546
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,313
Calibration 2     102,602
Calibration 3     103,293
ssj_ops@calibrated=102,948
100% 99.7% 102,948 102,607
90% 90.3% 92,653 92,915
80% 79.4% 82,358 81,791
70% 69.6% 72,063 71,676
60% 61.1% 61,769 62,889
50% 50.3% 51,474 51,807
40% 40.4% 41,179 41,600
30% 29.8% 30,884 30,690
20% 20.2% 20,590 20,796
10% 10.3% 10,295 10,646
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,274
Calibration 2     96,845
Calibration 3     95,899
ssj_ops@calibrated=96,372
100% 99.3% 96,372 95,714
90% 89.8% 86,735 86,578
80% 80.7% 77,098 77,730
70% 70.4% 67,460 67,864
60% 60.0% 57,823 57,829
50% 49.5% 48,186 47,694
40% 40.2% 38,549 38,789
30% 29.9% 28,912 28,804
20% 19.8% 19,274 19,041
10% 9.9% 9,637 9,508
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,043
Calibration 2     100,764
Calibration 3     100,551
ssj_ops@calibrated=100,658
100% 99.2% 100,658 99,831
90% 90.1% 90,592 90,676
80% 80.3% 80,526 80,815
70% 70.9% 70,460 71,397
60% 60.0% 60,395 60,423
50% 50.2% 50,329 50,481
40% 40.0% 40,263 40,277
30% 30.7% 30,197 30,917
20% 20.3% 20,132 20,424
10% 9.9% 10,066 9,950
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,043
Calibration 2     99,008
Calibration 3     98,929
ssj_ops@calibrated=98,968
100% 100.0% 98,968 98,939
90% 88.7% 89,071 87,740
80% 79.4% 79,174 78,608
70% 70.4% 69,278 69,644
60% 60.6% 59,381 59,971
50% 49.7% 49,484 49,142
40% 40.4% 39,587 39,992
30% 29.6% 29,690 29,314
20% 20.1% 19,794 19,925
10% 10.4% 9,897 10,279
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,166
Calibration 2     92,273
Calibration 3     92,606
ssj_ops@calibrated=92,440
100% 100.0% 92,440 92,445
90% 89.7% 83,196 82,886
80% 80.3% 73,952 74,195
70% 71.0% 64,708 65,586
60% 60.1% 55,464 55,552
50% 50.6% 46,220 46,813
40% 40.5% 36,976 37,478
30% 29.7% 27,732 27,493
20% 19.9% 18,488 18,412
10% 9.9% 9,244 9,140
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,194
Calibration 2     99,905
Calibration 3     98,201
ssj_ops@calibrated=99,053
100% 99.5% 99,053 98,600
90% 90.4% 89,148 89,541
80% 79.7% 79,243 78,984
70% 69.3% 69,337 68,688
60% 60.0% 59,432 59,393
50% 50.0% 49,527 49,533
40% 39.3% 39,621 38,942
30% 29.7% 29,716 29,399
20% 19.6% 19,811 19,429
10% 10.2% 9,905 10,100
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,751
Calibration 2     99,737
Calibration 3     99,852
ssj_ops@calibrated=99,795
100% 100.1% 99,795 99,885
90% 89.8% 89,815 89,659
80% 79.5% 79,836 79,333
70% 69.6% 69,856 69,471
60% 60.9% 59,877 60,788
50% 49.4% 49,897 49,336
40% 39.9% 39,918 39,780
30% 30.1% 29,938 30,079
20% 19.9% 19,959 19,842
10% 9.9% 9,979 9,900
Active Idle   0 0
Graph of results

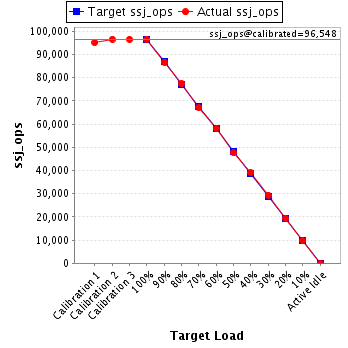

JVM 'SLES12SP5-Node02.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,126
Calibration 2     96,545
Calibration 3     96,552
ssj_ops@calibrated=96,548
100% 100.1% 96,548 96,602
90% 89.7% 86,894 86,650
80% 80.2% 77,239 77,450
70% 69.6% 67,584 67,193
60% 60.4% 57,929 58,270
50% 49.4% 48,274 47,662
40% 40.5% 38,619 39,073
30% 30.4% 28,965 29,374
20% 20.2% 19,310 19,475
10% 10.1% 9,655 9,762
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,178
Calibration 2     100,193
Calibration 3     99,291
ssj_ops@calibrated=99,742
100% 99.6% 99,742 99,385
90% 90.6% 89,768 90,402
80% 79.8% 79,794 79,581
70% 70.8% 69,819 70,576
60% 60.7% 59,845 60,511
50% 50.4% 49,871 50,286
40% 40.4% 39,897 40,302
30% 30.5% 29,923 30,450
20% 19.5% 19,948 19,476
10% 10.0% 9,974 10,021
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,158
Calibration 2     92,174
Calibration 3     91,898
ssj_ops@calibrated=92,036
100% 99.8% 92,036 91,877
90% 89.6% 82,833 82,436
80% 79.1% 73,629 72,774
70% 70.3% 64,425 64,734
60% 59.7% 55,222 54,987
50% 49.9% 46,018 45,926
40% 39.8% 36,814 36,626
30% 29.8% 27,611 27,392
20% 20.4% 18,407 18,761
10% 10.0% 9,204 9,242
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,460
Calibration 2     97,275
Calibration 3     96,840
ssj_ops@calibrated=97,058
100% 99.6% 97,058 96,665
90% 91.0% 87,352 88,329
80% 81.0% 77,646 78,648
70% 70.1% 67,940 68,084
60% 59.5% 58,235 57,753
50% 50.5% 48,529 48,997
40% 40.7% 38,823 39,514
30% 31.0% 29,117 30,062
20% 20.1% 19,412 19,494
10% 10.1% 9,706 9,792
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,053
Calibration 2     100,262
Calibration 3     100,714
ssj_ops@calibrated=100,488
100% 98.9% 100,488 99,369
90% 89.5% 90,439 89,969
80% 80.3% 80,391 80,695
70% 69.6% 70,342 69,975
60% 60.0% 60,293 60,326
50% 50.5% 50,244 50,718
40% 39.7% 40,195 39,887
30% 30.3% 30,146 30,496
20% 20.1% 20,098 20,228
10% 10.0% 10,049 10,096
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,702
Calibration 2     100,545
Calibration 3     100,210
ssj_ops@calibrated=100,377
100% 99.3% 100,377 99,672
90% 89.6% 90,340 89,909
80% 79.4% 80,302 79,697
70% 69.6% 70,264 69,904
60% 59.2% 60,226 59,405
50% 49.9% 50,189 50,131
40% 40.1% 40,151 40,283
30% 29.7% 30,113 29,858
20% 20.1% 20,075 20,136
10% 9.8% 10,038 9,863
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,910
Calibration 2     101,452
Calibration 3     101,338
ssj_ops@calibrated=101,395
100% 99.9% 101,395 101,254
90% 89.6% 91,255 90,891
80% 80.7% 81,116 81,787
70% 70.8% 70,976 71,754
60% 60.6% 60,837 61,447
50% 49.9% 50,697 50,565
40% 40.4% 40,558 41,012
30% 29.9% 30,418 30,292
20% 20.5% 20,279 20,775
10% 10.3% 10,139 10,467
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,114
Calibration 2     100,123
Calibration 3     100,444
ssj_ops@calibrated=100,283
100% 99.4% 100,283 99,689
90% 89.4% 90,255 89,692
80% 79.5% 80,227 79,727
70% 69.9% 70,198 70,145
60% 60.5% 60,170 60,627
50% 49.9% 50,142 50,032
40% 40.1% 40,113 40,203
30% 29.9% 30,085 29,943
20% 19.6% 20,057 19,663
10% 10.2% 10,028 10,242
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,128
Calibration 2     95,953
Calibration 3     96,057
ssj_ops@calibrated=96,005
100% 99.4% 96,005 95,464
90% 90.0% 86,405 86,427
80% 80.0% 76,804 76,848
70% 69.3% 67,204 66,539
60% 60.5% 57,603 58,072
50% 49.9% 48,003 47,867
40% 39.5% 38,402 37,911
30% 30.8% 28,802 29,583
20% 19.9% 19,201 19,065
10% 10.0% 9,601 9,638
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,377
Calibration 2     94,236
Calibration 3     93,684
ssj_ops@calibrated=93,960
100% 99.5% 93,960 93,530
90% 89.6% 84,564 84,200
80% 79.5% 75,168 74,682
70% 70.5% 65,772 66,223
60% 60.2% 56,376 56,544
50% 50.5% 46,980 47,411
40% 40.2% 37,584 37,795
30% 29.9% 28,188 28,067
20% 20.3% 18,792 19,104
10% 10.1% 9,396 9,475
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,403
Calibration 2     97,825
Calibration 3     98,774
ssj_ops@calibrated=98,300
100% 98.9% 98,300 97,237
90% 90.9% 88,470 89,367
80% 79.6% 78,640 78,218
70% 69.8% 68,810 68,642
60% 60.2% 58,980 59,167
50% 49.3% 49,150 48,457
40% 40.7% 39,320 39,983
30% 30.1% 29,490 29,569
20% 20.0% 19,660 19,637
10% 10.0% 9,830 9,808
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,306
Calibration 2     97,599
Calibration 3     98,871
ssj_ops@calibrated=98,235
100% 100.2% 98,235 98,396
90% 89.6% 88,411 87,971
80% 80.0% 78,588 78,630
70% 69.8% 68,764 68,550
60% 60.0% 58,941 58,911
50% 51.0% 49,117 50,080
40% 40.4% 39,294 39,641
30% 29.4% 29,470 28,887
20% 19.9% 19,647 19,503
10% 9.9% 9,823 9,737
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,054
Calibration 2     98,737
Calibration 3     98,134
ssj_ops@calibrated=98,436
100% 100.0% 98,436 98,456
90% 90.9% 88,592 89,523
80% 79.2% 78,748 77,979
70% 69.6% 68,905 68,516
60% 59.6% 59,061 58,683
50% 49.5% 49,218 48,733
40% 40.1% 39,374 39,437
30% 30.3% 29,531 29,875
20% 20.3% 19,687 19,970
10% 10.4% 9,844 10,258
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,058
Calibration 2     95,275
Calibration 3     95,280
ssj_ops@calibrated=95,278
100% 100.1% 95,278 95,339
90% 90.0% 85,750 85,709
80% 80.7% 76,222 76,916
70% 70.9% 66,694 67,522
60% 60.7% 57,167 57,849
50% 49.1% 47,639 46,766
40% 40.3% 38,111 38,424
30% 30.0% 28,583 28,578
20% 20.5% 19,056 19,579
10% 10.0% 9,528 9,521
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,347
Calibration 2     96,552
Calibration 3     95,748
ssj_ops@calibrated=96,150
100% 98.8% 96,150 95,027
90% 89.4% 86,535 85,996
80% 79.0% 76,920 75,970
70% 70.2% 67,305 67,473
60% 60.3% 57,690 57,971
50% 50.0% 48,075 48,046
40% 39.6% 38,460 38,050
30% 29.3% 28,845 28,199
20% 20.0% 19,230 19,209
10% 9.7% 9,615 9,321
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,491
Calibration 2     98,672
Calibration 3     97,561
ssj_ops@calibrated=98,117
100% 100.2% 98,117 98,292
90% 90.4% 88,305 88,650
80% 80.8% 78,493 79,267
70% 70.1% 68,682 68,800
60% 60.4% 58,870 59,218
50% 49.8% 49,058 48,852
40% 40.7% 39,247 39,892
30% 29.8% 29,435 29,279
20% 20.3% 19,623 19,871
10% 9.9% 9,812 9,718
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,795
Calibration 2     99,565
Calibration 3     98,355
ssj_ops@calibrated=98,960
100% 99.3% 98,960 98,313
90% 89.9% 89,064 89,003
80% 80.1% 79,168 79,291
70% 68.6% 69,272 67,866
60% 61.0% 59,376 60,381
50% 49.8% 49,480 49,257
40% 41.0% 39,584 40,568
30% 30.1% 29,688 29,831
20% 20.4% 19,792 20,217
10% 9.9% 9,896 9,762
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,154
Calibration 2     92,757
Calibration 3     91,484
ssj_ops@calibrated=92,121
100% 99.6% 92,121 91,733
90% 89.8% 82,908 82,753
80% 80.8% 73,696 74,450
70% 69.2% 64,484 63,715
60% 59.6% 55,272 54,902
50% 49.8% 46,060 45,863
40% 39.6% 36,848 36,523
30% 30.3% 27,636 27,892
20% 20.0% 18,424 18,453
10% 10.0% 9,212 9,171
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,695
Calibration 2     101,716
Calibration 3     100,988
ssj_ops@calibrated=101,352
100% 100.3% 101,352 101,690
90% 89.5% 91,217 90,759
80% 79.8% 81,082 80,858
70% 70.4% 70,947 71,342
60% 60.6% 60,811 61,441
50% 49.8% 50,676 50,484
40% 40.0% 40,541 40,550
30% 30.2% 30,406 30,616
20% 19.6% 20,270 19,911
10% 9.9% 10,135 10,065
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,743
Calibration 2     98,787
Calibration 3     98,750
ssj_ops@calibrated=98,768
100% 98.3% 98,768 97,104
90% 88.9% 88,892 87,814
80% 80.4% 79,015 79,382
70% 70.9% 69,138 70,072
60% 60.2% 59,261 59,483
50% 49.7% 49,384 49,127
40% 40.5% 39,507 40,008
30% 30.3% 29,631 29,891
20% 20.5% 19,754 20,218
10% 9.7% 9,877 9,629
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,724
Calibration 2     97,600
Calibration 3     97,565
ssj_ops@calibrated=97,583
100% 99.7% 97,583 97,292
90% 89.9% 87,824 87,734
80% 80.6% 78,066 78,637
70% 70.9% 68,308 69,180
60% 59.9% 58,550 58,501
50% 50.1% 48,791 48,869
40% 40.0% 39,033 39,024
30% 30.4% 29,275 29,712
20% 20.1% 19,517 19,593
10% 9.9% 9,758 9,696
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,988
Calibration 2     93,318
Calibration 3     93,691
ssj_ops@calibrated=93,504
100% 99.5% 93,504 92,992
90% 89.1% 84,154 83,326
80% 79.9% 74,803 74,687
70% 70.4% 65,453 65,863
60% 58.7% 56,102 54,907
50% 50.2% 46,752 46,974
40% 39.6% 37,402 36,993
30% 29.9% 28,051 27,958
20% 19.7% 18,701 18,421
10% 9.7% 9,350 9,042
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,016
Calibration 2     96,114
Calibration 3     96,092
ssj_ops@calibrated=96,103
100% 99.5% 96,103 95,589
90% 89.9% 86,493 86,413
80% 81.2% 76,882 77,992
70% 70.7% 67,272 67,969
60% 59.7% 57,662 57,375
50% 50.1% 48,052 48,170
40% 40.2% 38,441 38,641
30% 30.5% 28,831 29,342
20% 19.9% 19,221 19,158
10% 10.3% 9,610 9,898
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,358
Calibration 2     97,280
Calibration 3     96,014
ssj_ops@calibrated=96,647
100% 99.6% 96,647 96,256
90% 90.3% 86,982 87,297
80% 80.7% 77,317 77,979
70% 69.9% 67,653 67,591
60% 60.3% 57,988 58,241
50% 50.6% 48,323 48,892
40% 40.3% 38,659 38,906
30% 30.4% 28,994 29,368
20% 20.1% 19,329 19,414
10% 9.7% 9,665 9,383
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,292
Calibration 2     95,170
Calibration 3     95,320
ssj_ops@calibrated=95,245
100% 99.2% 95,245 94,483
90% 90.0% 85,721 85,684
80% 80.8% 76,196 77,003
70% 71.0% 66,672 67,578
60% 60.5% 57,147 57,665
50% 49.8% 47,623 47,407
40% 39.7% 38,098 37,807
30% 30.4% 28,574 28,998
20% 19.5% 19,049 18,562
10% 10.0% 9,525 9,494
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,407
Calibration 2     101,259
Calibration 3     101,007
ssj_ops@calibrated=101,133
100% 99.5% 101,133 100,610
90% 89.6% 91,020 90,586
80% 79.9% 80,907 80,789
70% 70.2% 70,793 71,038
60% 60.5% 60,680 61,147
50% 50.7% 50,567 51,322
40% 40.5% 40,453 40,958
30% 30.3% 30,340 30,682
20% 19.5% 20,227 19,767
10% 10.0% 10,113 10,067
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,649
Calibration 2     96,810
Calibration 3     96,766
ssj_ops@calibrated=96,788
100% 100.1% 96,788 96,866
90% 89.8% 87,110 86,961
80% 81.2% 77,431 78,571
70% 70.5% 67,752 68,223
60% 60.3% 58,073 58,373
50% 49.8% 48,394 48,153
40% 39.5% 38,715 38,260
30% 29.9% 29,037 28,921
20% 19.5% 19,358 18,853
10% 10.0% 9,679 9,696
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,449
Calibration 2     95,918
Calibration 3     96,094
ssj_ops@calibrated=96,006
100% 99.0% 96,006 95,009
90% 90.3% 86,405 86,732
80% 80.7% 76,805 77,482
70% 70.2% 67,204 67,350
60% 60.3% 57,603 57,871
50% 49.5% 48,003 47,531
40% 39.9% 38,402 38,304
30% 30.3% 28,802 29,089
20% 20.5% 19,201 19,658
10% 10.1% 9,601 9,662
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,925
Calibration 2     94,235
Calibration 3     94,754
ssj_ops@calibrated=94,494
100% 99.6% 94,494 94,137
90% 90.2% 85,045 85,261
80% 79.9% 75,596 75,513
70% 70.1% 66,146 66,272
60% 59.7% 56,697 56,400
50% 50.4% 47,247 47,609
40% 39.7% 37,798 37,553
30% 30.4% 28,348 28,679
20% 20.0% 18,899 18,865
10% 10.1% 9,449 9,558
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,888
Calibration 2     99,740
Calibration 3     99,384
ssj_ops@calibrated=99,562
100% 99.4% 99,562 99,014
90% 89.8% 89,606 89,410
80% 80.4% 79,650 79,999
70% 70.3% 69,693 69,964
60% 59.4% 59,737 59,172
50% 49.1% 49,781 48,932
40% 40.4% 39,825 40,207
30% 30.2% 29,869 30,079
20% 20.2% 19,912 20,071
10% 9.6% 9,956 9,587
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,804
Calibration 2     97,808
Calibration 3     96,932
ssj_ops@calibrated=97,370
100% 99.4% 97,370 96,831
90% 90.0% 87,633 87,596
80% 80.1% 77,896 77,990
70% 71.0% 68,159 69,084
60% 59.1% 58,422 57,582
50% 50.4% 48,685 49,091
40% 40.5% 38,948 39,449
30% 29.8% 29,211 29,031
20% 20.0% 19,474 19,512
10% 10.0% 9,737 9,742
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,927
Calibration 2     101,410
Calibration 3     101,799
ssj_ops@calibrated=101,605
100% 100.1% 101,605 101,698
90% 90.6% 91,444 92,026
80% 80.4% 81,284 81,657
70% 69.9% 71,123 70,993
60% 60.5% 60,963 61,488
50% 50.6% 50,802 51,415
40% 40.7% 40,642 41,352
30% 30.0% 30,481 30,437
20% 20.1% 20,321 20,408
10% 9.8% 10,160 10,000
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,848
Calibration 2     94,448
Calibration 3     94,450
ssj_ops@calibrated=94,449
100% 100.1% 94,449 94,534
90% 90.3% 85,004 85,289
80% 80.9% 75,559 76,367
70% 69.6% 66,114 65,698
60% 59.8% 56,669 56,488
50% 49.1% 47,225 46,368
40% 39.5% 37,780 37,264
30% 29.5% 28,335 27,818
20% 19.4% 18,890 18,305
10% 10.0% 9,445 9,412
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,209
Calibration 2     101,719
Calibration 3     100,117
ssj_ops@calibrated=100,918
100% 99.5% 100,918 100,371
90% 90.4% 90,826 91,228
80% 80.3% 80,734 81,029
70% 70.4% 70,643 71,064
60% 59.9% 60,551 60,471
50% 50.6% 50,459 51,044
40% 39.8% 40,367 40,129
30% 30.0% 30,275 30,271
20% 20.0% 20,184 20,149
10% 10.3% 10,092 10,350
Active Idle   0 0
Graph of results

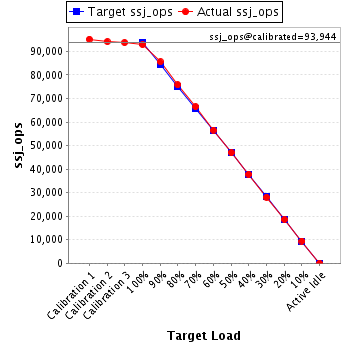

JVM 'SLES12SP5-Node02.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,198
Calibration 2     94,137
Calibration 3     93,751
ssj_ops@calibrated=93,944
100% 99.0% 93,944 92,957
90% 91.1% 84,549 85,586
80% 80.7% 75,155 75,775
70% 70.8% 65,761 66,510
60% 60.2% 56,366 56,594
50% 50.0% 46,972 46,993
40% 40.2% 37,577 37,800
30% 29.9% 28,183 28,075
20% 19.8% 18,789 18,584
10% 10.0% 9,394 9,435
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,432
Calibration 2     97,668
Calibration 3     96,749
ssj_ops@calibrated=97,209
100% 99.3% 97,209 96,571
90% 90.5% 87,488 87,957
80% 81.4% 77,767 79,091
70% 69.8% 68,046 67,825
60% 60.4% 58,325 58,679
50% 49.7% 48,604 48,330
40% 40.2% 38,884 39,112
30% 29.6% 29,163 28,772
20% 20.1% 19,442 19,541
10% 10.1% 9,721 9,836
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,880
Calibration 2     101,064
Calibration 3     102,228
ssj_ops@calibrated=101,646
100% 98.6% 101,646 100,268
90% 90.6% 91,481 92,102
80% 80.2% 81,317 81,476
70% 71.0% 71,152 72,197
60% 60.2% 60,988 61,150
50% 50.0% 50,823 50,796
40% 39.9% 40,658 40,549
30% 29.5% 30,494 30,031
20% 19.6% 20,329 19,951
10% 10.0% 10,165 10,196
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,942
Calibration 2     97,968
Calibration 3     97,414
ssj_ops@calibrated=97,691
100% 100.0% 97,691 97,686
90% 89.8% 87,922 87,740
80% 79.3% 78,153 77,463
70% 69.8% 68,384 68,175
60% 60.5% 58,615 59,112
50% 49.6% 48,845 48,455
40% 40.2% 39,076 39,256
30% 30.4% 29,307 29,689
20% 19.6% 19,538 19,167
10% 9.8% 9,769 9,617
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,674
Calibration 2     98,568
Calibration 3     98,234
ssj_ops@calibrated=98,401
100% 99.9% 98,401 98,300
90% 90.2% 88,561 88,761
80% 80.2% 78,721 78,890
70% 70.4% 68,881 69,291
60% 59.3% 59,041 58,338
50% 49.8% 49,201 49,030
40% 39.6% 39,360 38,966
30% 30.0% 29,520 29,543
20% 19.2% 19,680 18,927
10% 10.1% 9,840 9,978
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,766
Calibration 2     99,605
Calibration 3     99,262
ssj_ops@calibrated=99,433
100% 99.3% 99,433 98,782
90% 90.8% 89,490 90,266
80% 80.0% 79,547 79,583
70% 69.7% 69,603 69,320
60% 60.3% 59,660 59,977
50% 50.2% 49,717 49,901
40% 39.7% 39,773 39,489
30% 30.4% 29,830 30,179
20% 19.9% 19,887 19,816
10% 10.4% 9,943 10,342
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,731
Calibration 2     100,130
Calibration 3     100,680
ssj_ops@calibrated=100,405
100% 99.7% 100,405 100,057
90% 89.5% 90,364 89,859
80% 80.4% 80,324 80,681
70% 70.1% 70,283 70,396
60% 60.3% 60,243 60,519
50% 50.3% 50,202 50,485
40% 40.0% 40,162 40,194
30% 30.1% 30,121 30,256
20% 20.4% 20,081 20,514
10% 9.7% 10,040 9,736
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,256
Calibration 2     94,717
Calibration 3     93,872
ssj_ops@calibrated=94,294
100% 99.2% 94,294 93,514
90% 88.1% 84,865 83,061
80% 80.5% 75,435 75,940
70% 68.7% 66,006 64,792
60% 60.2% 56,576 56,761
50% 49.7% 47,147 46,844
40% 40.0% 37,718 37,675
30% 29.6% 28,288 27,904
20% 20.0% 18,859 18,822
10% 10.6% 9,429 9,950
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,028
Calibration 2     97,502
Calibration 3     97,069
ssj_ops@calibrated=97,285
100% 99.8% 97,285 97,079
90% 90.1% 87,557 87,685
80% 80.2% 77,828 78,014
70% 69.3% 68,100 67,425
60% 59.2% 58,371 57,623
50% 50.0% 48,643 48,599
40% 39.2% 38,914 38,100
30% 29.9% 29,186 29,112
20% 20.2% 19,457 19,632
10% 10.3% 9,729 10,023
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,455
Calibration 2     100,905
Calibration 3     101,214
ssj_ops@calibrated=101,059
100% 100.0% 101,059 101,060
90% 89.6% 90,954 90,554
80% 78.8% 80,848 79,673
70% 69.7% 70,742 70,484
60% 60.5% 60,636 61,115
50% 49.5% 50,530 50,053
40% 39.3% 40,424 39,671
30% 30.2% 30,318 30,567
20% 20.5% 20,212 20,707
10% 10.1% 10,106 10,183
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,561
Calibration 2     97,718
Calibration 3     97,708
ssj_ops@calibrated=97,713
100% 99.7% 97,713 97,376
90% 90.6% 87,941 88,497
80% 80.4% 78,170 78,519
70% 69.5% 68,399 67,911
60% 59.8% 58,628 58,473
50% 50.4% 48,856 49,226
40% 40.1% 39,085 39,154
30% 30.1% 29,314 29,392
20% 20.5% 19,543 20,030
10% 9.9% 9,771 9,671
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,137
Calibration 2     93,237
Calibration 3     91,879
ssj_ops@calibrated=92,558
100% 99.4% 92,558 92,018
90% 90.1% 83,302 83,415
80% 80.8% 74,046 74,759
70% 69.4% 64,790 64,227
60% 60.4% 55,535 55,943
50% 50.2% 46,279 46,459
40% 40.2% 37,023 37,229
30% 29.9% 27,767 27,644
20% 20.1% 18,512 18,633
10% 9.6% 9,256 8,912
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,272
Calibration 2     96,563
Calibration 3     95,753
ssj_ops@calibrated=96,158
100% 99.9% 96,158 96,070
90% 90.2% 86,542 86,731
80% 79.6% 76,926 76,516
70% 69.5% 67,311 66,805
60% 60.6% 57,695 58,286
50% 50.1% 48,079 48,171
40% 39.5% 38,463 37,960
30% 29.4% 28,847 28,271
20% 19.7% 19,232 18,987
10% 10.1% 9,616 9,667
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,426
Calibration 2     90,664
Calibration 3     91,633
ssj_ops@calibrated=91,148
100% 99.0% 91,148 90,225
90% 89.4% 82,034 81,526
80% 80.9% 72,919 73,756
70% 70.1% 63,804 63,907
60% 59.8% 54,689 54,524
50% 50.2% 45,574 45,794
40% 40.3% 36,459 36,707
30% 29.7% 27,345 27,066
20% 20.1% 18,230 18,338
10% 10.0% 9,115 9,150
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,769
Calibration 2     97,558
Calibration 3     97,521
ssj_ops@calibrated=97,540
100% 100.1% 97,540 97,635
90% 90.3% 87,786 88,066
80% 80.0% 78,032 78,073
70% 70.5% 68,278 68,780
60% 59.5% 58,524 58,045
50% 49.4% 48,770 48,230
40% 40.2% 39,016 39,214
30% 30.6% 29,262 29,833
20% 20.0% 19,508 19,483
10% 9.9% 9,754 9,700
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,594
Calibration 2     98,330
Calibration 3     98,417
ssj_ops@calibrated=98,373
100% 99.1% 98,373 97,485
90% 88.7% 88,536 87,239
80% 80.4% 78,699 79,109
70% 69.8% 68,861 68,698
60% 60.3% 59,024 59,340
50% 49.6% 49,187 48,841
40% 39.8% 39,349 39,141
30% 29.5% 29,512 29,067
20% 20.4% 19,675 20,037
10% 9.8% 9,837 9,592
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,079
Calibration 2     95,329
Calibration 3     94,503
ssj_ops@calibrated=94,916
100% 100.1% 94,916 94,967
90% 91.0% 85,425 86,327
80% 80.7% 75,933 76,635
70% 71.2% 66,441 67,549
60% 60.4% 56,950 57,376
50% 49.3% 47,458 46,816
40% 40.2% 37,966 38,167
30% 29.2% 28,475 27,750
20% 20.1% 18,983 19,108
10% 10.2% 9,492 9,671
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,285
Calibration 2     99,744
Calibration 3     99,790
ssj_ops@calibrated=99,767
100% 99.0% 99,767 98,769
90% 89.8% 89,790 89,565
80% 80.0% 79,813 79,850
70% 69.6% 69,837 69,453
60% 59.8% 59,860 59,682
50% 49.3% 49,883 49,209
40% 39.8% 39,907 39,735
30% 30.3% 29,930 30,225
20% 19.2% 19,953 19,187
10% 10.2% 9,977 10,187
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,482
Calibration 2     102,289
Calibration 3     103,051
ssj_ops@calibrated=102,670
100% 99.6% 102,670 102,264
90% 90.4% 92,403 92,839
80% 80.0% 82,136 82,148
70% 69.3% 71,869 71,137
60% 59.6% 61,602 61,225
50% 50.1% 51,335 51,480
40% 39.6% 41,068 40,687
30% 29.6% 30,801 30,413
20% 20.5% 20,534 21,032
10% 9.9% 10,267 10,183
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,465
Calibration 2     100,079
Calibration 3     100,290
ssj_ops@calibrated=100,184
100% 99.7% 100,184 99,878
90% 90.6% 90,166 90,799
80% 80.4% 80,147 80,542
70% 70.8% 70,129 70,910
60% 60.3% 60,111 60,434
50% 50.3% 50,092 50,380
40% 39.8% 40,074 39,872
30% 30.5% 30,055 30,587
20% 20.1% 20,037 20,102
10% 10.0% 10,018 10,042
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,904
Calibration 2     98,993
Calibration 3     98,485
ssj_ops@calibrated=98,739
100% 98.7% 98,739 97,469
90% 89.9% 88,865 88,718
80% 80.2% 78,991 79,188
70% 69.9% 69,117 69,046
60% 60.8% 59,243 60,072
50% 50.6% 49,370 49,991
40% 39.4% 39,496 38,917
30% 30.3% 29,622 29,918
20% 19.4% 19,748 19,204
10% 10.6% 9,874 10,480
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,060
Calibration 2     100,130
Calibration 3     100,696
ssj_ops@calibrated=100,413
100% 98.7% 100,413 99,097
90% 90.0% 90,372 90,397
80% 79.8% 80,330 80,146
70% 70.2% 70,289 70,520
60% 59.6% 60,248 59,799
50% 49.8% 50,207 50,047
40% 40.2% 40,165 40,346
30% 30.3% 30,124 30,396
20% 20.2% 20,083 20,293
10% 9.8% 10,041 9,808
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,767
Calibration 2     95,882
Calibration 3     96,006
ssj_ops@calibrated=95,944
100% 99.0% 95,944 94,967
90% 88.1% 86,350 84,569
80% 80.5% 76,755 77,274
70% 69.9% 67,161 67,095
60% 59.9% 57,566 57,511
50% 49.3% 47,972 47,265
40% 39.6% 38,378 38,023
30% 30.1% 28,783 28,896
20% 19.5% 19,189 18,684
10% 10.2% 9,594 9,800
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,663
Calibration 2     100,913
Calibration 3     100,254
ssj_ops@calibrated=100,583
100% 100.0% 100,583 100,619
90% 89.8% 90,525 90,302
80% 79.8% 80,467 80,259
70% 69.8% 70,408 70,207
60% 60.7% 60,350 61,015
50% 49.0% 50,292 49,301
40% 40.2% 40,233 40,389
30% 30.0% 30,175 30,159
20% 19.6% 20,117 19,682
10% 9.9% 10,058 9,971
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.081' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,774
Calibration 2     100,107
Calibration 3     99,465
ssj_ops@calibrated=99,786
100% 99.1% 99,786 98,871
90% 90.2% 89,807 90,042
80% 80.7% 79,829 80,507
70% 70.1% 69,850 69,924
60% 60.3% 59,872 60,142
50% 50.4% 49,893 50,324
40% 40.0% 39,914 39,951
30% 30.5% 29,936 30,405
20% 19.9% 19,957 19,880
10% 9.8% 9,979 9,745
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.082' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,846
Calibration 2     99,647
Calibration 3     99,397
ssj_ops@calibrated=99,522
100% 99.4% 99,522 98,884
90% 90.4% 89,570 89,950
80% 79.5% 79,618 79,126
70% 70.2% 69,665 69,891
60% 60.2% 59,713 59,929
50% 49.8% 49,761 49,515
40% 39.9% 39,809 39,757
30% 29.3% 29,857 29,159
20% 20.0% 19,904 19,887
10% 9.8% 9,952 9,731
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.083' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,365
Calibration 2     97,384
Calibration 3     96,855
ssj_ops@calibrated=97,119
100% 99.3% 97,119 96,427
90% 89.8% 87,407 87,232
80% 79.9% 77,695 77,628
70% 70.4% 67,983 68,338
60% 59.4% 58,272 57,712
50% 50.5% 48,560 49,061
40% 40.0% 38,848 38,874
30% 29.7% 29,136 28,816
20% 19.8% 19,424 19,240
10% 9.9% 9,712 9,650
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.084' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,411
Calibration 2     94,318
Calibration 3     94,517
ssj_ops@calibrated=94,417
100% 99.9% 94,417 94,347
90% 90.6% 84,976 85,530
80% 80.7% 75,534 76,188
70% 70.2% 66,092 66,271
60% 60.4% 56,650 57,002
50% 49.7% 47,209 46,901
40% 40.1% 37,767 37,850
30% 30.0% 28,325 28,306
20% 19.6% 18,883 18,529
10% 10.1% 9,442 9,583
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.085' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,007
Calibration 2     100,031
Calibration 3     99,395
ssj_ops@calibrated=99,713
100% 100.0% 99,713 99,755
90% 90.1% 89,742 89,888
80% 80.0% 79,770 79,733
70% 69.4% 69,799 69,174
60% 59.6% 59,828 59,431
50% 49.8% 49,856 49,633
40% 40.1% 39,885 39,955
30% 29.7% 29,914 29,615
20% 20.5% 19,943 20,483
10% 10.0% 9,971 9,971
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.086' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,695
Calibration 2     97,853
Calibration 3     98,111
ssj_ops@calibrated=97,982
100% 99.9% 97,982 97,915
90% 91.0% 88,184 89,126
80% 80.6% 78,386 78,939
70% 70.1% 68,587 68,717
60% 59.8% 58,789 58,561
50% 49.9% 48,991 48,871
40% 40.2% 39,193 39,366
30% 30.0% 29,395 29,379
20% 20.3% 19,596 19,858
10% 9.5% 9,798 9,317
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.087' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,641
Calibration 2     96,661
Calibration 3     96,922
ssj_ops@calibrated=96,792
100% 99.5% 96,792 96,355
90% 89.6% 87,112 86,741
80% 80.7% 77,433 78,102
70% 70.1% 67,754 67,854
60% 59.9% 58,075 57,931
50% 50.0% 48,396 48,353
40% 40.3% 38,717 38,980
30% 30.0% 29,037 29,042
20% 20.1% 19,358 19,460
10% 10.0% 9,679 9,646
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.088' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,019
Calibration 2     98,061
Calibration 3     97,525
ssj_ops@calibrated=97,793
100% 99.5% 97,793 97,337
90% 91.4% 88,014 89,363
80% 79.6% 78,234 77,887
70% 70.7% 68,455 69,182
60% 60.2% 58,676 58,848
50% 50.1% 48,896 48,971
40% 39.7% 39,117 38,833
30% 30.3% 29,338 29,629
20% 19.9% 19,559 19,492
10% 10.3% 9,779 10,042
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.089' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,046
Calibration 2     96,704
Calibration 3     97,774
ssj_ops@calibrated=97,239
100% 99.5% 97,239 96,781
90% 88.4% 87,515 85,924
80% 80.1% 77,791 77,886
70% 69.9% 68,067 67,951
60% 59.9% 58,343 58,249
50% 49.9% 48,619 48,502
40% 40.2% 38,896 39,051
30% 29.9% 29,172 29,092
20% 20.1% 19,448 19,564
10% 9.9% 9,724 9,617
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.090' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,386
Calibration 2     103,345
Calibration 3     103,091
ssj_ops@calibrated=103,218
100% 99.7% 103,218 102,938
90% 90.1% 92,896 93,030
80% 80.0% 82,574 82,621
70% 69.8% 72,252 72,070
60% 60.5% 61,931 62,493
50% 50.1% 51,609 51,691
40% 39.4% 41,287 40,652
30% 30.0% 30,965 30,970
20% 20.1% 20,644 20,732
10% 10.2% 10,322 10,492
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.091' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,734
Calibration 2     100,503
Calibration 3     100,562
ssj_ops@calibrated=100,532
100% 99.3% 100,532 99,786
90% 91.1% 90,479 91,538
80% 79.8% 80,426 80,176
70% 70.3% 70,373 70,700
60% 60.1% 60,319 60,468
50% 49.1% 50,266 49,368
40% 39.8% 40,213 40,018
30% 29.9% 30,160 30,014
20% 20.0% 20,106 20,079
10% 10.1% 10,053 10,133
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.092' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,926
Calibration 2     92,696
Calibration 3     92,202
ssj_ops@calibrated=92,449
100% 98.3% 92,449 90,863
90% 89.8% 83,204 82,995
80% 80.6% 73,959 74,523
70% 69.5% 64,714 64,281
60% 59.3% 55,469 54,777
50% 50.1% 46,224 46,324
40% 39.8% 36,980 36,772
30% 30.1% 27,735 27,846
20% 20.1% 18,490 18,587
10% 10.0% 9,245 9,250
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.093' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,143
Calibration 2     95,323
Calibration 3     93,757
ssj_ops@calibrated=94,540
100% 98.7% 94,540 93,273
90% 90.1% 85,086 85,154
80% 80.3% 75,632 75,939
70% 70.4% 66,178 66,542
60% 60.4% 56,724 57,068
50% 50.8% 47,270 48,068
40% 40.9% 37,816 38,706
30% 30.2% 28,362 28,508
20% 20.0% 18,908 18,917
10% 9.7% 9,454 9,142
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.094' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,951
Calibration 2     91,334
Calibration 3     91,865
ssj_ops@calibrated=91,599
100% 99.8% 91,599 91,390
90% 91.1% 82,439 83,421
80% 78.7% 73,279 72,107
70% 70.5% 64,119 64,584
60% 59.4% 54,960 54,403
50% 50.7% 45,800 46,485
40% 39.2% 36,640 35,911
30% 30.5% 27,480 27,911
20% 19.9% 18,320 18,242
10% 10.0% 9,160 9,204
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.095' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,421
Calibration 2     101,248
Calibration 3     101,324
ssj_ops@calibrated=101,286
100% 100.1% 101,286 101,408
90% 89.9% 91,157 91,071
80% 80.7% 81,029 81,690
70% 70.4% 70,900 71,326
60% 60.3% 60,772 61,068
50% 50.4% 50,643 51,010
40% 40.0% 40,514 40,467
30% 31.0% 30,386 31,354
20% 19.8% 20,257 20,062
10% 9.8% 10,129 9,925
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.096' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,333
Calibration 2     99,388
Calibration 3     99,948
ssj_ops@calibrated=99,668
100% 100.1% 99,668 99,718
90% 90.9% 89,701 90,559
80% 80.1% 79,734 79,822
70% 69.7% 69,768 69,463
60% 60.3% 59,801 60,147
50% 50.6% 49,834 50,399
40% 39.9% 39,867 39,758
30% 30.1% 29,900 30,046
20% 20.2% 19,934 20,167
10% 10.0% 9,967 9,929
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.097' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,851
Calibration 2     98,561
Calibration 3     98,630
ssj_ops@calibrated=98,596
100% 98.7% 98,596 97,283
90% 91.0% 88,736 89,706
80% 80.1% 78,877 79,023
70% 71.4% 69,017 70,353
60% 60.6% 59,157 59,702
50% 49.6% 49,298 48,895
40% 39.8% 39,438 39,244
30% 29.6% 29,579 29,152
20% 19.7% 19,719 19,455
10% 9.9% 9,860 9,758
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.098' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,571
Calibration 2     97,270
Calibration 3     97,193
ssj_ops@calibrated=97,231
100% 100.3% 97,231 97,557
90% 89.6% 87,508 87,119
80% 80.8% 77,785 78,534
70% 69.5% 68,062 67,591
60% 59.8% 58,339 58,114
50% 49.2% 48,616 47,825
40% 39.9% 38,893 38,809
30% 30.6% 29,169 29,768
20% 19.9% 19,446 19,349
10% 9.9% 9,723 9,604
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.099' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,056
Calibration 2     99,306
Calibration 3     99,061
ssj_ops@calibrated=99,183
100% 100.0% 99,183 99,219
90% 90.3% 89,265 89,521
80% 80.3% 79,347 79,646
70% 69.9% 69,428 69,378
60% 59.9% 59,510 59,415
50% 49.6% 49,592 49,225
40% 40.0% 39,673 39,647
30% 30.1% 29,755 29,822
20% 20.0% 19,837 19,807
10% 10.0% 9,918 9,904
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.100' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,347
Calibration 2     97,777
Calibration 3     99,539
ssj_ops@calibrated=98,658
100% 100.2% 98,658 98,822
90% 90.2% 88,793 89,007
80% 80.7% 78,927 79,595
70% 70.3% 69,061 69,363
60% 59.4% 59,195 58,587
50% 49.9% 49,329 49,183
40% 39.9% 39,463 39,379
30% 29.8% 29,598 29,386
20% 20.0% 19,732 19,717
10% 10.0% 9,866 9,854
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,649
Calibration 2     97,826
Calibration 3     97,910
ssj_ops@calibrated=97,868
100% 99.2% 97,868 97,065
90% 90.3% 88,082 88,360
80% 79.8% 78,295 78,083
70% 70.2% 68,508 68,670
60% 59.8% 58,721 58,487
50% 50.2% 48,934 49,092
40% 40.5% 39,147 39,676
30% 30.1% 29,361 29,441
20% 20.3% 19,574 19,872
10% 10.4% 9,787 10,162
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,166
Calibration 2     95,072
Calibration 3     95,674
ssj_ops@calibrated=95,373
100% 100.3% 95,373 95,637
90% 90.7% 85,836 86,469
80% 79.3% 76,298 75,588
70% 70.6% 66,761 67,349
60% 59.6% 57,224 56,875
50% 50.2% 47,687 47,845
40% 40.3% 38,149 38,432
30% 29.8% 28,612 28,467
20% 20.3% 19,075 19,324
10% 10.2% 9,537 9,725
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,127
Calibration 2     100,619
Calibration 3     100,801
ssj_ops@calibrated=100,710
100% 100.1% 100,710 100,796
90% 91.0% 90,639 91,628
80% 80.2% 80,568 80,764
70% 70.3% 70,497 70,773
60% 59.4% 60,426 59,817
50% 50.5% 50,355 50,815
40% 40.8% 40,284 41,083
30% 30.5% 30,213 30,688
20% 19.6% 20,142 19,696
10% 10.2% 10,071 10,296
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,030
Calibration 2     99,631
Calibration 3     100,158
ssj_ops@calibrated=99,894
100% 99.6% 99,894 99,490
90% 89.9% 89,905 89,848
80% 79.9% 79,915 79,819
70% 70.4% 69,926 70,336
60% 60.2% 59,937 60,135
50% 49.9% 49,947 49,802
40% 39.8% 39,958 39,729
30% 29.8% 29,968 29,737
20% 20.1% 19,979 20,102
10% 10.3% 9,989 10,272
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,310
Calibration 2     94,632
Calibration 3     93,851
ssj_ops@calibrated=94,242
100% 99.8% 94,242 94,083
90% 90.9% 84,818 85,664
80% 79.6% 75,393 75,045
70% 70.5% 65,969 66,445
60% 60.1% 56,545 56,648
50% 49.5% 47,121 46,677
40% 41.0% 37,697 38,677
30% 30.1% 28,273 28,387
20% 19.9% 18,848 18,798
10% 10.1% 9,424 9,534
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,216
Calibration 2     101,925
Calibration 3     100,699
ssj_ops@calibrated=101,312
100% 98.9% 101,312 100,153
90% 90.2% 91,181 91,380
80% 80.5% 81,049 81,539
70% 69.7% 70,918 70,638
60% 59.7% 60,787 60,478
50% 50.4% 50,656 51,016
40% 39.6% 40,525 40,079
30% 29.7% 30,394 30,068
20% 20.2% 20,262 20,470
10% 10.0% 10,131 10,171
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,649
Calibration 2     103,208
Calibration 3     101,963
ssj_ops@calibrated=102,585
100% 100.1% 102,585 102,689
90% 91.1% 92,327 93,408
80% 79.7% 82,068 81,721
70% 69.7% 71,810 71,540
60% 59.8% 61,551 61,370
50% 49.5% 51,293 50,745
40% 39.8% 41,034 40,839
30% 30.1% 30,776 30,880
20% 20.1% 20,517 20,631
10% 10.1% 10,259 10,383
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,002
Calibration 2     97,540
Calibration 3     97,066
ssj_ops@calibrated=97,303
100% 100.1% 97,303 97,405
90% 89.9% 87,573 87,447
80% 80.5% 77,843 78,312
70% 70.3% 68,112 68,356
60% 60.1% 58,382 58,460
50% 49.7% 48,652 48,336
40% 39.7% 38,921 38,610
30% 29.7% 29,191 28,896
20% 20.1% 19,461 19,559
10% 10.3% 9,730 9,987
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,679
Calibration 2     94,053
Calibration 3     95,040
ssj_ops@calibrated=94,546
100% 101.0% 94,546 95,451
90% 90.0% 85,092 85,137
80% 80.3% 75,637 75,943
70% 69.7% 66,183 65,909
60% 60.1% 56,728 56,838
50% 50.4% 47,273 47,634
40% 40.6% 37,819 38,368
30% 30.0% 28,364 28,346
20% 20.3% 18,909 19,211
10% 10.1% 9,455 9,583
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,450
Calibration 2     97,033
Calibration 3     97,409
ssj_ops@calibrated=97,221
100% 99.0% 97,221 96,221
90% 89.9% 87,499 87,375
80% 79.7% 77,777 77,495
70% 69.7% 68,055 67,724
60% 59.6% 58,333 57,975
50% 50.5% 48,611 49,054
40% 40.8% 38,889 39,628
30% 30.8% 29,166 29,914
20% 20.4% 19,444 19,866
10% 9.7% 9,722 9,473
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,554
Calibration 2     99,516
Calibration 3     98,841
ssj_ops@calibrated=99,178
100% 99.6% 99,178 98,821
90% 89.6% 89,261 88,839
80% 79.1% 79,343 78,483
70% 70.0% 69,425 69,446
60% 59.7% 59,507 59,218
50% 50.0% 49,589 49,567
40% 40.4% 39,671 40,102
30% 29.5% 29,754 29,264
20% 20.0% 19,836 19,868
10% 10.2% 9,918 10,082
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,078
Calibration 2     96,588
Calibration 3     95,926
ssj_ops@calibrated=96,257
100% 100.1% 96,257 96,320
90% 90.0% 86,631 86,648
80% 80.0% 77,006 77,026
70% 69.8% 67,380 67,214
60% 60.0% 57,754 57,734
50% 50.0% 48,129 48,118
40% 40.3% 38,503 38,754
30% 29.4% 28,877 28,326
20% 20.5% 19,251 19,775
10% 10.3% 9,626 9,933
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.113' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,311
Calibration 2     99,551
Calibration 3     99,134
ssj_ops@calibrated=99,342
100% 98.7% 99,342 98,098
90% 89.9% 89,408 89,295
80% 79.3% 79,474 78,770
70% 69.4% 69,540 68,941
60% 60.4% 59,605 59,987
50% 49.7% 49,671 49,377
40% 40.3% 39,737 40,068
30% 30.0% 29,803 29,832
20% 20.0% 19,868 19,845
10% 10.0% 9,934 9,962
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.114' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,275
Calibration 2     99,054
Calibration 3     98,517
ssj_ops@calibrated=98,786
100% 100.1% 98,786 98,838
90% 90.2% 88,907 89,121
80% 79.1% 79,029 78,167
70% 70.3% 69,150 69,490
60% 60.4% 59,271 59,709
50% 50.1% 49,393 49,498
40% 40.1% 39,514 39,592
30% 29.3% 29,636 28,975
20% 19.9% 19,757 19,625
10% 9.8% 9,879 9,706
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.115' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,093
Calibration 2     100,538
Calibration 3     98,664
ssj_ops@calibrated=99,601
100% 99.8% 99,601 99,401
90% 89.3% 89,641 88,987
80% 79.8% 79,681 79,455
70% 70.4% 69,721 70,153
60% 60.1% 59,761 59,822
50% 49.7% 49,800 49,482
40% 40.2% 39,840 40,080
30% 29.7% 29,880 29,562
20% 20.3% 19,920 20,261
10% 9.7% 9,960 9,683
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.116' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,388
Calibration 2     98,007
Calibration 3     97,300
ssj_ops@calibrated=97,653
100% 98.7% 97,653 96,408
90% 89.2% 87,888 87,062
80% 80.5% 78,123 78,576
70% 70.3% 68,357 68,672
60% 59.7% 58,592 58,310
50% 50.4% 48,827 49,181
40% 40.2% 39,061 39,241
30% 29.7% 29,296 29,033
20% 20.3% 19,531 19,791
10% 9.6% 9,765 9,400
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.117' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,603
Calibration 2     99,827
Calibration 3     99,173
ssj_ops@calibrated=99,500
100% 99.2% 99,500 98,723
90% 90.4% 89,550 89,977
80% 79.2% 79,600 78,848
70% 70.2% 69,650 69,852
60% 58.9% 59,700 58,562
50% 49.4% 49,750 49,184
40% 40.0% 39,800 39,780
30% 29.8% 29,850 29,699
20% 19.9% 19,900 19,831
10% 10.1% 9,950 10,084
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.118' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,630
Calibration 2     96,572
Calibration 3     96,746
ssj_ops@calibrated=96,659
100% 99.3% 96,659 95,974
90% 90.1% 86,993 87,058
80% 80.0% 77,328 77,296
70% 70.4% 67,662 68,036
60% 60.5% 57,996 58,491
50% 49.7% 48,330 48,087
40% 40.5% 38,664 39,109
30% 30.2% 28,998 29,219
20% 20.4% 19,332 19,700
10% 10.1% 9,666 9,779
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.119' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,482
Calibration 2     99,660
Calibration 3     99,749
ssj_ops@calibrated=99,704
100% 99.5% 99,704 99,159
90% 90.0% 89,734 89,770
80% 80.1% 79,764 79,863
70% 70.1% 69,793 69,861
60% 60.0% 59,823 59,797
50% 49.7% 49,852 49,563
40% 40.1% 39,882 39,943
30% 30.3% 29,911 30,173
20% 20.1% 19,941 20,007
10% 9.7% 9,970 9,634
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.120' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,097
Calibration 2     95,095
Calibration 3     94,708
ssj_ops@calibrated=94,902
100% 99.3% 94,902 94,203
90% 89.5% 85,412 84,935
80% 79.7% 75,921 75,629
70% 70.7% 66,431 67,117
60% 60.4% 56,941 57,309
50% 50.2% 47,451 47,661
40% 40.5% 37,961 38,405
30% 30.3% 28,471 28,721
20% 20.7% 18,980 19,642
10% 10.0% 9,490 9,479
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.121' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,084
Calibration 2     100,420
Calibration 3     100,904
ssj_ops@calibrated=100,662
100% 100.0% 100,662 100,707
90% 90.5% 90,596 91,099
80% 79.8% 80,530 80,331
70% 70.2% 70,464 70,616
60% 60.0% 60,397 60,367
50% 50.5% 50,331 50,823
40% 39.4% 40,265 39,703
30% 29.6% 30,199 29,779
20% 20.0% 20,132 20,095
10% 10.0% 10,066 10,071
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.122' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,194
Calibration 2     99,673
Calibration 3     99,828
ssj_ops@calibrated=99,750
100% 99.8% 99,750 99,581
90% 89.8% 89,775 89,617
80% 80.4% 79,800 80,236
70% 70.8% 69,825 70,633
60% 60.4% 59,850 60,226
50% 49.9% 49,875 49,781
40% 39.9% 39,900 39,812
30% 30.1% 29,925 30,070
20% 20.1% 19,950 20,020
10% 10.1% 9,975 10,092
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.123' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,767
Calibration 2     98,063
Calibration 3     99,181
ssj_ops@calibrated=98,622
100% 99.3% 98,622 97,900
90% 90.9% 88,760 89,629
80% 79.8% 78,898 78,735
70% 69.1% 69,035 68,191
60% 60.6% 59,173 59,794
50% 50.2% 49,311 49,557
40% 40.6% 39,449 40,031
30% 29.9% 29,587 29,453
20% 20.2% 19,724 19,904
10% 9.9% 9,862 9,783
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.124' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,823
Calibration 2     97,132
Calibration 3     96,656
ssj_ops@calibrated=96,894
100% 98.5% 96,894 95,427
90% 90.0% 87,205 87,223
80% 80.2% 77,515 77,696
70% 70.9% 67,826 68,717
60% 60.6% 58,136 58,755
50% 49.7% 48,447 48,137
40% 40.1% 38,758 38,883
30% 29.6% 29,068 28,713
20% 20.3% 19,379 19,636
10% 10.1% 9,689 9,817
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.125' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,395
Calibration 2     100,823
Calibration 3     100,168
ssj_ops@calibrated=100,496
100% 99.9% 100,496 100,398
90% 90.3% 90,446 90,769
80% 79.6% 80,397 79,986
70% 70.2% 70,347 70,554
60% 59.2% 60,297 59,492
50% 50.6% 50,248 50,842
40% 39.9% 40,198 40,092
30% 30.4% 30,149 30,539
20% 20.3% 20,099 20,362
10% 9.9% 10,050 9,921
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.126' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,677
Calibration 2     97,578
Calibration 3     98,100
ssj_ops@calibrated=97,839
100% 100.0% 97,839 97,813
90% 88.7% 88,055 86,755
80% 80.3% 78,271 78,608
70% 68.9% 68,487 67,436
60% 60.6% 58,703 59,310
50% 50.2% 48,919 49,115
40% 40.6% 39,136 39,710
30% 30.0% 29,352 29,357
20% 20.4% 19,568 19,911
10% 9.6% 9,784 9,417
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.127' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,113
Calibration 2     98,973
Calibration 3     98,705
ssj_ops@calibrated=98,839
100% 99.4% 98,839 98,237
90% 91.6% 88,955 90,552
80% 79.5% 79,071 78,542
70% 70.1% 69,187 69,248
60% 60.3% 59,303 59,601
50% 50.4% 49,420 49,798
40% 39.9% 39,536 39,396
30% 30.0% 29,652 29,612
20% 20.4% 19,768 20,142
10% 10.0% 9,884 9,873
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.128' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,338
Calibration 2     98,326
Calibration 3     99,239
ssj_ops@calibrated=98,782
100% 99.4% 98,782 98,211
90% 90.1% 88,904 88,985
80% 80.5% 79,026 79,490
70% 70.3% 69,148 69,427
60% 60.0% 59,269 59,283
50% 50.4% 49,391 49,745
40% 40.0% 39,513 39,512
30% 29.8% 29,635 29,412
20% 20.0% 19,756 19,784
10% 10.2% 9,878 10,054
Active Idle   0 0
Graph of results
