Hewlett Packard Enterprise Apollo XL225n Gen10 Plus ssj_ops@100% = 12,401,320
ssj_ops@100% per JVM = 96,885
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 22, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2020 Publication: Mar 15, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,482,315
Calibration 2     12,470,515
Calibration 3     12,451,634
ssj_ops@calibrated=12,461,075
100% 99.5% 12,461,075 12,401,320
90% 89.9% 11,214,967 11,205,051
80% 80.0% 9,968,860 9,972,168
70% 70.0% 8,722,752 8,722,390
60% 60.0% 7,476,645 7,472,873
50% 50.0% 6,230,537 6,226,827
40% 40.0% 4,984,430 4,985,303
30% 30.0% 3,738,322 3,738,919
20% 20.0% 2,492,215 2,493,074
10% 10.0% 1,246,107 1,249,007
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 2
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Apollo XL225n Gen10 Plus
Form Factor: Blade
CPU Name: AMD EPYC 7763 2.45 GHz
CPU Characteristics: 64-Core, 2.45 GHz, 256MB L3 Cache
CPU Frequency (MHz): 2450
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP5
OS Version: 4.12.14-122.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 128 }
JVM Instances: 128
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: A46 v2.40 (01/21/2021)
Management Firmware Version: 2.40 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SLES12SP5-Node04.001 87,657
SLES12SP5-Node04.002 96,101
SLES12SP5-Node04.003 94,808
SLES12SP5-Node04.004 99,208
SLES12SP5-Node04.005 97,111
SLES12SP5-Node04.006 97,562
SLES12SP5-Node04.007 99,926
SLES12SP5-Node04.008 99,885
SLES12SP5-Node04.009 98,886
SLES12SP5-Node04.010 96,160
SLES12SP5-Node04.011 98,162
SLES12SP5-Node04.012 97,388
SLES12SP5-Node04.013 94,571
SLES12SP5-Node04.014 91,400
SLES12SP5-Node04.015 95,464
SLES12SP5-Node04.016 93,386
SLES12SP5-Node04.017 99,686
SLES12SP5-Node04.018 96,300
SLES12SP5-Node04.019 99,226
SLES12SP5-Node04.020 96,380
SLES12SP5-Node04.021 95,777
SLES12SP5-Node04.022 94,525
SLES12SP5-Node04.023 96,767
SLES12SP5-Node04.024 97,782
SLES12SP5-Node04.025 95,815
SLES12SP5-Node04.026 96,116
SLES12SP5-Node04.027 99,856
SLES12SP5-Node04.028 97,088
SLES12SP5-Node04.029 97,434
SLES12SP5-Node04.030 95,837
SLES12SP5-Node04.031 93,570
SLES12SP5-Node04.032 98,045
SLES12SP5-Node04.033 94,648
SLES12SP5-Node04.034 98,127
SLES12SP5-Node04.035 100,064
SLES12SP5-Node04.036 96,737
SLES12SP5-Node04.037 89,514
SLES12SP5-Node04.038 96,849
SLES12SP5-Node04.039 93,780
SLES12SP5-Node04.040 96,217
SLES12SP5-Node04.041 100,823
SLES12SP5-Node04.042 96,942
SLES12SP5-Node04.043 101,158
SLES12SP5-Node04.044 101,936
SLES12SP5-Node04.045 95,692
SLES12SP5-Node04.046 94,837
SLES12SP5-Node04.047 101,359
SLES12SP5-Node04.048 93,439
SLES12SP5-Node04.049 98,606
SLES12SP5-Node04.050 99,964
SLES12SP5-Node04.051 100,254
SLES12SP5-Node04.052 98,048
SLES12SP5-Node04.053 99,732
SLES12SP5-Node04.054 96,127
SLES12SP5-Node04.055 96,051
SLES12SP5-Node04.056 98,508
SLES12SP5-Node04.057 99,299
SLES12SP5-Node04.058 94,336
SLES12SP5-Node04.059 96,742
SLES12SP5-Node04.060 95,262
SLES12SP5-Node04.061 89,622
SLES12SP5-Node04.062 95,202
SLES12SP5-Node04.063 96,811
SLES12SP5-Node04.064 98,763
SLES12SP5-Node04.065 99,991
SLES12SP5-Node04.066 95,683
SLES12SP5-Node04.067 97,643
SLES12SP5-Node04.068 97,559
SLES12SP5-Node04.069 99,355
SLES12SP5-Node04.070 102,480
SLES12SP5-Node04.071 98,439
SLES12SP5-Node04.072 95,142
SLES12SP5-Node04.073 99,243
SLES12SP5-Node04.074 94,655
SLES12SP5-Node04.075 95,858
SLES12SP5-Node04.076 97,338
SLES12SP5-Node04.077 96,437
SLES12SP5-Node04.078 96,212
SLES12SP5-Node04.079 95,920
SLES12SP5-Node04.080 95,270
SLES12SP5-Node04.081 99,111
SLES12SP5-Node04.082 98,300
SLES12SP5-Node04.083 93,810
SLES12SP5-Node04.084 91,958
SLES12SP5-Node04.085 97,552
SLES12SP5-Node04.086 96,788
SLES12SP5-Node04.087 96,840
SLES12SP5-Node04.088 95,453
SLES12SP5-Node04.089 94,596
SLES12SP5-Node04.090 98,636
SLES12SP5-Node04.091 97,402
SLES12SP5-Node04.092 95,158
SLES12SP5-Node04.093 93,870
SLES12SP5-Node04.094 95,074
SLES12SP5-Node04.095 97,125
SLES12SP5-Node04.096 94,368
SLES12SP5-Node04.097 99,744
SLES12SP5-Node04.098 99,349
SLES12SP5-Node04.099 100,441
SLES12SP5-Node04.100 100,304
SLES12SP5-Node04.101 97,016
SLES12SP5-Node04.102 95,989
SLES12SP5-Node04.103 95,147
SLES12SP5-Node04.104 95,247
SLES12SP5-Node04.105 96,210
SLES12SP5-Node04.106 96,567
SLES12SP5-Node04.107 97,504
SLES12SP5-Node04.108 96,082
SLES12SP5-Node04.109 99,393
SLES12SP5-Node04.110 98,993
SLES12SP5-Node04.111 97,769
SLES12SP5-Node04.112 97,696
SLES12SP5-Node04.113 97,299
SLES12SP5-Node04.114 97,130
SLES12SP5-Node04.115 97,114
SLES12SP5-Node04.116 96,209
SLES12SP5-Node04.117 99,322
SLES12SP5-Node04.118 95,730
SLES12SP5-Node04.119 102,123
SLES12SP5-Node04.120 94,365
SLES12SP5-Node04.121 92,592
SLES12SP5-Node04.122 96,802
SLES12SP5-Node04.123 99,129
SLES12SP5-Node04.124 99,293
SLES12SP5-Node04.125 95,533
SLES12SP5-Node04.126 95,645
SLES12SP5-Node04.127 98,647
SLES12SP5-Node04.128 94,344
ssj_ops@100% 12,401,320
ssj_ops@100% per JVM 96,885

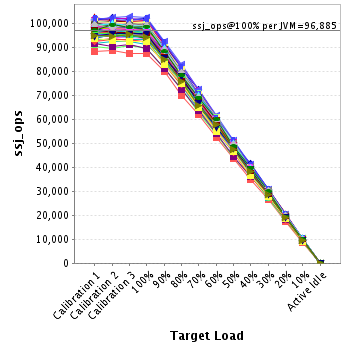

Graph of per-instance results
JVM 'SLES12SP5-Node04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,492
Calibration 2     88,735
Calibration 3     87,477
ssj_ops@calibrated=88,106
100% 99.5% 88,106 87,657
90% 90.7% 79,296 79,896
80% 79.5% 70,485 70,088
70% 70.3% 61,674 61,922
60% 59.6% 52,864 52,540
50% 49.5% 44,053 43,655
40% 39.9% 35,243 35,129
30% 30.0% 26,432 26,400
20% 19.7% 17,621 17,387
10% 10.0% 8,811 8,786
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,654
Calibration 2     96,970
Calibration 3     97,605
ssj_ops@calibrated=97,288
100% 98.8% 97,288 96,101
90% 90.0% 87,559 87,600
80% 79.9% 77,830 77,774
70% 70.0% 68,101 68,072
60% 60.6% 58,373 58,954
50% 50.0% 48,644 48,617
40% 39.6% 38,915 38,563
30% 29.9% 29,186 29,096
20% 20.1% 19,458 19,508
10% 9.9% 9,729 9,621
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,027
Calibration 2     95,959
Calibration 3     96,615
ssj_ops@calibrated=96,287
100% 98.5% 96,287 94,808
90% 89.1% 86,658 85,795
80% 80.3% 77,030 77,341
70% 70.5% 67,401 67,869
60% 60.7% 57,772 58,443
50% 49.9% 48,143 48,024
40% 40.7% 38,515 39,148
30% 29.4% 28,886 28,289
20% 19.8% 19,257 19,085
10% 9.9% 9,629 9,567
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,492
Calibration 2     99,320
Calibration 3     99,966
ssj_ops@calibrated=99,643
100% 99.6% 99,643 99,208
90% 89.0% 89,679 88,644
80% 80.4% 79,715 80,065
70% 69.4% 69,750 69,150
60% 59.8% 59,786 59,590
50% 49.9% 49,822 49,710
40% 40.9% 39,857 40,771
30% 29.7% 29,893 29,642
20% 19.9% 19,929 19,853
10% 9.9% 9,964 9,912
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,181
Calibration 2     96,704
Calibration 3     97,401
ssj_ops@calibrated=97,052
100% 100.1% 97,052 97,111
90% 89.3% 87,347 86,703
80% 79.6% 77,642 77,229
70% 69.4% 67,937 67,398
60% 59.9% 58,231 58,160
50% 50.4% 48,526 48,885
40% 40.2% 38,821 38,985
30% 29.6% 29,116 28,697
20% 19.9% 19,410 19,329
10% 10.1% 9,705 9,826
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,715
Calibration 2     97,180
Calibration 3     97,660
ssj_ops@calibrated=97,420
100% 100.1% 97,420 97,562
90% 89.6% 87,678 87,325
80% 79.7% 77,936 77,637
70% 69.3% 68,194 67,498
60% 60.1% 58,452 58,509
50% 49.3% 48,710 48,066
40% 40.3% 38,968 39,221
30% 29.8% 29,226 29,004
20% 20.1% 19,484 19,604
10% 10.0% 9,742 9,767
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,254
Calibration 2     100,599
Calibration 3     100,536
ssj_ops@calibrated=100,568
100% 99.4% 100,568 99,926
90% 90.3% 90,511 90,793
80% 79.8% 80,454 80,221
70% 71.1% 70,397 71,503
60% 60.5% 60,341 60,882
50% 50.0% 50,284 50,284
40% 40.7% 40,227 40,917
30% 30.0% 30,170 30,126
20% 20.3% 20,114 20,437
10% 9.9% 10,057 9,962
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,302
Calibration 2     100,598
Calibration 3     100,358
ssj_ops@calibrated=100,478
100% 99.4% 100,478 99,885
90% 90.0% 90,431 90,468
80% 79.5% 80,383 79,877
70% 70.4% 70,335 70,691
60% 60.7% 60,287 60,963
50% 50.1% 50,239 50,381
40% 39.3% 40,191 39,487
30% 30.2% 30,144 30,362
20% 19.8% 20,096 19,859
10% 10.1% 10,048 10,112
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,019
Calibration 2     99,969
Calibration 3     99,615
ssj_ops@calibrated=99,792
100% 99.1% 99,792 98,886
90% 90.7% 89,813 90,511
80% 80.3% 79,834 80,173
70% 70.5% 69,854 70,359
60% 59.7% 59,875 59,528
50% 50.2% 49,896 50,092
40% 40.5% 39,917 40,398
30% 29.9% 29,938 29,796
20% 20.4% 19,958 20,346
10% 10.0% 9,979 9,975
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,901
Calibration 2     96,478
Calibration 3     95,514
ssj_ops@calibrated=95,996
100% 100.2% 95,996 96,160
90% 89.7% 86,397 86,137
80% 80.3% 76,797 77,108
70% 69.9% 67,197 67,080
60% 59.4% 57,598 57,006
50% 49.3% 47,998 47,311
40% 39.9% 38,398 38,322
30% 29.6% 28,799 28,429
20% 20.3% 19,199 19,521
10% 10.0% 9,600 9,582
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,657
Calibration 2     98,830
Calibration 3     99,433
ssj_ops@calibrated=99,132
100% 99.0% 99,132 98,162
90% 89.9% 89,218 89,090
80% 80.5% 79,305 79,761
70% 70.9% 69,392 70,320
60% 60.4% 59,479 59,896
50% 49.4% 49,566 48,923
40% 40.1% 39,653 39,728
30% 29.8% 29,739 29,530
20% 19.8% 19,826 19,625
10% 10.1% 9,913 10,006
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,298
Calibration 2     98,207
Calibration 3     97,307
ssj_ops@calibrated=97,757
100% 99.6% 97,757 97,388
90% 90.4% 87,981 88,362
80% 80.0% 78,206 78,162
70% 70.1% 68,430 68,563
60% 59.7% 58,654 58,327
50% 49.8% 48,878 48,652
40% 40.1% 39,103 39,187
30% 29.9% 29,327 29,200
20% 19.7% 19,551 19,212
10% 10.0% 9,776 9,761
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,837
Calibration 2     95,000
Calibration 3     94,671
ssj_ops@calibrated=94,835
100% 99.7% 94,835 94,571
90% 89.3% 85,352 84,702
80% 79.3% 75,868 75,222
70% 70.9% 66,385 67,240
60% 59.5% 56,901 56,467
50% 50.8% 47,418 48,149
40% 40.2% 37,934 38,129
30% 30.6% 28,451 29,058
20% 20.1% 18,967 19,101
10% 10.2% 9,484 9,700
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,472
Calibration 2     92,457
Calibration 3     92,407
ssj_ops@calibrated=92,432
100% 98.9% 92,432 91,400
90% 91.3% 83,189 84,351
80% 80.1% 73,946 74,017
70% 69.3% 64,702 64,047
60% 59.6% 55,459 55,083
50% 50.1% 46,216 46,302
40% 40.2% 36,973 37,118
30% 29.9% 27,730 27,605
20% 20.3% 18,486 18,746
10% 10.3% 9,243 9,521
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,825
Calibration 2     95,052
Calibration 3     95,160
ssj_ops@calibrated=95,106
100% 100.4% 95,106 95,464
90% 89.7% 85,595 85,303
80% 79.1% 76,085 75,260
70% 70.3% 66,574 66,892
60% 60.1% 57,064 57,129
50% 49.4% 47,553 46,971
40% 40.7% 38,042 38,683
30% 30.3% 28,532 28,821
20% 19.9% 19,021 18,900
10% 10.0% 9,511 9,544
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,858
Calibration 2     93,634
Calibration 3     92,972
ssj_ops@calibrated=93,303
100% 100.1% 93,303 93,386
90% 89.0% 83,973 83,052
80% 79.5% 74,643 74,163
70% 70.7% 65,312 65,962
60% 60.9% 55,982 56,810
50% 50.6% 46,652 47,212
40% 40.2% 37,321 37,509
30% 29.9% 27,991 27,901
20% 19.8% 18,661 18,466
10% 10.6% 9,330 9,850
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,550
Calibration 2     100,958
Calibration 3     100,909
ssj_ops@calibrated=100,933
100% 98.8% 100,933 99,686
90% 89.2% 90,840 89,995
80% 81.0% 80,747 81,711
70% 69.5% 70,653 70,168
60% 59.8% 60,560 60,319
50% 50.2% 50,467 50,621
40% 40.0% 40,373 40,378
30% 30.3% 30,280 30,610
20% 20.0% 20,187 20,220
10% 10.1% 10,093 10,204
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,494
Calibration 2     96,302
Calibration 3     95,478
ssj_ops@calibrated=95,890
100% 100.4% 95,890 96,300
90% 90.9% 86,301 87,205
80% 80.7% 76,712 77,400
70% 70.2% 67,123 67,269
60% 60.0% 57,534 57,555
50% 49.6% 47,945 47,565
40% 40.1% 38,356 38,434
30% 30.5% 28,767 29,233
20% 20.1% 19,178 19,321
10% 9.8% 9,589 9,375
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,761
Calibration 2     100,293
Calibration 3     100,316
ssj_ops@calibrated=100,305
100% 98.9% 100,305 99,226
90% 89.7% 90,274 89,927
80% 81.1% 80,244 81,338
70% 69.9% 70,213 70,137
60% 60.1% 60,183 60,260
50% 50.1% 50,152 50,278
40% 39.4% 40,122 39,521
30% 29.9% 30,091 30,029
20% 19.8% 20,061 19,874
10% 10.3% 10,030 10,354
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,148
Calibration 2     97,418
Calibration 3     97,344
ssj_ops@calibrated=97,381
100% 99.0% 97,381 96,380
90% 89.9% 87,643 87,514
80% 79.9% 77,905 77,810
70% 70.7% 68,167 68,844
60% 59.4% 58,429 57,879
50% 50.2% 48,691 48,917
40% 40.5% 38,952 39,478
30% 30.3% 29,214 29,513
20% 20.0% 19,476 19,484
10% 9.9% 9,738 9,608
Active Idle   0 0
Graph of results

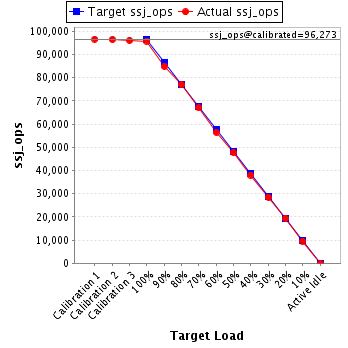

JVM 'SLES12SP5-Node04.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,578
Calibration 2     96,434
Calibration 3     96,112
ssj_ops@calibrated=96,273
100% 99.5% 96,273 95,777
90% 88.2% 86,646 84,903
80% 79.8% 77,019 76,853
70% 69.7% 67,391 67,120
60% 58.7% 57,764 56,509
50% 49.6% 48,137 47,710
40% 39.5% 38,509 38,021
30% 29.6% 28,882 28,481
20% 20.1% 19,255 19,345
10% 10.0% 9,627 9,587
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,487
Calibration 2     95,243
Calibration 3     94,657
ssj_ops@calibrated=94,950
100% 99.6% 94,950 94,525
90% 90.5% 85,455 85,959
80% 80.2% 75,960 76,128
70% 69.5% 66,465 65,966
60% 60.4% 56,970 57,351
50% 50.1% 47,475 47,568
40% 39.3% 37,980 37,290
30% 30.7% 28,485 29,169
20% 19.5% 18,990 18,542
10% 9.9% 9,495 9,387
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,821
Calibration 2     96,575
Calibration 3     97,047
ssj_ops@calibrated=96,811
100% 100.0% 96,811 96,767
90% 90.0% 87,130 87,084
80% 80.5% 77,449 77,948
70% 70.6% 67,768 68,392
60% 60.1% 58,087 58,198
50% 49.9% 48,406 48,345
40% 39.0% 38,724 37,728
30% 29.6% 29,043 28,685
20% 20.2% 19,362 19,514
10% 9.8% 9,681 9,504
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,440
Calibration 2     98,947
Calibration 3     97,279
ssj_ops@calibrated=98,113
100% 99.7% 98,113 97,782
90% 89.3% 88,302 87,611
80% 79.3% 78,491 77,832
70% 69.0% 68,679 67,683
60% 60.5% 58,868 59,313
50% 50.7% 49,057 49,721
40% 40.0% 39,245 39,207
30% 30.3% 29,434 29,758
20% 20.0% 19,623 19,658
10% 10.3% 9,811 10,096
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,942
Calibration 2     94,828
Calibration 3     97,923
ssj_ops@calibrated=96,376
100% 99.4% 96,376 95,815
90% 89.4% 86,738 86,192
80% 80.2% 77,100 77,277
70% 69.4% 67,463 66,861
60% 59.9% 57,825 57,723
50% 49.5% 48,188 47,749
40% 40.6% 38,550 39,130
30% 30.1% 28,913 29,033
20% 20.4% 19,275 19,692
10% 10.0% 9,638 9,683
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,062
Calibration 2     96,485
Calibration 3     96,386
ssj_ops@calibrated=96,435
100% 99.7% 96,435 96,116
90% 90.1% 86,792 86,879
80% 80.1% 77,148 77,280
70% 70.9% 67,505 68,359
60% 59.6% 57,861 57,442
50% 50.1% 48,218 48,306
40% 40.5% 38,574 39,032
30% 29.9% 28,931 28,829
20% 20.0% 19,287 19,270
10% 9.9% 9,644 9,523
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,607
Calibration 2     100,323
Calibration 3     98,414
ssj_ops@calibrated=99,368
100% 100.5% 99,368 99,856
90% 88.3% 89,432 87,777
80% 80.4% 79,495 79,941
70% 69.6% 69,558 69,166
60% 59.8% 59,621 59,422
50% 50.0% 49,684 49,663
40% 40.1% 39,747 39,879
30% 30.5% 29,811 30,315
20% 19.7% 19,874 19,599
10% 9.8% 9,937 9,737
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,171
Calibration 2     98,061
Calibration 3     99,204
ssj_ops@calibrated=98,633
100% 98.4% 98,633 97,088
90% 88.9% 88,770 87,667
80% 80.5% 78,906 79,409
70% 69.7% 69,043 68,729
60% 59.5% 59,180 58,679
50% 49.6% 49,316 48,896
40% 39.8% 39,453 39,240
30% 29.7% 29,590 29,326
20% 20.1% 19,727 19,866
10% 9.8% 9,863 9,700
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,820
Calibration 2     97,790
Calibration 3     98,173
ssj_ops@calibrated=97,982
100% 99.4% 97,982 97,434
90% 90.5% 88,183 88,678
80% 79.7% 78,385 78,085
70% 70.7% 68,587 69,239
60% 59.8% 58,789 58,586
50% 50.1% 48,991 49,053
40% 40.0% 39,193 39,223
30% 29.9% 29,394 29,335
20% 20.1% 19,596 19,733
10% 10.2% 9,798 9,950
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,196
Calibration 2     96,712
Calibration 3     96,061
ssj_ops@calibrated=96,386
100% 99.4% 96,386 95,837
90% 89.9% 86,748 86,654
80% 81.3% 77,109 78,332
70% 70.9% 67,471 68,383
60% 60.8% 57,832 58,650
50% 50.2% 48,193 48,351
40% 39.8% 38,555 38,365
30% 29.3% 28,916 28,279
20% 19.7% 19,277 19,014
10% 10.1% 9,639 9,712
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,133
Calibration 2     94,885
Calibration 3     94,969
ssj_ops@calibrated=94,927
100% 98.6% 94,927 93,570
90% 90.2% 85,434 85,645
80% 79.9% 75,942 75,815
70% 69.1% 66,449 65,620
60% 61.3% 56,956 58,152
50% 51.8% 47,464 49,150
40% 39.6% 37,971 37,606
30% 29.9% 28,478 28,362
20% 20.1% 18,985 19,108
10% 10.1% 9,493 9,612
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,223
Calibration 2     100,208
Calibration 3     98,130
ssj_ops@calibrated=99,169
100% 98.9% 99,169 98,045
90% 90.5% 89,252 89,787
80% 79.8% 79,335 79,090
70% 69.9% 69,418 69,289
60% 59.9% 59,501 59,389
50% 49.6% 49,584 49,214
40% 39.5% 39,667 39,127
30% 29.7% 29,751 29,419
20% 20.1% 19,834 19,927
10% 10.0% 9,917 9,912
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,689
Calibration 2     95,897
Calibration 3     94,574
ssj_ops@calibrated=95,235
100% 99.4% 95,235 94,648
90% 90.7% 85,712 86,332
80% 80.0% 76,188 76,145
70% 70.2% 66,665 66,858
60% 60.0% 57,141 57,125
50% 50.8% 47,618 48,371
40% 39.7% 38,094 37,767
30% 29.3% 28,571 27,888
20% 19.8% 19,047 18,821
10% 9.5% 9,524 9,083
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,961
Calibration 2     100,460
Calibration 3     98,017
ssj_ops@calibrated=99,239
100% 98.9% 99,239 98,127
90% 90.4% 89,315 89,686
80% 79.9% 79,391 79,263
70% 69.3% 69,467 68,808
60% 59.7% 59,543 59,254
50% 50.5% 49,619 50,106
40% 40.0% 39,695 39,720
30% 30.8% 29,772 30,559
20% 19.7% 19,848 19,506
10% 10.0% 9,924 9,971
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,797
Calibration 2     101,397
Calibration 3     100,698
ssj_ops@calibrated=101,047
100% 99.0% 101,047 100,064
90% 90.3% 90,943 91,237
80% 79.6% 80,838 80,472
70% 69.9% 70,733 70,676
60% 59.8% 60,628 60,428
50% 49.6% 50,524 50,094
40% 39.7% 40,419 40,139
30% 30.3% 30,314 30,574
20% 19.9% 20,209 20,058
10% 10.2% 10,105 10,346
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,309
Calibration 2     96,798
Calibration 3     96,868
ssj_ops@calibrated=96,833
100% 99.9% 96,833 96,737
90% 89.7% 87,150 86,895
80% 81.1% 77,466 78,508
70% 69.5% 67,783 67,336
60% 59.6% 58,100 57,671
50% 50.7% 48,416 49,127
40% 40.0% 38,733 38,717
30% 30.4% 29,050 29,458
20% 20.0% 19,367 19,334
10% 10.0% 9,683 9,675
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,484
Calibration 2     89,687
Calibration 3     90,694
ssj_ops@calibrated=90,190
100% 99.2% 90,190 89,514
90% 89.9% 81,171 81,104
80% 80.6% 72,152 72,699
70% 69.9% 63,133 63,038
60% 59.4% 54,114 53,542
50% 49.1% 45,095 44,244
40% 40.5% 36,076 36,572
30% 29.9% 27,057 26,927
20% 19.8% 18,038 17,825
10% 10.3% 9,019 9,258
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,829
Calibration 2     97,949
Calibration 3     97,615
ssj_ops@calibrated=97,782
100% 99.0% 97,782 96,849
90% 89.6% 88,004 87,603
80% 79.5% 78,225 77,721
70% 69.2% 68,447 67,685
60% 60.6% 58,669 59,297
50% 50.0% 48,891 48,907
40% 40.4% 39,113 39,537
30% 30.1% 29,335 29,469
20% 20.0% 19,556 19,537
10% 10.3% 9,778 10,029
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,148
Calibration 2     93,989
Calibration 3     93,972
ssj_ops@calibrated=93,980
100% 99.8% 93,980 93,780
90% 90.7% 84,582 85,287
80% 80.9% 75,184 76,034
70% 70.0% 65,786 65,817
60% 59.9% 56,388 56,314
50% 49.8% 46,990 46,781
40% 40.2% 37,592 37,801
30% 30.2% 28,194 28,392
20% 20.4% 18,796 19,130
10% 10.1% 9,398 9,507
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,154
Calibration 2     96,285
Calibration 3     96,771
ssj_ops@calibrated=96,528
100% 99.7% 96,528 96,217
90% 91.3% 86,876 88,116
80% 79.8% 77,223 76,988
70% 70.0% 67,570 67,590
60% 60.6% 57,917 58,498
50% 49.7% 48,264 48,013
40% 39.4% 38,611 38,047
30% 29.8% 28,959 28,799
20% 19.9% 19,306 19,222
10% 10.3% 9,653 9,987
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,295
Calibration 2     100,853
Calibration 3     100,489
ssj_ops@calibrated=100,671
100% 100.2% 100,671 100,823
90% 89.8% 90,604 90,427
80% 79.3% 80,536 79,823
70% 69.8% 70,469 70,260
60% 59.3% 60,402 59,744
50% 50.1% 50,335 50,466
40% 39.9% 40,268 40,202
30% 30.1% 30,201 30,296
20% 19.7% 20,134 19,783
10% 9.7% 10,067 9,761
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,130
Calibration 2     97,267
Calibration 3     96,579
ssj_ops@calibrated=96,923
100% 100.0% 96,923 96,942
90% 91.0% 87,230 88,152
80% 79.1% 77,538 76,645
70% 70.1% 67,846 67,976
60% 59.4% 58,154 57,619
50% 50.6% 48,461 49,026
40% 39.5% 38,769 38,314
30% 29.5% 29,077 28,633
20% 19.6% 19,385 18,992
10% 9.8% 9,692 9,512
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,292
Calibration 2     101,241
Calibration 3     100,784
ssj_ops@calibrated=101,013
100% 100.1% 101,013 101,158
90% 89.5% 90,911 90,434
80% 78.8% 80,810 79,603
70% 69.3% 70,709 70,019
60% 59.6% 60,608 60,185
50% 49.1% 50,506 49,612
40% 40.5% 40,405 40,950
30% 30.0% 30,304 30,271
20% 20.1% 20,203 20,333
10% 10.2% 10,101 10,289
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,117
Calibration 2     102,324
Calibration 3     101,788
ssj_ops@calibrated=102,056
100% 99.9% 102,056 101,936
90% 89.7% 91,850 91,553
80% 79.7% 81,645 81,291
70% 71.0% 71,439 72,494
60% 59.6% 61,234 60,854
50% 49.1% 51,028 50,082
40% 40.7% 40,822 41,499
30% 30.2% 30,617 30,850
20% 19.9% 20,411 20,304
10% 9.8% 10,206 10,017
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,225
Calibration 2     95,781
Calibration 3     95,537
ssj_ops@calibrated=95,659
100% 100.0% 95,659 95,692
90% 90.2% 86,093 86,274
80% 80.2% 76,527 76,693
70% 70.9% 66,961 67,856
60% 59.4% 57,395 56,842
50% 50.0% 47,829 47,863
40% 40.0% 38,264 38,271
30% 30.3% 28,698 28,942
20% 20.0% 19,132 19,174
10% 10.3% 9,566 9,812
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,269
Calibration 2     95,621
Calibration 3     94,971
ssj_ops@calibrated=95,296
100% 99.5% 95,296 94,837
90% 90.0% 85,766 85,755
80% 79.5% 76,237 75,732
70% 69.2% 66,707 65,945
60% 58.7% 57,178 55,979
50% 49.7% 47,648 47,402
40% 39.8% 38,118 37,883
30% 29.6% 28,589 28,221
20% 20.1% 19,059 19,153
10% 9.9% 9,530 9,462
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,245
Calibration 2     102,015
Calibration 3     102,135
ssj_ops@calibrated=102,075
100% 99.3% 102,075 101,359
90% 89.5% 91,867 91,334
80% 80.7% 81,660 82,402
70% 71.2% 71,452 72,674
60% 59.8% 61,245 61,024
50% 49.3% 51,037 50,373
40% 39.1% 40,830 39,869
30% 29.9% 30,622 30,540
20% 20.2% 20,415 20,633
10% 10.0% 10,207 10,208
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,457
Calibration 2     93,387
Calibration 3     93,116
ssj_ops@calibrated=93,252
100% 100.2% 93,252 93,439
90% 88.8% 83,927 82,839
80% 80.4% 74,601 74,999
70% 70.8% 65,276 66,013
60% 60.8% 55,951 56,714
50% 50.3% 46,626 46,947
40% 40.3% 37,301 37,591
30% 29.5% 27,976 27,512
20% 19.9% 18,650 18,583
10% 10.1% 9,325 9,387
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,767
Calibration 2     99,395
Calibration 3     98,794
ssj_ops@calibrated=99,094
100% 99.5% 99,094 98,606
90% 90.3% 89,185 89,528
80% 80.6% 79,275 79,844
70% 70.1% 69,366 69,483
60% 59.6% 59,457 59,017
50% 50.3% 49,547 49,826
40% 39.4% 39,638 39,007
30% 30.6% 29,728 30,304
20% 20.1% 19,819 19,895
10% 10.0% 9,909 9,948
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,650
Calibration 2     99,656
Calibration 3     100,744
ssj_ops@calibrated=100,200
100% 99.8% 100,200 99,964
90% 90.2% 90,180 90,358
80% 80.0% 80,160 80,133
70% 69.9% 70,140 70,045
60% 59.7% 60,120 59,788
50% 49.5% 50,100 49,609
40% 40.2% 40,080 40,291
30% 30.1% 30,060 30,112
20% 20.4% 20,040 20,433
10% 10.3% 10,020 10,322
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,915
Calibration 2     100,660
Calibration 3     99,846
ssj_ops@calibrated=100,253
100% 100.0% 100,253 100,254
90% 89.4% 90,228 89,590
80% 80.1% 80,203 80,293
70% 70.1% 70,177 70,315
60% 59.4% 60,152 59,535
50% 49.3% 50,127 49,421
40% 39.9% 40,101 40,019
30% 29.9% 30,076 29,929
20% 19.5% 20,051 19,592
10% 9.9% 10,025 9,954
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,932
Calibration 2     98,495
Calibration 3     98,976
ssj_ops@calibrated=98,735
100% 99.3% 98,735 98,048
90% 89.9% 88,862 88,776
80% 80.0% 78,988 79,011
70% 70.9% 69,115 69,990
60% 61.1% 59,241 60,339
50% 50.2% 49,368 49,569
40% 40.7% 39,494 40,215
30% 30.1% 29,621 29,752
20% 20.5% 19,747 20,256
10% 10.2% 9,874 10,046
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,762
Calibration 2     99,945
Calibration 3     99,669
ssj_ops@calibrated=99,807
100% 99.9% 99,807 99,732
90% 90.5% 89,826 90,292
80% 79.7% 79,846 79,568
70% 70.1% 69,865 69,969
60% 60.8% 59,884 60,695
50% 50.1% 49,903 49,996
40% 39.6% 39,923 39,514
30% 30.4% 29,942 30,361
20% 20.0% 19,961 19,916
10% 10.0% 9,981 10,012
Active Idle   0 0
Graph of results

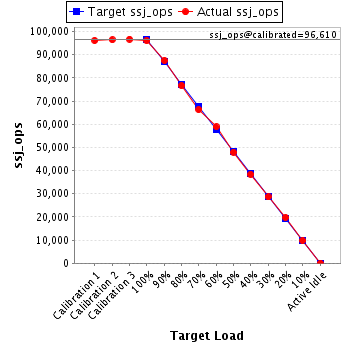

JVM 'SLES12SP5-Node04.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,181
Calibration 2     96,467
Calibration 3     96,754
ssj_ops@calibrated=96,610
100% 99.5% 96,610 96,127
90% 90.6% 86,949 87,542
80% 79.3% 77,288 76,621
70% 68.7% 67,627 66,353
60% 61.0% 57,966 58,921
50% 49.7% 48,305 47,975
40% 39.7% 38,644 38,358
30% 29.6% 28,983 28,617
20% 20.5% 19,322 19,766
10% 10.2% 9,661 9,837
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,584
Calibration 2     97,093
Calibration 3     95,891
ssj_ops@calibrated=96,492
100% 99.5% 96,492 96,051
90% 89.2% 86,843 86,048
80% 80.7% 77,194 77,907
70% 70.7% 67,544 68,221
60% 59.6% 57,895 57,548
50% 50.0% 48,246 48,257
40% 39.5% 38,597 38,121
30% 29.9% 28,948 28,833
20% 20.3% 19,298 19,632
10% 9.7% 9,649 9,367
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,633
Calibration 2     98,617
Calibration 3     99,607
ssj_ops@calibrated=99,112
100% 99.4% 99,112 98,508
90% 90.4% 89,201 89,634
80% 80.8% 79,290 80,075
70% 69.8% 69,379 69,186
60% 60.1% 59,467 59,612
50% 49.9% 49,556 49,420
40% 39.5% 39,645 39,156
30% 29.9% 29,734 29,671
20% 20.0% 19,822 19,776
10% 10.3% 9,911 10,179
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,692
Calibration 2     101,295
Calibration 3     100,440
ssj_ops@calibrated=100,868
100% 98.4% 100,868 99,299
90% 90.5% 90,781 91,327
80% 79.8% 80,694 80,486
70% 70.3% 70,607 70,907
60% 58.7% 60,521 59,252
50% 49.7% 50,434 50,104
40% 40.0% 40,347 40,300
30% 30.6% 30,260 30,869
20% 20.4% 20,174 20,617
10% 9.9% 10,087 9,996
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,817
Calibration 2     95,405
Calibration 3     94,825
ssj_ops@calibrated=95,115
100% 99.2% 95,115 94,336
90% 90.3% 85,604 85,934
80% 80.3% 76,092 76,369
70% 69.5% 66,581 66,146
60% 59.8% 57,069 56,855
50% 49.7% 47,558 47,288
40% 39.6% 38,046 37,672
30% 29.6% 28,535 28,111
20% 20.1% 19,023 19,149
10% 10.0% 9,512 9,544
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,979
Calibration 2     96,435
Calibration 3     96,182
ssj_ops@calibrated=96,309
100% 100.4% 96,309 96,742
90% 89.8% 86,678 86,467
80% 79.6% 77,047 76,685
70% 70.1% 67,416 67,532
60% 60.3% 57,785 58,088
50% 50.4% 48,154 48,511
40% 40.1% 38,524 38,659
30% 30.6% 28,893 29,475
20% 19.9% 19,262 19,139
10% 10.3% 9,631 9,900
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,005
Calibration 2     96,671
Calibration 3     95,454
ssj_ops@calibrated=96,063
100% 99.2% 96,063 95,262
90% 89.5% 86,457 85,997
80% 80.5% 76,850 77,332
70% 70.5% 67,244 67,704
60% 60.1% 57,638 57,775
50% 49.1% 48,031 47,165
40% 40.0% 38,425 38,385
30% 29.6% 28,819 28,387
20% 20.0% 19,213 19,187
10% 9.5% 9,606 9,141
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,515
Calibration 2     90,368
Calibration 3     91,154
ssj_ops@calibrated=90,761
100% 98.7% 90,761 89,622
90% 89.7% 81,685 81,398
80% 79.8% 72,609 72,408
70% 70.1% 63,533 63,615
60% 59.6% 54,457 54,122
50% 49.1% 45,380 44,569
40% 40.0% 36,304 36,340
30% 30.5% 27,228 27,708
20% 20.0% 18,152 18,166
10% 10.3% 9,076 9,334
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,981
Calibration 2     95,521
Calibration 3     95,705
ssj_ops@calibrated=95,613
100% 99.6% 95,613 95,202
90% 90.0% 86,052 86,043
80% 79.9% 76,490 76,385
70% 70.3% 66,929 67,261
60% 59.6% 57,368 56,969
50% 50.1% 47,807 47,934
40% 40.4% 38,245 38,616
30% 29.9% 28,684 28,616
20% 19.9% 19,123 18,992
10% 10.2% 9,561 9,758
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,118
Calibration 2     97,457
Calibration 3     97,311
ssj_ops@calibrated=97,384
100% 99.4% 97,384 96,811
90% 89.9% 87,645 87,566
80% 80.6% 77,907 78,529
70% 70.4% 68,168 68,593
60% 59.7% 58,430 58,128
50% 50.0% 48,692 48,692
40% 39.7% 38,953 38,637
30% 30.3% 29,215 29,508
20% 19.6% 19,477 19,054
10% 10.4% 9,738 10,096
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,797
Calibration 2     98,739
Calibration 3     99,164
ssj_ops@calibrated=98,951
100% 99.8% 98,951 98,763
90% 90.0% 89,056 89,046
80% 79.5% 79,161 78,623
70% 70.0% 69,266 69,283
60% 60.4% 59,371 59,746
50% 49.6% 49,476 49,062
40% 40.4% 39,581 39,961
30% 30.2% 29,685 29,858
20% 19.4% 19,790 19,174
10% 9.8% 9,895 9,692
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,102
Calibration 2     99,086
Calibration 3     100,254
ssj_ops@calibrated=99,670
100% 100.3% 99,670 99,991
90% 89.6% 89,703 89,317
80% 80.2% 79,736 79,977
70% 69.9% 69,769 69,676
60% 60.0% 59,802 59,776
50% 49.7% 49,835 49,556
40% 40.4% 39,868 40,271
30% 30.3% 29,901 30,179
20% 19.8% 19,934 19,715
10% 10.0% 9,967 9,954
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,488
Calibration 2     97,841
Calibration 3     95,204
ssj_ops@calibrated=96,523
100% 99.1% 96,523 95,683
90% 90.4% 86,870 87,231
80% 80.2% 77,218 77,397
70% 70.7% 67,566 68,230
60% 60.1% 57,914 57,991
50% 49.5% 48,261 47,805
40% 39.7% 38,609 38,295
30% 29.6% 28,957 28,576
20% 20.0% 19,305 19,312
10% 10.1% 9,652 9,771
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,882
Calibration 2     97,897
Calibration 3     96,265
ssj_ops@calibrated=97,081
100% 100.6% 97,081 97,643
90% 90.6% 87,373 87,936
80% 79.3% 77,665 76,948
70% 69.7% 67,957 67,683
60% 60.2% 58,249 58,451
50% 49.3% 48,541 47,813
40% 40.1% 38,832 38,921
30% 30.0% 29,124 29,088
20% 20.3% 19,416 19,661
10% 9.7% 9,708 9,435
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,736
Calibration 2     98,459
Calibration 3     97,955
ssj_ops@calibrated=98,207
100% 99.3% 98,207 97,559
90% 90.2% 88,386 88,577
80% 80.5% 78,566 79,014
70% 69.6% 68,745 68,309
60% 61.4% 58,924 60,261
50% 49.9% 49,103 49,044
40% 39.9% 39,283 39,219
30% 29.9% 29,462 29,317
20% 20.5% 19,641 20,154
10% 10.2% 9,821 9,975
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,660
Calibration 2     98,678
Calibration 3     100,405
ssj_ops@calibrated=99,542
100% 99.8% 99,542 99,355
90% 90.0% 89,588 89,629
80% 79.7% 79,634 79,357
70% 70.2% 69,679 69,856
60% 59.8% 59,725 59,531
50% 49.9% 49,771 49,699
40% 39.4% 39,817 39,174
30% 29.8% 29,863 29,676
20% 19.7% 19,908 19,635
10% 9.8% 9,954 9,787
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,686
Calibration 2     102,371
Calibration 3     102,974
ssj_ops@calibrated=102,673
100% 99.8% 102,673 102,480
90% 90.0% 92,405 92,453
80% 80.6% 82,138 82,742
70% 70.6% 71,871 72,538
60% 59.9% 61,604 61,477
50% 49.7% 51,336 51,031
40% 40.1% 41,069 41,173
30% 30.0% 30,802 30,754
20% 19.7% 20,535 20,187
10% 10.2% 10,267 10,479
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,390
Calibration 2     99,464
Calibration 3     98,542
ssj_ops@calibrated=99,003
100% 99.4% 99,003 98,439
90% 89.2% 89,103 88,329
80% 80.1% 79,202 79,287
70% 70.1% 69,302 69,425
60% 59.9% 59,402 59,308
50% 49.8% 49,502 49,316
40% 39.6% 39,601 39,209
30% 29.8% 29,701 29,499
20% 20.1% 19,801 19,926
10% 9.9% 9,900 9,842
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,099
Calibration 2     95,012
Calibration 3     95,370
ssj_ops@calibrated=95,191
100% 99.9% 95,191 95,142
90% 89.9% 85,672 85,545
80% 80.0% 76,153 76,123
70% 69.8% 66,634 66,430
60% 60.2% 57,115 57,283
50% 50.1% 47,596 47,680
40% 40.2% 38,076 38,286
30% 30.6% 28,557 29,131
20% 20.0% 19,038 19,029
10% 9.9% 9,519 9,396
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,203
Calibration 2     99,194
Calibration 3     99,698
ssj_ops@calibrated=99,446
100% 99.8% 99,446 99,243
90% 91.4% 89,502 90,926
80% 79.9% 79,557 79,469
70% 70.0% 69,612 69,603
60% 59.3% 59,668 58,931
50% 50.3% 49,723 49,977
40% 40.5% 39,779 40,295
30% 30.0% 29,834 29,837
20% 19.7% 19,889 19,562
10% 10.1% 9,945 10,079
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,687
Calibration 2     94,956
Calibration 3     95,227
ssj_ops@calibrated=95,091
100% 99.5% 95,091 94,655
90% 89.4% 85,582 85,035
80% 80.2% 76,073 76,280
70% 70.8% 66,564 67,319
60% 60.0% 57,055 57,096
50% 50.1% 47,546 47,610
40% 39.7% 38,037 37,738
30% 29.5% 28,527 28,034
20% 20.6% 19,018 19,634
10% 9.7% 9,509 9,217
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,896
Calibration 2     96,514
Calibration 3     96,669
ssj_ops@calibrated=96,591
100% 99.2% 96,591 95,858
90% 90.0% 86,932 86,932
80% 80.1% 77,273 77,418
70% 69.9% 67,614 67,531
60% 59.7% 57,955 57,704
50% 50.0% 48,296 48,342
40% 40.5% 38,637 39,133
30% 30.1% 28,977 29,081
20% 20.1% 19,318 19,396
10% 10.0% 9,659 9,679
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,329
Calibration 2     97,862
Calibration 3     98,238
ssj_ops@calibrated=98,050
100% 99.3% 98,050 97,338
90% 90.2% 88,245 88,417
80% 79.6% 78,440 78,061
70% 69.5% 68,635 68,162
60% 59.0% 58,830 57,817
50% 50.0% 49,025 49,038
40% 39.8% 39,220 39,044
30% 29.9% 29,415 29,332
20% 19.9% 19,610 19,546
10% 9.8% 9,805 9,650
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,217
Calibration 2     97,046
Calibration 3     97,009
ssj_ops@calibrated=97,027
100% 99.4% 97,027 96,437
90% 89.1% 87,325 86,451
80% 79.3% 77,622 76,938
70% 69.4% 67,919 67,320
60% 59.6% 58,216 57,840
50% 50.0% 48,514 48,555
40% 39.5% 38,811 38,317
30% 30.1% 29,108 29,183
20% 20.1% 19,405 19,455
10% 10.1% 9,703 9,779
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,934
Calibration 2     96,769
Calibration 3     97,441
ssj_ops@calibrated=97,105
100% 99.1% 97,105 96,212
90% 88.9% 87,395 86,338
80% 79.5% 77,684 77,220
70% 68.7% 67,974 66,698
60% 58.7% 58,263 56,961
50% 50.3% 48,553 48,816
40% 40.4% 38,842 39,224
30% 30.0% 29,132 29,090
20% 19.9% 19,421 19,308
10% 9.9% 9,711 9,654
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,894
Calibration 2     97,322
Calibration 3     96,558
ssj_ops@calibrated=96,940
100% 98.9% 96,940 95,920
90% 89.4% 87,246 86,689
80% 79.6% 77,552 77,127
70% 69.7% 67,858 67,556
60% 60.4% 58,164 58,506
50% 50.2% 48,470 48,663
40% 40.1% 38,776 38,851
30% 30.7% 29,082 29,746
20% 20.2% 19,388 19,603
10% 10.0% 9,694 9,667
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,906
Calibration 2     96,233
Calibration 3     95,756
ssj_ops@calibrated=95,994
100% 99.2% 95,994 95,270
90% 89.5% 86,395 85,901
80% 80.2% 76,795 76,965
70% 70.4% 67,196 67,601
60% 60.3% 57,597 57,856
50% 50.4% 47,997 48,427
40% 39.7% 38,398 38,109
30% 30.1% 28,798 28,939
20% 19.9% 19,199 19,112
10% 10.0% 9,599 9,608
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.081' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,891
Calibration 2     99,606
Calibration 3     99,765
ssj_ops@calibrated=99,685
100% 99.4% 99,685 99,111
90% 90.3% 89,717 90,012
80% 80.9% 79,748 80,642
70% 69.2% 69,780 68,938
60% 60.6% 59,811 60,423
50% 50.6% 49,843 50,484
40% 40.1% 39,874 39,996
30% 29.8% 29,906 29,685
20% 20.0% 19,937 19,939
10% 10.2% 9,969 10,154
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.082' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,245
Calibration 2     99,314
Calibration 3     100,005
ssj_ops@calibrated=99,659
100% 98.6% 99,659 98,300
90% 90.6% 89,693 90,272
80% 78.9% 79,727 78,591
70% 70.7% 69,761 70,442
60% 59.9% 59,796 59,679
50% 49.7% 49,830 49,493
40% 39.9% 39,864 39,736
30% 29.9% 29,898 29,803
20% 20.1% 19,932 20,034
10% 10.2% 9,966 10,200
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.083' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,935
Calibration 2     94,765
Calibration 3     94,806
ssj_ops@calibrated=94,786
100% 99.0% 94,786 93,810
90% 89.5% 85,307 84,806
80% 80.2% 75,828 76,020
70% 69.1% 66,350 65,515
60% 60.7% 56,871 57,575
50% 50.7% 47,393 48,090
40% 39.9% 37,914 37,867
30% 30.3% 28,436 28,713
20% 19.9% 18,957 18,892
10% 10.0% 9,479 9,504
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.084' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,420
Calibration 2     93,168
Calibration 3     93,280
ssj_ops@calibrated=93,224
100% 98.6% 93,224 91,958
90% 89.4% 83,902 83,347
80% 80.2% 74,579 74,746
70% 69.5% 65,257 64,796
60% 59.4% 55,934 55,349
50% 49.8% 46,612 46,387
40% 38.9% 37,290 36,288
30% 30.1% 27,967 28,091
20% 19.6% 18,645 18,310
10% 9.8% 9,322 9,179
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.085' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,422
Calibration 2     100,114
Calibration 3     99,122
ssj_ops@calibrated=99,618
100% 97.9% 99,618 97,552
90% 90.8% 89,656 90,492
80% 79.3% 79,695 79,039
70% 70.8% 69,733 70,485
60% 60.6% 59,771 60,369
50% 49.5% 49,809 49,338
40% 40.0% 39,847 39,807
30% 29.4% 29,885 29,317
20% 20.3% 19,924 20,196
10% 9.7% 9,962 9,658
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.086' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,285
Calibration 2     96,895
Calibration 3     96,890
ssj_ops@calibrated=96,893
100% 99.9% 96,893 96,788
90% 89.9% 87,203 87,077
80% 79.0% 77,514 76,574
70% 69.4% 67,825 67,289
60% 59.7% 58,136 57,856
50% 49.4% 48,446 47,830
40% 40.6% 38,757 39,363
30% 29.6% 29,068 28,692
20% 20.1% 19,379 19,520
10% 10.5% 9,689 10,160
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.087' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,178
Calibration 2     97,114
Calibration 3     96,747
ssj_ops@calibrated=96,930
100% 99.9% 96,930 96,840
90% 90.0% 87,237 87,194
80% 80.1% 77,544 77,609
70% 70.4% 67,851 68,275
60% 59.9% 58,158 58,095
50% 49.7% 48,465 48,136
40% 40.4% 38,772 39,149
30% 30.2% 29,079 29,292
20% 19.8% 19,386 19,232
10% 9.8% 9,693 9,504
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.088' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,107
Calibration 2     95,296
Calibration 3     95,427
ssj_ops@calibrated=95,361
100% 100.1% 95,361 95,453
90% 89.5% 85,825 85,311
80% 79.4% 76,289 75,715
70% 69.8% 66,753 66,538
60% 60.1% 57,217 57,314
50% 49.9% 47,681 47,567
40% 40.8% 38,144 38,887
30% 29.5% 28,608 28,100
20% 20.3% 19,072 19,333
10% 9.8% 9,536 9,329
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.089' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,237
Calibration 2     94,813
Calibration 3     94,201
ssj_ops@calibrated=94,507
100% 100.1% 94,507 94,596
90% 90.1% 85,056 85,172
80% 79.7% 75,606 75,323
70% 70.3% 66,155 66,448
60% 60.2% 56,704 56,922
50% 49.9% 47,254 47,114
40% 40.0% 37,803 37,800
30% 30.2% 28,352 28,541
20% 20.3% 18,901 19,216
10% 10.0% 9,451 9,446
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.090' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,706
Calibration 2     98,997
Calibration 3     98,769
ssj_ops@calibrated=98,883
100% 99.8% 98,883 98,636
90% 90.5% 88,994 89,473
80% 80.1% 79,106 79,209
70% 70.5% 69,218 69,679
60% 60.3% 59,330 59,617
50% 50.3% 49,441 49,730
40% 40.4% 39,553 39,900
30% 29.3% 29,665 28,958
20% 19.8% 19,777 19,560
10% 9.9% 9,888 9,802
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.091' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,150
Calibration 2     98,885
Calibration 3     97,693
ssj_ops@calibrated=98,289
100% 99.1% 98,289 97,402
90% 89.2% 88,460 87,636
80% 79.8% 78,631 78,399
70% 69.5% 68,802 68,353
60% 59.2% 58,973 58,161
50% 49.6% 49,145 48,715
40% 39.7% 39,316 39,043
30% 29.9% 29,487 29,363
20% 20.2% 19,658 19,850
10% 10.2% 9,829 9,979
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.092' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,800
Calibration 2     97,011
Calibration 3     95,358
ssj_ops@calibrated=96,185
100% 98.9% 96,185 95,158
90% 89.7% 86,566 86,285
80% 80.4% 76,948 77,299
70% 69.3% 67,329 66,689
60% 60.3% 57,711 57,965
50% 50.0% 48,092 48,076
40% 39.4% 38,474 37,872
30% 30.2% 28,855 29,023
20% 19.6% 19,237 18,808
10% 10.0% 9,618 9,637
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.093' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,423
Calibration 2     94,444
Calibration 3     95,213
ssj_ops@calibrated=94,828
100% 99.0% 94,828 93,870
90% 90.3% 85,346 85,669
80% 80.0% 75,863 75,833
70% 69.6% 66,380 65,985
60% 60.0% 56,897 56,889
50% 50.7% 47,414 48,109
40% 39.9% 37,931 37,881
30% 30.5% 28,449 28,933
20% 20.6% 18,966 19,488
10% 10.0% 9,483 9,492
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.094' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,046
Calibration 2     94,890
Calibration 3     96,157
ssj_ops@calibrated=95,524
100% 99.5% 95,524 95,074
90% 89.3% 85,971 85,258
80% 79.9% 76,419 76,358
70% 70.1% 66,866 67,007
60% 59.6% 57,314 56,926
50% 50.6% 47,762 48,352
40% 40.4% 38,209 38,615
30% 29.9% 28,657 28,529
20% 20.1% 19,105 19,184
10% 9.9% 9,552 9,467
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.095' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,274
Calibration 2     97,441
Calibration 3     97,081
ssj_ops@calibrated=97,261
100% 99.9% 97,261 97,125
90% 90.0% 87,535 87,514
80% 80.0% 77,809 77,836
70% 70.5% 68,083 68,568
60% 60.1% 58,357 58,467
50% 49.8% 48,631 48,467
40% 39.6% 38,904 38,526
30% 30.1% 29,178 29,304
20% 20.2% 19,452 19,614
10% 10.2% 9,726 9,951
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.096' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,033
Calibration 2     95,005
Calibration 3     94,682
ssj_ops@calibrated=94,843
100% 99.5% 94,843 94,368
90% 91.3% 85,359 86,586
80% 80.0% 75,875 75,849
70% 69.6% 66,390 65,966
60% 59.8% 56,906 56,714
50% 49.6% 47,422 47,044
40% 40.4% 37,937 38,312
30% 30.2% 28,453 28,633
20% 20.2% 18,969 19,171
10% 10.0% 9,484 9,471
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.097' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,527
Calibration 2     100,069
Calibration 3     99,956
ssj_ops@calibrated=100,012
100% 99.7% 100,012 99,744
90% 89.7% 90,011 89,751
80% 80.5% 80,010 80,500
70% 69.6% 70,009 69,568
60% 60.1% 60,007 60,152
50% 50.4% 50,006 50,359
40% 39.4% 40,005 39,442
30% 30.2% 30,004 30,187
20% 19.8% 20,002 19,791
10% 9.7% 10,001 9,737
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.098' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,395
Calibration 2     99,613
Calibration 3     99,942
ssj_ops@calibrated=99,777
100% 99.6% 99,777 99,349
90% 90.6% 89,800 90,372
80% 80.8% 79,822 80,633
70% 69.9% 69,844 69,722
60% 59.9% 59,866 59,776
50% 49.9% 49,889 49,758
40% 39.9% 39,911 39,793
30% 29.6% 29,933 29,519
20% 20.0% 19,955 20,004
10% 9.8% 9,978 9,799
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.099' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,731
Calibration 2     100,586
Calibration 3     99,999
ssj_ops@calibrated=100,293
100% 100.1% 100,293 100,441
90% 89.1% 90,264 89,390
80% 80.2% 80,234 80,468
70% 70.8% 70,205 70,970
60% 60.5% 60,176 60,657
50% 50.4% 50,146 50,573
40% 39.4% 40,117 39,471
30% 29.6% 30,088 29,701
20% 19.8% 20,059 19,875
10% 10.2% 10,029 10,246
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.100' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,743
Calibration 2     100,545
Calibration 3     100,348
ssj_ops@calibrated=100,446
100% 99.9% 100,446 100,304
90% 89.5% 90,402 89,853
80% 80.6% 80,357 80,962
70% 70.0% 70,312 70,297
60% 60.6% 60,268 60,879
50% 49.9% 50,223 50,128
40% 39.6% 40,179 39,807
30% 29.8% 30,134 29,884
20% 19.7% 20,089 19,825
10% 9.9% 10,045 9,958
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,168
Calibration 2     97,751
Calibration 3     97,499
ssj_ops@calibrated=97,625
100% 99.4% 97,625 97,016
90% 89.7% 87,863 87,548
80% 79.8% 78,100 77,910
70% 69.7% 68,338 68,075
60% 60.3% 58,575 58,900
50% 49.6% 48,813 48,391
40% 39.4% 39,050 38,510
30% 29.7% 29,288 29,031
20% 20.1% 19,525 19,576
10% 10.0% 9,763 9,796
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,912
Calibration 2     96,518
Calibration 3     96,332
ssj_ops@calibrated=96,425
100% 99.5% 96,425 95,989
90% 89.7% 86,782 86,529
80% 80.7% 77,140 77,854
70% 70.0% 67,497 67,545
60% 60.0% 57,855 57,848
50% 50.4% 48,212 48,563
40% 39.9% 38,570 38,428
30% 30.8% 28,927 29,658
20% 20.1% 19,285 19,354
10% 10.0% 9,642 9,667
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,110
Calibration 2     95,926
Calibration 3     95,345
ssj_ops@calibrated=95,635
100% 99.5% 95,635 95,147
90% 90.2% 86,072 86,298
80% 80.1% 76,508 76,561
70% 70.5% 66,945 67,438
60% 59.7% 57,381 57,077
50% 50.2% 47,818 48,022
40% 40.0% 38,254 38,235
30% 29.6% 28,691 28,351
20% 19.7% 19,127 18,796
10% 10.2% 9,564 9,767
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,518
Calibration 2     95,224
Calibration 3     94,961
ssj_ops@calibrated=95,093
100% 100.2% 95,093 95,247
90% 89.6% 85,583 85,198
80% 80.0% 76,074 76,059
70% 70.0% 66,565 66,542
60% 59.6% 57,056 56,722
50% 49.3% 47,546 46,881
40% 40.2% 38,037 38,214
30% 30.0% 28,528 28,524
20% 20.1% 19,019 19,150
10% 10.1% 9,509 9,558
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,410
Calibration 2     95,760
Calibration 3     96,802
ssj_ops@calibrated=96,281
100% 99.9% 96,281 96,210
90% 90.5% 86,653 87,176
80% 80.6% 77,025 77,579
70% 69.9% 67,397 67,333
60% 59.9% 57,769 57,716
50% 50.4% 48,140 48,527
40% 40.1% 38,512 38,642
30% 29.9% 28,884 28,775
20% 19.7% 19,256 19,014
10% 10.2% 9,628 9,800
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,694
Calibration 2     97,076
Calibration 3     97,806
ssj_ops@calibrated=97,441
100% 99.1% 97,441 96,567
90% 90.5% 87,697 88,206
80% 80.3% 77,953 78,205
70% 69.1% 68,209 67,369
60% 59.7% 58,465 58,189
50% 49.9% 48,720 48,648
40% 41.1% 38,976 40,056
30% 29.7% 29,232 28,946
20% 19.9% 19,488 19,417
10% 10.1% 9,744 9,807
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,314
Calibration 2     97,681
Calibration 3     97,064
ssj_ops@calibrated=97,372
100% 100.1% 97,372 97,504
90% 89.8% 87,635 87,401
80% 80.1% 77,898 78,027
70% 70.3% 68,161 68,466
60% 60.5% 58,423 58,903
50% 50.3% 48,686 48,959
40% 40.2% 38,949 39,170
30% 29.9% 29,212 29,076
20% 20.1% 19,474 19,579
10% 10.4% 9,737 10,101
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,430
Calibration 2     96,547
Calibration 3     95,551
ssj_ops@calibrated=96,049
100% 100.0% 96,049 96,082
90% 89.1% 86,444 85,545
80% 80.4% 76,839 77,200
70% 69.5% 67,234 66,781
60% 60.3% 57,630 57,915
50% 50.5% 48,025 48,516
40% 40.2% 38,420 38,583
30% 30.1% 28,815 28,881
20% 20.1% 19,210 19,320
10% 10.0% 9,605 9,583
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,301
Calibration 2     100,052
Calibration 3     100,183
ssj_ops@calibrated=100,118
100% 99.3% 100,118 99,393
90% 90.4% 90,106 90,498
80% 79.7% 80,094 79,755
70% 70.3% 70,082 70,334
60% 59.2% 60,071 59,223
50% 49.7% 50,059 49,769
40% 39.7% 40,047 39,729
30% 29.6% 30,035 29,628
20% 20.2% 20,024 20,216
10% 9.7% 10,012 9,729
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,529
Calibration 2     99,192
Calibration 3     98,853
ssj_ops@calibrated=99,023
100% 100.0% 99,023 98,993
90% 89.6% 89,120 88,714
80% 79.8% 79,218 79,031
70% 69.5% 69,316 68,824
60% 59.8% 59,414 59,256
50% 50.2% 49,511 49,738
40% 40.8% 39,609 40,409
30% 30.6% 29,707 30,285
20% 20.2% 19,805 20,021
10% 9.9% 9,902 9,805
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,884
Calibration 2     98,381
Calibration 3     97,869
ssj_ops@calibrated=98,125
100% 99.6% 98,125 97,769
90% 90.7% 88,312 89,026
80% 79.5% 78,500 77,970
70% 70.0% 68,687 68,661
60% 60.7% 58,875 59,539
50% 50.0% 49,062 49,066
40% 39.9% 39,250 39,127
30% 29.6% 29,437 29,025
20% 20.0% 19,625 19,648
10% 10.1% 9,812 9,904
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,057
Calibration 2     98,737
Calibration 3     98,471
ssj_ops@calibrated=98,604
100% 99.1% 98,604 97,696
90% 89.7% 88,744 88,431
80% 80.1% 78,883 78,960
70% 69.7% 69,023 68,748
60% 59.6% 59,162 58,814
50% 49.9% 49,302 49,249
40% 40.4% 39,442 39,824
30% 29.7% 29,581 29,297
20% 20.1% 19,721 19,848
10% 10.1% 9,860 9,920
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.113' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,943
Calibration 2     98,290
Calibration 3     97,971
ssj_ops@calibrated=98,131
100% 99.2% 98,131 97,299
90% 90.3% 88,318 88,643
80% 80.2% 78,504 78,726
70% 69.9% 68,691 68,607
60% 60.7% 58,878 59,546
50% 49.7% 49,065 48,816
40% 39.9% 39,252 39,130
30% 29.7% 29,439 29,150
20% 19.9% 19,626 19,540
10% 10.0% 9,813 9,817
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.114' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,978
Calibration 2     98,067
Calibration 3     97,855
ssj_ops@calibrated=97,961
100% 99.2% 97,961 97,130
90% 91.3% 88,165 89,467
80% 79.5% 78,369 77,879
70% 69.4% 68,573 67,999
60% 59.5% 58,777 58,302
50% 50.6% 48,981 49,596
40% 40.3% 39,184 39,480
30% 30.4% 29,388 29,762
20% 20.2% 19,592 19,789
10% 9.8% 9,796 9,579
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.115' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,667
Calibration 2     97,014
Calibration 3     97,649
ssj_ops@calibrated=97,332
100% 99.8% 97,332 97,114
90% 89.2% 87,598 86,854
80% 79.6% 77,865 77,515
70% 69.3% 68,132 67,495
60% 59.7% 58,399 58,073
50% 49.8% 48,666 48,508
40% 40.6% 38,933 39,485
30% 30.6% 29,199 29,767
20% 19.8% 19,466 19,277
10% 9.8% 9,733 9,562
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.116' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,538
Calibration 2     96,368
Calibration 3     97,120
ssj_ops@calibrated=96,744
100% 99.4% 96,744 96,209
90% 89.7% 87,069 86,822
80% 79.8% 77,395 77,191
70% 70.6% 67,721 68,279
60% 60.1% 58,046 58,122
50% 49.9% 48,372 48,268
40% 39.4% 38,698 38,136
30% 29.9% 29,023 28,890
20% 19.8% 19,349 19,133
10% 9.9% 9,674 9,625
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.117' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,510
Calibration 2     98,747
Calibration 3     100,127
ssj_ops@calibrated=99,437
100% 99.9% 99,437 99,322
90% 90.6% 89,493 90,123
80% 80.1% 79,549 79,601
70% 70.4% 69,606 69,989
60% 59.8% 59,662 59,499
50% 49.6% 49,718 49,295
40% 40.2% 39,775 39,941
30% 29.8% 29,831 29,587
20% 19.6% 19,887 19,445
10% 9.6% 9,944 9,580
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.118' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,779
Calibration 2     96,737
Calibration 3     95,627
ssj_ops@calibrated=96,182
100% 99.5% 96,182 95,730
90% 90.0% 86,564 86,546
80% 80.2% 76,946 77,183
70% 70.6% 67,327 67,871
60% 60.1% 57,709 57,796
50% 51.1% 48,091 49,150
40% 40.4% 38,473 38,865
30% 30.6% 28,855 29,476
20% 20.5% 19,236 19,698
10% 10.3% 9,618 9,925
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.119' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,979
Calibration 2     101,772
Calibration 3     101,260
ssj_ops@calibrated=101,516
100% 100.6% 101,516 102,123
90% 90.5% 91,364 91,861
80% 80.4% 81,213 81,609
70% 69.5% 71,061 70,564
60% 59.3% 60,910 60,221
50% 50.6% 50,758 51,346
40% 40.0% 40,606 40,601
30% 30.4% 30,455 30,837
20% 20.0% 20,303 20,254
10% 10.1% 10,152 10,279
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.120' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,861
Calibration 2     95,717
Calibration 3     95,129
ssj_ops@calibrated=95,423
100% 98.9% 95,423 94,365
90% 88.2% 85,881 84,172
80% 80.0% 76,338 76,349
70% 69.1% 66,796 65,978
60% 60.4% 57,254 57,601
50% 50.6% 47,711 48,295
40% 41.0% 38,169 39,077
30% 30.1% 28,627 28,700
20% 20.2% 19,085 19,276
10% 9.8% 9,542 9,392
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.121' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,730
Calibration 2     92,910
Calibration 3     92,339
ssj_ops@calibrated=92,624
100% 100.0% 92,624 92,592
90% 89.6% 83,362 82,970
80% 80.8% 74,100 74,863
70% 70.3% 64,837 65,086
60% 59.5% 55,575 55,109
50% 50.2% 46,312 46,481
40% 39.7% 37,050 36,764
30% 29.8% 27,787 27,646
20% 20.3% 18,525 18,817
10% 9.9% 9,262 9,212
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.122' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,867
Calibration 2     98,197
Calibration 3     97,867
ssj_ops@calibrated=98,032
100% 98.7% 98,032 96,802
90% 91.1% 88,229 89,274
80% 80.7% 78,426 79,078
70% 69.9% 68,622 68,500
60% 60.2% 58,819 58,989
50% 50.4% 49,016 49,426
40% 40.8% 39,213 40,038
30% 30.3% 29,410 29,700
20% 19.8% 19,606 19,436
10% 10.2% 9,803 10,046
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.123' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,976
Calibration 2     99,920
Calibration 3     99,274
ssj_ops@calibrated=99,597
100% 99.5% 99,597 99,129
90% 89.9% 89,637 89,549
80% 79.5% 79,678 79,229
70% 70.3% 69,718 70,007
60% 59.7% 59,758 59,462
50% 50.1% 49,799 49,852
40% 39.8% 39,839 39,633
30% 30.2% 29,879 30,033
20% 20.0% 19,919 19,950
10% 10.4% 9,960 10,321
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.124' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,375
Calibration 2     98,437
Calibration 3     99,487
ssj_ops@calibrated=98,962
100% 100.3% 98,962 99,293
90% 89.7% 89,066 88,779
80% 80.3% 79,170 79,471
70% 70.0% 69,273 69,306
60% 60.1% 59,377 59,479
50% 50.0% 49,481 49,462
40% 39.0% 39,585 38,583
30% 30.6% 29,689 30,275
20% 20.2% 19,792 19,946
10% 9.9% 9,896 9,812
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.125' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,564
Calibration 2     96,265
Calibration 3     96,134
ssj_ops@calibrated=96,200
100% 99.3% 96,200 95,533
90% 90.1% 86,580 86,633
80% 79.4% 76,960 76,419
70% 71.1% 67,340 68,370
60% 60.5% 57,720 58,227
50% 49.6% 48,100 47,752
40% 39.4% 38,480 37,859
30% 29.8% 28,860 28,632
20% 20.2% 19,240 19,467
10% 10.2% 9,620 9,858
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.126' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,524
Calibration 2     95,682
Calibration 3     95,813
ssj_ops@calibrated=95,748
100% 99.9% 95,748 95,645
90% 89.3% 86,173 85,544
80% 81.3% 76,598 77,891
70% 69.6% 67,023 66,619
60% 59.3% 57,449 56,787
50% 49.9% 47,874 47,812
40% 40.7% 38,299 38,937
30% 30.2% 28,724 28,877
20% 20.0% 19,150 19,133
10% 9.7% 9,575 9,308
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.127' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,108
Calibration 2     99,371
Calibration 3     98,470
ssj_ops@calibrated=98,920
100% 99.7% 98,920 98,647
90% 89.3% 89,028 88,325
80% 79.4% 79,136 78,510
70% 69.8% 69,244 69,029
60% 60.8% 59,352 60,118
50% 49.2% 49,460 48,704
40% 40.3% 39,568 39,829
30% 30.4% 29,676 30,112
20% 19.7% 19,784 19,454
10% 10.2% 9,892 10,083
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.128' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,788
Calibration 2     94,577
Calibration 3     95,544
ssj_ops@calibrated=95,061
100% 99.2% 95,061 94,344
90% 89.4% 85,554 84,958
80% 79.9% 76,048 75,983
70% 69.1% 66,542 65,668
60% 60.7% 57,036 57,676
50% 49.9% 47,530 47,462
40% 40.1% 38,024 38,121
30% 30.0% 28,518 28,492
20% 20.2% 19,012 19,167
10% 10.2% 9,506 9,650
Active Idle   0 0
Graph of results
