SPECpower_ssj2008 JVM Instance 'WIN-BMNFUHJ5AK0.032' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-BMNFUHJ5AK0.032' Performance Report

Hewlett Packard Enterprise ProLiant DL345 Gen10 Plus			ssj_ops@100% = 86,232
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Single Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Feb 23, 2021
Hardware Availability:	Mar-2021	Software Availability:	Jan-2021	Publication:	Mar 15, 2021
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

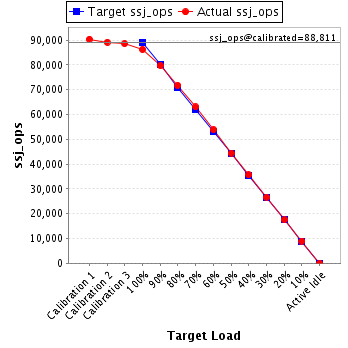

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			90,343
Calibration 2			89,094
Calibration 3			88,527
ssj_ops@calibrated=88,811
100%	97.1%	88,811	86,232
90%	89.7%	79,929	79,675
80%	80.8%	71,048	71,732
70%	70.9%	62,167	63,007
60%	60.6%	53,286	53,836
50%	50.0%	44,405	44,440
40%	40.1%	35,524	35,609
30%	30.1%	26,643	26,702
20%	19.7%	17,762	17,474
10%	10.1%	8,881	8,969
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant DL345 Gen10 Plus
Form Factor:	2U
CPU Name:	AMD EPYC 7763 2.45 GHz
CPU Characteristics:	64-Core, 2.45 GHz, 256MB L3 Cache
CPU Frequency (MHz):	2450
CPU(s) Enabled:	64 cores, 1 chip, 64 cores/chip
Hardware Threads:	128 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	128
# and size of DIMM:	8 x 16384 MB
Memory Details:	16 GB 2Rx8 PC4-3200AA-R; slots 1, 3, 5, 7, 10, 12, 14 and 16 populated
Power Supply Quantity and Rating (W):	1 x 800
Power Supply Details:	HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive:	1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763.1697)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode), version 11.0.8
JVM Command-line Options:	-server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity:	start NODE [0-7] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000]
JVM Instances:	64
JVM Initial Heap (MB):	1700
JVM Maximum Heap (MB):	1700
JVM Address Bits:	64
Boot Firmware Version:	A43 v2.40 (02/15/2021)
Management Firmware Version:	2.40 Feb 07 2021
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB4598230

Boot Firmware Settings

BIOS Platform Configuration (RBSU):

BIOS Serial Console Port: Disabled
USB Support: All USB Ports Disabled
Determinism Control: Manual
Performance Determinism : Power Determinism
Memory Interleaving Mode: Disabled
Maximum Memory Bus Frequency: 2400 MHz
DRAM Controller Power Down: Enabled
NUMA memory domains per socket: Four memory domains per socket
Last-Level Cache (LLC) As NUMA Node: Enabled
Data Fabric C-State Enable: Force Enabled
C-State Efficiency Mode: Enabled
AMD Core Performance Boost: Disabled
AMD Fmax Boost Limit Control: Manual
AMD Fmax Boost Limit: 2450
L1 Stream HW Prefetcher: Disabled
L2 Stream HW Prefetcher: Disabled
Maximum PCI Express Speed: PCIe Generation 1.0

Management Firmware Settings

See SUT Notes

System Under Test Notes

Benchmark started via ssh
SPECpower_ssj.props input.load_level.number_warehouses set to 256 due to a known inconsistency in processor reporting with this Java version
OS tunes:

Windows Power Options = Balanced

Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
PCI Express Management = Maximum Power Savings
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 100
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Applied protection against speculative execution

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	6,578,504	1,694
		Payment	6,578,502
		Order Status	657,851
		Delivery	657,852
		Stock Level	657,850
		Customer Report	6,578,505
Calibration 2		New Order	6,483,181	1,694
		Payment	6,483,183
		Order Status	648,319
		Delivery	648,319
		Stock Level	648,318
		Customer Report	6,483,184
Calibration 3		New Order	6,441,267	1,694
		Payment	6,441,278
		Order Status	644,127
		Delivery	644,126
		Stock Level	644,126
		Customer Report	6,441,271
100%	97.1%	New Order	6,272,247	1,694
		Payment	6,272,249
		Order Status	627,225
		Delivery	627,226
		Stock Level	627,225
		Customer Report	6,272,250
90%	89.7%	New Order	5,794,803	1,694
		Payment	5,794,797
		Order Status	579,479
		Delivery	579,480
		Stock Level	579,481
		Customer Report	5,794,800
80%	80.8%	New Order	5,216,936	1,694
		Payment	5,216,930
		Order Status	521,693
		Delivery	521,694
		Stock Level	521,693
		Customer Report	5,216,932
70%	70.9%	New Order	4,582,715	1,694
		Payment	4,582,716
		Order Status	458,272
		Delivery	458,273
		Stock Level	458,273
		Customer Report	4,582,715
60%	60.6%	New Order	3,915,554	1,694
		Payment	3,915,555
		Order Status	391,554
		Delivery	391,555
		Stock Level	391,556
		Customer Report	3,915,557
50%	50.0%	New Order	3,233,003	1,694
		Payment	3,233,004
		Order Status	323,302
		Delivery	323,301
		Stock Level	323,302
		Customer Report	3,233,005
40%	40.1%	New Order	2,589,884	1,694
		Payment	2,589,879
		Order Status	258,989
		Delivery	258,989
		Stock Level	258,989
		Customer Report	2,589,881
30%	30.1%	New Order	1,942,120	1,694
		Payment	1,942,125
		Order Status	194,212
		Delivery	194,212
		Stock Level	194,212
		Customer Report	1,942,119
20%	19.7%	New Order	1,270,901	1,694
		Payment	1,270,901
		Order Status	127,091
		Delivery	127,089
		Stock Level	127,091
		Customer Report	1,270,901
10%	10.1%	New Order	652,291	1,694
		Payment	652,292
		Order Status	65,228
		Delivery	65,229
		Stock Level	65,230
		Customer Report	652,291
Active Idle		New Order	0	1,694
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
